• Model NO.：QT4,6,8,10
• Tolerance：0.5mm
• Condition：New
• Product：Hollow Brick,Solid Brick,Pavers
• Automation：Full Automatic,Manual
• Brick：Hollow,Solid,Paver
• Viberation：Table Viberation
• Molding Way：Hydraulic Pressure
• Transport Package：Package by Wooden Chamber or Plastic Roller
• Specification：ISO,CE
• Trademark：Sunite
• Origin：Shandong Province, China
• HS Code：84748020
• Production Capacity：Different Models Produce Different Capacity a Day

Basic Info.

Model NO. QT4/6/8/10 Tolerance 0.5mm Condition New Product Hollow Brick/Solid Brick/Pavers Automation Full Automatic/Manual Brick Hollow/Solid/Paver Viberation Table Viberation Molding Way Hydraulic Pressure Transport Package Package by Wooden Chamber or Plastic Roller Specification ISO/CE Trademark Sunite Origin Shandong Province, China HS Code 84748020 Production Capacity Different Models Produce Different Capacity a Day

Product Description

Introduction:

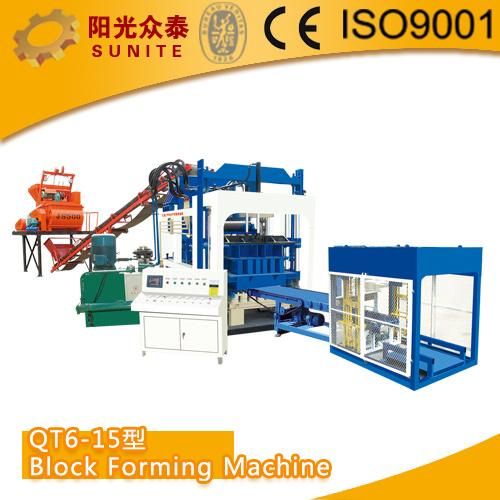

1.Using Germany Siemens PLC control system and Siemens Touch Screen, it is easily operated and has the low failure rate. It has the trouble diagnosis and warning ,easily finds the problem and guarantee the regular work .The safety logic control system has the self-locking function , avoiding the wrong operation of machine .It also can realize the remote control by the phone to solve the problems.
2.Using double high-dynamic Proportional to automatically adjust the oil flow and pressure .So it can raise the stability and improve the using lifetime.
3.360°Multi- Shaft rotating and compulsory feeding, the cart can guarantee the fast speeding .This uniform feeding is applicable for different kinds of raw materials and moulds .
4.Use heat treatment on moulds and main parts of the machines. It has the heavy duty machine structure and wear resistant .So the using lifetime of the machine will be 50% longer than the common.

Application:

Concrete block, solid/hollow/cellular masonry productions, paving stones with or without face mix , garden and landscaping productions, slabs, edger, curbstones ,grass block ,slope blocks ,interlocks, etc.


Raw Materials:
Crushed stone, sand, cement, lime, fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes.

The technical parameter:

Cycle Time	15-20S	Vibration Force	100KN
Total Power	52KW	Machine Size	8100 x4450 x 3000mm  9600x4450x 3000mm
Motor Frequency	50HZ	Total Weight	15T
Pallet Size	1250 x 850 x (8-35)mm



 The kind of bricks:

Block Specification(mm)	Production per Shift(pcs)	Production per Mould(pcs)
390 x 190 x 190	14400 - 19200	10 (pcs)
240 x 115 x 53	77760 - 103680	54 (pcs)
240 x 115 x 90	34560 - 51840	27 (pcs)
200 x 100x(60-80)mm	40320 - 50000	35 (pcs)

The configuration of concrete block making machine :
All the motors is Siemens,PLC is Siemens,All the switch is Omron,The hydraulic system is Calyca.

Aftersale Service:
Our engineers will go abroad  to install machines, commissioning, and train workers.
