Metal Floor Deck Roll Forming Machine Steel Decking Sheet Making Machinery
Cangzhou Nexus Machinery Co., Ltd.- Warranty：1 Year
- Tile Type：Galvanized Steel
Base Info
- Model NO.：NM954
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Floor
- Transmission Method：Electric
- Product Name：Metal Floor Deck Roll Forming Machine
- Raw Material：Gi Steel, PPGI Steel
- Thickness Range：0.8-1.5mm
- Machine Power：22kw+5.5kw
- Work Speed：10-15m,Min
- Machine Weight：12 Tons
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：12500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：Cangzhou, China
- HS Code：8455221000
- Production Capacity：30 Sets , Month
- Package size per unit product：1800.00cm * 150.00cm * 160.00cm
- Gross weight per unit product：12000.000kg
Description
No.Type specification 1 Row Material Type Color steel plate, galvanized plate, aluminum plate Feeding width 1220mm Thickness 0.8-1.2 mm Effiect width 1000mm 2 Main body Forming roller station 26 Stations Diameter of shaft 90mm Shaft material 40Cr, Numerical Control Machining To HRC28-32, Then Polishing and Hard Plating Roller material GCr15# Steel , Heat Treatment to HRC58-60,Then Polishing and Hard Plating frame 400mm H Steel Frame thickenss 20mm Working speed 8-12 m/min Size (L*W*H) About 15200*1850*1510mm Weight About 16.5 tons 3 Power Motor power 11KW+11KW Hydraulic power 5.5KW Voltage 380V 50Hz 3phases or Customerization Drving Way By Chain 4 PLC Contro System Language English and Chinese Brand Of PLC Delta brand (Touch Screen ) Operation Manual and Automatic (Two Type) Transducer Delta brand 5 Cutting Device Cutting Type Hydraulic Cutting Blade of Cutting Cr12 , quenching treatment Cutting Tolerance + -1mm
4. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

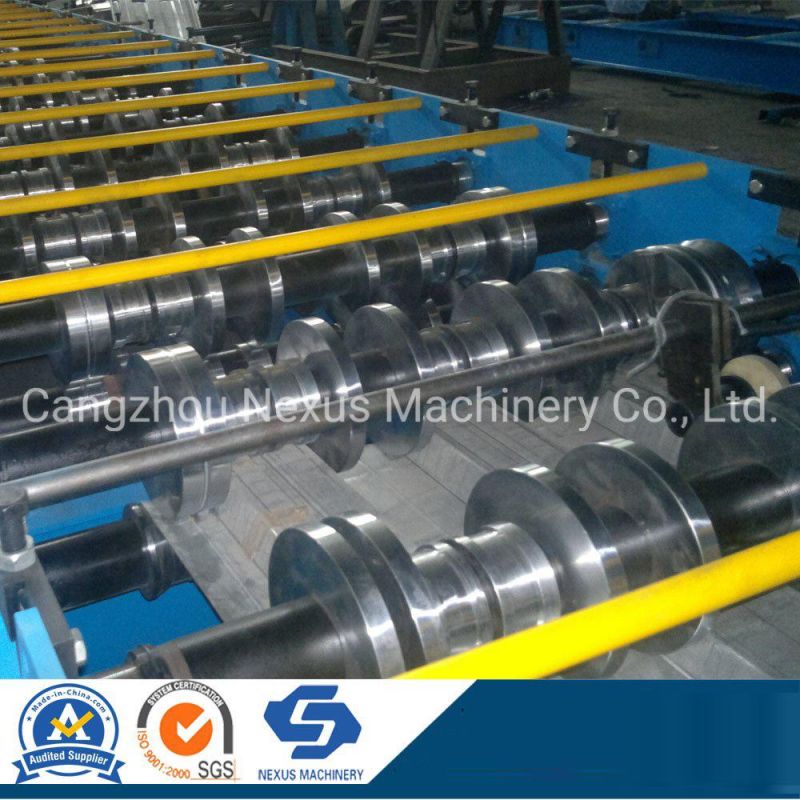

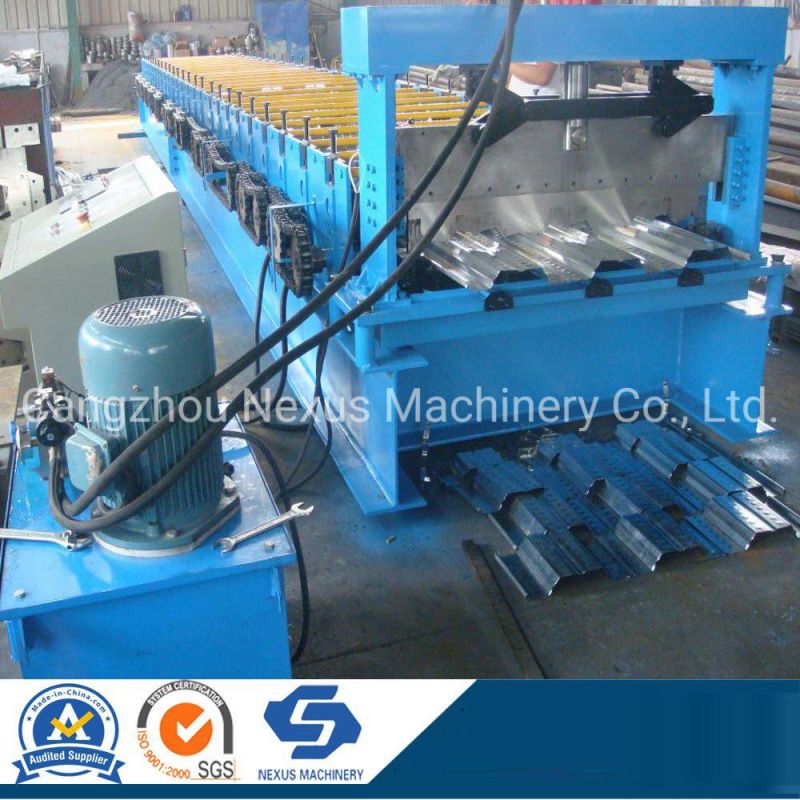

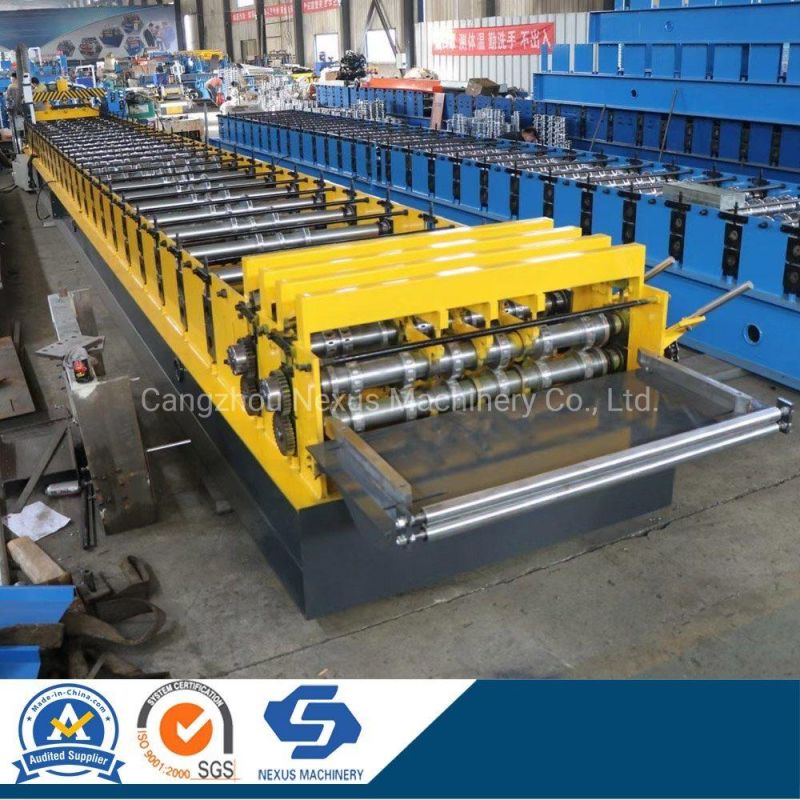

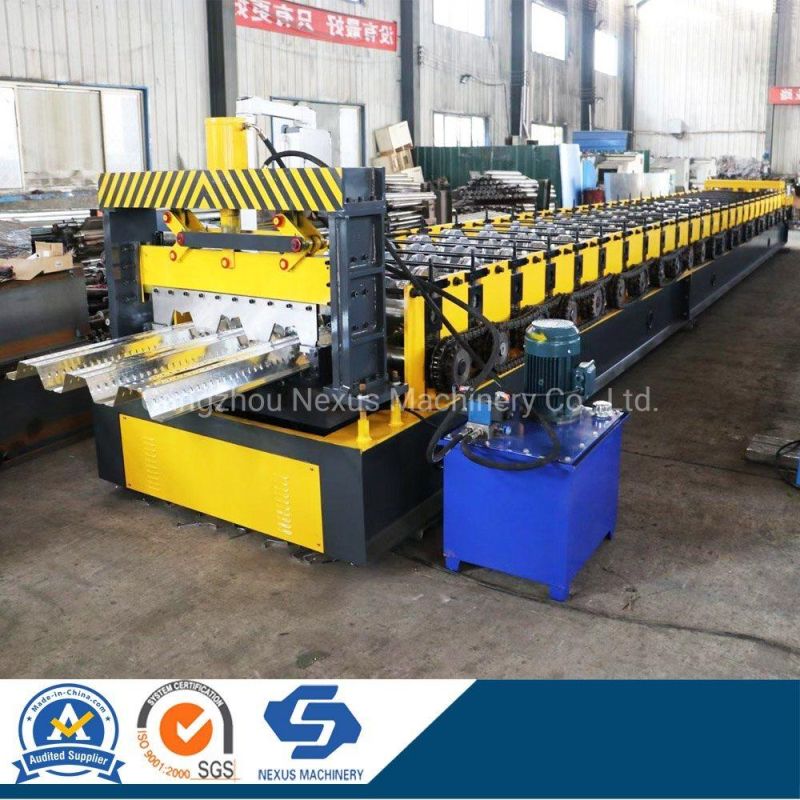

5. Photos of Metal Floor Deck Roll Forming Machine Steel Decking Sheet Making Machinery for Reference:
6. Why Choose US?
1. More than 20 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
Welcome to contact us for knowing more details about the product!!!
