• Model NO.：Txem-250c
• Voltage：380V
• Motor Power：6.6kw
• Cutting Motor Rotary Speed：2800r ,Min
• Operation Air Pressure：0.5-0.8MPa
• Air Consumption：80L,Min
• Journey of The Worktable：0~1050mm
• Weight：About 500kg
• Motor Setting Travel：0-85mm
• Max Processing Hole Size：40mm
• Transport Package：Wooden Packing
• Specification：2425*1510*1640mm
• Trademark：Taixi
• Origin：China
• Production Capacity：1000,Year

Basic Info.

Model NO. Txem-250c Voltage 380V Motor Power 6.6kw Cutting Motor Rotary Speed 2800r /Min Operation Air Pressure 0.5-0.8MPa Air Consumption 80L/Min Journey of The Worktable 0~1050mm Weight About 500kg Motor Setting Travel 0-85mm Max Processing Hole Size 40mm Transport Package Wooden Packing Specification 2425*1510*1640mm Trademark Taixi Origin China Production Capacity 1000/Year

Product Description

 Aluminum Windows Milling Drilling Machine

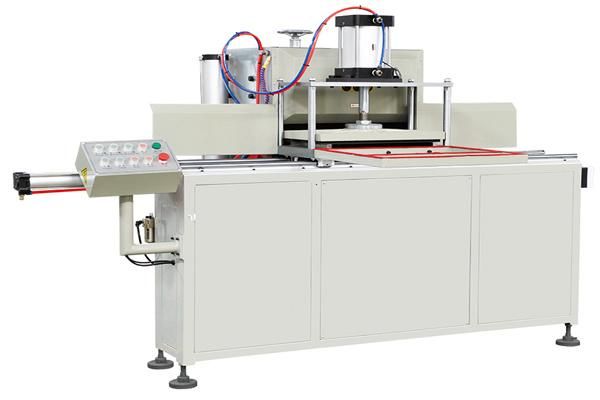

Aluminium window End Milling Machine  TXEM-250C
Specification:
Used for milling the mullion/transom and reinforced mullion
Large capacity milling, multi-pieces profile milling in one cycle.
Universal milling blades can be adjusted in up/down, left/right directions and not made extra, which to fit for different processing requirement and ensure the efficient working.
Five blades work together for the reinforced mullion in one cutting/milling cycle.
Large tools with high and stable milling speed for guarantee the working quality.
Feeding system controlled by servo motor keep the smooth milling.
Technical Parameter:

Power supply:	380V/50HZ
Motor power:	6.6KW
Motor rotational speed:	2800r /min
Operation air pressure:	0.5-0.8MPa
Main shaft diameter:	ø 32mm
Milling cutter diameter:	ø 250mm
Processing roughness:	Ra12.5µm
Motor setting travel:	0-85 mm
Max processing hole size:	40 mm
Contour dimension:	2425×1510×1640mm
Weight :	About 500kg

Aluminium window End Milling Machine  TXEM-250B(4 Knives)


Specification:
Used for milling the mullion/transom and reinforced mullion
Large capacity milling, multi-pieces profile milling in one cycle.
Universal milling blades can be adjusted in up/down, left/right directions and not made extra, which to fit for different processing requirement and ensure the efficient working.
Five blades work together for the reinforced mullion in one cutting/milling cycle.
Large tools with high and stable milling speed for guarantee the working quality.
Feeding system controlled by servo motor keep the smooth milling.

Technical Parameters:

Power supply:	380V/50HZ
Motor power:	6.6KW
Motor rotational speed:	2800r /min
Operation air pressure:	0.5-0.8MPa
Main shaft diameter:	ø 32mm
Milling cutter diameter:	ø 250mm
Processing roughness:	Ra12.5µm
Motor setting travel:	0-85 mm
Max processing hole size:	40 mm
Contour dimension:	2425×1510×1655mm
Weight :	About 450kg

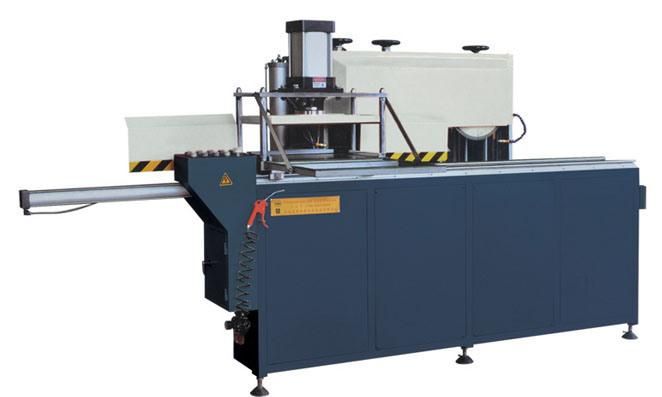

Aluminium window End Milling Machine  TXEM-250A
 Product Details:
End milling Machine TXEM-250A can be used for end milling of the profiles for aluminum doors and windows.With a large work bench and long cutting stroke, it can mill 6-10 profiles with one operation.With adjustable cutting tools,it is unnecessary to replace milling cutters in case of changing different profiles so as to save the production period and cost of cutting tools. Multiple sets of cutting tools can work simultaneously or separately based on different profiles.With bigger diameter of cutting tools,the quality of machining surface is better.The hydraulic damping cylinder is used to push the feed of cutting tools to enable more stable operation.The thickened clamping plate can prevent the profiles from deforming.

Features:
Used for milling the aluminum mullion/transom and reinforced mullion.
Large capacity milling, multi-pieces profile milling in one cycle.
Universal milling blades can be adjusted in up/down, left/right directions and not make extra, which to fit for different processing requirement and ensure the efficient working.
Can work for the reinforced mullion in one cutting / milling cycle.
Large tools with high and stable milling speed guarantee the working quality.

Technical Parameter:

Power supply	380V 50HZ
Motor power	8.8KW
Cutting motor rotary speed	2800r /min
Operation air pressure	0.5-0.8MPa
Air consumption	80L/min
Milling blade specification	φ250mm×φ32mm
Journey of the worktable	0~1050mm
Milling height	Max. 85mm
Milling deepness	Max.40mm
Dimension	3480×970×1450mm
Cutting surface roughness	Ra12.5µm
Weight	600kg

  Aluminum Window End Milling Machine TXME-200A

 Specification:
Used for aluminum mullion/transom end-milling for fitting different frame.
Milling the notch and step face of mullion/transom profile.
Milling angle adjustable from 35°to 90°by angle ruler.
Feeding system with linear bearing, ensure the accurate and stable working.
Changeable cutters can be met various profiles requirement.
The saw blade need made according to the mullion, and when you change the mullion , need make another saw blade.
Technical Parameter:


Power supply:	380V/50HZ
Motor power:	1.5KW
Motor rotational speed:	2800r /min
Operation air pressure:	0.5-0.8MPa
Air consumption:	80L/min
Main shaft diameter:	ø 32mm
Milling cutter diameter:	ø 160mm
Processing roughness:	Ra12.5µm
Processing dimension:	H-90mm  W-200mm
Dimension:	730×800×1150mm
Weight :	About 270kg

Was founded in January 2008. The company is headquartered in Jinan, a beautiful spring city, with convenient
transportation and superior geographical location. With a registered capital of 10 million yuan, the company has invested
in the construction of a 20000 square meter standardized factory building, which has passed the acceptance of the
national safety assessment and environmental assessment, and meets the requirements of the state for environmental
assessment, safety inspection and fire control. The company has 89 employees, including 21 employees with senior
technical titles, 10 invention patents and new use patents, 8 works reqistration, 21 various certifications and tests.
It is a high-tech manufacturing enterprise integrating R& D, production, sales and service art tuyere FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral carton and wooden case. We also can pack the goods
according to your instruction including out package and kinds of labels.

Q2. How about your delivery time?
A: Generally, it will take 5 to 7 working days after receiving your advance payment. The specific
delivery time depends on the items and the quantity of your order.

Q3.What is your terms of payment?
A: Usually do T/T, L/C or Western Union,
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q5. Do you test all your goods before delivery?
A: Yes, but you will be always welcome to our company to inspect the goods before delivery
