Building Material Making Machinery

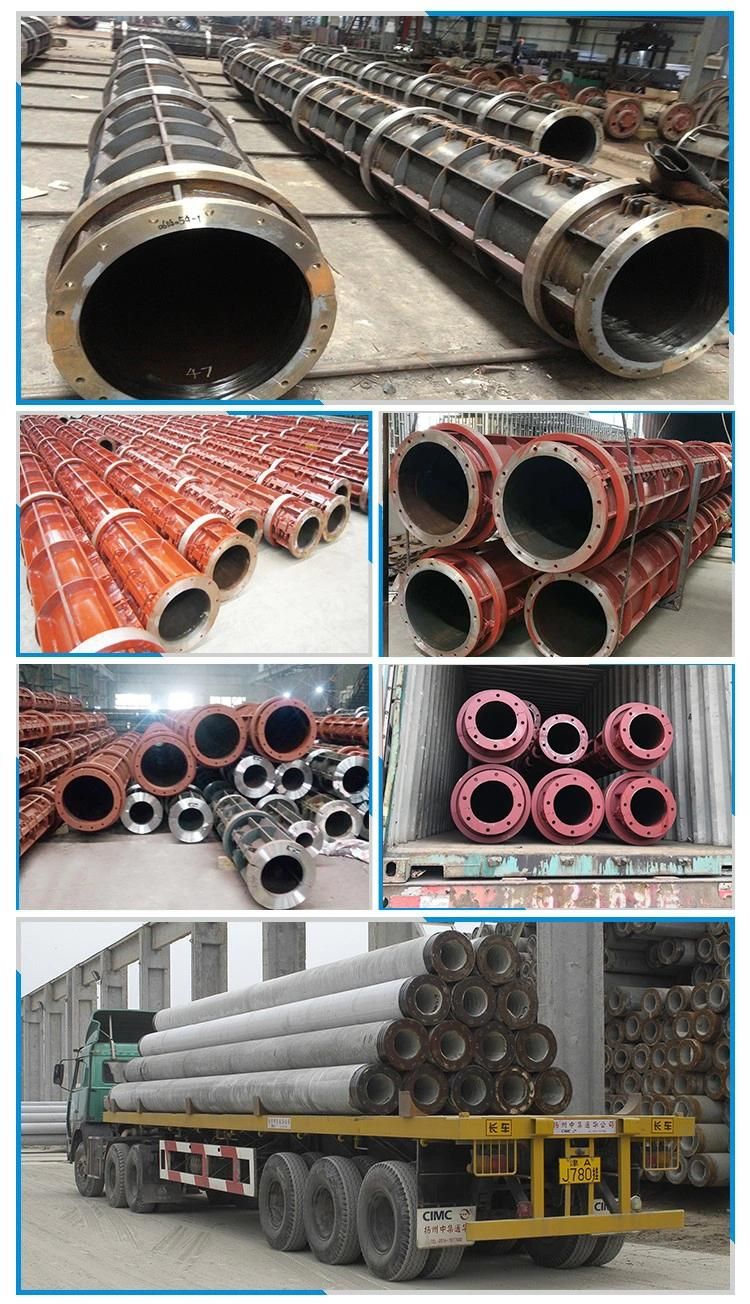

Reinforced Prestressed High Precast Concrete Pile Mould

Taizhou Xurui Machinery Manufacturing Co., Ltd.
  • Pipe Material:Concrete
  • Condition:New
  • Customized:Customized
  • Application:Industry
  • Type:Concrete Pile Mould
  • Length:7-15m

Base Info

  • Model NO.:300-1000mm
  • Diameter:300-1000mm
  • Automatic:Yes
  • Wheelbase:2000mm
  • Transport Package:Nude Package
  • Specification:300-1000mm
  • Trademark:Amitycare
  • Origin:China -Jiangsu
  • HS Code:8480600000
  • Production Capacity:50set,Month

Description


Inside Ddameter of small end (mm)
Wheelbase(mm)
Wheel Diameter(mm)
Length(m)
300
2000
510
7-11
350
2000
610
7-11
400
2000
610
7-12
450
2000
710
7-12
500
2000
710
7-12
550
2000
810
7-12
600
2000
810
7-15
800
2000
1010
7-15
1000
2000
1210
7-15
Reinforced Prestressed High Precast Concrete Pile Mould

Product Advantage

1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing
     high stress steel wire can save 40%~69%).

2. Crack resistance can increase about 3~5 times.

3. Rigidity increases 1~3 times.

4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).

5. Good durability, can delay the existence and expansion of cracks.

6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.

Reinforced Prestressed High Precast Concrete Pile Mould

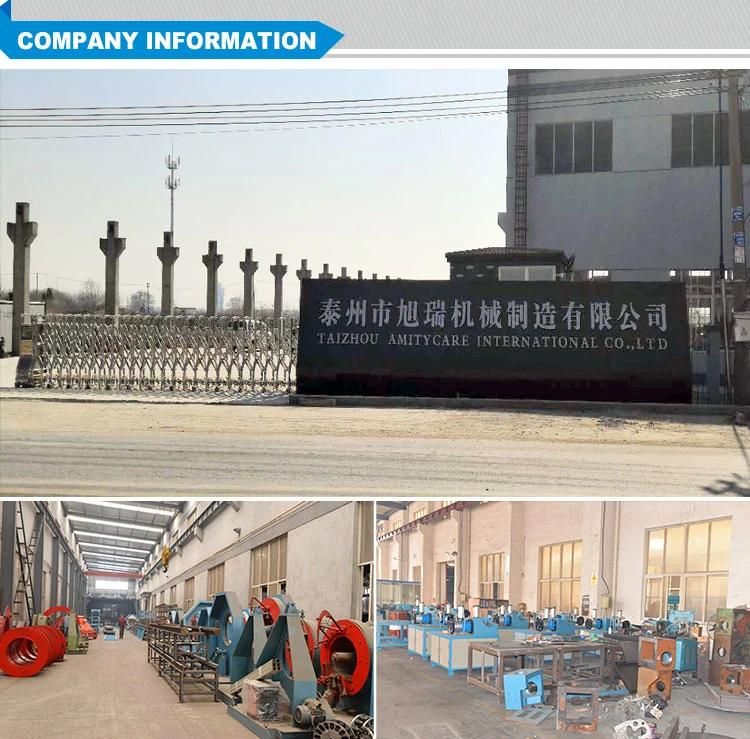

Taizhou amity care international co.,ltd is regarded as the foreign trade department of Taizhou xurui machinery
manufacturing co;, all abroad (overseas) tasks and international businesswill be undertaken by "amitycare ".

We are manufacturers of cage welding machine(concrete pile,pole,pipe )centrifugal spinning machine
,concrete mould(pile ,pole,pipe) ,ring bending machine,heading machine ,endplate, ,tension jack
for pre-stress .feeding machine
for different capacity welding machine ,steel wire Processing machine etc.

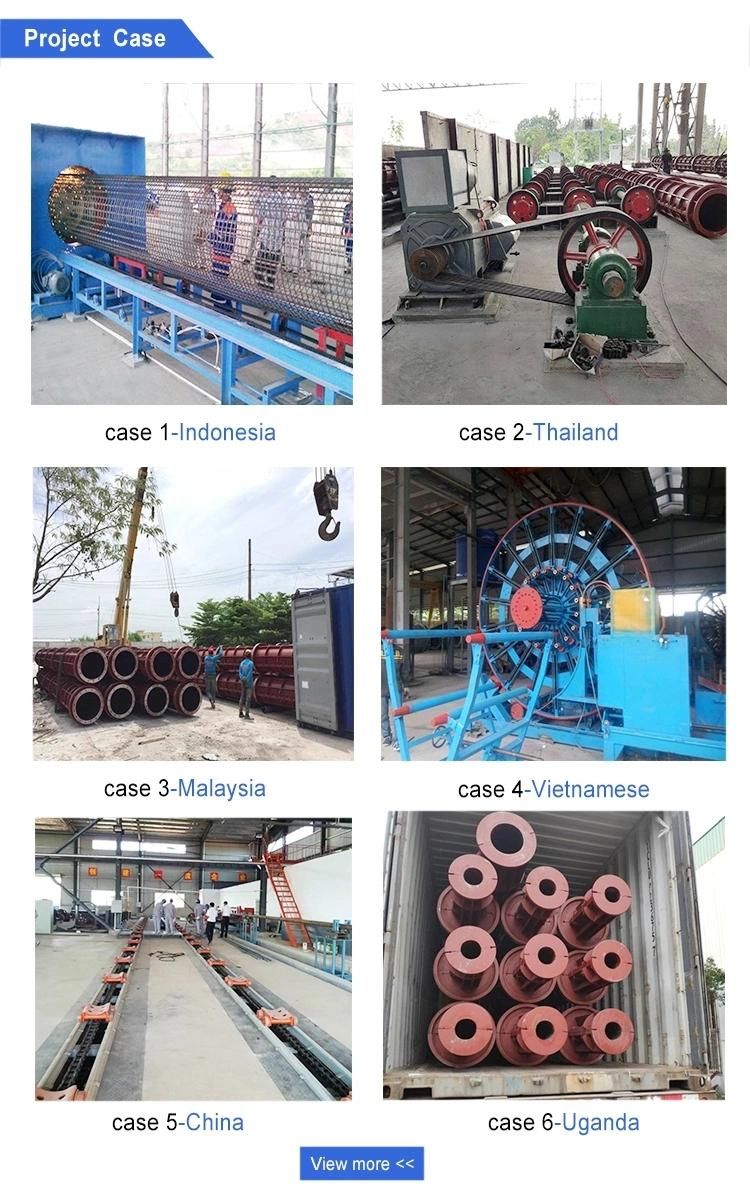

we also can supply setting up a new factory full line service . We have already exported various kinds of
concrete pile , pole and pipe concern making machines to overseas countries and regions such as indonesia,
parkistan,Vietnam ,myanmar ,korea,malaysia ,south african etc .Mideast, Southeastern Asia.
