• Model NO.：HKY-Double layer roll forming machine
• Specification：9.2*1.5*1.4M
• Trademark：HKY
• Origin：China
• HS Code：8474801000
• Production Capacity：500sets,Year

Basic Info.

Model NO. HKY-Double layer roll forming machine Specification 9.2*1.5*1.4M Trademark HKY Origin China HS Code 8474801000 Production Capacity 500sets/Year

Product Description

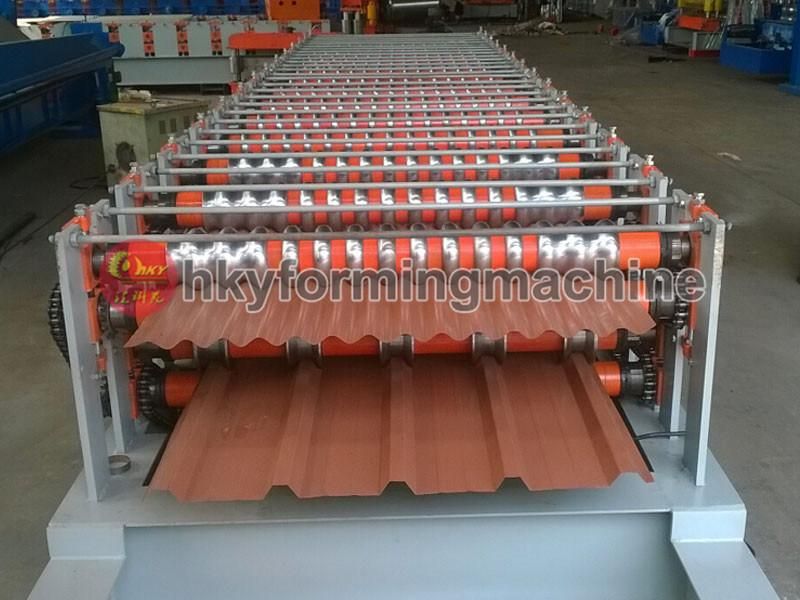

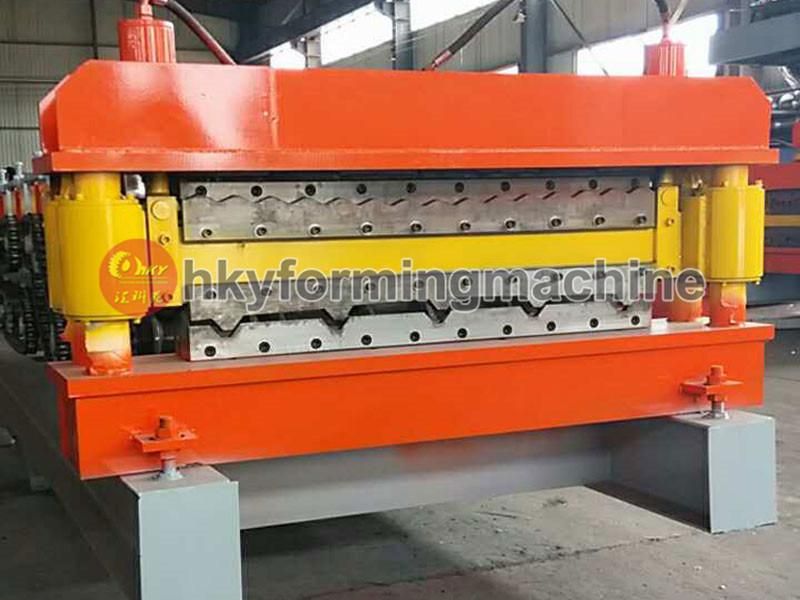

Steel tile double layer roll forming machine, double-deck roll forming machine







Components of whole set roll forming machine:
The De-coiler
Coil Sheet Guiding and Adjusting Equipment
Film Covered Device
Main Roll Forming System
Post-Cutting Device
Hydraulic Station
PLC Control System
Support Table

Technical parameters of export standard roll forming machine:

1 Main motor power: 5.5KW
2 Hydraulic station power: 4KW
3 Hydraulic oil pump: CB-E310
4 Sprocket: P-25.4
5 Roller station: 16
6 Yield strength: 32MPa
7 Diameter of principal axis: 80MM (add a key between axle and roller to fix)
8 Material of roller: C45steel hard chrome plating
9 Processing speed: 8m/min(we can do 15m/min also, but we recommend 8m/min)
10 Thickness: 0.2-1.0mm
11 Installation dimension about(L*W*H): 9.2*1.5*1.4M
12 Total weight: About 6.6T
13 Equipment parts includes: Decoiler (capacity 8t), roll forming system, hydraulic system, PLC frequency conversion control system, the sensor of length, cutting system.
14 The temperature range of working line: -35--50

We also can design and manufacture as per your request!
