Qtj4-35 Automatic Hollow Concrete Brick Making Machine From China

Shandong Dongfengshuanglong Machinery Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Semiautomatic
  • Type：Vibration Molding
  • Cycle Time：35s
  • Finished Products：Bricks

Base Info

  • Model NO.：QTJ4-35
  • Automatic：Semi Automatic
  • Color：Customized
  • Raw Material：Concrete
  • Model：Qtj4-35
  • Scale：Small
  • Power：7.5kw
  • Vibrating：Table Vibrating
  • Weight：1000kg
  • Transport Package：Nude Packing
  • Specification：2050*1660*1900mm
  • Trademark：Dongfeng
  • Origin：Linyi, Shandong, China
  • HS Code：8474802000
  • Production Capacity：500sets,Month

Description

Molding pieces  390mm×190mm×190mm   4pcs/mold
  390mm×240mm×190mm   3pcs/mold
  390mm×120mm×190mm   6pcs/mold
  240mm×115mm×53mm  21pcs/mold

 (Note:The mold according to your requirement)Molding cycle  35s/timeVibration frequency

frequency  2800rpmProductivity  2000-2500 pcs/day(count by quantity of per mold)Exciting power  28KNPower  9.7KW(Total power in the next page)Vibration form  Platform vibrationPallet size  850mm×460mm×40mm(30)mm

Structure:

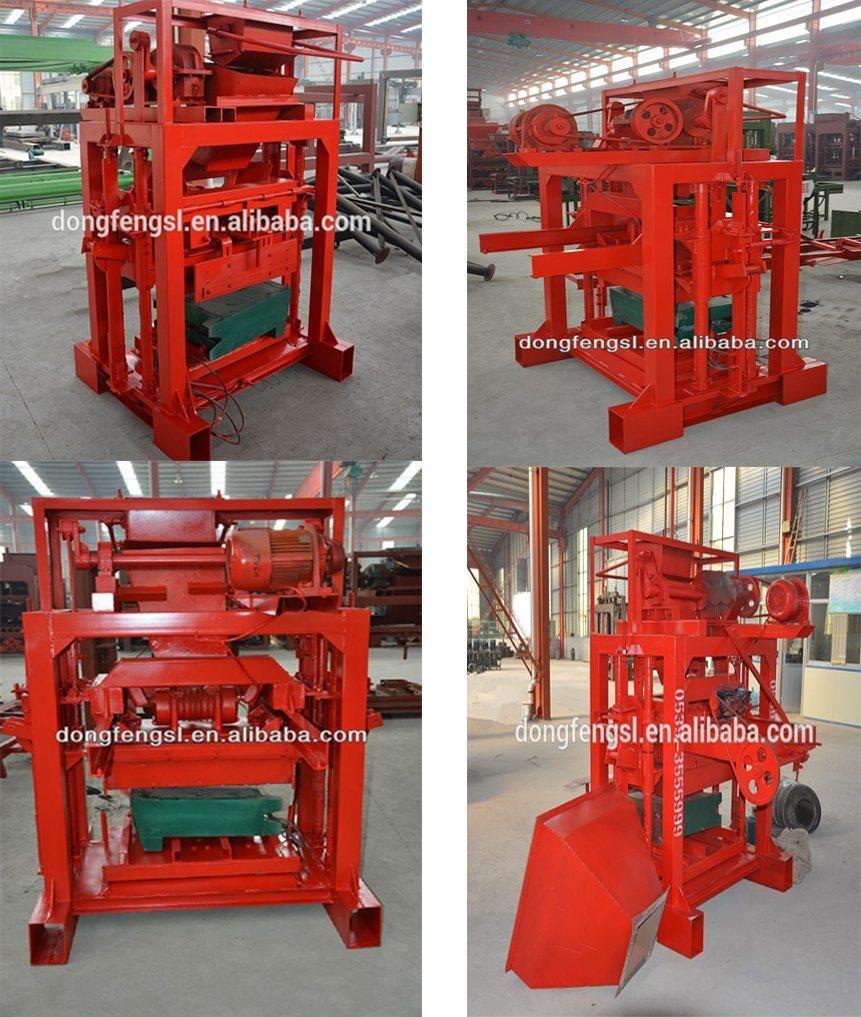

Qtj4-35 Automatic Hollow Concrete Brick Making Machine From China

QTJ4 - 35 type electric block forming machine, the host can be operated independently, also can be equipped with a belt conveyor, a pipeline
mixer. The host comprises a vibration source, transmission, lifting, pushing, hopper, die electric control box system.

Lifting system: compose of cycloid pin motor, sprockets, lift arm, axle sleeve and hanging pin, positioning pin.
the cycloid pin motor with 1.5 kilowatt driven spindle at both ends of crank arm. Lift and lower the mold in parallel driven by the lift arm, The upper mold and beam hanging by both sides, balanced in the positioning plate. Hanging from the upper mold.make upper mold leave the molding box smoothly.
Vibration system: under vibration compose of two set vibrator combination with 3KW. vibration above formed by a 1.5KW vibrator up and down.


Raw material :

QTJ4 - 35 type block machine include normal concrete and lightweight concrete raw materials, can use river sand, mechanism sand, gravel, crushed stone, slag, stone and other materials. Meanwhile,it can also use cinder, fly ash, pumice stone, ceramic, perlite, shale and other materials, wide suitability, as long as the raw materials with the power electricity, it can be produced.


Foundation Drawing:

Qtj4-35 Automatic Hollow Concrete Brick Making Machine From China
