• Model NO.：HM1-20M
• Controller：Manual Valve
• Engine Type：Diesel Engine
• Hydraulic Pressure：20t
• Material：Clay or Stone Dust
• Oil Cylinder Size：80mm
• Moving Type：Wheel
• Pump Type：Gear Pump
• Block Size：300X150X100

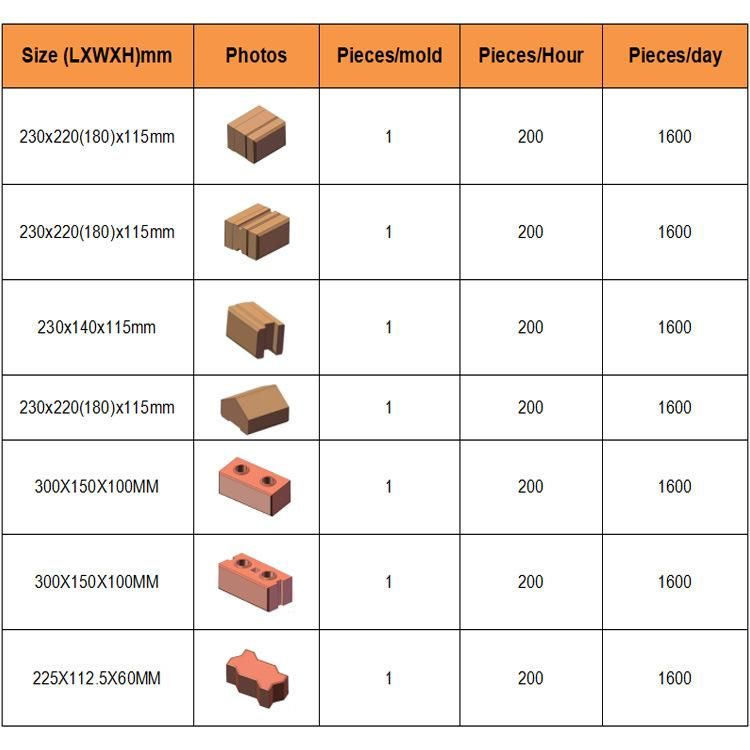

• Capacity：2500 Pieces Per Day
• Operation：Manual
• Weight：1000 Kgs
• Working Hydraulic Pressure：25MPa
• Machine Model：Hm1-20m
• Mixer Type：Pan Mixer
• Horse Power：8HP
• Transport Package：Nude Packing
• Specification：2X1.4X1.6
• Trademark：SHENGMING
• Origin：China
• HS Code：84748020
• Production Capacity：100 Sets Per Year

HM1-20m is a newly developed diesel hydraulic brick making machine. This machine uses the excellent performance single cylinder air-cooled diesel engine as the power, through the gear pump drives the oil pressure device of the equipment, and then the clay brick is made. The diesel engine adopts the latest technology, with strong power and low energy consumption.
The hydraulic components of the machine are from well-known brands, which can ensure the durability of the hydraulic system under the condition of providing sufficient pressure.
The body adopts mobile design, can adapt to a variety of complex road conditions, is very popular in the African market. At the same time, mobile design is also very suitable for the needs of scattered projects.
The selection of raw materials for machines is very wide. Clay or stone powder can be used as raw materials. Especially in the African market, a large amount of laterite is very suitable for making chain bricks with this equipment.
The machine can change different molds through customs to realize the production of various brick types, which is simple and convenient, and can truly realize the multi-purpose of one machine.

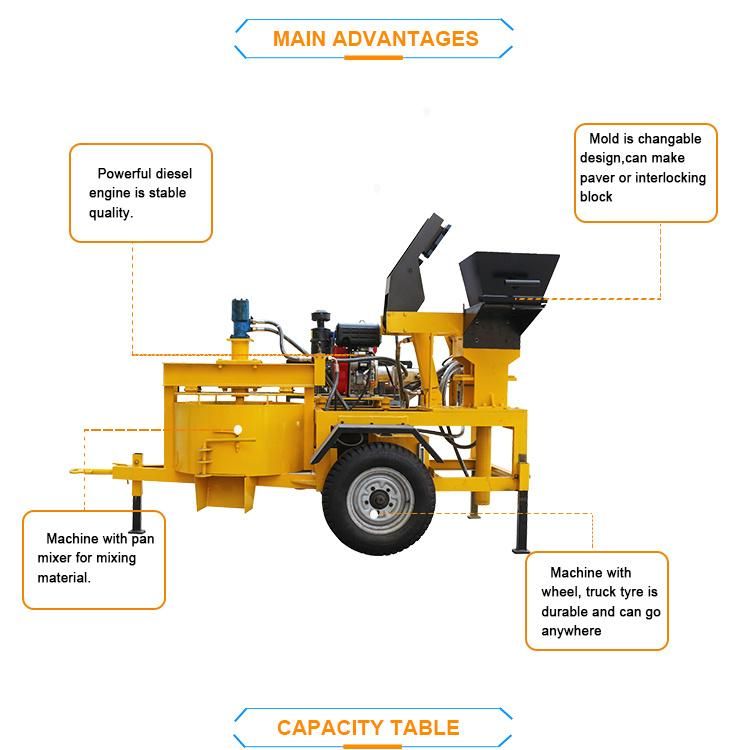

HM1-20, as a hydraulic equipment designed for clay brick, has many advantages
1. The diesel engine of the whole machine is used as power and does not need any power
2. Pure hydraulic system is used to make bricks with high pressure and good strength
3. Design of heavy-duty wheel to adapt to different complex road conditions
4. Replaceable mould to realize multi-purpose of one machine
5.Trailer hook design, the equipment can be moved for a long distance

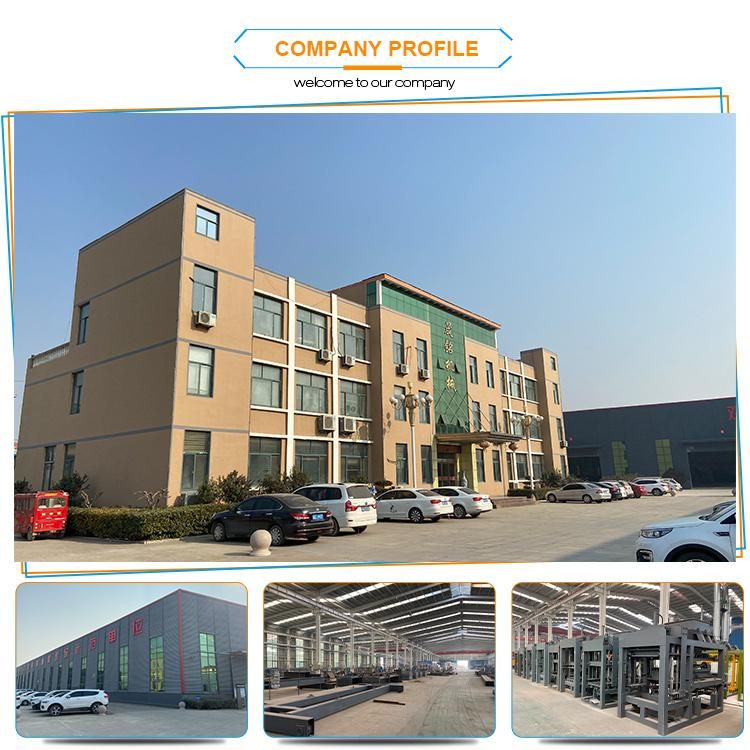

Shengming machinery has focused on block machine design, manufacturing and sale for more than 10 years.We not only provide brick making machines, but also provide one-stop procurement services, including installation, after-sales guidance, etc., to truly create value for customers.

our main product including concrete brick machine,block machine,clay interlocking brick machine,hydraulic press brick machine,concrete batching plant,concrete mixer and other construction equipment.

So far, Shengming Machinery has been exported to more than 100 countries and regions all over the world. Distributed in Asia, Southeast Asia, Oceania, Central and South America, the Middle East and Africa.

Our customers rely on ShengMing to provide not only equipment, but a business solution.With the professional view,we will give the best suggestion on any block machine project all over the world."one-stop" purchase is available here,warmly welcome win-win cooperation in future.Until now ,shengming machinery has exported to more than 100 countries and areas.our machine high quality earn more reputation from all over the world. we hope can provide more value machine for client and give more help for construction field. if you have any question about our machine, please consult me and we will give you best suggestion
FAQ:
Q: what is the material for this machine ?
A: you can use lateriate or other clay material or concrete material, plus a little cement

Q: How many kinds of block can be made by this machine ?

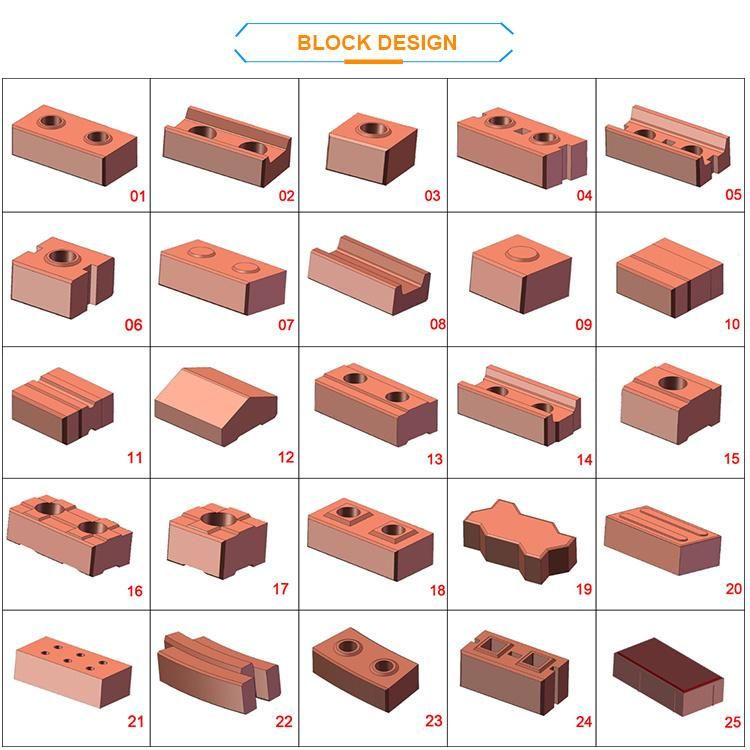

A: by changing mold, this machine can make all type design brick ,block or even paver.

Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally

Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years

Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.

Q:How many days to make the machine if place order?
A:Normally need 15-20 days but all depend on molds quantity.

Q: How about payment terms?
A:We accept LC or T/T payment. 30% down payment before production. 70% balance before shipping
