• Type：Pipe Welding Machine
• Pipe O.D.：219-1220mm
• Thickness：4-12mm
• Coil O.D.：1000-1600 mm
• Coil I.D.：508-760 mm
• Coil Width：Max. 1000mm
• Pipe Length：8-12 M
• Mill Type：Front-Swing, Center Positioning
• Transport Package：in Nude
• Trademark：HUAYE
• Origin：China
• Production Capacity：15-30,Year

Basic Info.

Type Pipe Welding Machine Pipe O.D. 219-1220mm Thickness 4-12mm Coil O.D. 1000-1600 mm Coil I.D. 508-760 mm Coil Width Max. 1000mm Pipe Length 8-12 M Mill Type Front-Swing, Center Positioning Transport Package in Nude Trademark HUAYE Origin China Production Capacity 15-30/Year

Product Description

Introduction:

SSAW spiral welded steel pipe machine is HUAYE most competitive, most mature technical characteristics product. Product specifications range from Φ25 mm to Φ3400 mm.
Many "FIRST-of-China" fully demonstrated HUAYE's strong technical advantages and cutting-edge technology research and development capabilities.
Production Flow:
Uncoiler → Peeler → Pinch leveler - Side guide roller - Shear and welder - Side guide roller -Rotary shear - Side guide roller - Delivery machine - Guide beam - Forming machine - ID welding - OD welding - Cut-off - Run out

Reference Project

Φ168-Φ1220 mm SSAW spiral welded steel pipe machine in Thailand
This spiral welded pipe mill has just finished installing and commissioning in Thailand, can produces spiral welded pipes of minimum diameter φ168 mm.
O.D. range: Φ168~Φ1220 mm
Wall thickness range: 4 ~12  mm
Pipe weight: Max. 4 T
Spiral angle: 40°~ 80°
Length: 8-12.5 m

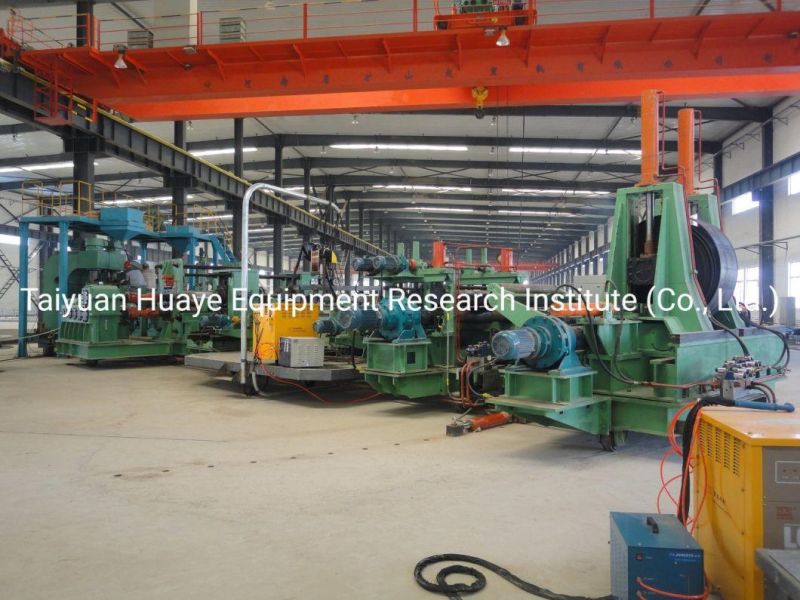

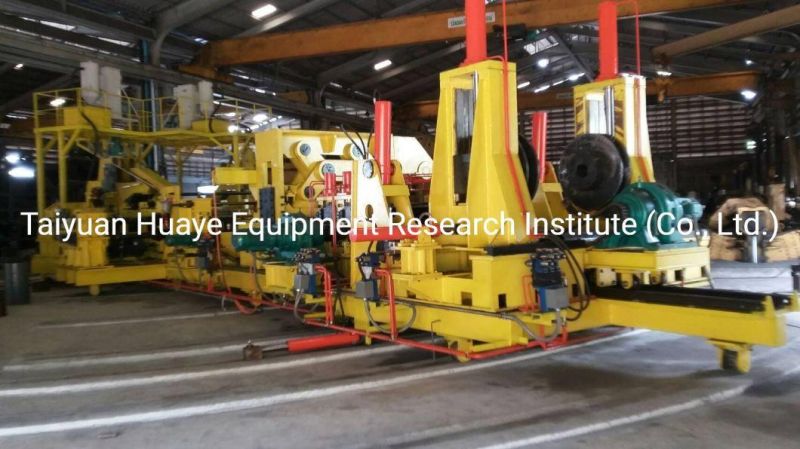

Photos below are from customer factory, it was received highly praise from customer. And now is well running and starts production.

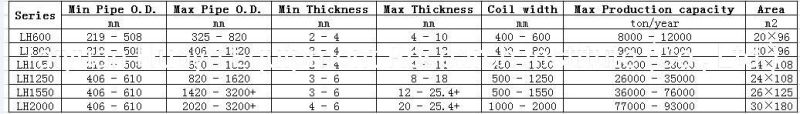

Model
