• Model NO.：pv4
• Usage：Roof, Wall
• Transmission Method：Electric
• Color of Machine：Blue or as Your Request
• Use：Roof
• Power(W)：4+4kw
• Voltage：380V 50Hz
• Weight：10t
• Raw Material：PPGI,Gi

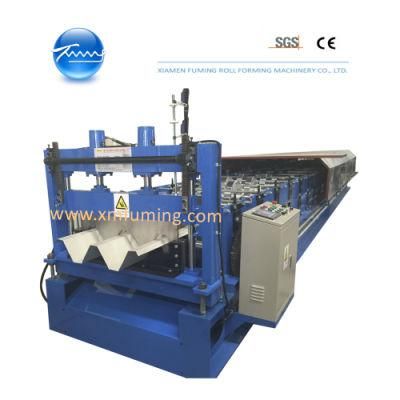

• Type：Metal Wall Forming Machine
• Control System：PLC
• Diameter of Shaft：75mm
• Sizes of Chain：One Inch
• Transport Package：According to Customers′ Request
• Specification：Jcx
• Trademark：JCX
• Origin：China Hebei
• HS Code：8455211000
• Production Capacity：40sets Per Month

Suitable MaterialHRB60 or equivalent(PPGI/PPGL/GI/GL)Materials thickness 0.3mm-0.8mmDimensionAbout 7.2*1.3*1.1m(L*W*H) , as per the drawing

Length of

the Sheet

can set the length according to your infact need.

 It is controlled by PLC

 which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set

length.

B.Components Details

Roller MaterialHigh grade 45# steel. Hard chrome plating, 0.05mm.Main Frame350# steel. More stable and no shaking.Middle Plate

20mm. We use thicker plates to ensure stability

of our products.

Forming Steps11-20 steps, according to the drawing.Shaft Material

Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

Cr12, hardness HRC60-62.

Treating process: heat treatment- plane abrasion-  wire electrode cutting.

C.Electric Components

Suitable Power380V, 50 Hz, 3 phase or according to your need.Screen7 inch touch screen, easy to operate.Brand Delta or based on your need PLC

Delta Brand (Or Panasonic /Siemens )

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

delta;

It has the advantage of slowing down before cutting,

to ensure the length  accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

Omron, made in Japan.

It features with high accuracy and stability.
