• Model NO.：C-20C cubic stone chopping machine
• Certification：CE
• Condition：New
• Customized：Customized
• Usage：Wall, Floor
• Transmission Method：Hydraulic Pressure
• Splitting Force：10tons
• Power：3kw
• Hydraulic Presssure：20MPa
• Keywords：Stone Splitting Machine
• Transport Package：by Plywood Case
• Specification：1600*1000*1300mm
• Trademark：BESTLINK
• Origin：China
• HS Code：84791090
• Production Capacity：300sets Per Month

Basic Info.

Model NO. C-20C cubic stone chopping machine Certification CE Condition New Customized Customized Usage Wall, Floor Transmission Method Hydraulic Pressure Splitting Force 10tons Power 3kw Hydraulic Presssure 20MPa Keywords Stone Splitting Machine Transport Package by Plywood Case Specification 1600*1000*1300mm Trademark BESTLINK Origin China HS Code 84791090 Production Capacity 300sets Per Month

Product Description

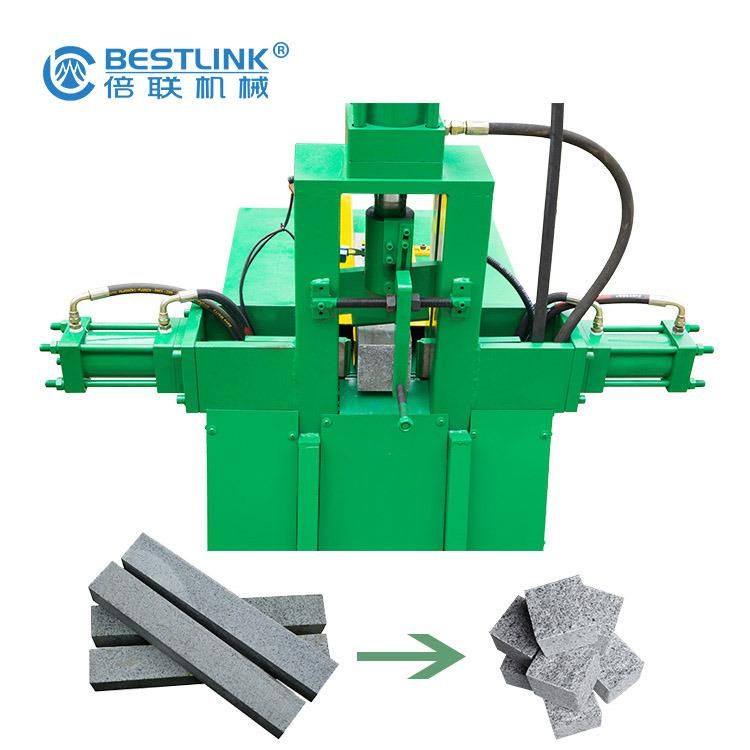

Bestlink Small cubic stone chopping machine for splitting strip stone

1 Hydraulic open-frame splitting machine for paving stone
2 CE certificate
3 world famous components
4 low maintain

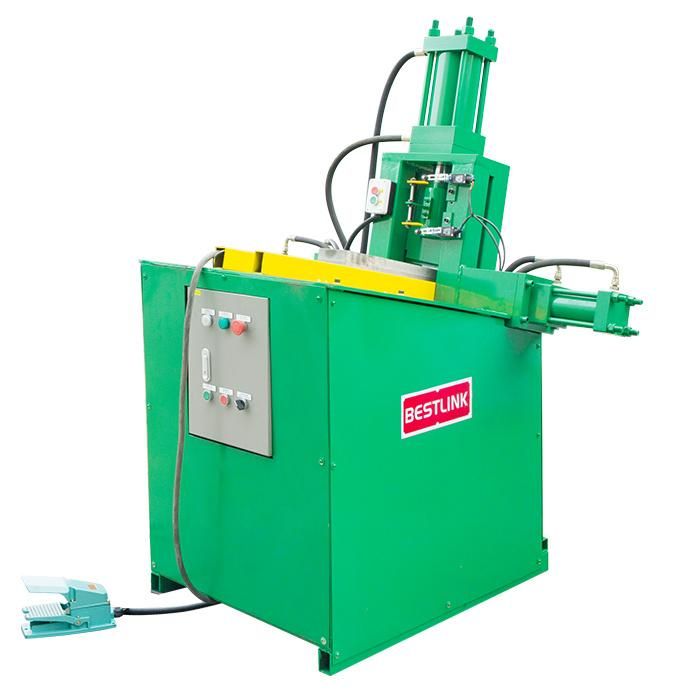

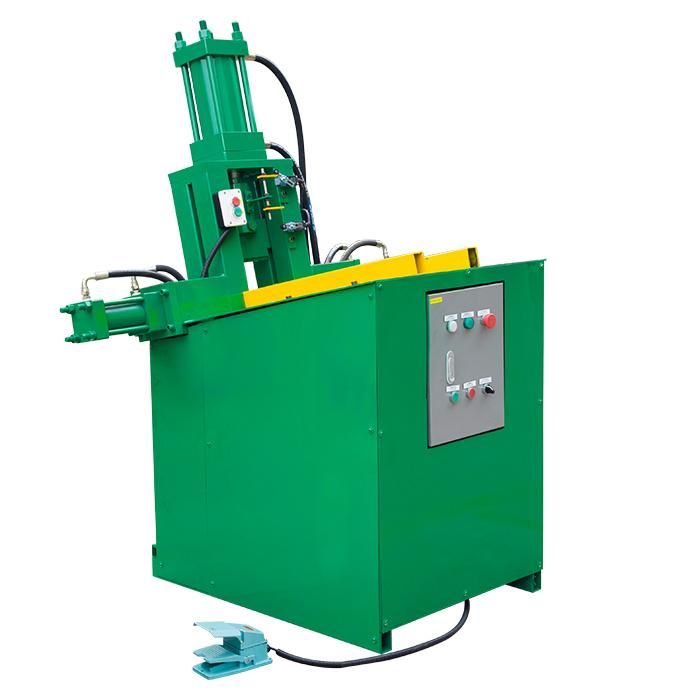

BESTLINK HYDRAULIC STONE SPLITTING MACHINE
Bestlink's BRT series hydraulic stone splitting machine is suitable for splitting all types of natural and artificial stones, cube stone/curb stone/wall stone/blockstone/tiles/pavingstone/countertops/vanity tops. Every splitting machine can be integrated in a production line. It could be especially designed according to your equirements.



Main characters:
1) The electrical control cabinet adopt the French Schneider, with internal layout reasonable and neat, and through the senor switch to facilitate rapid signal to make the movements of the machine consecutive and accurate.
2) The hydraulic system adopts from German Bosch Rexroth, providing sustainable,stable and sufficient power to the machine.
3) The electrical motor adopts from German Siemens, providing stable performance of the complete machine working.
4) With intelligent gear cutting head, itcould adjust itself according to the smooth condition of the stone surface.
5) We can design a perfect stone cutting line from blocks to paving stone, wall stone, mosaic, cobble stone, etc, upon the demand of customers.



Technical data:

Model No.	CUBE20C
Splitting force	20tons
Power supply	4kw
Max.stone size (mm)	L*150*150mm
Hydraulic pressure	20Mpa
hydraulic oil flux	31 (L/min.)
Oil Tank	100L
Conveyor	1200*600mm
Overall size (mm)	1600*1000*1300mm
Net weight (kg)	500kg
Aplication	Stone guilotine,for splitting long stone strips into rustic finish wall stone,bricks, gravity feeding,automatic
