• Model NO.：YX28-200-1000 Rolling Mill
• Usage：Roof
• Transmission Method：Motor Drive
• Feed Width：1220 mm
• Effective Width：1000 mm
• Thickness：0.35-0.8 mm
• Yield Strength：400-600 MPa
• Transport Package：40gp*1
• Specification：11T
• Trademark：Xiamen Liming
• Origin：Fujian, China(Mainland)
• Production Capacity：60 Set,Month

Basic Info.

Model NO. YX28-200-1000 Rolling Mill Usage Roof Transmission Method Motor Drive Feed Width 1220 mm Effective Width 1000 mm Thickness 0.35-0.8 mm Yield Strength 400-600 MPa Transport Package 40gp*1 Specification 11T Trademark Xiamen Liming Origin Fujian, China(Mainland) Production Capacity 60 Set/Month

Product Description

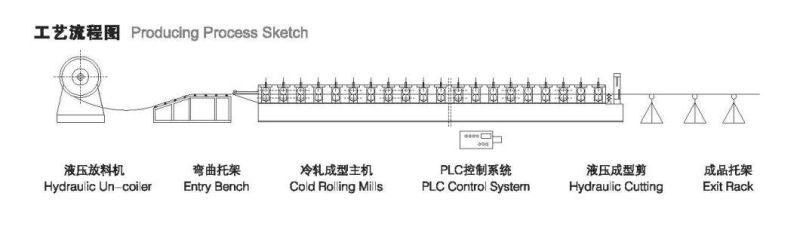

This Producing Process Sketch As Below Picture:

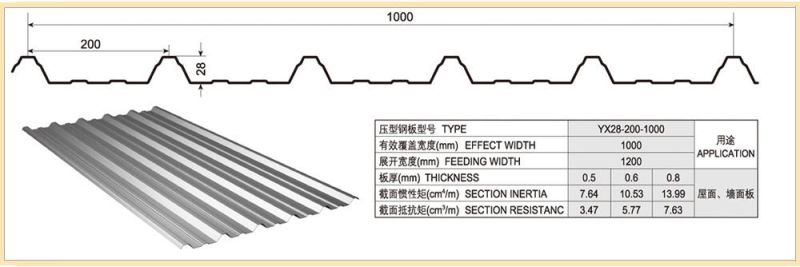

This Profile Drawing As Below Picture:






 General Parameter

1	Item	Parameters
2	Model NO.	YX28-200-1000
3	Material	Pre-painted galvanized sheet
4	Thickness	0.35-0.8 mm
5	Yield Strength	400-600 MPa
6	Feed Width	1220 mm
7	Effective width	1000 mm
8	Roll Stages	20 Stages
9	Shafts Diameter	ф75/95 mm
10	Main Motor Power	11 KW
11	Hydraulic Group Power	5.5 KW
12	Max. Line Speed Of Roll Former	Approx.20 m/min
13	Electric Standard	According to local voltage

Machine Components

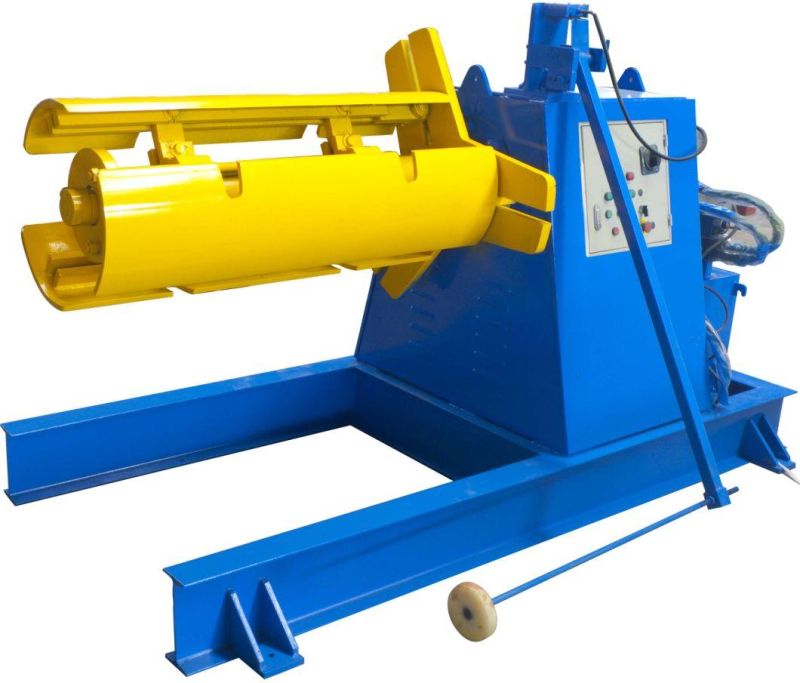

 A.  5 Ton X 1250 Hydraulic Un-coiler
      Hydraulic system expand coil inner hole, Pump motor: 3KW
      Frequency Inverter to regulate turning speed, Motor: 3KW
      Link-connect expanding system
      Load capacity = Max.5Tons
      Coil Inner-diameter= 510±30 mm, Coil width = Max.1250mm
      Automatic stopping device with limited switch as assistance to control stop/start rotation





B.  Entry bench and Manual pre-shearing device
      Entry bench and manual pre-shearing device
      Working thickness: up to 0.8mm
      Smart cut control, to cut off the end of the final piece of sheet only

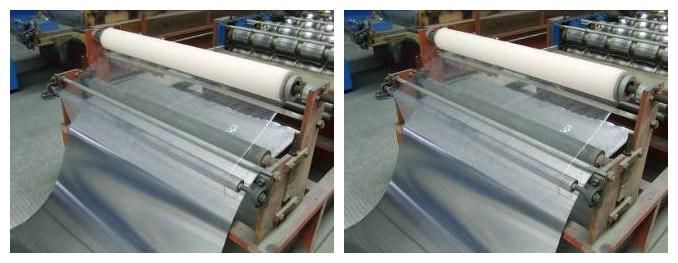

C.  Polythene Film-on Device
      Un-powered film-on device to cover plastic film on the surface of sheet

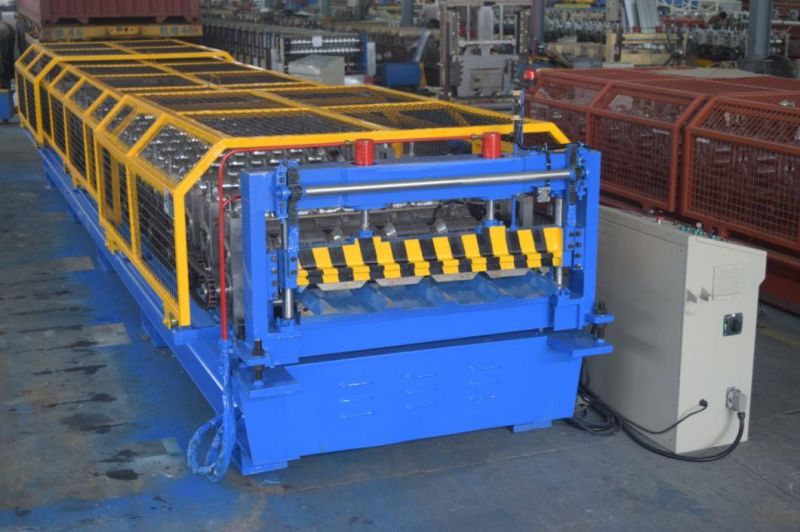

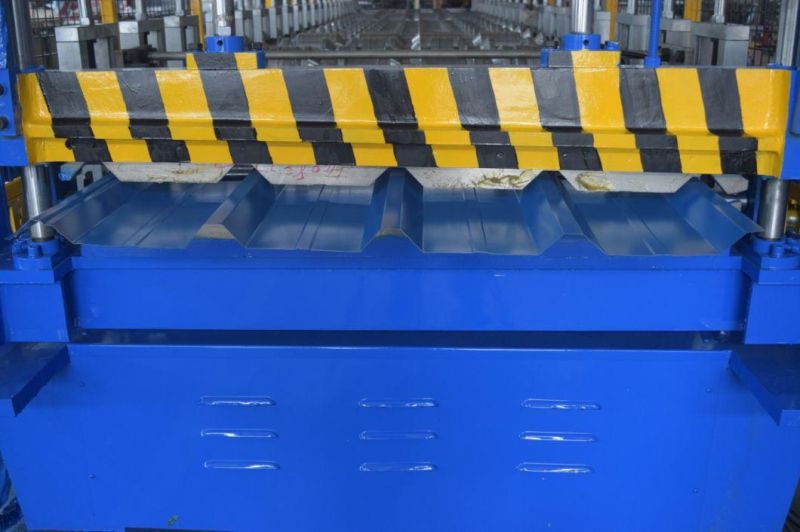

D.  Cold Rolling Mills
      Feeding section with guide
      Gear/Sprocket driving; 20-step to form
      New stand frame design      Rollers manufactured from 45#, CNC lathes, hard Chrome Coated
     Shafts Diameter=ф75/95mm, Precision Machined
     Main motor =11 KW, Frequency speed control
     Max Line speed of roll Former: Approx. 20m/min
     Protection Mesh Cover (full mesh type) Above Roll-former To Avoid Hands Go Inside


E.  No Blanking cut
      Cutting tool material : Cr12,Heat treatment;
      Pump motor =5.5KW




F.  PLC Control System
     Control the quantity & cutting length automatically;
     Combined with: PLC, Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc
    Cut-to-length tolerance≤±2 mm
    Control Voltage 24V


G.Product Rack           Un-powered, 3 units

  After-Sale ServiceIn correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.Terms Of Trade1.Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.
2.Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.
