5.5kw Double Layer Roof Sheet Roll Forming Machine
Cangzhou Nexus Machinery Co., Ltd.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof, Wall
- Transmission Method：Electric
Base Info
- Model NO.：840,900
- Product Name：5.5kw Double Layer Roof Sheet Roll Forming Machine
- Raw Material：PPGI Sheet
- Thickness Range：0.3-0.8mm
- Machine Power：5.5kw+3kw
- Machine Weight：About 9 Tons
- Warranty：12 Months
- Afer-Sales Service：Engineer Is Availble to Overseas
- Main Shaft Dia：70mm
- Material：45# Forge Steel and Quenched
- Roller Material：45# High Grade Forge Steel ,Chrome Coated 0.05mm
- Roll Station：16 Groups and 18 Groups
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：8500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
Description
Manual decoilerCapacity 5ton Feeding width MAX 1300mm Expanding range 460-520mm Main motor power 5.5 kw Drive 1'' single chain Type: Wall board Main shaft dia ¢70mm material 45# forge steel and quenched Roller material 45# high grade forge steel ,chrome coated 0.05mm Roll station 16 groups and 18 groups Raw material 0.3-0.8mm Coil width 1000mm Working speed 10m--15m/min(Exclude cutting time) Length Tolerance ±1.5mm Weight of machine About 5 ton Size of machine About 7500×1800×1500mm L x W x H Color of machine Yellow and Blue Coder Omron, made in Japan Control PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) Computer operating panel touching screen Other electrical element Schneider Cutting Hydraulic cutting. Auto cutting when reach the set length Hydraulic power 3KW Blade material Cr12mov,quenched 58°-62° Working pressure 16mpa Cutting tolerance +/- 1.0mm
4. Equipment list :
5. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

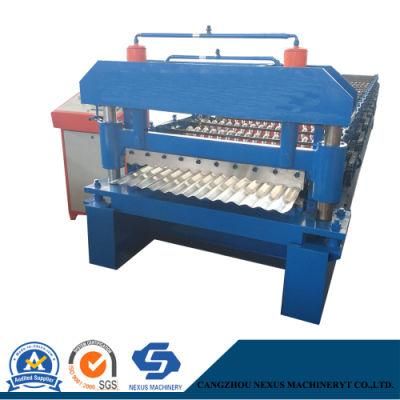

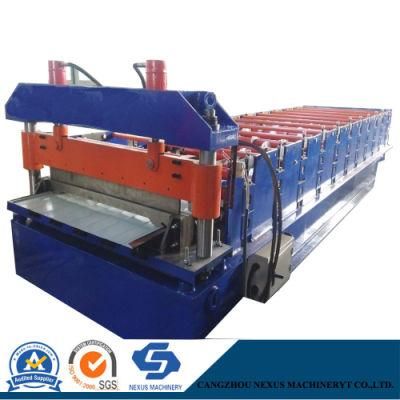

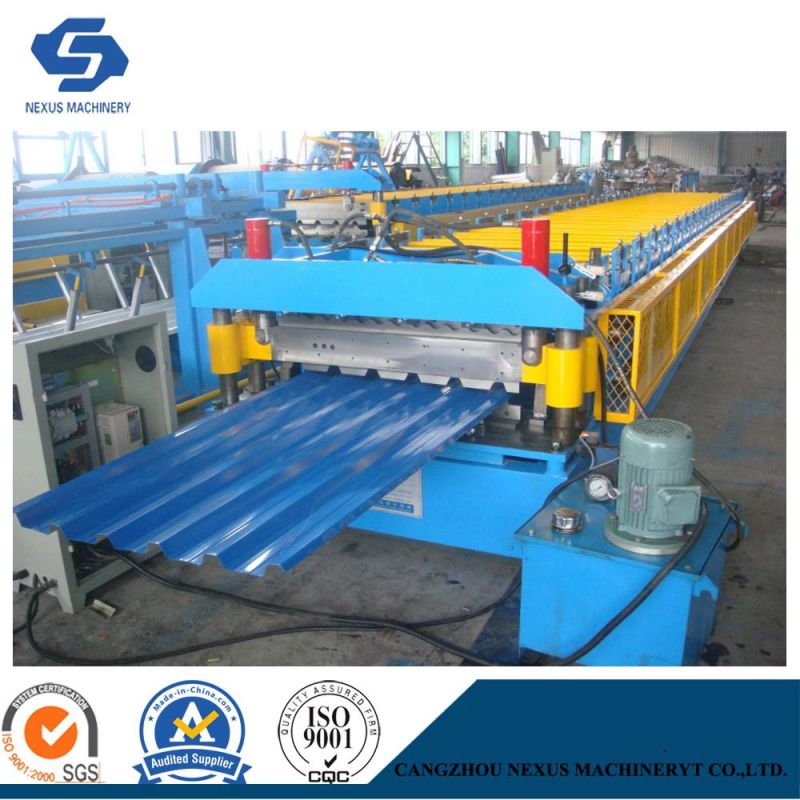

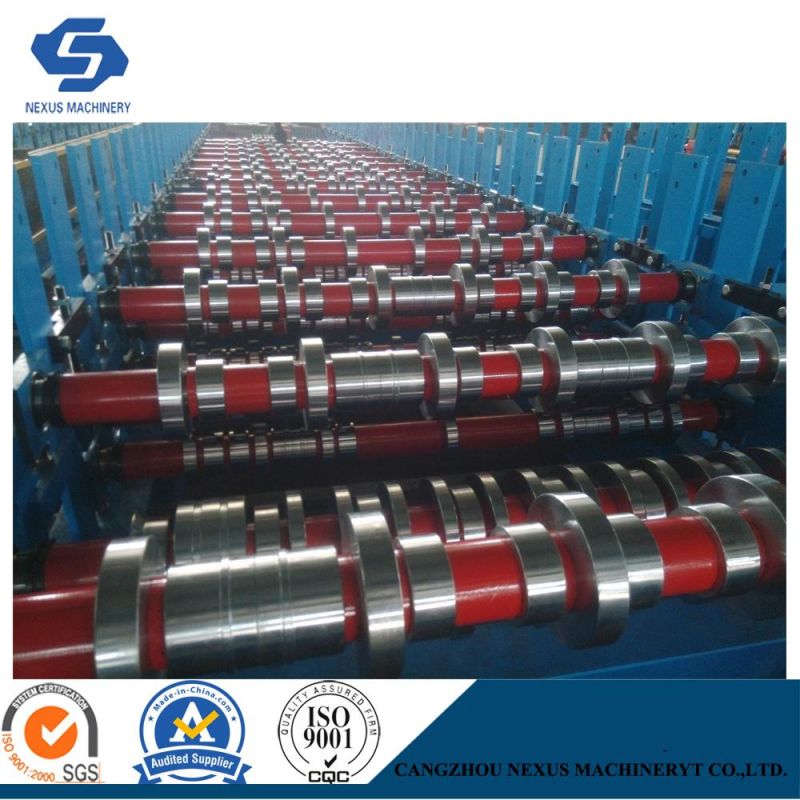

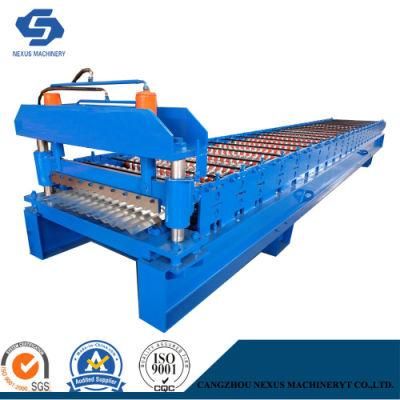

6. Photos of 5.5KW Double Layer Roof Sheet Roll Forming Machine for Reference:
Certificate and Exhibition
4. Equipment list :
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 1 |
| 2 | 5.5KW Double Layer Roof Sheet Roll Forming Machine (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 4 |
5. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
6. Photos of 5.5KW Double Layer Roof Sheet Roll Forming Machine for Reference:
