• Model NO.：JT05
• Voltage：380V
• Total Power：2.2kw
• Coating Speed：22m,Min
• Transfer Speed：15-35m,Min
• Coating Temperature：110-140 Degree
• Air Pressure：0.5-0.4MPa
• Squeeze Pressure：15-20MPa
• Adjustable Range Auto：6-18.5mm
• Adjustable Range Manul：6-27mm
• Buytl Cylinder Diameter：Dia 200mm
• Air Consumption：60L,Min
• Transport Package：Non-Fumagation Plywood Case
• Specification：JT05
• Trademark：MAG
• Origin：Jinan
• HS Code：84752990
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. JT05 Voltage 380V Total Power 2.2kw Coating Speed 22m/Min Transfer Speed 15-35m/Min Coating Temperature 110-140 Degree Air Pressure 0.5-0.4MPa Squeeze Pressure 15-20MPa Adjustable Range Auto 6-18.5mm Adjustable Range Manul 6-27mm Buytl Cylinder Diameter Dia 200mm Air Consumption 60L/Min Transport Package Non-Fumagation Plywood Case Specification JT05 Trademark MAG Origin Jinan HS Code 84752990 Production Capacity 100 Sets/Year

Product Description

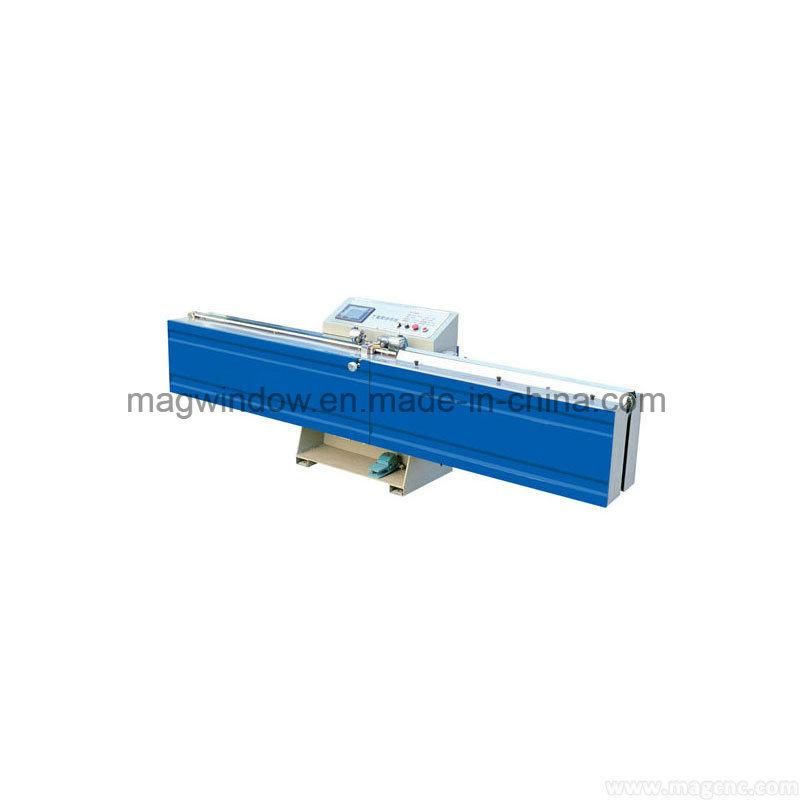

                                                      JT05 Butyl Coating Machine

Equipment Features:
Butyl coating machine is used for butyl sealant coating on two sides of Alu spacer frame for insulating glass production. Used for butyl sealant coating on two sides of Alu spacer frame. Coating for straight line and arc shape, auto-control of sealant temperature. PLC control.

1.Main device are famous brand goods imported from abroad.
2.Butyl spreading is well-proportioned and the linearity is good.
3.Adopts the unique hermetic piston device.
4.Reasonable butyl spreading system and low pressure.
5.Advanced device guarantees the best spreading effect on the arc aluminum frame.
Technical parameters:

Brand	Mingmei
Model	JT05
Power supply	380V / 50Hz
Total power	3.2kW
Air pressure	0.5 ~ 0.8Mpa
Speed of carry belt	23.2m/min
Spacer width	6 ~ 20mm
Heating temperature	110 ~ 160°C
Squeeze pressure	6~ 20MPa
Overall dimensions	3000*680 *1080mm
Weight	900kg

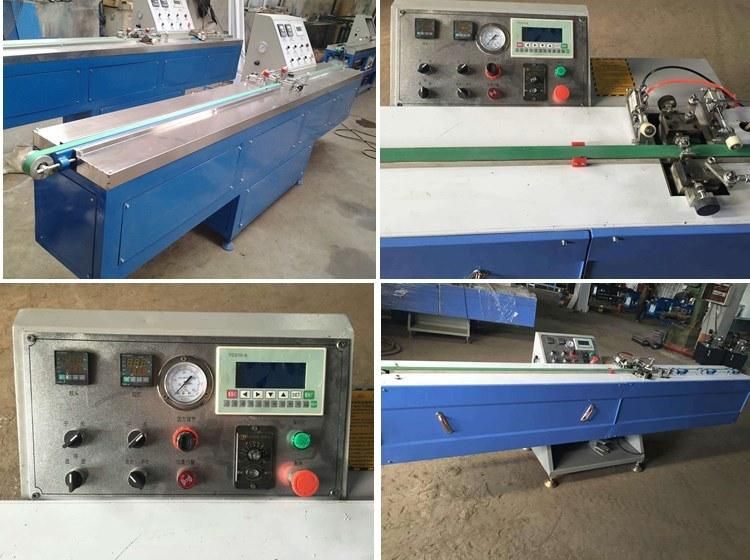

Machine photos:

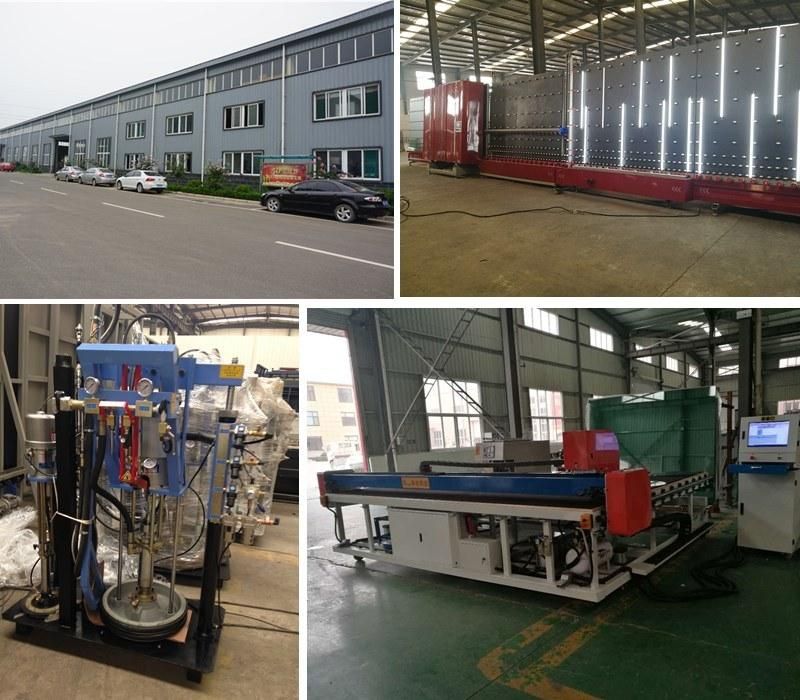

Factory photos:
