• Model NO.：QT10-15
• Productivity：12000-14400 Pieces 40X20X20cm Blocks ,8 Hours
• Dimension：3500X2300X2930mm
• Pallet Size：1150X900mm
• Mixer Model：Js750,Js1000
• Processing Method：Hydraulic Pressure
• Voltage：220-440V
• Rated Pressure：21MPa
• Vibration Force：100kn
• Host Machine Power：44kw
• Cycle Time：15-25s
• Workship Areas：300m2
• Vibration Frequency：4500r,Min
• Weight of Host Machine：13t
• Transport Package：Standard Export Packing
• Specification：Q235B Jigang steel
• Trademark：weda
• Origin：China
• HS Code：8474802000
• Production Capacity：120sets,Month

SPECIFICATIONS FOR QT10-15 Interlock Brick MachineMachine nameQT10-15Rated pressure21MpaDimension3500x2000x2930mmForming Cycle15-20sVibration formPlatform vibrationWeight10000kgWorking area2000 sq.mPallet Size1150x900mm
A  Block making machine Production Capacity
The S Paver Interlock Brick Machine capacity depends on this Host machine model number and also the other essential part of the whole production line.You can change moulds on this parts to make different shaps of interlock paving blocks, hollow Solid Brick Molding and curbstons...etcNO
Size(LXWXH)
 Reference photosPcs/MouldPcs/HourPcs/shift1400x200x200mm
101500-180012000-144002400x100x200mm

 182700-324021600-259003230x110x70mm

 40           6000-7200          48000-576004       200x100x60 color paving                           brick

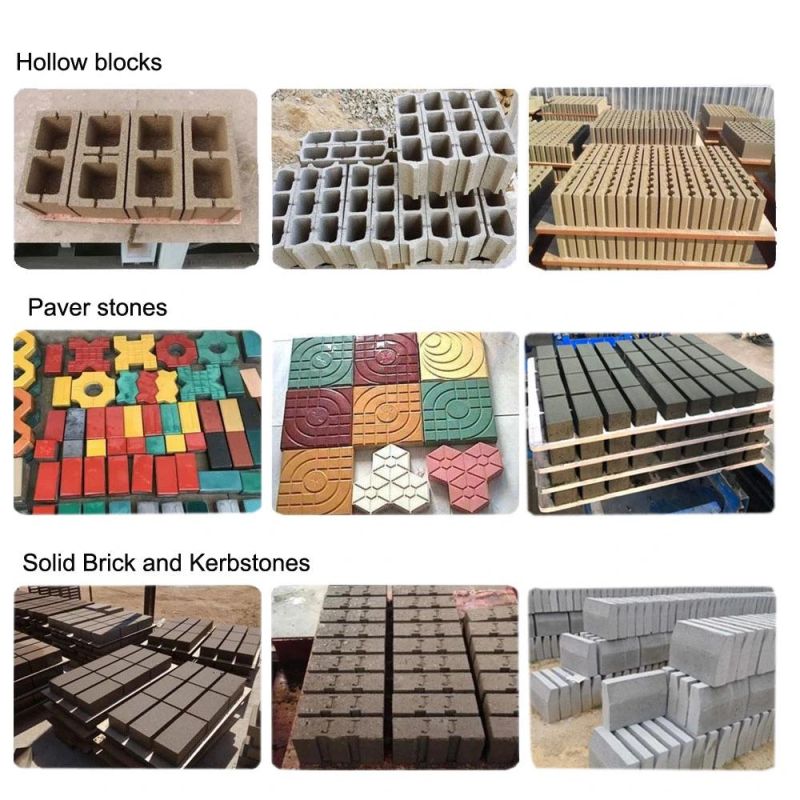

 324800384005    S  paver blocks 20300024000B  Block samples
Different shaps of colored interlock paving blocks, hollow bricks and solid brick with kerbstone blocks production by one machine only

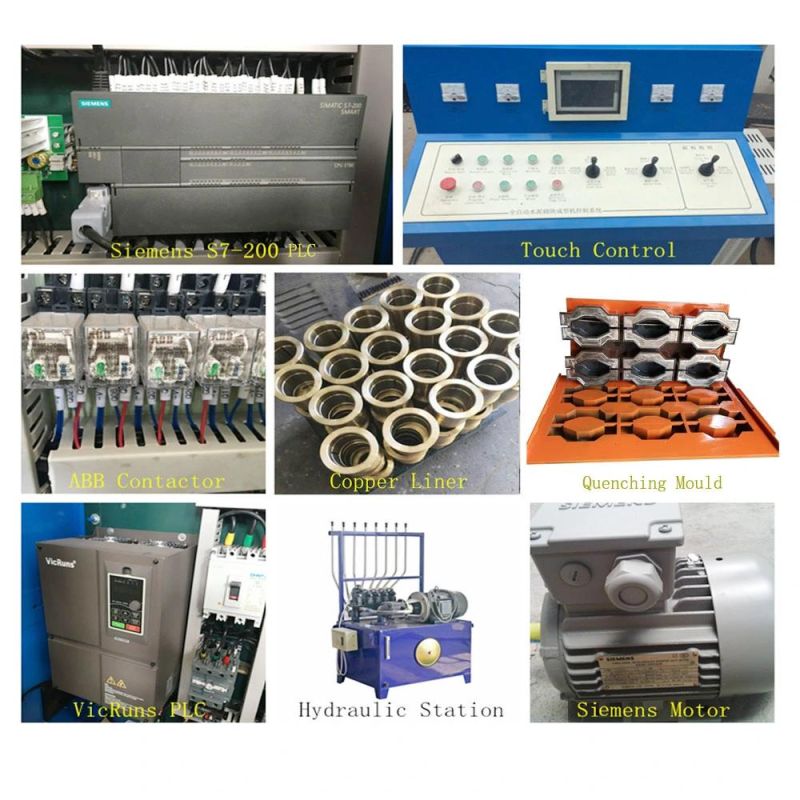

C Programme PLC with motor electronic parts
• The Block making machine product process is controlled by PLC and fitted with remote control device.for PLC control system,we usually  use Japan Mitsubishi or Germany Siemens Brand
• The electricity motor for host interlock brick machine ,we use Germany Siemens motor ,for other parts ,we use CE motor .
• about the switches ,we will use France Schneider or China CHNT

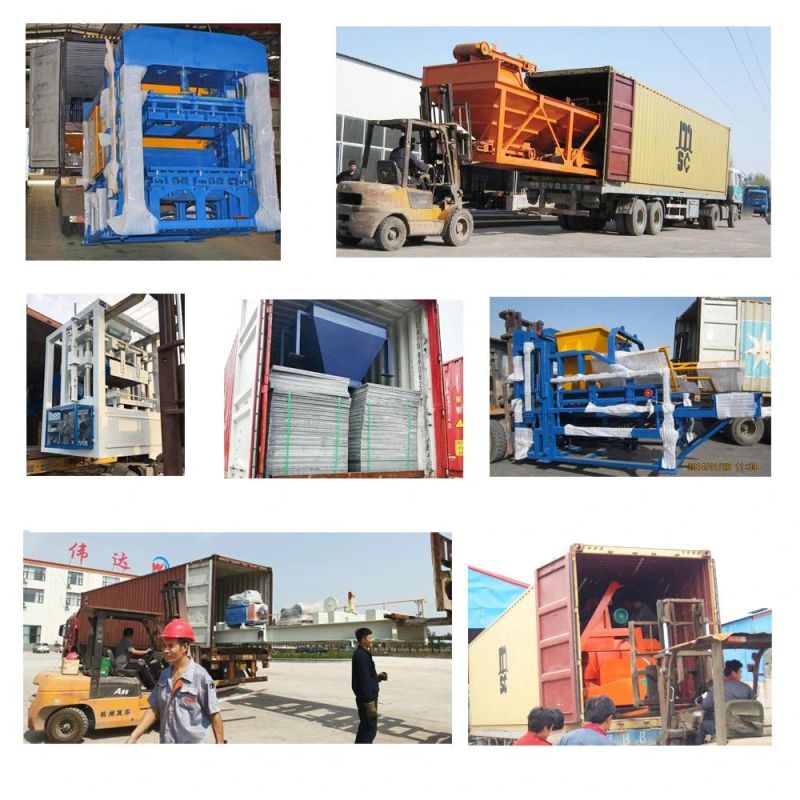

D  Machine de bloc ciment loading photos

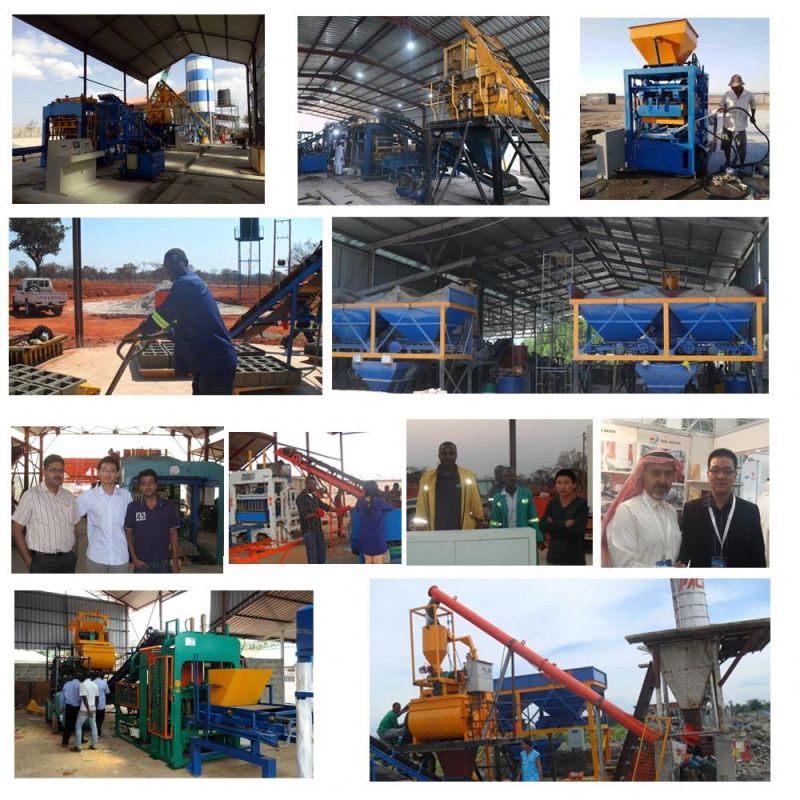

E    Interlock Brick Machine in client production site
• Rakes in several rows make sure raw concrete materials fed well-distributed.
• Hydraulic components we use Taiwan Yuken famous brands.
• The demoulding synchronizer avoids the damage to concrete products.
• The vibration system for concrete kerbs contains two part ,one is up-moild vibbration box ,it is electricity motor to supply the power for up-mouldvibration box. And the down moulld ,there have one big vobration. when the scatter material work finish ,the hydraulic power with the two vibration force will assure the good density of Hollow Interlock Blocks, solid pavers blocks and concrete kerbs..etc


Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province, China.With RMB 16 million investment and 53,000 square meters area, We are always developing good and realiable concrete Interlock Brick making machinery, AAC block machine...etc with other Construction machinery with international standards to meet clients demands(people-oriented, leading technology, winning quality, and serving user ). We had exported to more than 100 countries. We have more than 60 technician to ensure superior installations and after sale service to assist clients to install the machine and perfrom the proper training abroad.

E Our interlock brick machine workshop




We warmly welcome customers from all over the world come to visit our factory and discuss long term cooperation. we are 24 hours service on you!
