Qt10-15 Automatic Cement Concrete Cabro Pavement Solid Paving Block Maker Automatic Brick Making Machine in Zimbabwe and Botswana

Shandong Weida Construction Machinery Company
  • After-sales Service：24 Hours Online
  • Warranty：1 Year
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Vibration Molding

Base Info

  • Model NO.：QT10-15
  • Model No.：Qt10-15 Pavement Brick Making Machine
  • Productivity：12000-14400 Pieces 40X20X20cm Blocks ,8 Hours
  • Dimension：3500X2300X2930mm
  • Pallet Size：1150X900mm
  • Mixer Model：Js750,Js1000
  • Processing Method：Hydraulic Pressure
  • Voltage：220-440V
  • Rated Pressure：21MPa
  • Vibration Force：100kn
  • Host Machine Power：44kw
  • Cycle Time：15-25s
  • Workship Areas：300m2
  • Vibration Frequency：4500r,Min
  • Weight of Host Machine：13t
  • Transport Package：Standard Export Packing
  • Specification：Q235B Jigang steel
  • Trademark：weda
  • Origin：China
  • HS Code：8474802000
  • Production Capacity：120sets Brick Making Machine ,Month

Description

SPECIFICATIONS FOR QT10-15 Pavement Brick Making Machine Machine nameQT10-15Rated pressure21MpaDimension3500x2000x2930mmForming Cycle15-20sVibration formPlatform vibrationWeight10000kgWorking area2000 sq.mPallet Size1150x900mm
A  Block making machine Production Capacity
The S Paver Pavement Brick Making Machine capacity depends on this Host machine model number and also the other essential part of the whole production line.You can change moulds on this parts to make different shaps of interlock pavement blocks, hollow Solid Brick Molding and curbstons...etcNO
Size(LXWXH)
 Reference photosPcs/MouldPcs/HourPcs/shift1400x200x200mm
Qt10-15 Automatic Cement Concrete Cabro Pavement Solid Paving Block Maker Automatic Brick Making Machine in Zimbabwe and Botswana101500-180012000-144002400x100x200mm
Qt10-15 Automatic Cement Concrete Cabro Pavement Solid Paving Block Maker Automatic Brick Making Machine in Zimbabwe and Botswana
 182700-324021600-259003230x110x70mm
Qt10-15 Automatic Cement Concrete Cabro Pavement Solid Paving Block Maker Automatic Brick Making Machine in Zimbabwe and Botswana
 40           6000-7200          48000-576004       200x100x60 color pavement  brick
Qt10-15 Automatic Cement Concrete Cabro Pavement Solid Paving Block Maker Automatic Brick Making Machine in Zimbabwe and Botswana

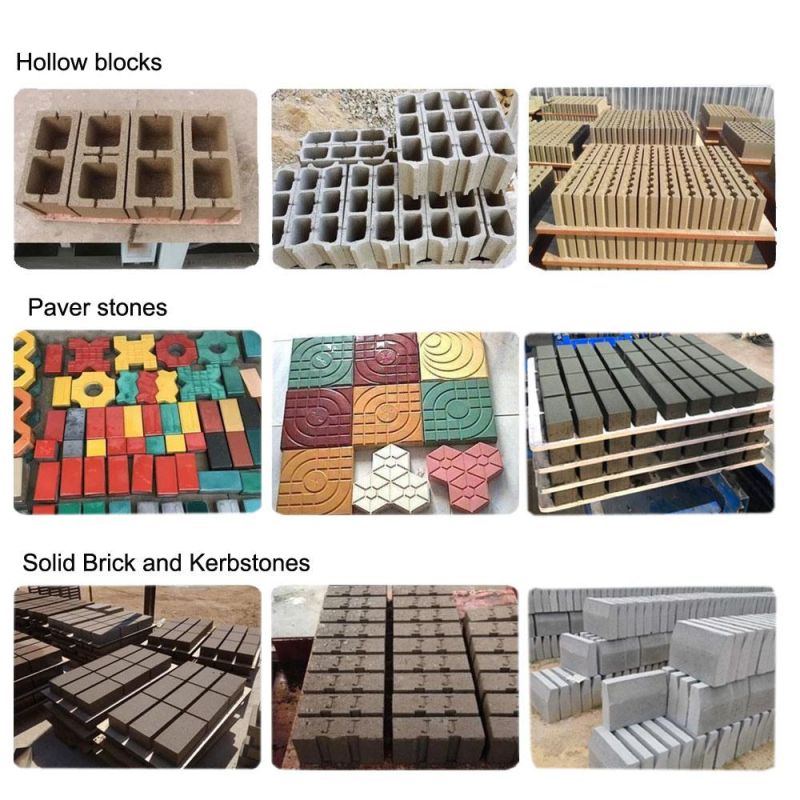

 324800384005    S  paver blocks Qt10-15 Automatic Cement Concrete Cabro Pavement Solid Paving Block Maker Automatic Brick Making Machine in Zimbabwe and Botswana20300024000B  Block samples

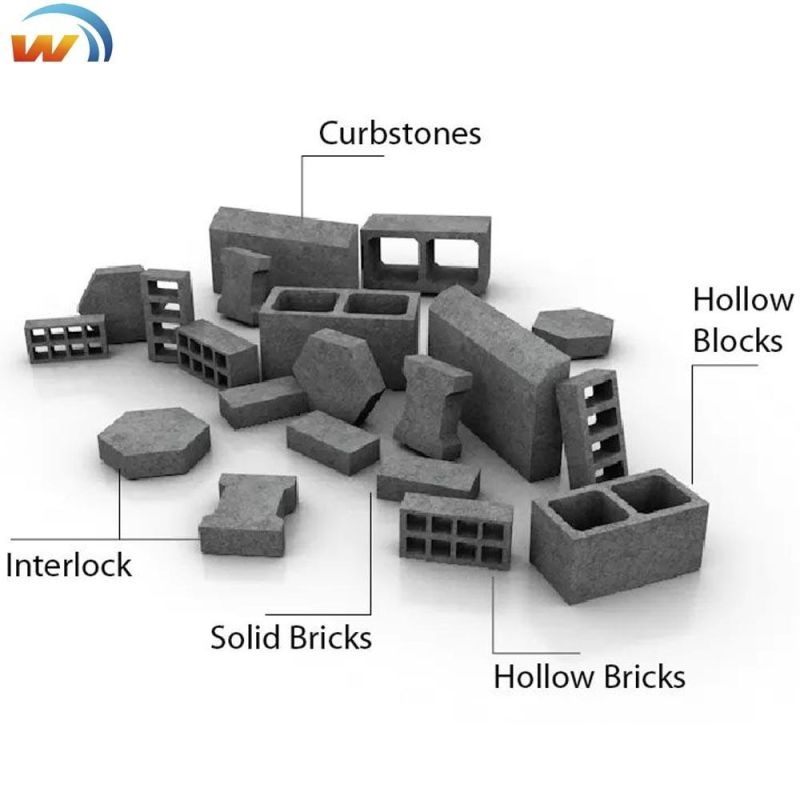

Different shaps of colored Pavement Bricks, hollow bricks and solid brick with kerbstone blocks production by one machine only



Qt10-15 Automatic Cement Concrete Cabro Pavement Solid Paving Block Maker Automatic Brick Making Machine in Zimbabwe and Botswana

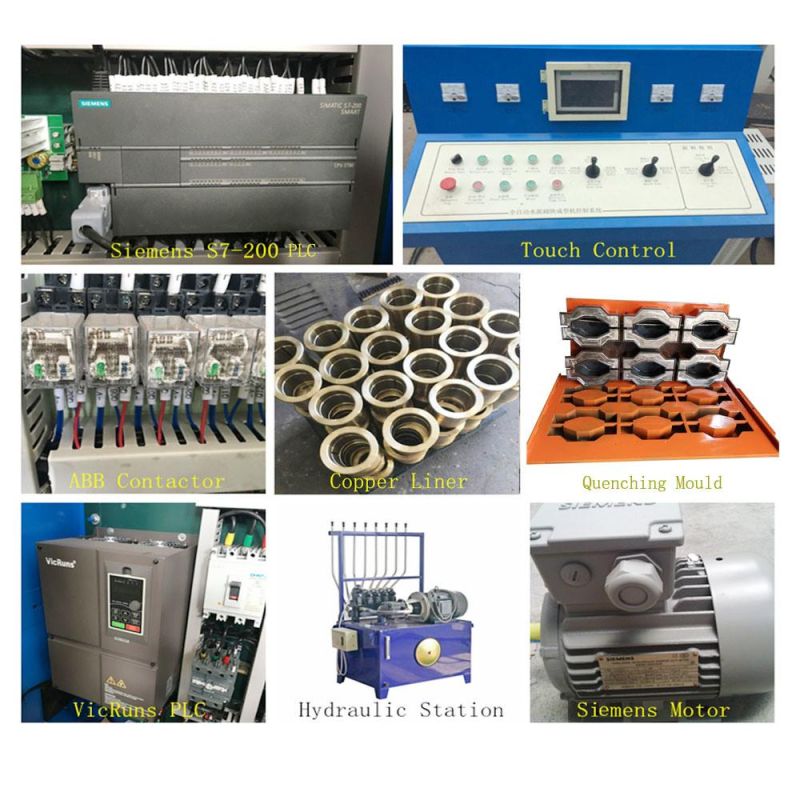

C Programme PLC with motor electronic parts
• The Block making machine product process is controlled by PLC and fitted with remote control device.for PLC control system,we usually  use Japan Mitsubishi or Germany Siemens Brand
• The electricity motor for host interlock brick machine ,we use Germany Siemens motor ,for other parts ,we use CE motor .
• about the switches ,we will use France Schneider or China CHNT
Qt10-15 Automatic Cement Concrete Cabro Pavement Solid Paving Block Maker Automatic Brick Making Machine in Zimbabwe and Botswana
D  Machine de pave ciment loading photos
Qt10-15 Automatic Cement Concrete Cabro Pavement Solid Paving Block Maker Automatic Brick Making Machine in Zimbabwe and Botswana

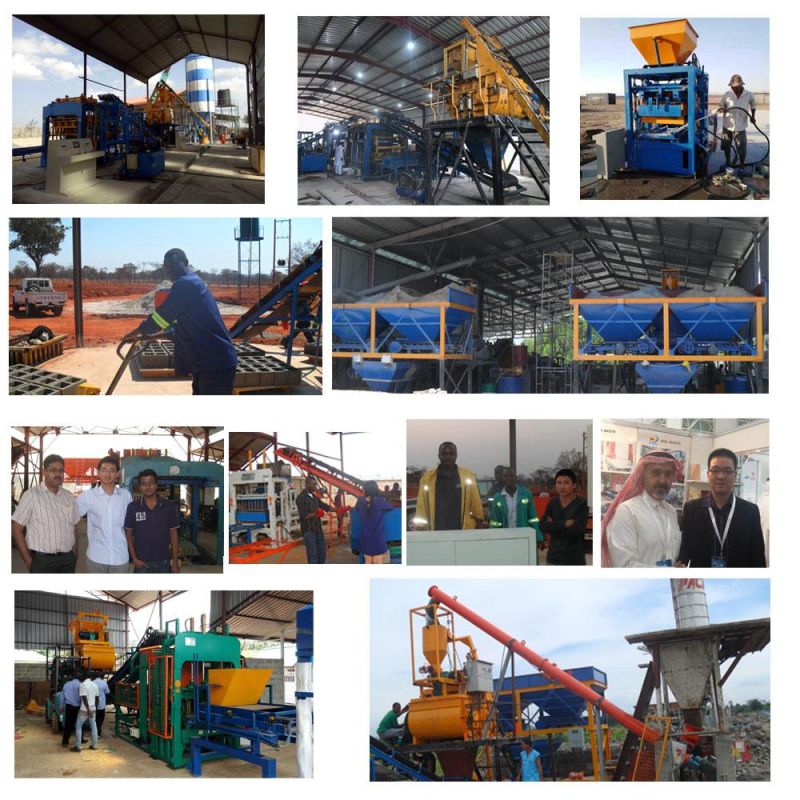

E   Pavement Brick Making Machine  in client production site
• Rakes in several rows make sure raw concrete materials fed well-distributed.
• Hydraulic components we use Taiwan Yuken famous brands.
• The demoulding synchronizer avoids the damage to concrete products.
• The vibration system for concrete kerbs contains two part ,one is up-moild vibbration box ,it is electricity motor to supply the power for up-mouldvibration box. And the down moulld ,there have one big vobration. when the scatter material work finish ,the hydraulic power with the two vibration force will assure the good density of Hollow Interlock Blocks, solid pavers blocks and concrete kerbs..etc
Qt10-15 Automatic Cement Concrete Cabro Pavement Solid Paving Block Maker Automatic Brick Making Machine in Zimbabwe and Botswana


Qt10-15 Automatic Cement Concrete Cabro Pavement Solid Paving Block Maker Automatic Brick Making Machine in Zimbabwe and Botswana
Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province, China.With RMB 16 million investment and 53,000 square meters area, We are always developing good and realiable concrete Pavement Brick Making Machine , AAC block machine...etc with other Construction machinery with international standards to meet clients demands(people-oriented, leading technology, winning quality, and serving user ). We had exported to more than 100 countries. We have more than 60 technician to ensure superior installations and after sale service to assist clients to install the machine and perfom the proper training abroad.

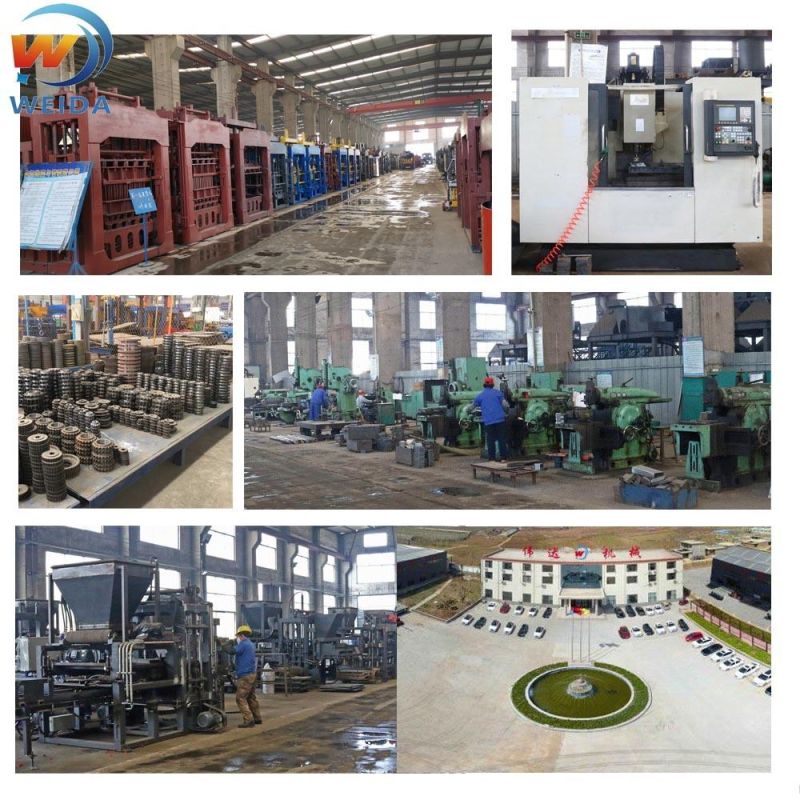

E weda series of brick machine and machining production workshop

Qt10-15 Automatic Cement Concrete Cabro Pavement Solid Paving Block Maker Automatic Brick Making Machine in Zimbabwe and Botswana


We warmly welcome customers from all over the world come to visit our factory and discuss long term cooperation. we are 24 hours service on you!
