Corrugating Iron Sheet Roll Forming Making Machine Cold Galvanizing Line

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Certification：CE, ISO, Corrugated Iron Roofing Machine
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall, Floor, Corrugated Iron Roofing Machine
  • Transmission Method：Hydraulic Pressure
  • Product Name：Corrugated Iron Roofing Machine

Base Info

  • Model NO.：corrugated iron roofing machine
  • Control System：PLC
  • Rolller：High Grade 45# Steel
  • Froming Steps：13
  • Hydraulic Pump Station：4kw
  • Motor Power：5.5kw
  • Chain：1inch
  • Cutter：Cr12
  • Middle Plate：14mm
  • Shaft：75mm
  • Transport Package：Nude, Covered with Plastic Film
  • Specification：CE, SGS
  • Trademark：DIXIN
  • Origin：Botou, Hebei, China
  • HS Code：845522
  • Production Capacity：30 Sets,Month

Description

Main parameter for1Suitable to processGalvanized/Aluminum/Color steel sheet2Width of plate1250mm3Thickness of plate0.3-0.8mm4RollersHigh grade 45# steel, with hard chrome plating5Forming steps166Sprocket chain1.5 inch7Pump station power4kw8Shaft75mm, high grade 45# steel, heat treatment9Hydraulic oil pumpCB-E31010WeightAbout 5.0 tons11Productivity8-12m/min12Cutting headCr12 mould steel with quenched treatment13Control systemTAIDA brand PLC control14Voltage380V 3Phase 60Hz15Motor power4kw16DimensionAbout 6.8m*1.5m*1.5m17Hydraulic pressure10-12mpa18Index error of length±1mm19The temperature range of working line-35-50°

Pre-Sales Service

* Inquiry and consulting support.

* Profile drawing and roll forming solution.

* View our Factory.

 After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Corrugating Iron Sheet Roll Forming Making Machine Cold Galvanizing Line

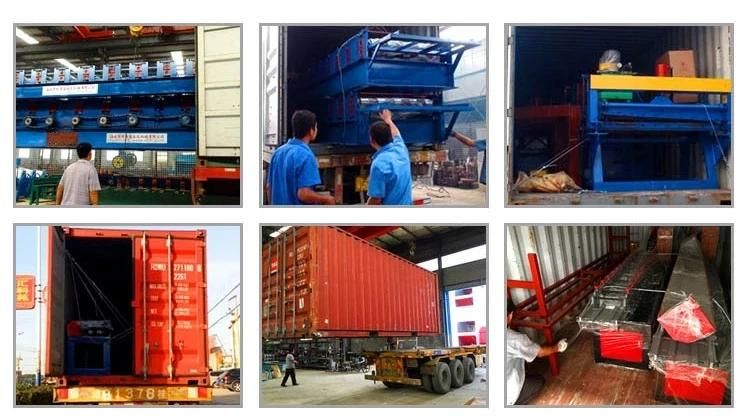

Packaging & Shipping

(1)  Main body of machine: Nude packing in the container suitable for long term transportation.

(2)  With even lifting point in the machine for easy container loading and uploading.

Corrugating Iron Sheet Roll Forming Making Machine Cold Galvanizing Line


FAQ

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.

Q3. What's your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.

Q6. If I am in Beijing,or Shanghai ,how to visit your company?

A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
