• Model NO.：DX
• Effective：Easy Operation
• Type：Steel
• Method：Roll Forming Machine
• Processing：Steel
• Product：Steel
• Brick Raw Material：Steel
• Automation：Automatic
• Tolerance：1.0mm
• Transport Package：No
• Specification：CE GS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：8sets,Per Month

Basic Info.

Model NO. DX Effective Easy Operation Type Steel Method Roll Forming Machine Processing Steel Product Steel Brick Raw Material Steel Automation Automatic Tolerance 1.0mm Transport Package No Specification CE GS Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 8sets/Per Month

Product Description

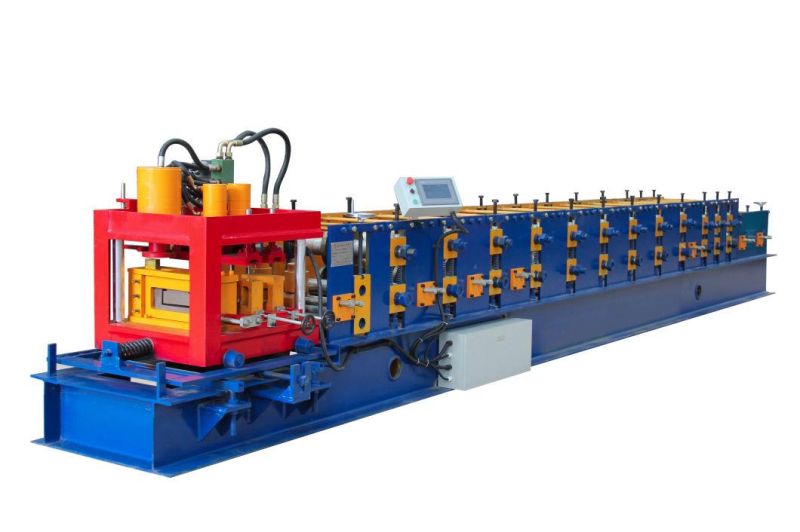

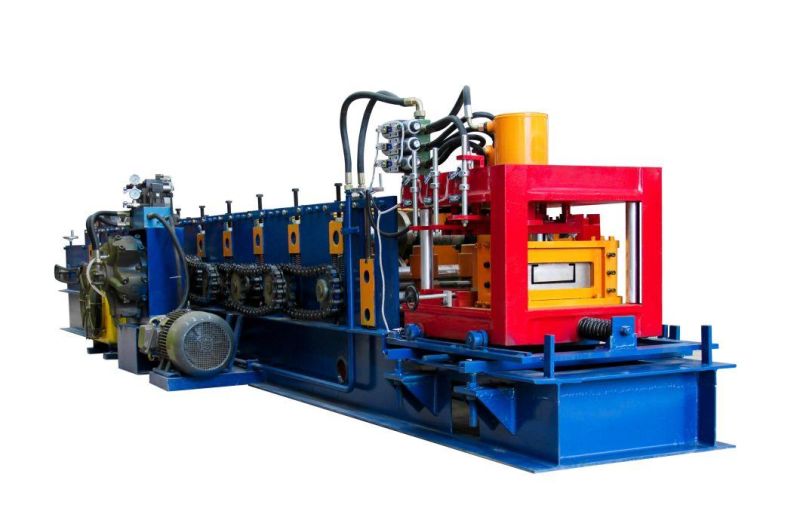

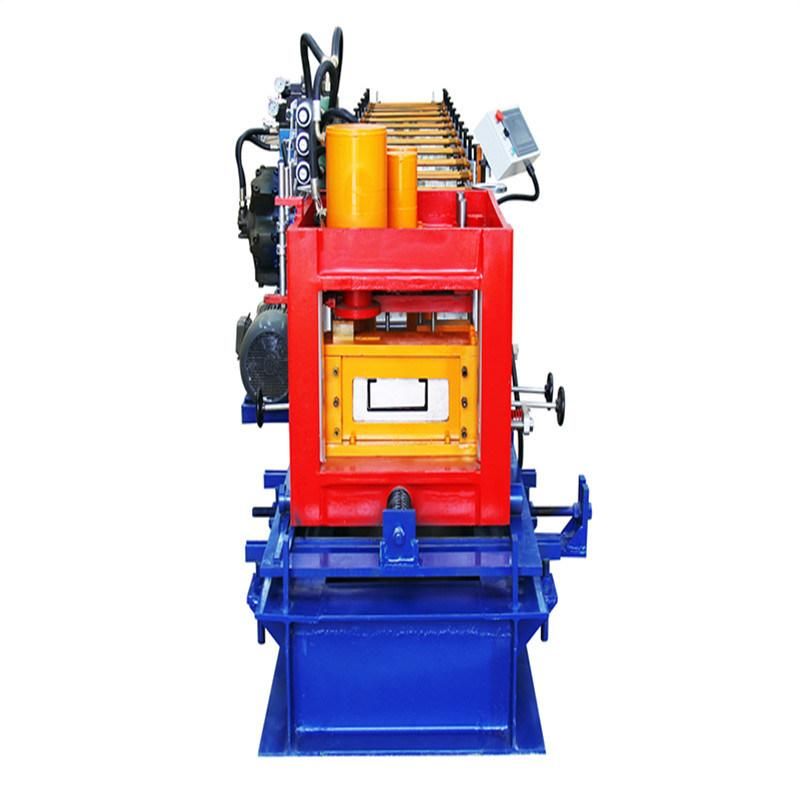

Dx Metal Purlin Roll Forming Machine
1. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 1.0-2.0mm
(3) Main motor power: 5 kw
(4) Pump power: 7.5 kw
(5) Shaft diameter: 80mm
(6) Forming steps: 13 steps+5 steps
(7) Roller material: 45# forged steel, with hard chrome plating
(8) Main frame: 350H steel
(9) Medium plate thickness: 18mm
(10) Control systerm: PLC computer control with inverter
(11) Power supply: 380V, 3 Phase, 50Hz
(12) 0veral sized: 7500mm*1500mm*1500mm
(13)Total weight: 5 tons




2. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.

(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.

(5) Spare parts

3. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video

4. Warranty
24 months, and lifelong technical support service

5. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.

6. Package
Standard export package, water-proof package, covered with plastic film

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1

Cold Roll Forming Machine Product Feature:

The metalic profile produced by roll forming machine look beautiful, elegant and noble. They are widely
used for garden, factory, hotel, exhibition center and villa, etc.


Cold Roll Forming Machine Components:

Roll forming machine consists of Uncoiler, Coil sheet guiding device, Main roll forming system, Post
cutting device, Hydraulic station, PLC control system and Support table.
Optional with Hydraulic Decoiler, Auto Stacker, Safe Cover, Pre-Cutting, Film Covering Device, and so on.


Cold Roll Forming Machine Working Flow:

Decoiling→Feeding & Guiding→Flattening(If needed)→Pre- Punching/Cutting(If needed)→Roll Forming→Post Step pressing/Punching(If needed)→Post Cutting→Finished Products To Support Table


If any cumtomized machinery interested in, feel free to contact us for further discussion. We will provide
most suitable machine solution for your market.

If u have any other question,please contact me any time.
