• Model NO.：WLT
• Production Speed：2.5~3.5m,Min
• Voltage：380V,415V
• Wall Thickness：0.18-0.3mm
• Size Range：DN8-32mm
• Machine Package：Polywood Box and Standard Pallet
• Material：SUS304, 321 and 316L
• Lead Time：45 Days After Receiving The Deposit
• Warranty：1 Year
• Dimension：8000*1100*1700
• Power：5kw
• Product Name：DN8-32mm Gas , Water Hose Making Machine
• Transport Package：Standard Seaworthy Package
• Specification：ISO9001
• Trademark：Comflex
• Origin：Wuxi, Jiangsu, China
• Production Capacity：500 Sets Per Year

Machine Name.

Mechanical hose making machine

Technical Data

Application of the hose: natural and water hose

Size range: DN8 up to DN32

Wall thickness: 0.15-0.3mm

Production speed:2.5~3.5m/min

Strip thickness: 0.18-0.3mm

Material: sus304, 321 and 316L

Power:4-7KW

Outer dimensions: 8000*1100*1700

Packing details

Polywood box and standard pallet

MOQ

1 set

Warranty

1 year

Payment terms

T/T, L/C, D/P, Western union

No.SizeTube OD
(mm)Wall thickness
(mm)Hose ID
(mm)Hose OD
(mm)Pitch
distance
(mm)Width of the strip
(mm)1DN 810.30.18811.32.731.82DN1012.30.181013.52.938.12DN 12150.1812.316.33.246.63DN 16200.216.221.34.562.24DN 2023.50.2520254.573.05DN 25300.32531.54.593.36DN 3239.50.333414.5123.2Rated power60KWRated temperature1100ºCRated voltage380VNo. of phases3Temperature control zone3Furnace Size51*6*5000mm (OD*thickness*length)No.of hoses can be annealed at same time3pcsMaterial of furnace310SLength of furnace4600mmSleeve length51*3*6500mmMaterialsus304

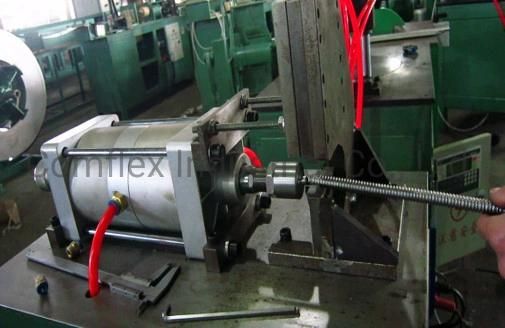

C. Convolution compressing machine
To compress the corrugation for easy welding

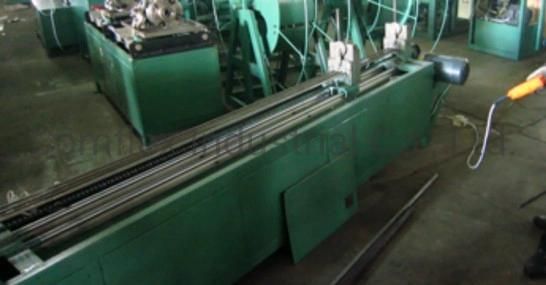

D.Pitch closing machine

To get more flexible hose, the metal hose will be compressed on this machine, the pitch distance will be closed which make hoses more flexible. Size range: HJ-BA100 DN25-100mm HJ-BA200 DN100-200mm

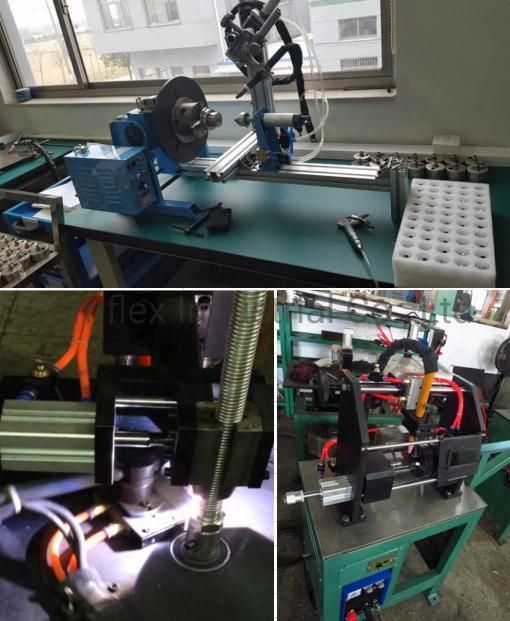

E.Hose Fitting Welding Machine

1.Vertical fitting welding machine

Size range: DN8-32mm
Welding type: TIG wleding
Welding position: Circumference
Compact structure
Torch automatic rotating

2.Horizontal fitting welding machine

Size range: DN8-32mm
Welding type: TIG wleding
Compact structure
Part automatic rotating

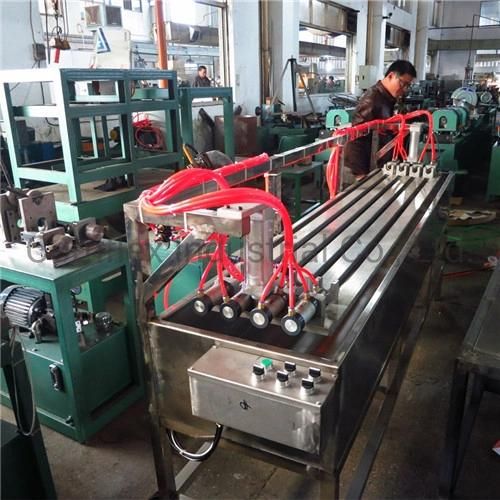

F. Testing BenchThe machine is widely used for following hose testing:Water hose, gas hose, solar hose and fire fighting hose hydraulic leakage testing Size range: DN8-32mm Pressure: 6bar Max. length of the hose: up to 2000mm No. of hoses testing at the same time: 4-8pcs Testing medium: water

 G. PVC extruder lineHard Teeth Surface, type 173 Gearbox 18.5KW Inverter, 4 grade Motor with Chinese famous brand Chint contactor The screw & barrel are 38CrMoAl, Nitriding treatment,depth: 0.2-0.4MM,compression ratio:3.2, Length : diameter: 25:1with water cooling system Thermal heating & electrical: the whole machine apply Chint DC contactor. Intelligent temperature controller, AL heating: 6 zones, 4pcs with two sections of moulds Size range: DN8-32mm

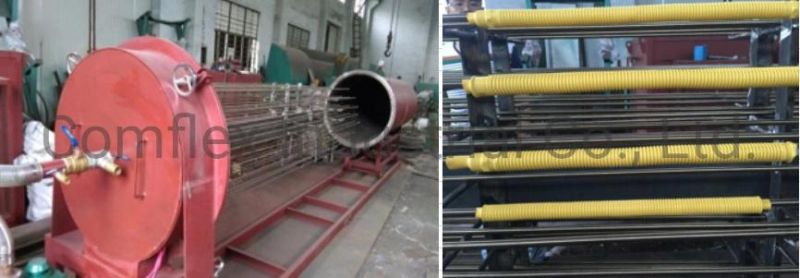

 H.Vacuum PVC coating lineRated Power: 60KW Rated voltage: 380V Rated temperature: 300 ºC Frequency: 50HZ Cylinder: ¢ 600X4 meters Cylinder moves: Manual Cylinder seal forms: with silicone rubber seal Vacuum pump: The 2X-30 rotary vane vacuum pump Max. length: 3m Heating element: 30 Pcs of stainless steel electric heating pipe


Finished Products

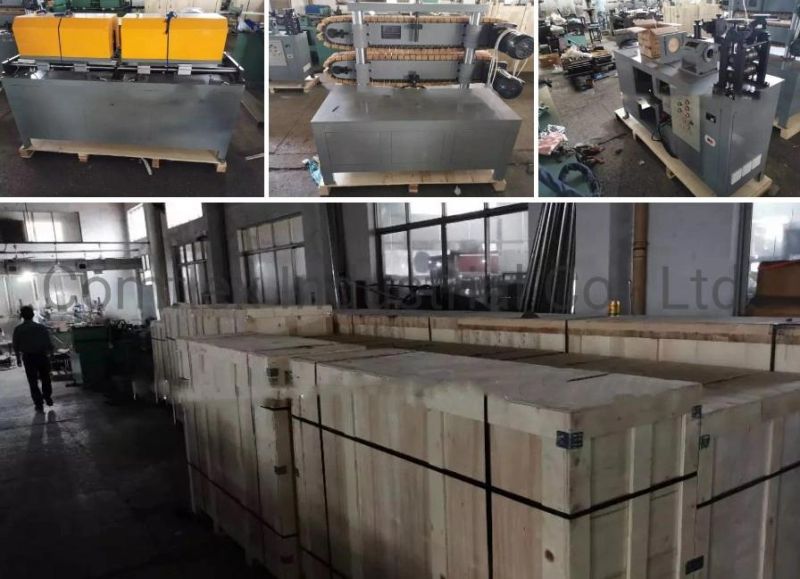

Our Machine Package

Polywood package with tray



Machine training




 FAQ

Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience

Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines

Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100   b: DN50-150   c:DN12-65

Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well


We need to know following information to quote you correct machineries:

1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
