Double-Layer Color Steel Sheet Roof Panel Roll Forming Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Warranty：2 Years
  • Tile Type：Colored Steel
  • Certification：CE, ISO, ISO9001: 2000, CE, SGS
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall, Floor

Base Info

  • Model NO.：840,900
  • Transmission Method：Electric
  • Effective：Easy Operation
  • Motor Power：4kw
  • Forming Station：13 Stations
  • Medium Plate Thickness：14mm
  • Main Frame：300h
  • Diameter of Roller：75mm
  • PLC：Delta Brand
  • Type：Roll Forming Machine
  • Method：Roll Forming Machine
  • Transport Package：One 20 Feet Container for Loading One Set Machine
  • Specification：CE, SGS
  • Trademark：DIXIN
  • Origin：Cangzhou City, Hebei Province, China
  • HS Code：84552210
  • Production Capacity：20sets,Per Month

Description

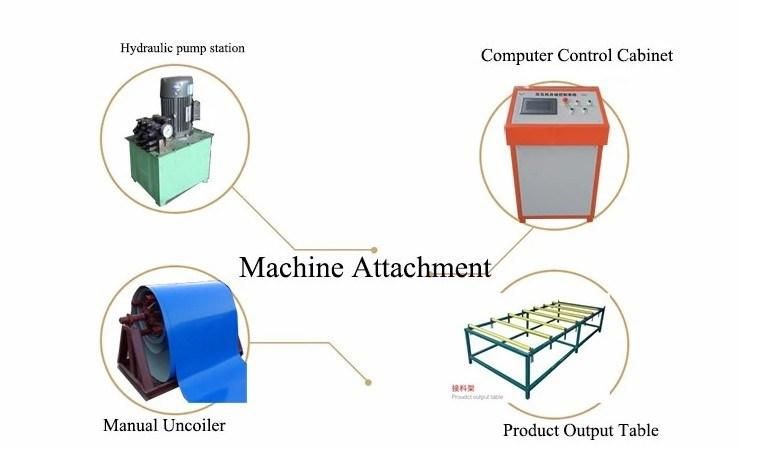

Components of machine
 Decoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set   Double-Layer Color Steel Sheet Roof Panel Roll Forming Machine


Other spec.
1. Size: about 6*1.5*1.5m (L*W*H)
2. Weight: About 2.5 ton
3.  Decoiler Max. Capacity: 5000kgs
4.  Hydraulic station power: About 4Kw (Depend on final design)
5.  Cutting length: Cut-to-length

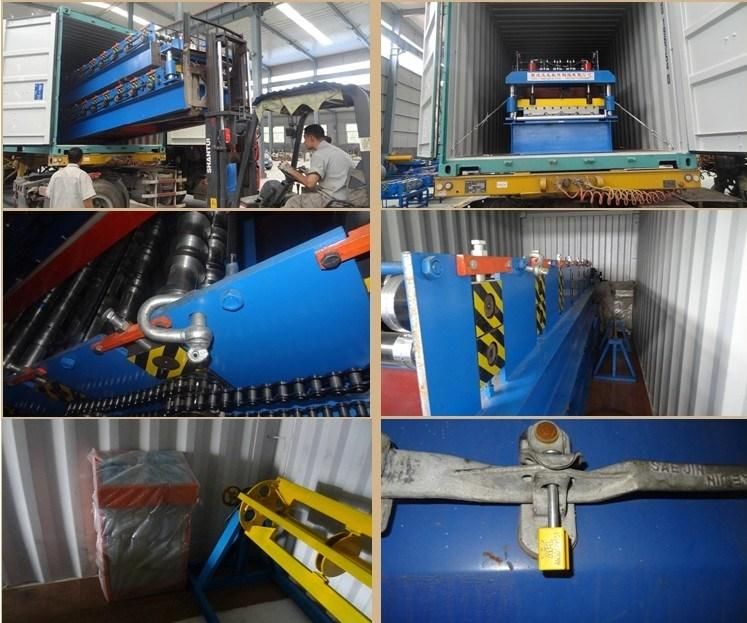

Packing:
1. One 20feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery: about 30 days.
 Double-Layer Color Steel Sheet Roof Panel Roll Forming Machine
Service
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
Double-Layer Color Steel Sheet Roof Panel Roll Forming Machine


FQA
 1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
machine in my factory?
2.How to visit our company:
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou West station  (1 hour),then we can pick up you.
B.Fly to Tianjin Airport: By high speed train From Tianjin West station to Cangzhou West station ,then we can pick up you.
