• Model NO.：THJ-01
• CNC or Not：not CNC
• Voltage：Customized
• Air Pressure：0.5~0.8MPa
• Rotation Speed：4r,Min
• Input Power：0. 12kw
• Min. Glass Size：175mm*175mm
• Glass Dimension Max. Size：2000X2000mm
• Motor Power：120W
• Overall Size：70*800*110mm (mm)
• Weight：200kg
• Color：Customized
• Warranty Time：2 Years

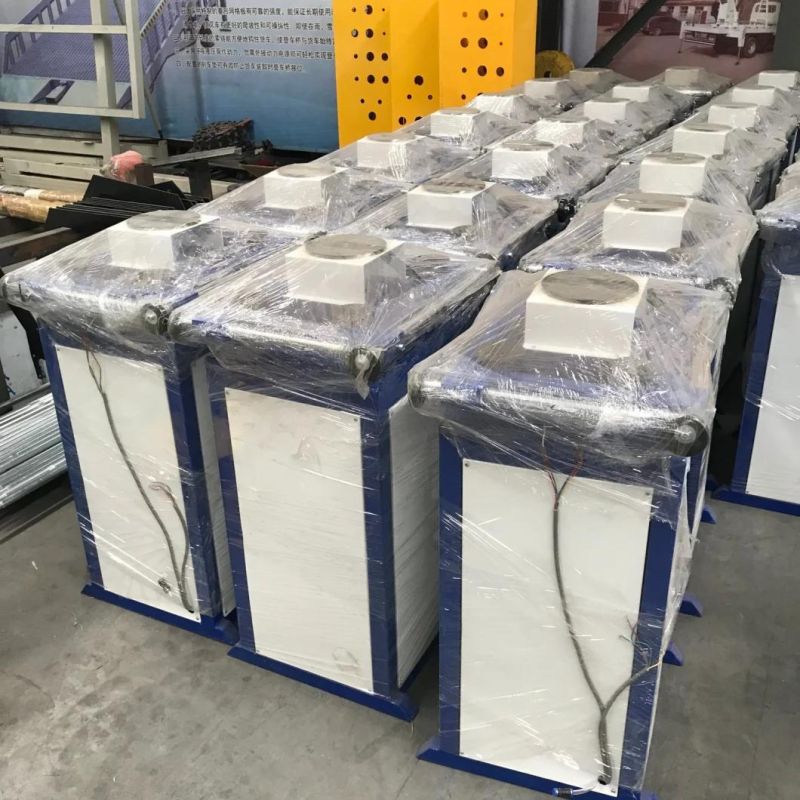

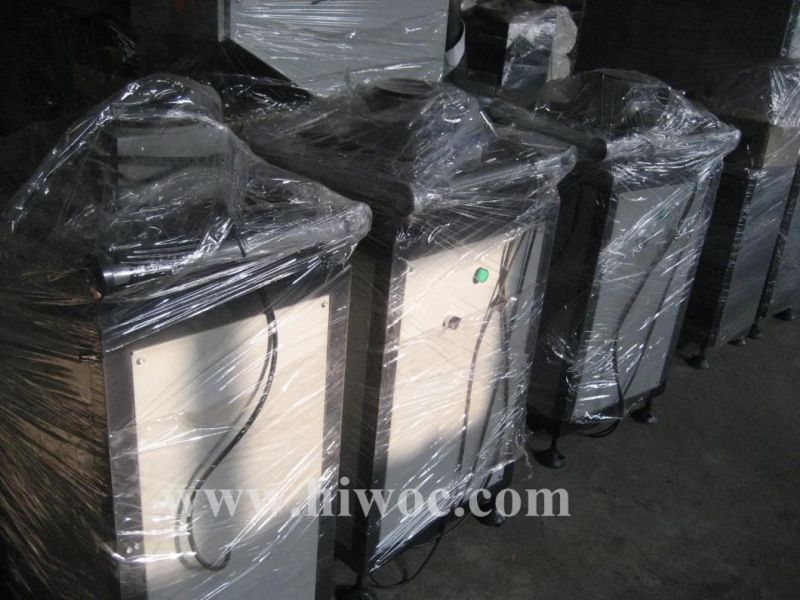

• Transport Package：Film and Plywood Case
• Specification：70*800*110mm (mm)
• Trademark：Hiwoc
• Origin：China
• HS Code：84752990
• Production Capacity：1000,Year

Basic Info.

Model NO. THJ-01 CNC or Not not CNC Voltage Customized Air Pressure 0.5~0.8MPa Rotation Speed 4r/Min Input Power 0. 12kw Min. Glass Size 175mm*175mm Glass Dimension Max. Size 2000X2000mm Motor Power 120W Overall Size 70*800*110mm (mm) Weight 200kg Color Customized Warranty Time 2 Years Transport Package Film and Plywood Case Specification 70*800*110mm (mm) Trademark Hiwoc Origin China HS Code 84752990 Production Capacity 1000/Year

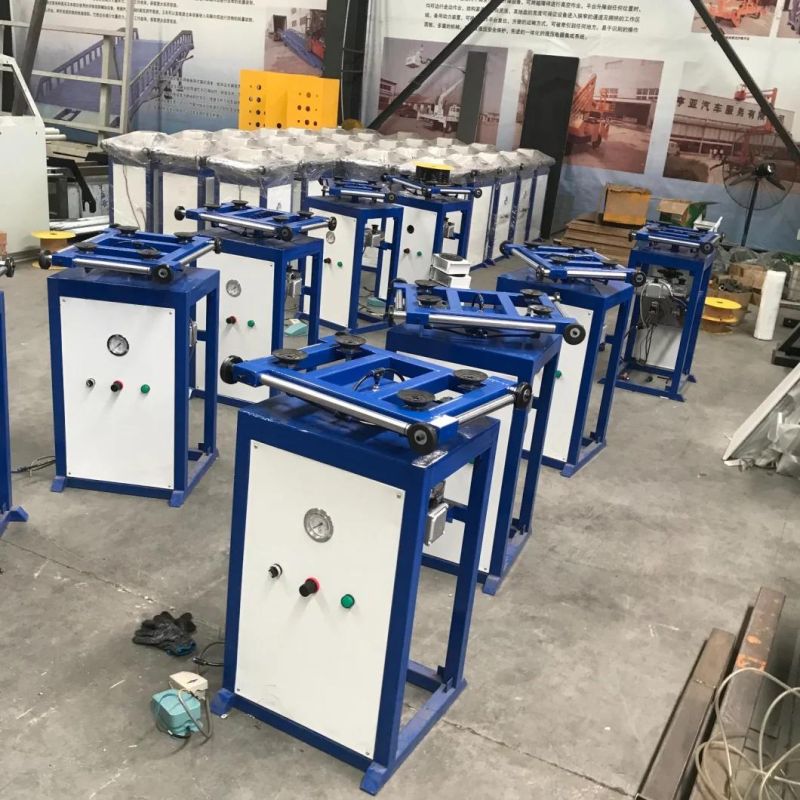

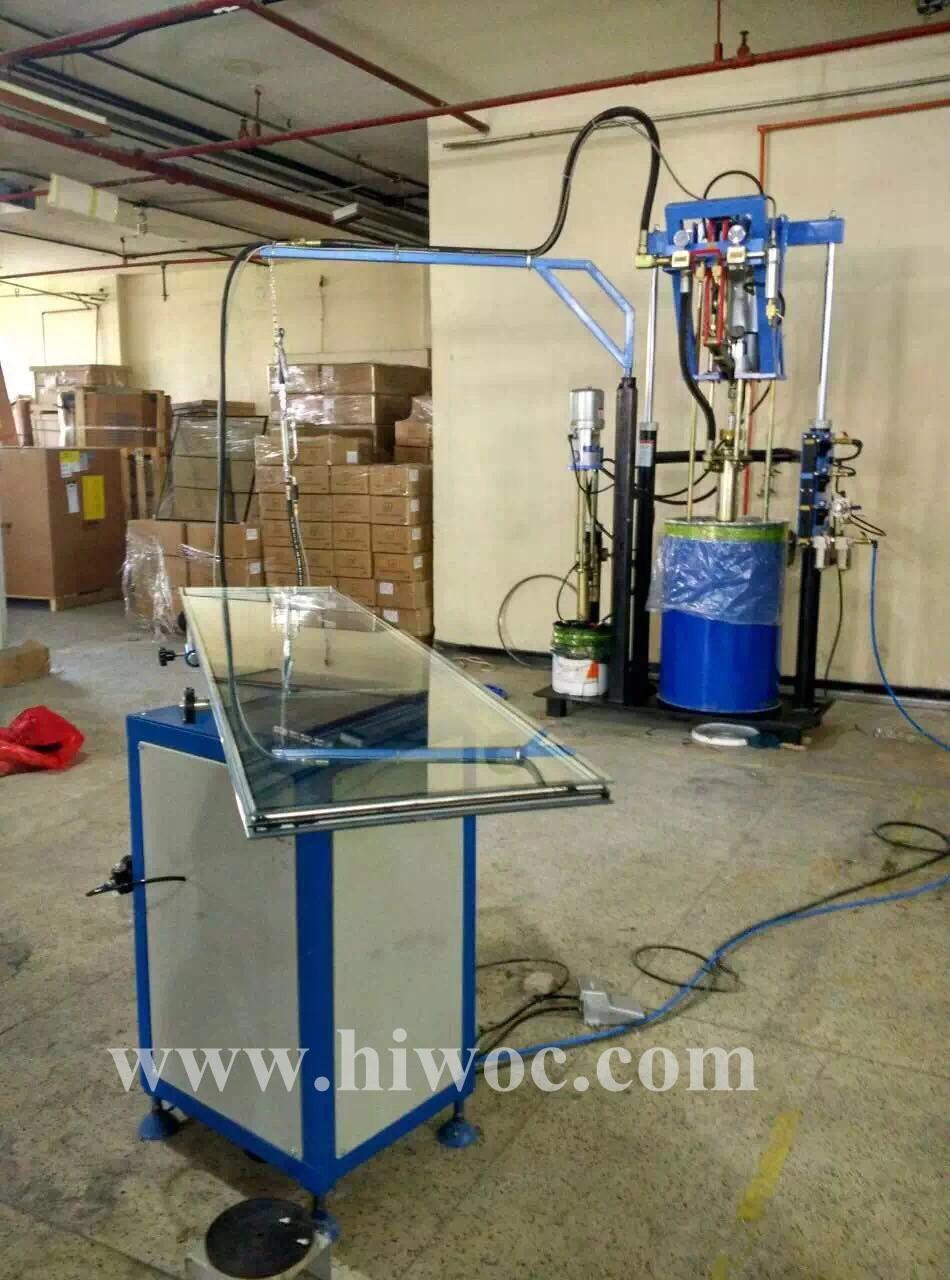

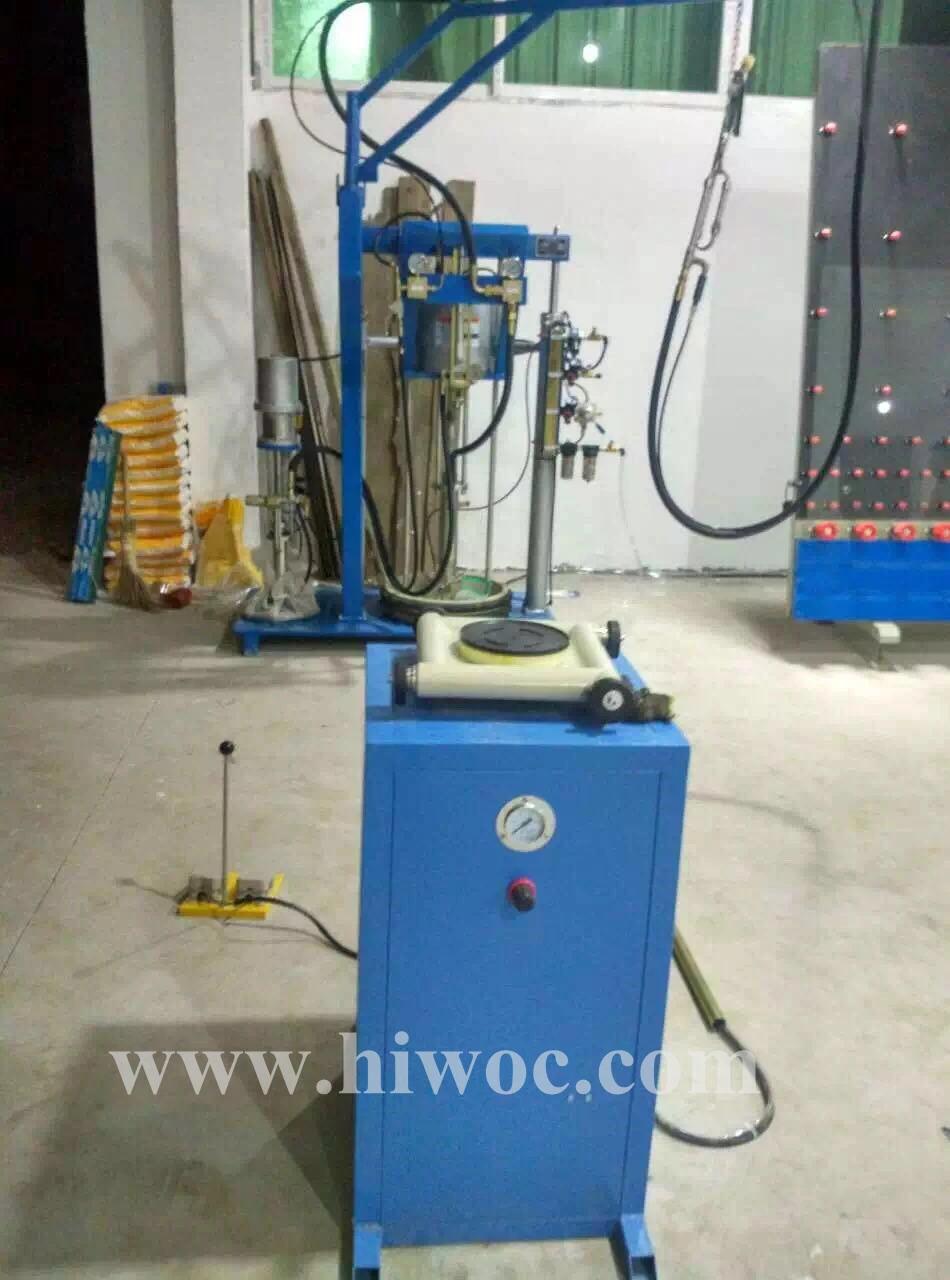

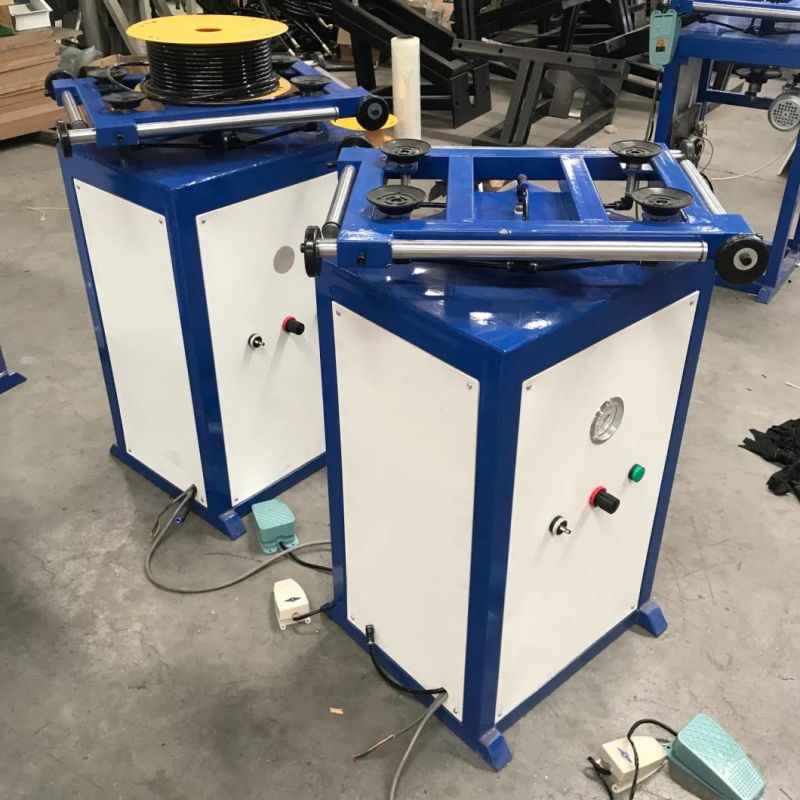

Product Description

Features
1) The supporting arm can be adjusted based on glass dimension.
2) The support device is equipped with vacuum chuck. So no manual holding is needed on spreading.
3) Operators are capale to operate the footswitch for control the lifting and rotating of glass about the 0~90 degree rotation as to complete sealing of glass edge.
4) The machine is simple in operating procedures and high in working efficiency.

Parameter
Air Pressure	0.5~0.8MPa
Rotation Speed	4r/min
Input Voltage	220V/50Hz or As Customer need
Input Power	0. 12Kw
Min. glass size	175mm*175mm
Glass Dimension Max.	2000x2000mm
Motor Power	120W
Overall size	70*800*110mm (mm)
Weight	200kg



Standard accessory
Sucker	1pcs
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc
