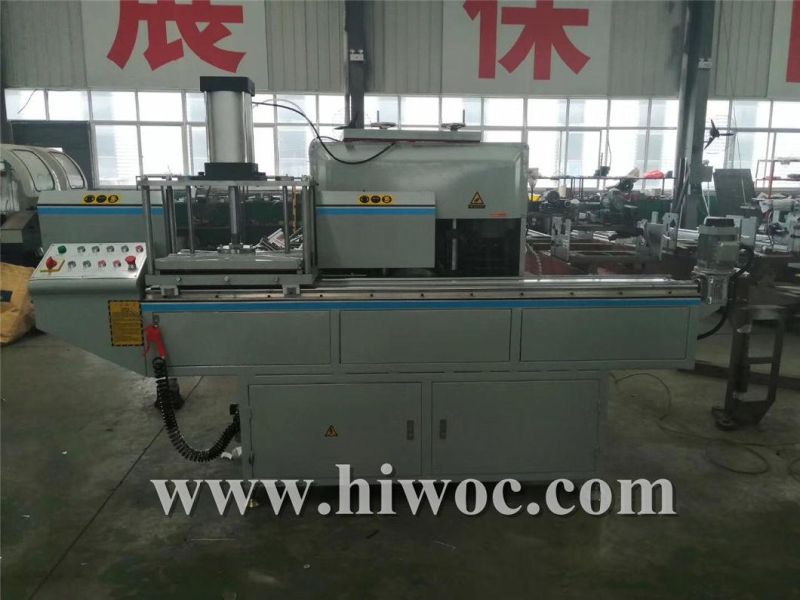

• Model NO.：LXD-220
• Automatic Grade：Automatic
• CNC or Not：CNC
• Voltage：380V
• Power Supplier：380V,50Hz or Other
• Motor Power：4, 9kw
• Motor Rotary Speed：2800r,Min
• Working Air Pressure：0.6~0.8MPa
• Saw Blade Specification：250mm and 32mm
• Feeding Journey of Worktale：0~320mm
• Cutter Adjustment：85mm
• Workable Journey：0~1050mm
• Contour Dimension：2400×1250×1900mm
• Max Open Tenon：40mm
• Transport Package：Wooden Box
• Specification：2680x1020x1600mm
• Trademark：Hiwoc
• Origin：Shandong, China
• HS Code：84659200
• Production Capacity：2000PCS,Per Year

Basic Info.

Model NO. LXD-220 Automatic Grade Automatic CNC or Not CNC Voltage 380V Power Supplier 380V/50Hz or Other Motor Power 4, 9kw Motor Rotary Speed 2800r/Min Working Air Pressure 0.6~0.8MPa Saw Blade Specification 250mm and 32mm Feeding Journey of Worktale 0~320mm Cutter Adjustment 85mm Workable Journey 0~1050mm Contour Dimension 2400×1250×1900mm Max Open Tenon 40mm Transport Package Wooden Box Specification 2680x1020x1600mm Trademark Hiwoc Origin Shandong, China HS Code 84659200 Production Capacity 2000PCS/Per Year

Product Description

Main specification

Power supply	380V   50HZ or customer specification.

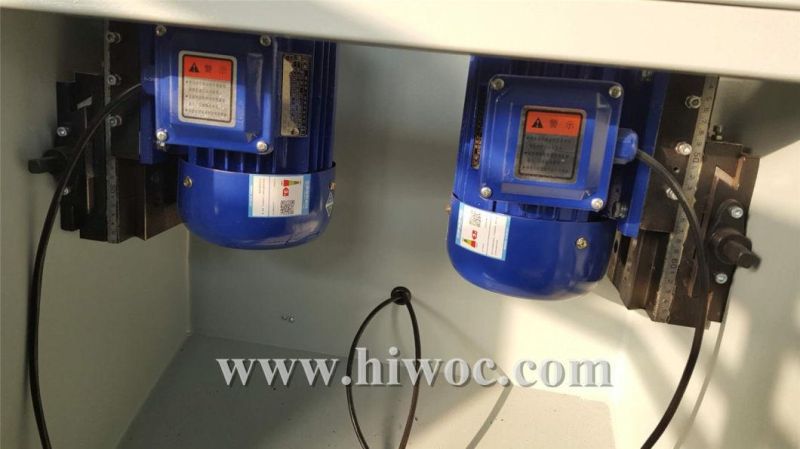

Motor power	4.9KW
Motor rotary speed	2800r /min
Operation air pressure	0.6-0.8MPa

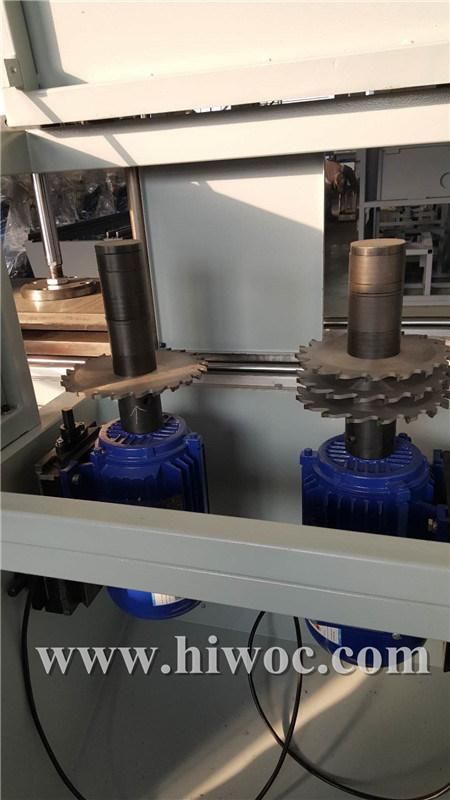

Saw blade specification	Φ250* Φ32

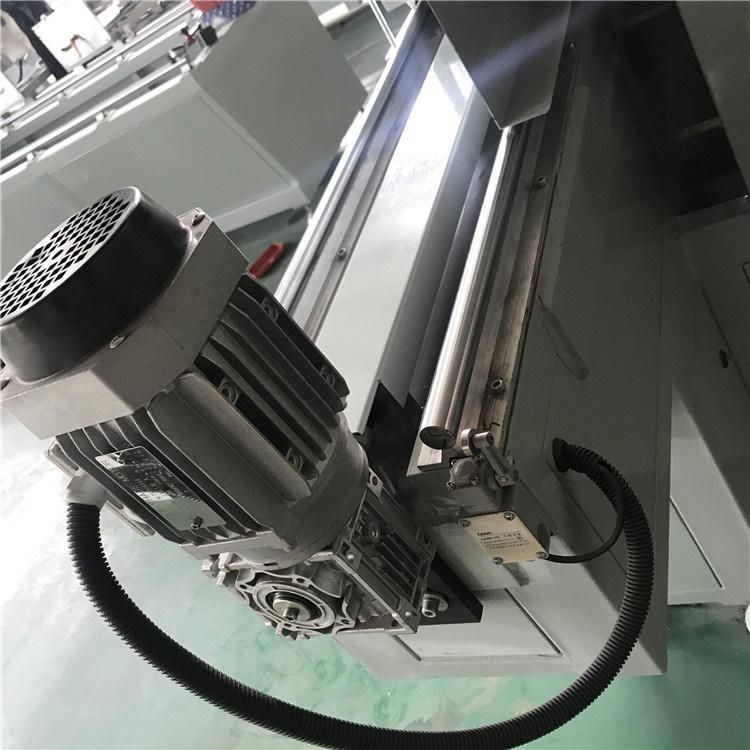

Feeding journey of worktale	0-320mm
Max open tenon	40mm
Cutter adjustment	85mm
Workable journey	0-1050mm
Over all dimension(L×W×H)	2400×1250×1900mm
Weight	950KG
Cutting surface roughness	Ra12.5µm

Standard accessory

Solenoid Valve	Sitairui
Cylinder	Huatong
Motor	Anhui Sanyang
Air Filter Device	STNC
Electrical	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Japan Omron



Air Gun	1pc
Operation Manual	1pc
Complete tooling	1set
Certificate	1pc
Coolant Device	1pc

Remarks
1. All the electrical elements, Circuit breaker protection and AC contactors are schneider or other world famous brand.
2. International CE standard high flexibility, high shielding cables.
3. Warranty time: 1 year
4. Quotation Valid: 90 days
5. Payment terms: 30%T/T as deposit, 70% balance made before shipment by T/T
6. Delivery time: 30 days upon receipt of 30% deposit by T/T
7. Packaging: Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box,just use the tray)
8. After sales service:
1)24 hours service on Internet and Telephone, free instructions and problem solving
2) Free training to make sure a master of the operating of this machine for the person who come to our factory
3)User-friendly English manual or operating video for machine using and maintaining
4) on-the-spot training, installation and repairing can be met if required.(If so, need the buyer afford the visa and air ticket and 100USD/DAY Salary)

1100kg
