• Model NO.：HW-WFH-4
• CNC or Not：CNC
• Voltage：380V
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Input Voltage：220V 50~60Hz or as Customer Need
• Input Power：3kw
• Welding Profile Height：20-120mm or Customized
• Welding Width：120mm
• Welding Range：400-3500mm
• Overall Size：4400×950×1700mm
• Weight：1500kg
• OEM：Support
• Transport Package：Film and Plywood Case
• Specification：5300x950x1700mm
• Trademark：Hiwoc
• Origin：China
• HS Code：84659200
• Production Capacity：1000,Year

Basic Info.

Model NO. HW-WFH-4 CNC or Not CNC Voltage 380V Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Input Voltage 220V 50~60Hz or as Customer Need Input Power 3kw Welding Profile Height 20-120mm or Customized Welding Width 120mm Welding Range 400-3500mm Overall Size 4400×950×1700mm Weight 1500kg OEM Support Transport Package Film and Plywood Case Specification 5300x950x1700mm Trademark Hiwoc Origin China HS Code 84659200 Production Capacity 1000/Year

Product Description

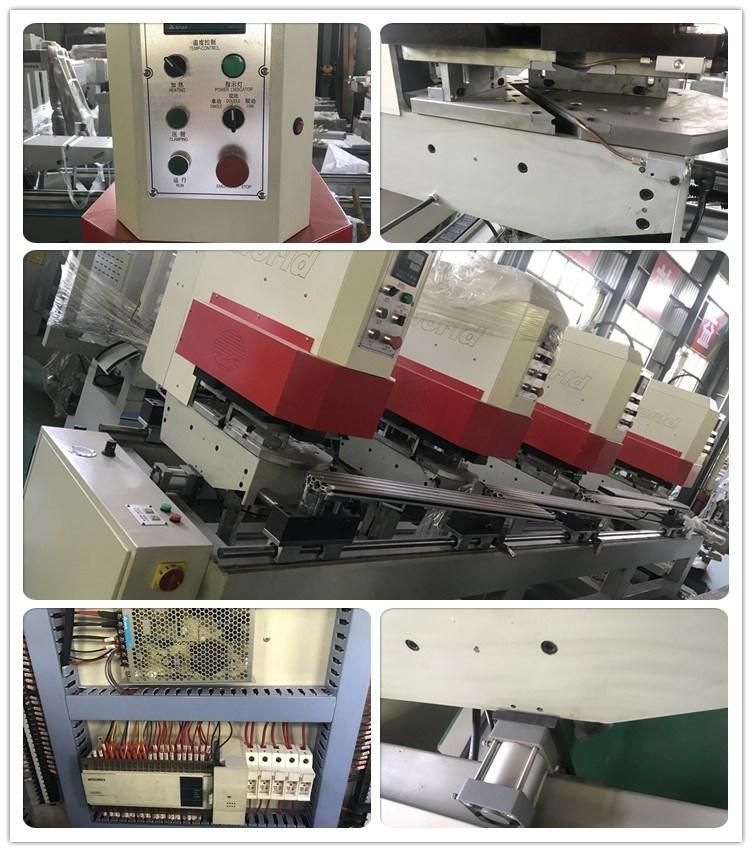

Colorful Plastic Profile PVC Window Door Profiles 4 Heads UPVC Seamless Welding MachineFeature
1.Four heads can work seperately or linkage.
2. Can control the welding gap size strictly, so the surface welding is very flat and beautiful.

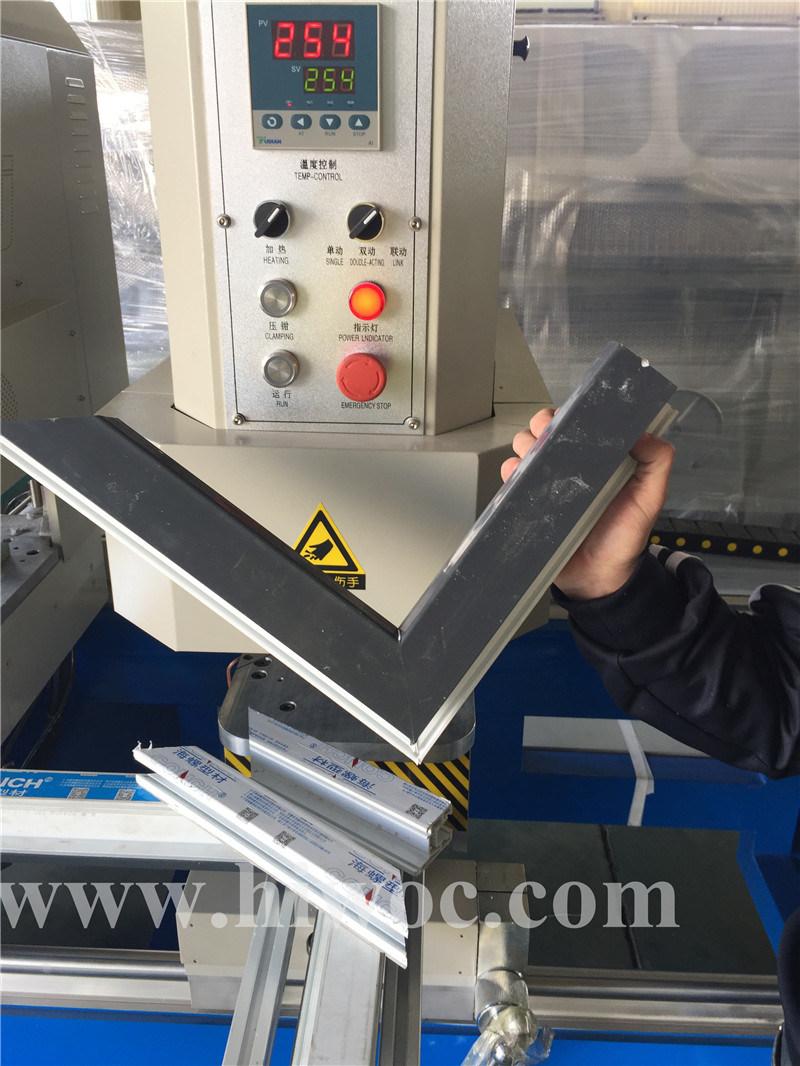

For profile seamless welding(0.2mm welding seam).
3. Profile clamp with cutters, welding seam adjustable within 0.2-2mm.
4. Specialized for V-welding, T-welding, H-welding and ⊥, ∟,+,∠ shapes and so on.
Can avoid complicated adjustment.
5. Right head could be 30° ~ 180° arbitrary angle welding

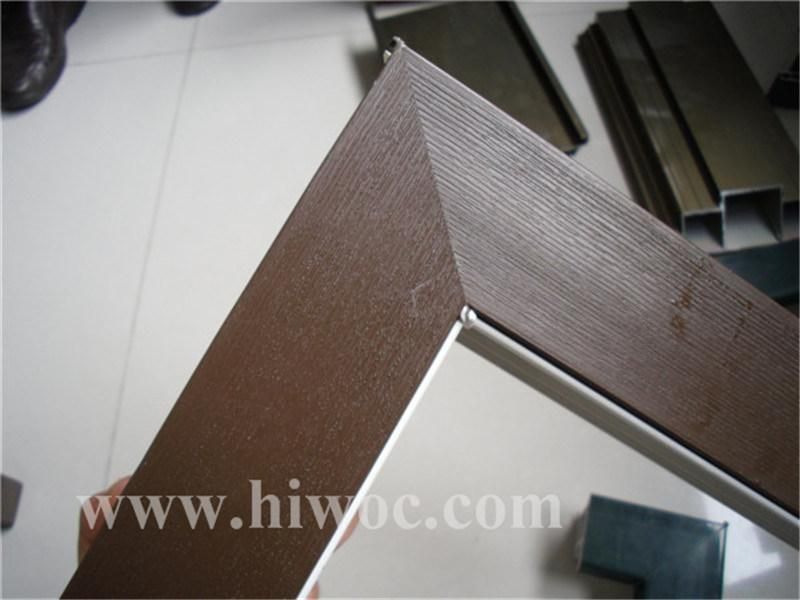

6. Can respectively meet the common profile and colored profile processing requirement.
Applicable for weld color profile, both the upper and bottom side will flash disposable cleaning is
completed.
7.Imported square bearing system guarantee clamping, heating plate, locating plate moving
precision&reliable performance. Locating plate can slide along square guide, increasing locating precision.
8. The cutter blade tool adopt alloy materials, the blades could realize automatic,support change blades.
9. The whole machine body adopt high inflexibility structure welded, high bearing capacity, not transform.
10.The moving part welding plate use circular orbit support, up and down movement use square guide, can use longer and more stability.
11.The bottom position square guide positioning design. Positioning with high precision. Welding size is standard, ensuring higher reliability.
12. Automatic blowing device, blowing all the welding block once.
13. Easy-change for special fixture, increased corner strength and cleaning appearance.
14.PLC control the welding action and program with high reliability.
15. Parameters can be set to meet various profiles processing requirement.
16. on the left bottom, we will add Man-machine interface screen. It can show heating time, welding time, feeding delay time, blowing time and Pressure clamp uplift time and so on.
17. The machine is using double clamping, make sure more accurate and precision.
18. Pneumatic brake device


Parameter
Air Pressure	0.6~0.8MPa
Air consumption	260L/min
Input Voltage	220V 50~60Hz or As Customer need
Input Power	4.5Kw
Welding profile height	20-110mm
Welding Width	Max 120mm
Welding range	400-3500mm
Overall size	4400×950×1700mm
Weight	1500kg



Main accessory
PLC	Taiwan Delta
Solenoid valve	Airtec
Cylinder	PC(FESTO Joint Venture Brand)
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	Huatong
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Temperature Controller	Japan Omron



Standard accessory
Heat plate	8pcs
Teflon cloth	several
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc
