• Model NO.：LJGB-500
• CNC or Not：not CNC
• Voltage：Customzied
• Air Pressure：0.4~0.7MPa
• Saw Blade Specification：1200×1300×1500mm
• Input Voltage：380V 50Hz or as Customer Need
• Input Power：2.2kw
• Motor Rotary：2800r,Min
• Cutting Width*Height：Max 235, 135mm
• Cutting Angle：90 and 45
• Repeat Locating Length：Less Than 0.1mm
• Cutting Profile Surface Roughness：Ra12.5um
• Angle Cutting Tolerance：±5′
• Transport Package：Film and Plywood Case
• Specification：700x1300x1500mm
• Trademark：Hiwoc
• Origin：China
• HS Code：84659200
• Production Capacity：40000,Year

Basic Info.

Model NO. LJGB-500 CNC or Not not CNC Voltage Customzied Air Pressure 0.4~0.7MPa Saw Blade Specification 1200×1300×1500mm Input Voltage 380V 50Hz or as Customer Need Input Power 2.2kw Motor Rotary 2800r/Min Cutting Width*Height Max 235, 135mm Cutting Angle 90 and 45 Repeat Locating Length Less Than 0.1mm Cutting Profile Surface Roughness Ra12.5um Angle Cutting Tolerance ±5′ Transport Package Film and Plywood Case Specification 700x1300x1500mm Trademark Hiwoc Origin China HS Code 84659200 Production Capacity 40000/Year

Product Description

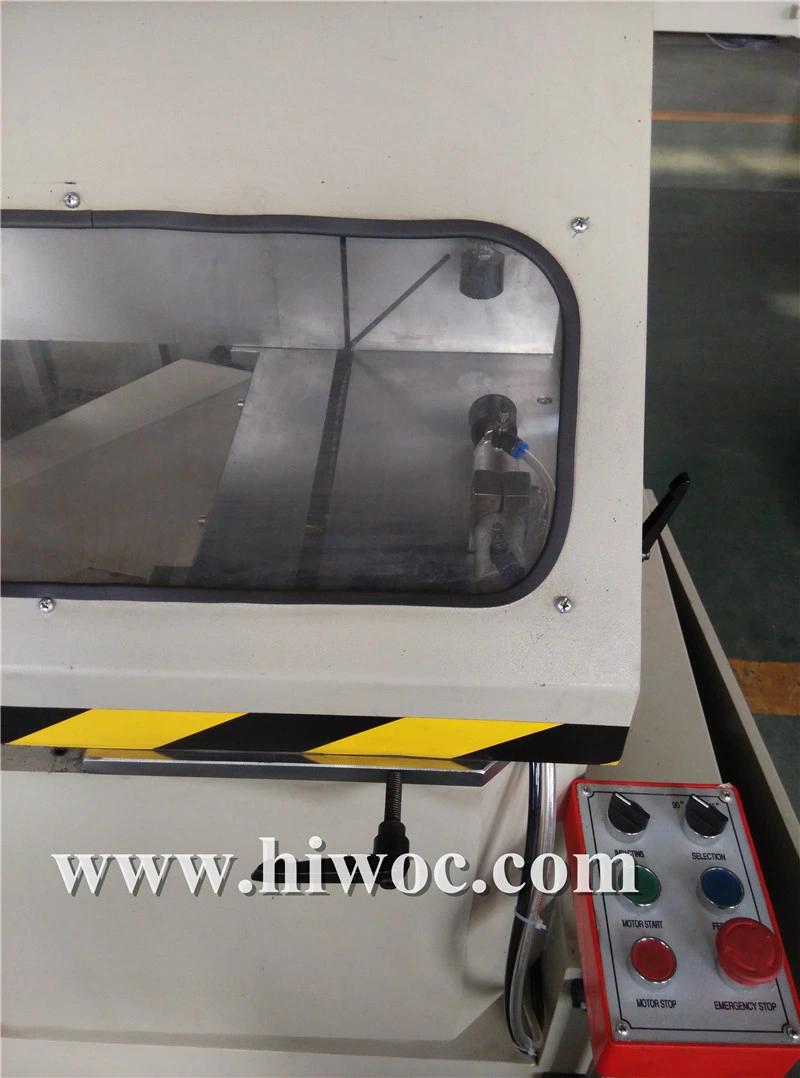

This machine can cut 45 and 90 degree. can both can pvc and aluminum profile
Feature

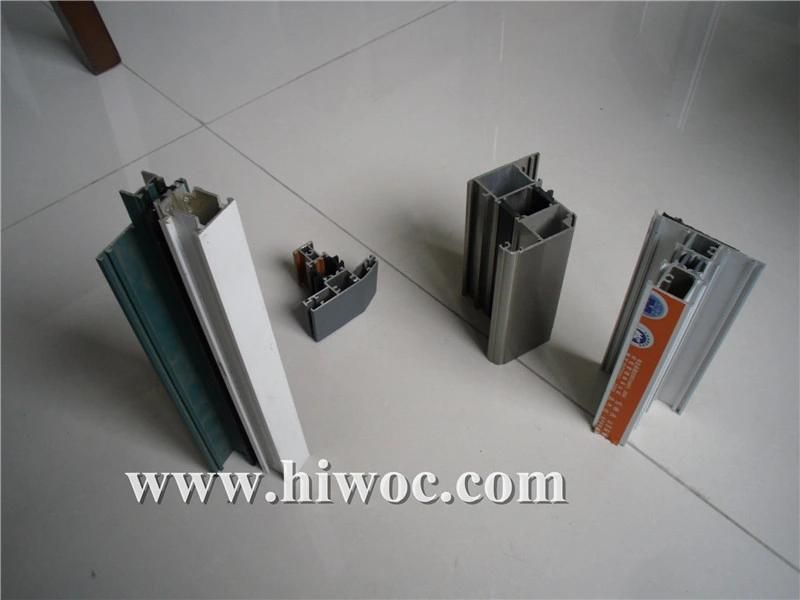

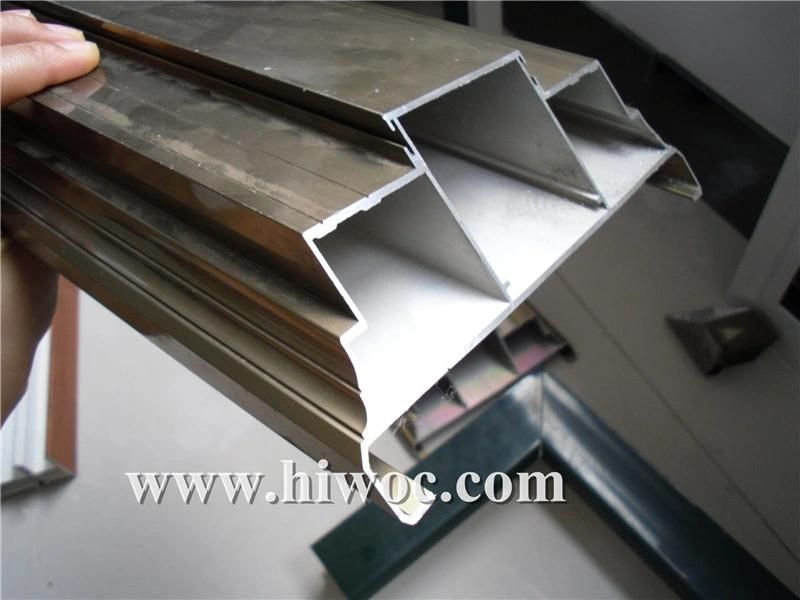

1.Used for aluminum windows and doors profiles cutting and for curtain wall profile cutting also for plastic profiles cutting.
2. Adopted carbide alloy blade, cutting smoothly.

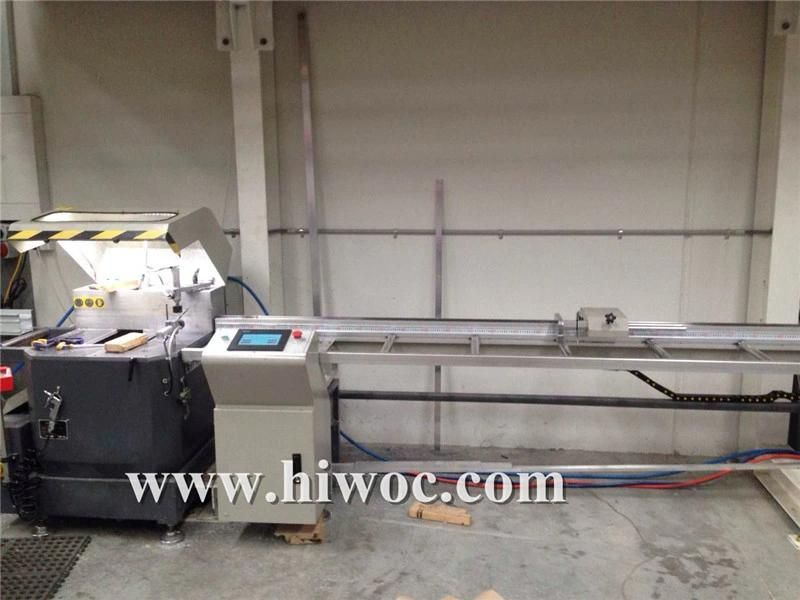

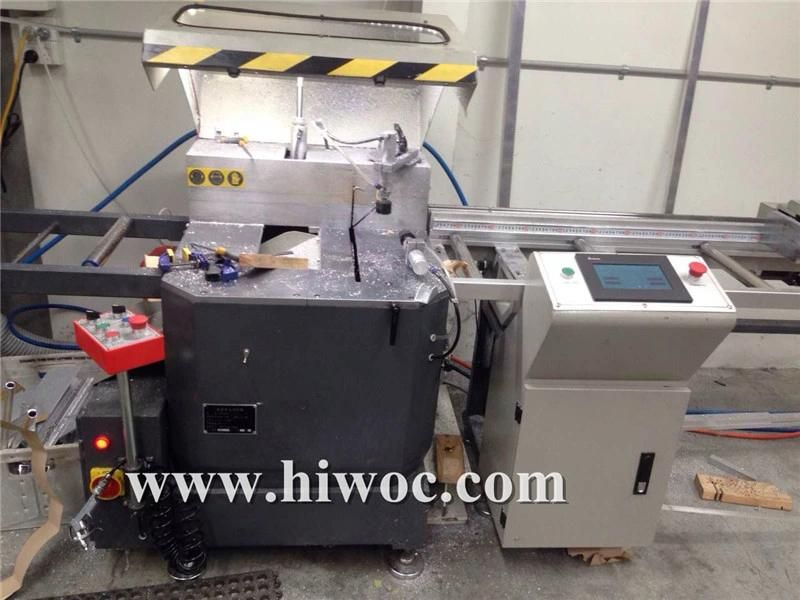

3. This machine with up-feed blade and digital display positioning system(depends on request)
4. Spray device, to realize fast cooling
5. Can cutting many pieces profiles in same time.

Parameter
Air Pressure	0.4~0.7MPa
Saw blade specification	60L/min
Input Voltage	380V 50Hz or As Customer need
Input Power	2.2Kw
Saw blade specification	Ø550×Ø30
Air comsuption	50L/min
Motor rotary	2800r/min
Cutting width*height	Max 235, 135mm
Cutting lenth	400-4200mm
Overall Dimension	1200×1300×1500mm
Cutting angle	90° 45°
Repeat locating length	≤0.1mm
Cutting profile surface roughness	Ra12.5Um
Angle cutting tolerance	±5′
Weight	550kg



Main accessory
Saw blade	Uniken dia 500mm
Solenoid valve	Airtec
Cylinder	Huatong
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	STNC
Electrical Button and Switcher	Delixi and schneider
AC Contactor and Circuit Breaker	Delixi and schneider



Standard accessory
Saw blade	1pcs
Work piece supports	2set
Air Gun	1pc
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc
