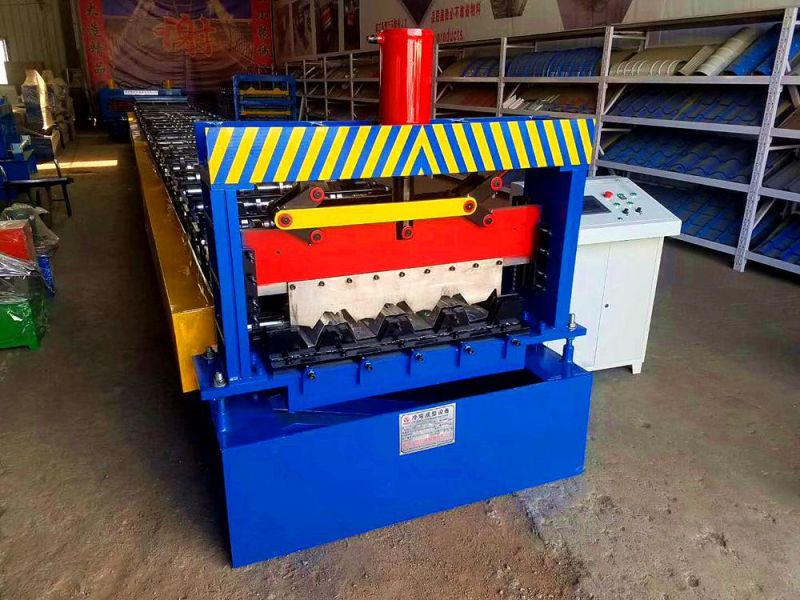

Maquina PARA Losacero Galvanizado Perfiles De Rodillo Metaldeck Forming Machine
Tianjin Haixing Imp. & Exp. Co., Ltd.- Tile Type：Glazed Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Floor
- Transmission Method：Hydraulic Pressure
Base Info
- Model NO.：HX- lamina losacero 25
- Name：Maquina PARA Losacero Galvanizado
- Materials Thickness：0.5-1.2mm
- Raw Materials Width：1220mm,1250
- Cutting Blade：Cr 12 High Grade Steel
- Roller Diameter：90mm
- Roller Material：45#Steel Chrome Plated
- Shaft Material：45# Steel Outer Diameter: 90mm
- Control System：PLC
- Suitable Material：Color Galvanizedsteel Coil
- Main Frame：450 H Beams
- Middle Plate：20mm
- Weight：10500kgs
- Main Motor：11kw*2
- Hydraulic Pump：4kw

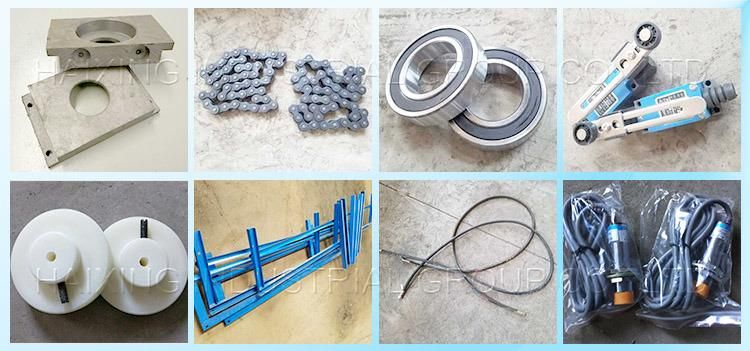

- Decoiler：1 Set Free
- Transport Package：Main Body Plastic Film, Spare Parts Put Carton Box
- Specification：12.5*1.8*2.0m
- Trademark：No
- Origin：China
- HS Code：84552210
- Production Capacity：200sets,Month
Description
ComponentsManual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set

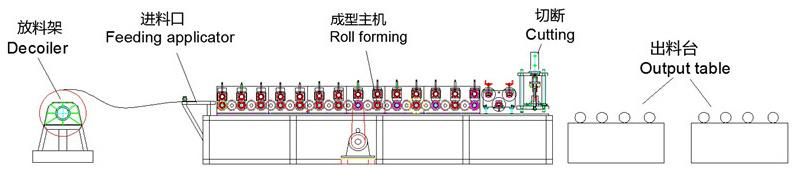

maquina para losacero galvanizado perfiles de rodillo metaldeck forming machine Production Flow :
Passive Decoiler 1Set Feeding Platform with Pre-cutter 1Set Roll Forming Machine 1Set PLC Control System 1Set Hydraulic Cutting System 1Set Exit Rack for roofing production 1Set Spare parts One carton box

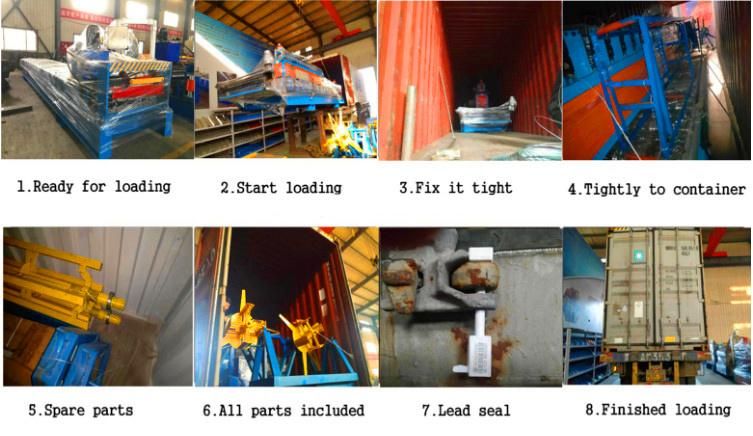

maquina para losacero galvanizado perfiles de rodillo metaldeck forming machine export standard packing:
1.The main body of the roll forming machine will be naked packing into the container,covered with plastic film.
2.Steel wire fix the machine into the container, in case any damage when shaking on the sea.
3.The spare parts will be packed into the carton box.
4.The received goods table put into carton box .
5.Manual decoiler naked package .
After Sales Service :
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.
FAQ:
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll
forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other
parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged
part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through
negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to
install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation
