Manual Clay Mud Cement Brick Making Machine Price in India
Henan Han Jin Machinery Co., Ltd.- Certification：CE, ISO9001: 2000
- Customized：Customized
- Automatic Grade：Semiautomatic
- Type：Brick Maker
- Name：Clay Brick Making Machine
- Capacity：12000-15000PCS,8hrs
Base Info
- Power：11kw,15HP Diesel Engine
- Materials：Clay, Loess, Red Soil, Kaolin, Solum
- Brick Shape：Solid, Hollow, Logo Brick
- Function：Producing Clay Brick, Logo Brick for Building
- Features：Manual, Low Cost, Can Be Driven by Diesel Engine
- Working Video：Available Brick Making Machine
- Manual Book：Can Be Provided Brick Making Machine
- Production Line：Mixer, Crusher, Brick Machine, Slicer, Cutter
- Price：Good Price Brick Making Machine
- Service：Best Service Brick Making Machine
- Quality：High Quality Brick Making Machine
- Transport Package：Medium Density Fiberboard
- Specification：ISO2001, CE
- Trademark：Holyphant
- Origin：China
- HS Code：8474809090
- Production Capacity：600sets,Month
Description
Model
SD220
SD250
SD-300
SD-350
Capacity(pcs/h)
1000-1200
1500-2000
4000-5000
6000-8000
Machine size(mm)
2200*1000*1100
3100*1100*1300
2200*1000*1100
2600*1100*1200
Power
11kw/15hp
11kw/15hp
30kw
45kw
Weight(kg)
950
1100
1600
2200
Brick size
240*115*53mm of course we can make the brick mol according to your demand sizes , length not limited, width<230mm,height<230mm

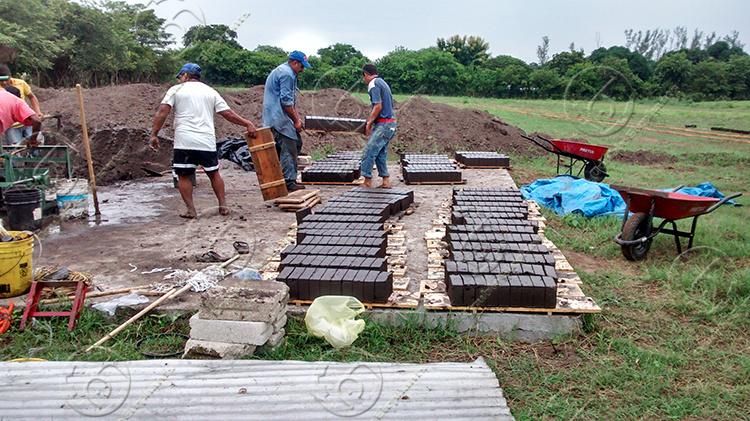

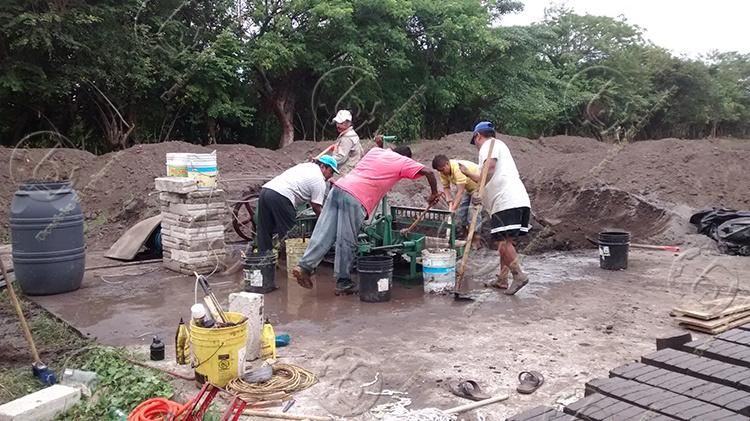

Working site in client factory

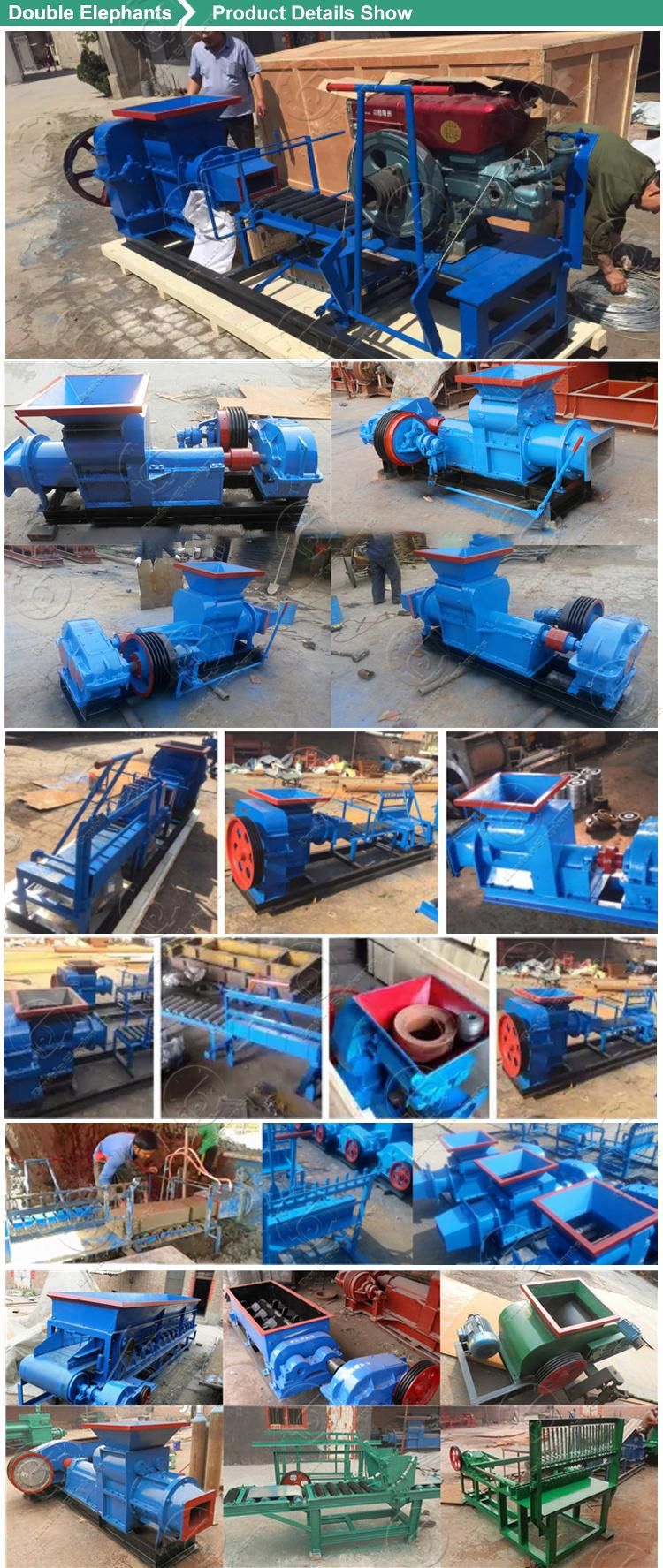

Product introduction for clay brick making machine
1.This type of clay brick making machine is is suitable to make solid clay brick ,red clay brick ,red soil standard bricks, red mud brick etc, Different molds can bring out different brick.
2.The material is rich and easy to find, such as Clay, shale, coal slack, fly ash etc It is very convenient to set up a factory and begin to make bricks.
3.This clay brick making machine has advantages of high production efficiency, compact structure, reliable performance, easy maintenance and steadily working without foundation bolt.
Advantages of clay brick making machine
1.designed reasonable and compacted.
2.the steel material of shafts and gears adopt high quality carbon steel and alloy steel, the key parts are quenched and tempered treated so as to extend the life.
3.Augers are adopt wear- resistance metal spray painting treatment.
4.All machinery adopted spiral pressure clutch (patent) which have high sensitivity and declutching thoroughly.
5. JZ Non-vacuum Small clay brick making machine use electric clutch to make operation more convenient.
6. JZ Non-vacuum Small clay brick making machine adopt copper bracket bearing and immerging lubrication method.
7.Reducers adopt hardened face gears.
