• Model NO.：840,900
• Transmission Method：Machinery
• Effective：Easy Operation
• Motor Power：4kw
• Forming Station：13 Stations
• Medium Plate Thickness：14mm
• Main Frame：300h
• Diameter of Roller：75mm
• PLC：Delta Brand

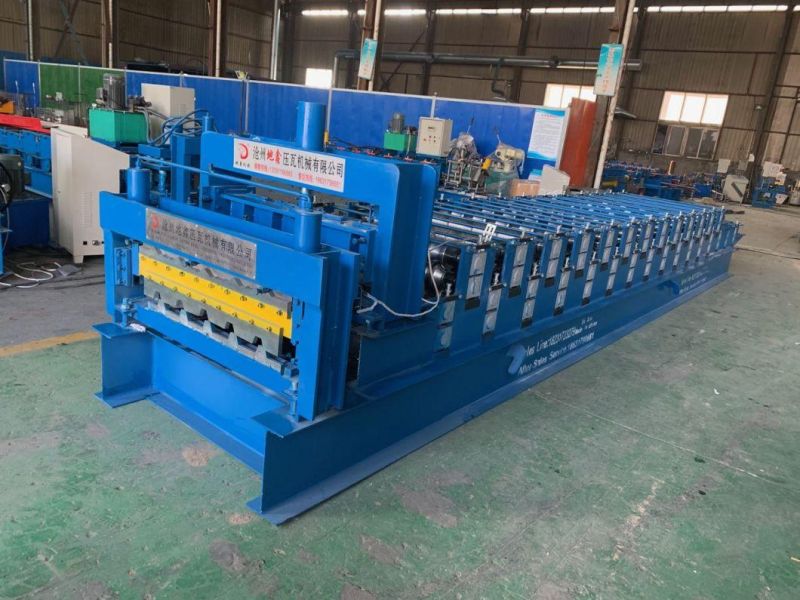

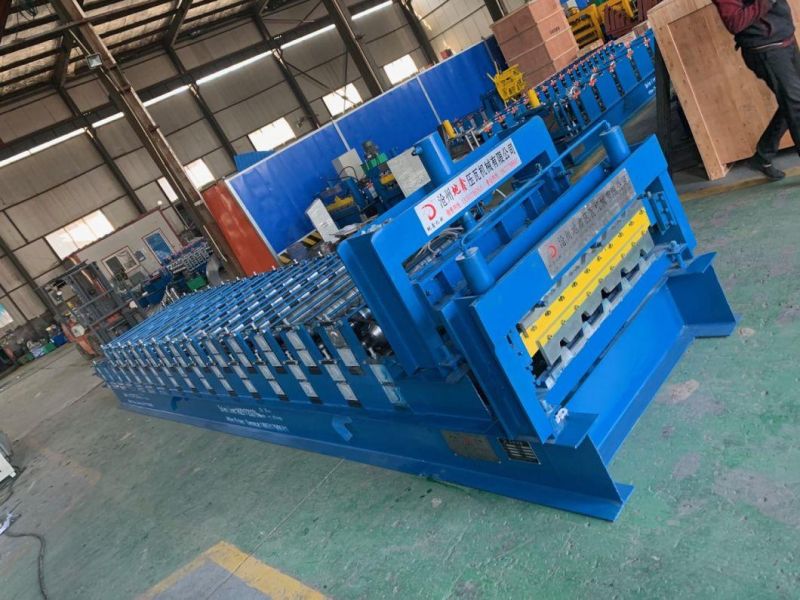

• Type：Roll Forming Machine
• Method：Roll Forming Machine
• Transport Package：No
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：20sets,Per Month

.Weight capacity of decoiler4.5T2.Appearance Size(L*W*H)6500*1400*13003.Raw material /feeding sheet material colored steel & galvanized steel4.Roller material45# high grade steel5.Shaft material45# high grade steel  6.Kind of drivechain drive7.Cutting systemautomatic hydyaulic cutting8.Cutting blade materialCr 12  high grade steel9.Frame material350 H-high grade steel10. Control systemtotally automatic PLC control system with touch screen11.Total power 4+4 kw12.Roller stations 13 rows13.Speed of production 2-4m/min 14.Thickness of colored steel0.3-0.8mm15.Feeding width1000mm16.Effectiv width820mm,840mm15.Frame material300 H-steel

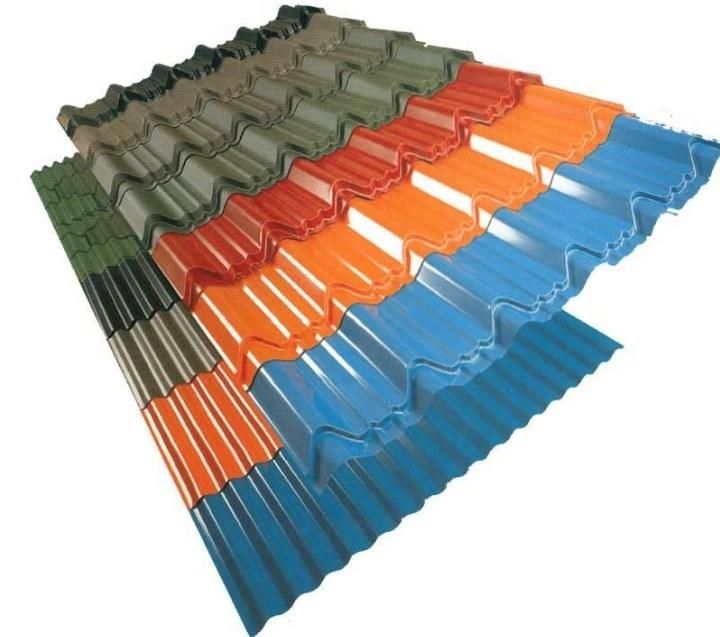

About our company Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.



Packing:
1. One 20feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.



If u have any other question,please contact me any time.
