Aluminum Foil Anti-Corrossion Heat Insulation Sheet Ridge Forming Machine Sound Insulation Roofing Sheet Making Machine
General Industry Tech Hebei Developing Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Tile Type：Ridge
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Model NO.：ZTRFM
- Usage：Roof
- Transmission Method：Chains
- Name：Ridge Roll Forming Machine
- Main Motor Power：5.5kw
- Hydraulic Motor Power：3kw
- Voltage：380V,50Hz,3phase
- Control System：PLC
- Feeding Material：Galvanized Steel
- Feeding Thickness：0.3-0.8mm
- Speed：20m,Min
- Roller Station：12 Rows
- Shaft Diameter：60mm
- Shaft Material：45# Steel
- Roller Material：45# Steel
- Cutter Material：Cr12 Quenched
- Dimension：5500*1400*1200mm
- Weight：About 4500 Kg
- Transport Package：Standard Packing
- Specification：5500*1100*1350mm
- Trademark：ZTRFM
- Origin：China
- HS Code：8455221000
- Production Capacity：500 Set,Year
Description
Working flow

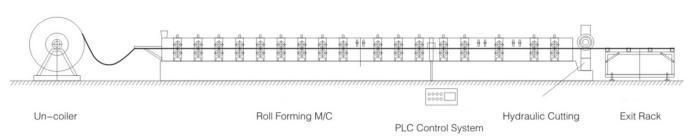

Uncoiler- Main Roll Forming Machine - Hydraulic Cutting - Exit Rach(Runout table)

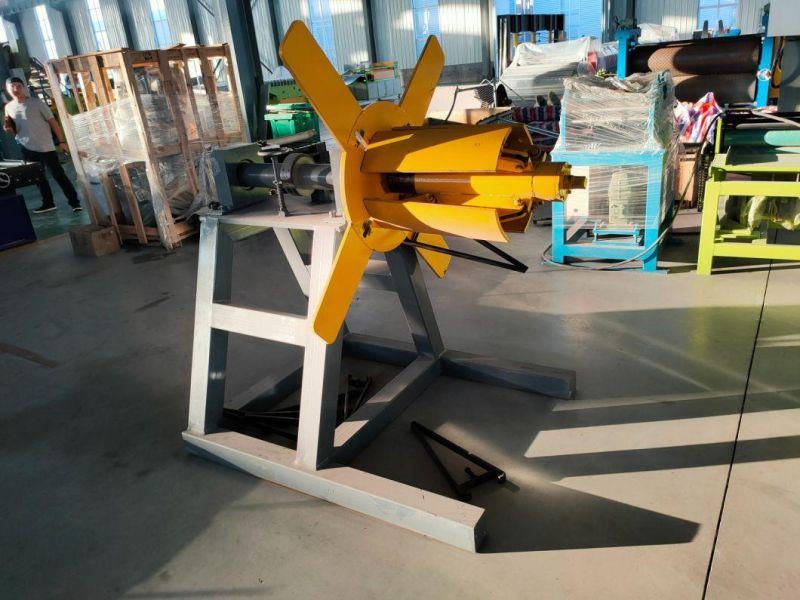

1. Manual Decoiler 3T

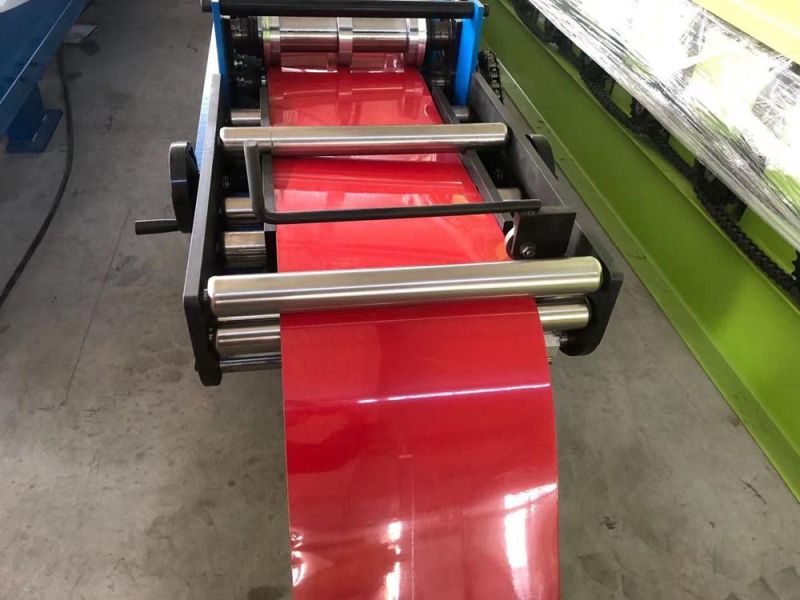

2. feeding and leveling devicefeeding system width is adjustable in order to suit for various steel strips.

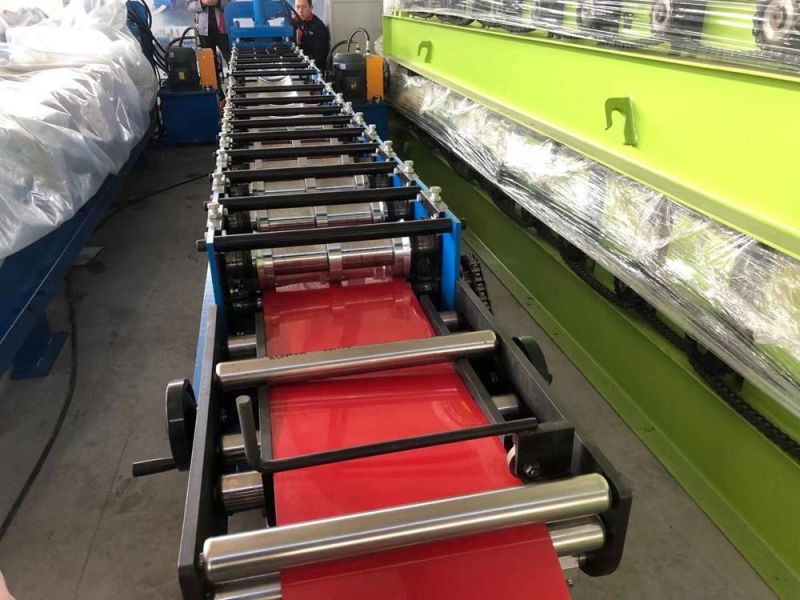

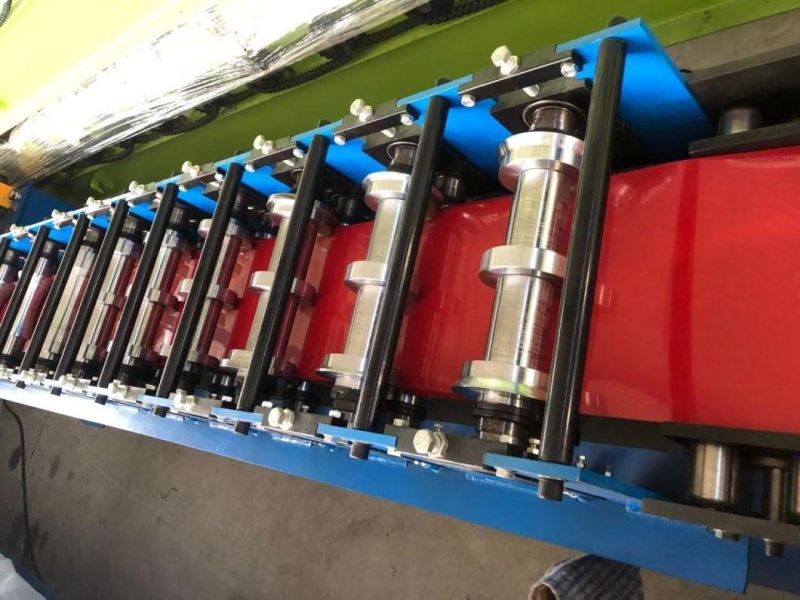

3.Roll forming systemShaft material:45# steelShaft diameter:60mmRoller material:45# steelbasic frame use 350H steel weldingmachine structure:middle steel plate
4.cutting systemblade made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
hydraulic motor: 3KW
5.Hydraulic stationusage: giving the cutter power for cutting.
advantage:With cooling fun for long time using.

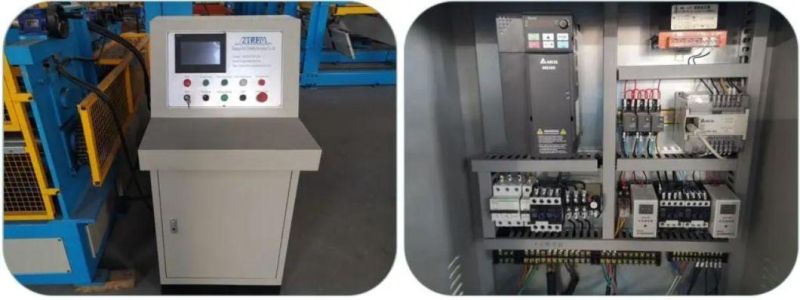

6. PLC control system
PLC brand: Delta brand
Low pressure electric part: famouse brand in the world
Encode: Omron brand

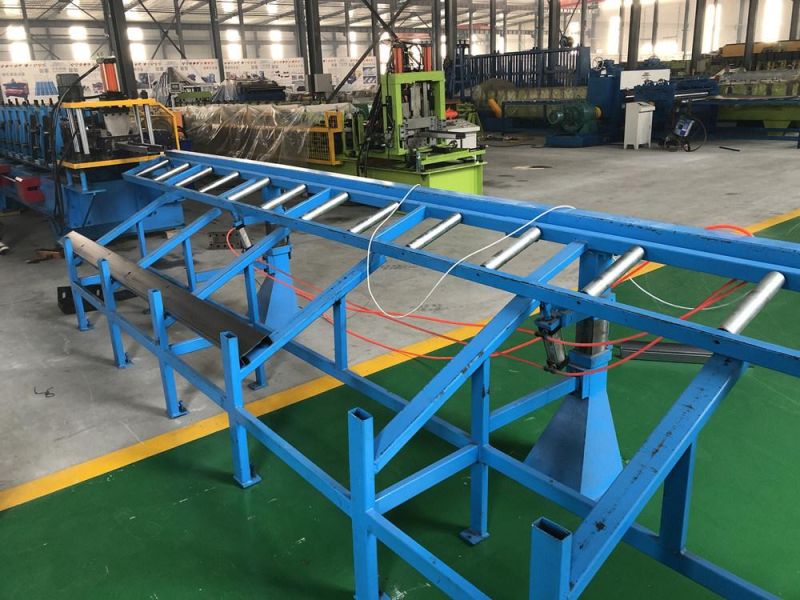

7. Runout table
FAQ:
Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
Q2. How can we be assured that you will deliver us quality machine with spare parts ?
A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer's factory for the installation of the machine.
Q3. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery.
Q4. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q5. Do you sell only standard machines?
A: No, most of our machines are customized according to customers specifications, also adopt top brand components.
Q6. What will you do if the machine is broken?
A: We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't
repair,we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
Q7. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q8. How to visit your company?
A:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
