• Model NO.：DHJ02
• Frequency：50Hz
• Welding Height：20~100mm
• Welding Width：<=120mm
• Dimensions：1100*1100*1700mm
• Weight：300kg
• Certificate：CE&ISO
• Programe Controlling：PLC
• Driving Systems：Pneum
• Welding Profile Height：20-100mm
• Welding Profile Width：<=120mm
• Max.Welding Length：3300mm

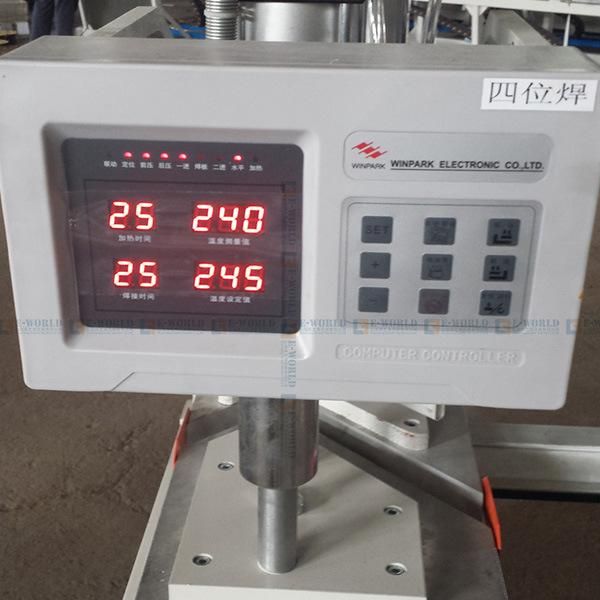

• PLC and Temperature Controller：Chint
• Transport Package：Suitable for Seaworthy Package
• Specification：1100*1100*1700mm
• Trademark：EWORLD
• Origin：Jinan
• HS Code：8464201000
• Production Capacity：10

 1.Product Description

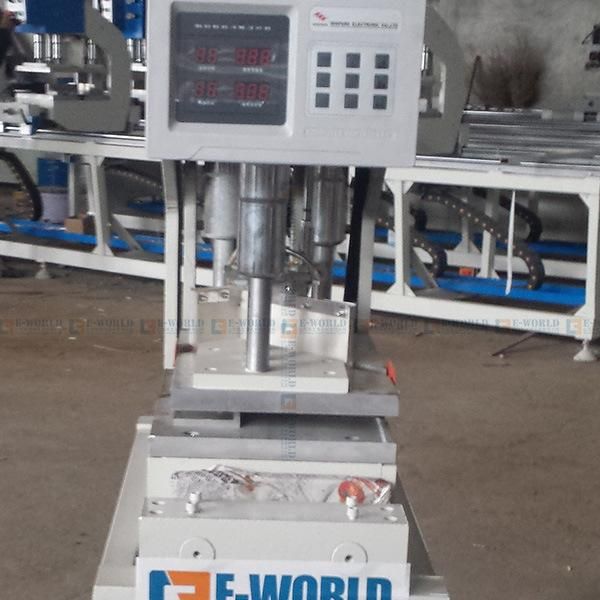

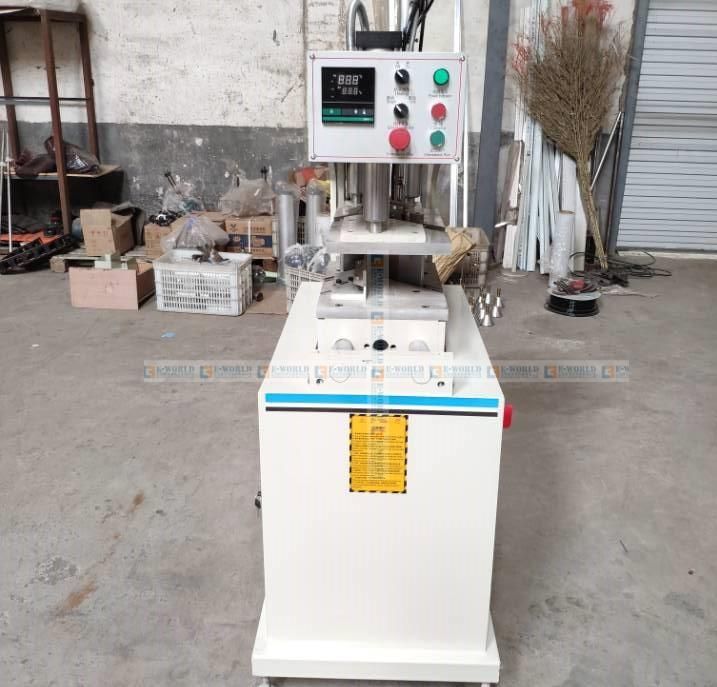

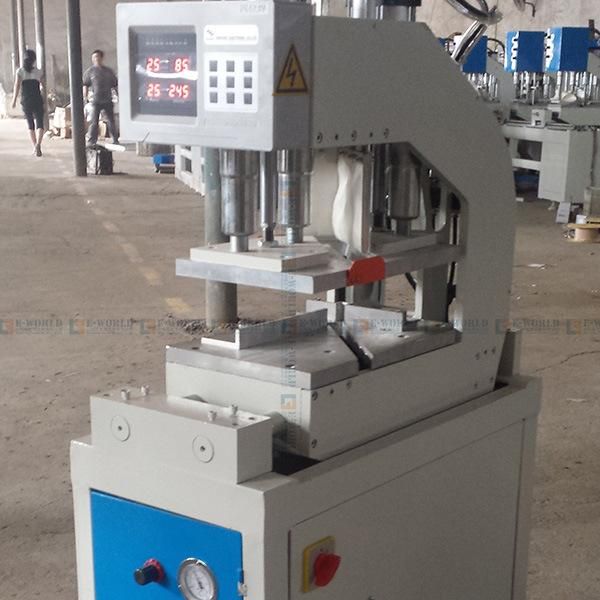

1).This machine is used for welding  PVC/UPVC/Plastic/Vinyl window door profile. With programming control and pneumatic driving systems, it has the features of high reliability, large processing range and easy operation.

2).This machine can weld about 80pieces windows per day in 8 working hours, if your production plan is more than 80 pieces windows doors, you can consider to buy two head welding machine, three head welding machine or four head welding machine, if very very large, you can consider to buy the CNC vertical type four corner welding machine.

3).About this welding machine, if your proifle height is higher than the common proifle height, you can tell us, then we can make the machine specially for you accoridng to your true proifle max.height, so that can make sure the welding machine can clamp and hold your profile exactly then make welding.

3).This machine, it is our common welding machine, if your profile is Europe profile, it is no problem, if your profile is America type profile,it needs to make backup moulds according to the profile sample, so if it is America type profile, it needs customer post the profile sample to us,then we make the moulds according to the sample.

4).If you profile thickness(height) is higher than 110mm, and also want to use this common welding machine, we can make the welding head higher with some device,but it needs to customer pay some extra charge about this.

5).Kindly note:

Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.

Notice: here if you want to make variable angle welding, here we can add to install the variable angle welding device to the machine, if you need, we can add this device, it needs to pay little extra cost if you want to weld variable angle.

2.Technical parameters


Model number	DHJ-02
Power supply	380V /220V 50Hz
Air consumption	100L/min
Motor power	1.2 kw
Welding length	400~3300mm
Welding profile height	20~100mm
Welding profile width	≤120mm
Operation air pressure	0.4 ~ 0.6Mpa
Machine weight(about)	300kg
Contour dimension	1100×800×1700mm





 RFQ

1.Question:Are you manufacture?
 Answer:
 Yes,we are the professional manufacture which have more than 5 workshops.

2.Question: How about the service ?
Answer:
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english ,communication barrier free

3.Question:What's the guarantee ?
Answer:
1).Our guarantee for 18 months.
2).24 hour's technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.

4. Q: Do you provide equipment operation training?

Answer:
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

5.Question:if our price is higher than another company or factories ?
Answer:
please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.

6.Question:How long is the delivery time ?
Answer:
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.

7.Question: What is the payment ?
Answer:
Any payment method you want,such as L/C,T/T,D/P,West-union and so on
