• Model NO.：Customized
• Raw Material：Galvanized Sheet
• Roller Material：45#Steel Chrome Plated
• Control System：PLC(Imported Brand)
• Color：Client′s Request
• Thickness：0.3-0.8mm
• Transport Package：Nude
• Specification：CE SGS ISO
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：500 Sets,Month

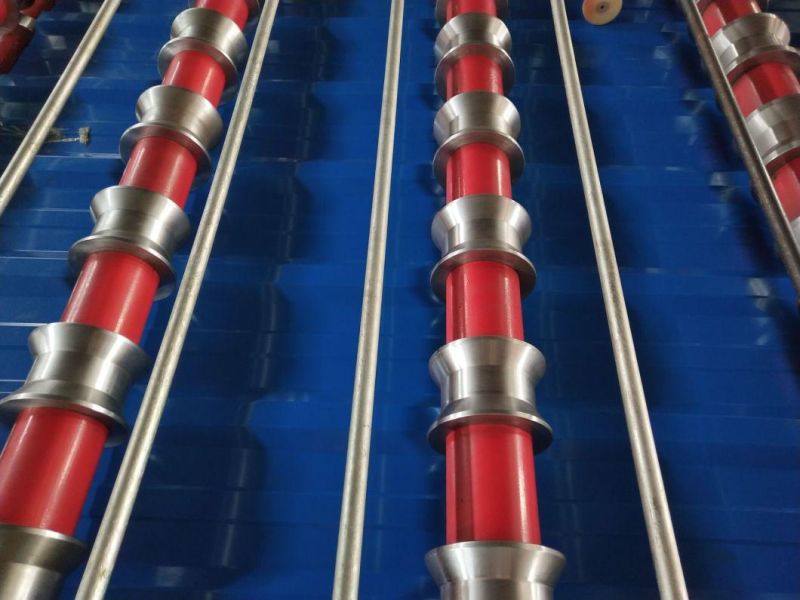

Roller station

18Steps

Under Frame

400H-beam, Welded structure

Shaft diameter(Solid)

70mm-0.01~-0.03(with key-way)

Shaft material(Hard)

High grade 45# steel,heated and quenched,cylindrical grinding,

Roller material(Hard)

Cr12,heated and

Quenched,polishing

   Bearing Type

Standard

Transmission Gear

Heat treatment

Motor Power

5.5KW(Lichao,Shanghai)

Forming Speed

0-20m/min(Non-Stop)

Main Structure

Welded Structural Steel

Hydraulic Cutting

Tracking Length To Cut

 Pump power

5.5 KW

Hydraulic pressure

20 Mpa

Voltage Standard

       380V/3Phases/50Hz

Cutting die

Cr12Mov, Quenched processed

Working flow










Service

1. We can produce the specialmacchine,send your drawing to us,we can desgin for you.
2. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. We provude a one year warranty and lifelong technical support,wa can send our technical to you to give you on-site training.The training period would be for no more than one week with the customer paying for the visa,return ticket,food ,accommodations and a daily wage of US100
4. Engineer available to service machinery overseas.
5. If you come to visit our factory ,we can book the room for you,car pick up to send.

Packaging



More type for your reference






FAQ
 1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
machine in my factory?
2.How to visit our company:
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou West station  (1 hour),then we can pick up you.
B.Fly to Tianjin Airport: By high speed train From Tianjin West station to Cangzhou West station ,then we can pick up you.
