Atairac VSI Crusher/Sand Making Machine

ATAIRAC ENGINEERED PRODUCTS INC(CHINA)
  • Certification：CE, ISO
  • Theory：High-Speed Grinder
  • Application：Railroad, Construction
  • Structure：Vertical
  • Motor Power：30-45kw
  • Transport Package：Wooden Box Packing and Nude Packing

Base Info

  • Model NO.：VSI550
  • Specification：11.68t
  • Trademark：ATAIRAC
  • Origin：China
  • HS Code：8474209000
  • Production Capacity：300 Sets,Month

Description

No.ModelMax. feed size(mm)Impeller rotate speed(rpm)Power(kw)Throughput capacity(t/h)Weight(kg)1VSI-550302258-260030-4524-6047802VSI-700351775-196555-11055-12075003VSI-850II501320-1720150-32075-345115004VSI-1000II601240-1460320-500200-385170005VSI-1200II601040-1300500-630300-71522700


Optional Configuration
(1) Feeding control device
Manual hydraulic pump is optional to adjust the flow into impeller, at the same time, by adjusting the vertical position of distributor plate, the proportion of impeller feeding flow and cascade flow into crushing chamber could be controlled accurately.

(2) Simple and easy-to-use lifting device
Hanging type manual or electric hoist is optional for the crusher. During crusher maintenance, this lifting device could easily and conveniently lift the upper cover, feeding hopper, distributor, impeller, main shaft, etc.

(3)Hydraulic jack-up and rotating device on the top section
The device is optional designed for this crusher, which could jack up the feeding hopper and rotate it aside.

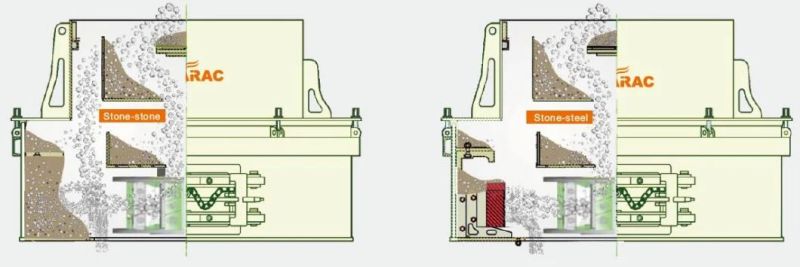

(4)Multifunctional crushing chamber
This crusher has two crushing mechanisms: "Stone-stone" and "Stone-steel", and two mechanisms are convertible in one crushing chamber by simple parts replacement, so as to satisfy requirement of different crushing environment and raw material.
Atairac VSI Crusher/Sand Making Machine

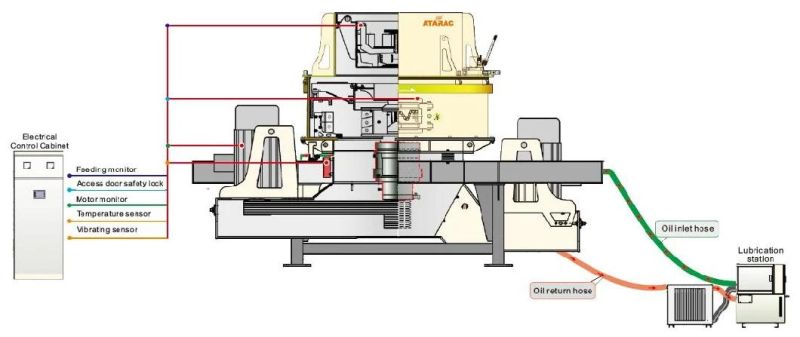

(5)Oil lubrication and automatic control system
The oil lubrication system and PLC control and inspection system is optional for installation to monitor feeding quantity, current, oil temperature, main shaft temperature, the system can also realize vibrating protection function.
Atairac VSI Crusher/Sand Making Machine

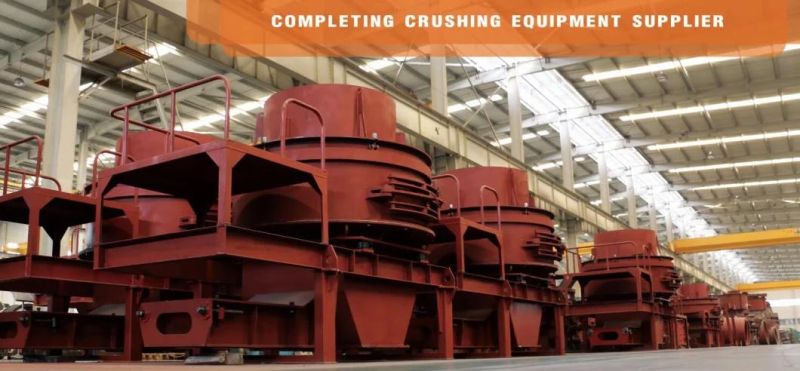

Company Overview
Atairac VSI Crusher/Sand Making Machine

ATAIRAC History&Scale
Established Time: In 1958
Production Base: Around 300,000 square meters
Employees No. Around 1000

Machinery&Quality Control
(1) Over 500 sets machining equipment and inspection equipment
(2)Complete crushing machinery manufacturing industry chain
(3) Certificates: ISO, CE,BV,TUV,GOST

R&D Ability
(1)4 research and development base
(2)Around 60 design engineers
(3)Cooperating with international advanced crushing machinery companies
(4)Industrial standard maker of <Vertical Shaft Impact Crusher>
(5)Industrial standard maker of <Complex Vertical Impact Crusher>
(6)Industrial standard maker of <Autogenous Grinder>
(7)Industrial standard drafter of <Four Roller Crusher >
(8)62 Technical Patent in crushing and grinding machinery

ATAIRAC Crushing Solution

  1. 3000TPH downward stationary crushing&screen production line
  2. 800TPH downward mobile crushing&screen plant
  3. 300-2000 thousand tons per year steel slag recycling production line
  4. Construction waste recycling production line
