• Model NO.：LZ3F-290X100
• CNC or Not：not CNC
• Voltage：Customized
• Input Power：2.25kw
• Motor Rotary Speed：2800r ,Min
• Operation Air Pressure：0.6-0.8MPa
• Milling Cutter Diameter：5mm and 8mm
• Diameter of The Three-Hole Drilling Head：12mm
• Distance of The Three-Hole Drilling Head：21.5mmx21.5mm
• Copy-Routing Range：290*100mm
• Overall Dimension：1000*1130*1600
• Weight：310kg
• Color：Customized
• Transport Package：Film and Plywood Case
• Specification：1000*1130*1600mm
• Trademark：Hiwoc
• Origin：China
• HS Code：84659200
• Production Capacity：1000,Year

Basic Info.

Model NO. LZ3F-290X100 CNC or Not not CNC Voltage Customized Input Power 2.25kw Motor Rotary Speed 2800r /Min Operation Air Pressure 0.6-0.8MPa Milling Cutter Diameter 5mm and 8mm Diameter of The Three-Hole Drilling Head 12mm Distance of The Three-Hole Drilling Head 21.5mmx21.5mm Copy-Routing Range 290*100mm Overall Dimension 1000*1130*1600 Weight 310kg Color Customized Transport Package Film and Plywood Case Specification 1000*1130*1600mm Trademark Hiwoc Origin China HS Code 84659200 Production Capacity 1000/Year

Product Description

Feature

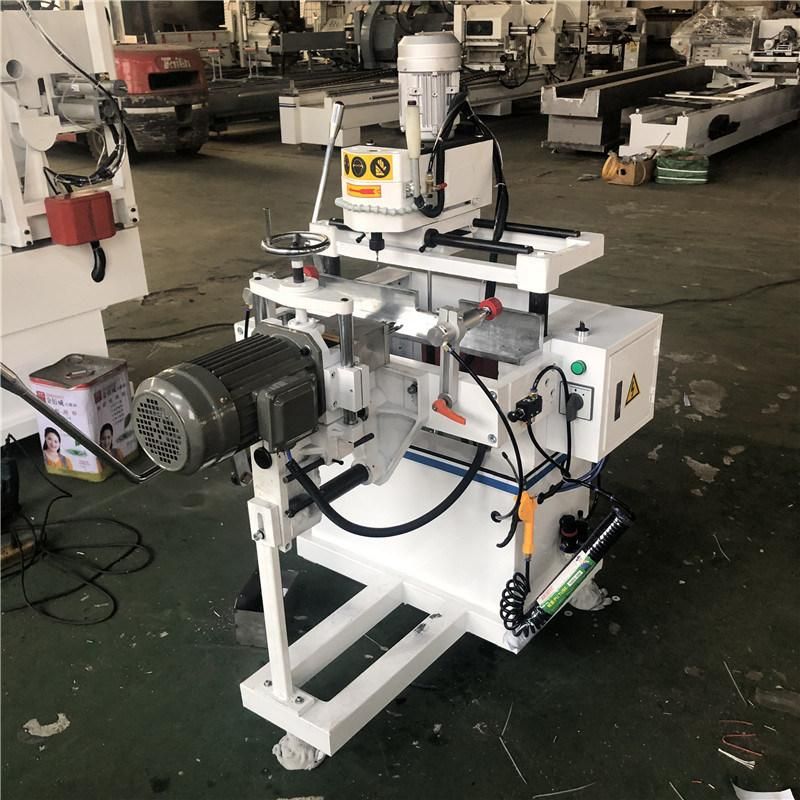

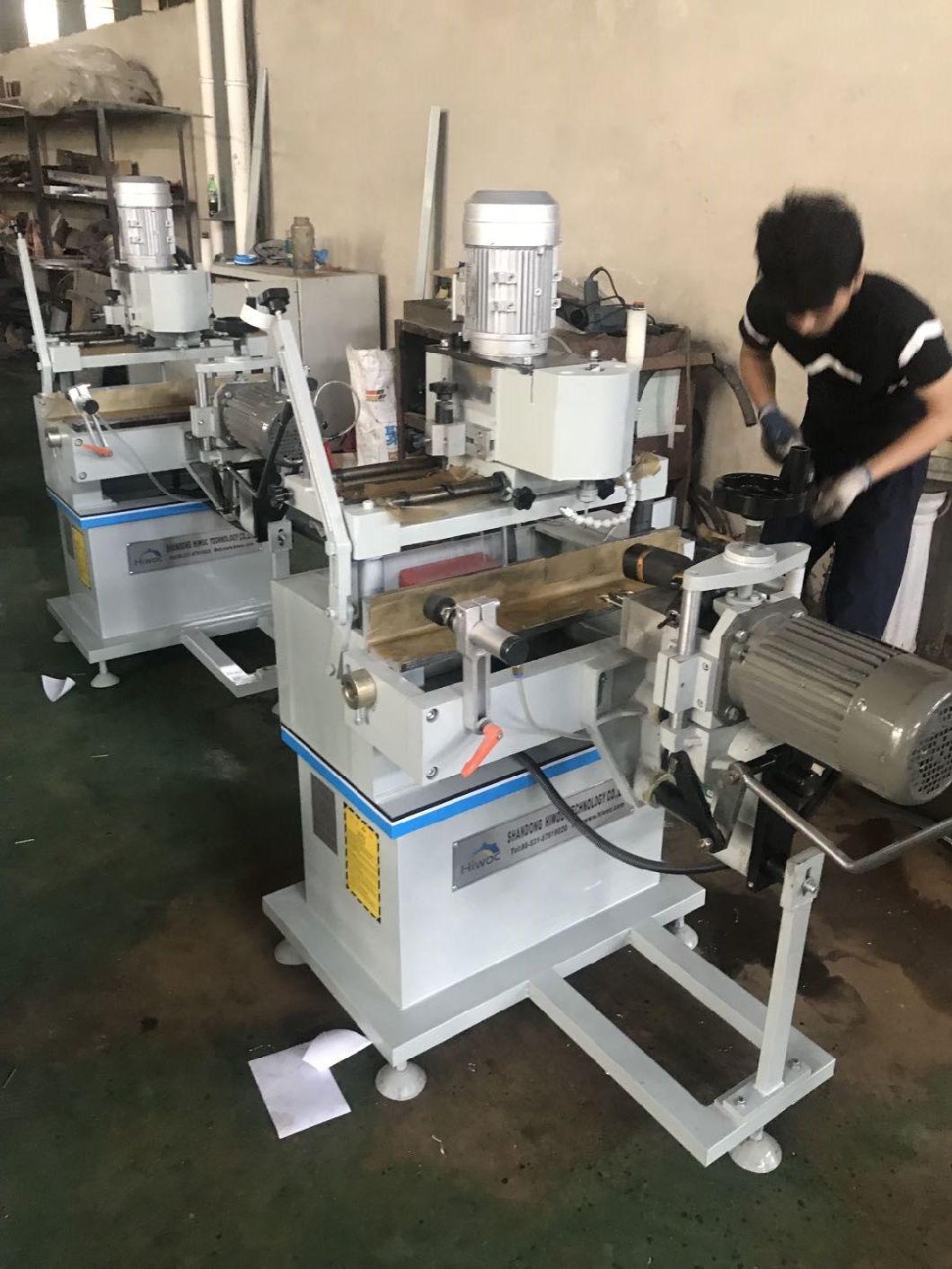

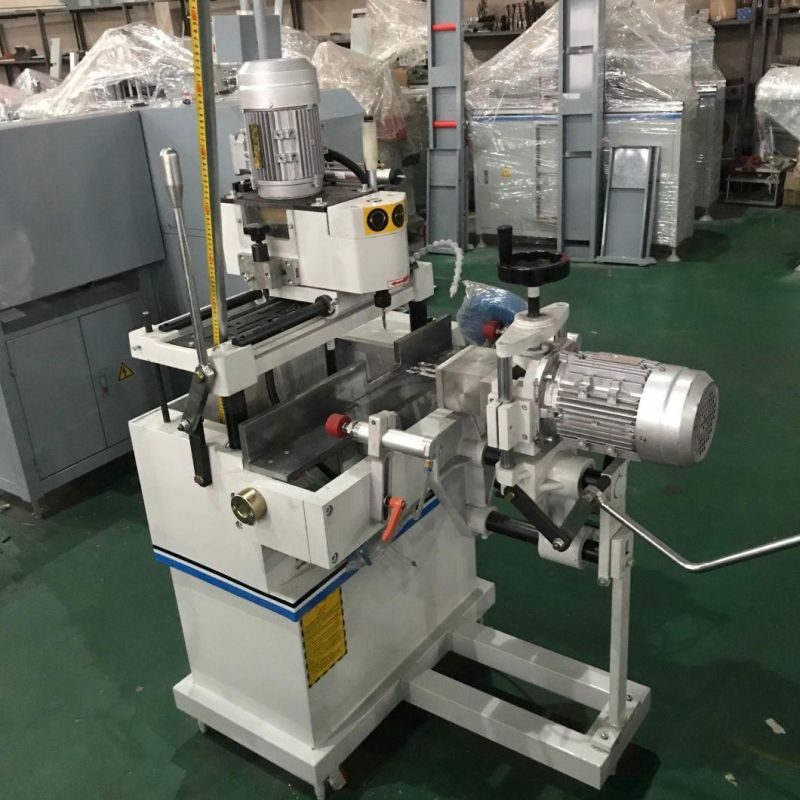

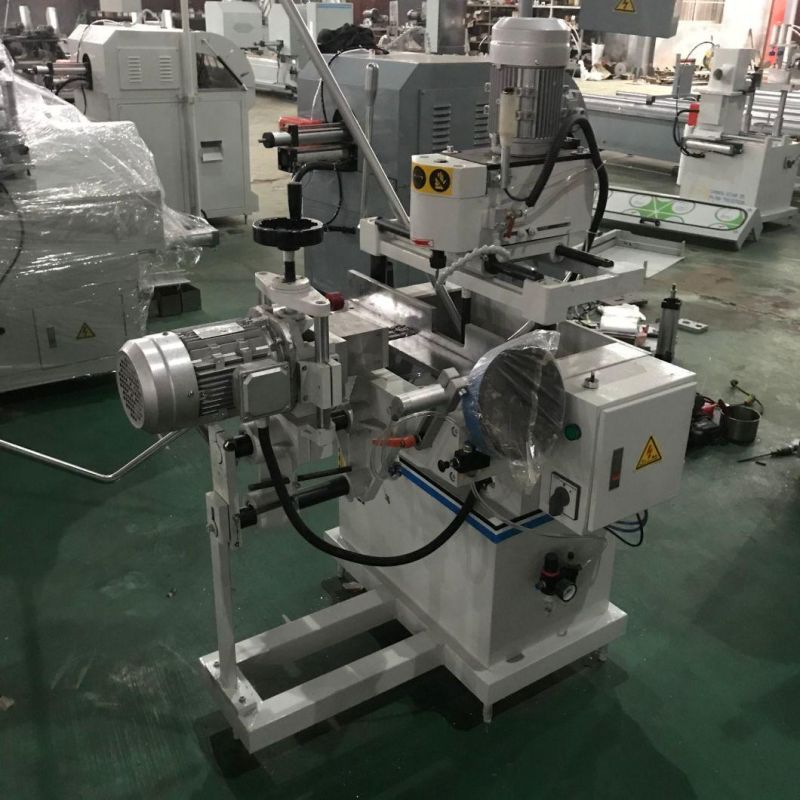

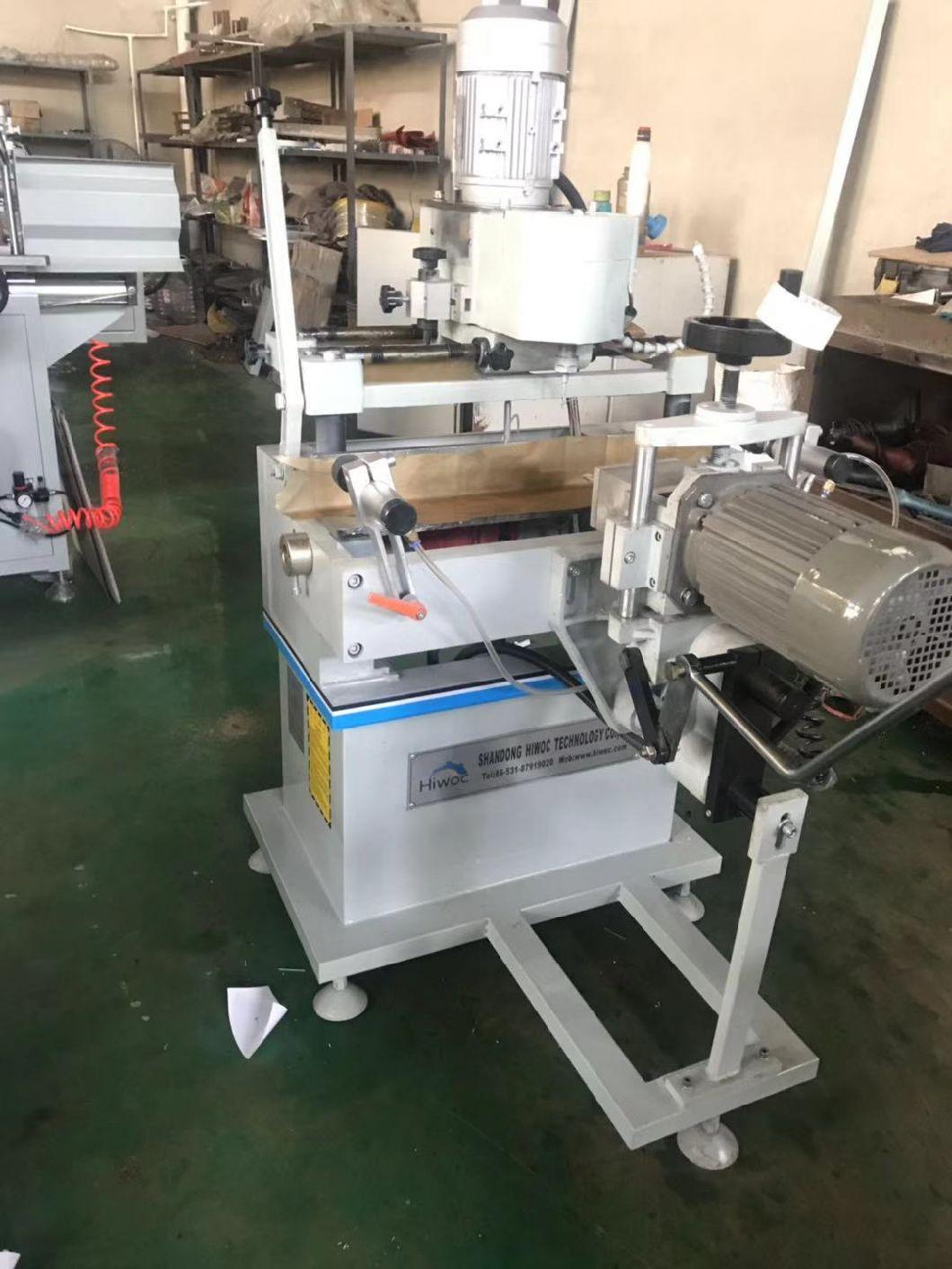

1. Used for copy-routering processing various holes, grooves and water slots on aluminium windows and doors. High-precision copy routing, easy operation, two hand operation. Changeable template for different copy routing.
2. By copying template and auxiliary position two copying method.
3. using a foot switch control the pressing cylinder, safe and reliable.
4. It has features of compact structure and small volume.
Main specification
1. Used for copy-routering processing various holes, grooves and water slots on aluminium/PVC windows and doors. High-precision copy routing, easy operation, two hand operation. Changeable template for different copy routing.
2. By copying template and auxiliary position two copying method.
3. using a foot switch control the pressing cylinder, safe and reliable.
4. It has features of compact structure and small volume.
Main specification

Power supply	380V   50HZ or customer specification.
Input power	2.25KW
Motor rotary speed	2800r /min
Operation air pressure	0.6-0.8MPa
Milling cutter diameter	Φ5, Φ8
Diameter of the three-hole drilling head	Φ12
Distance of the three-hole drilling head	21.5mmx21.5mm

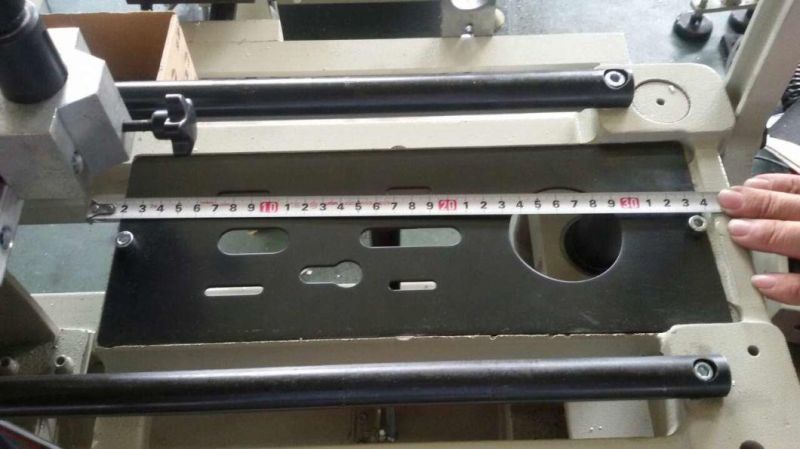

Copy-routing range	290*100mm
Overall dimension	1000*1130*1600
Weight	310kg

Standard accessory

Solenoid Valve	Airtec
Cylinder	Airtec
Motor	Anhui Sanyang
Air Filter Device	Airtec
Electrical	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Japan Omron



Air Gun	1pc
Operation Manual	1pc
Complete tooling	1set
Certificate	1pc
Coolant Device	1pc
