• Model NO.：JT04
• CNC or Not：not CNC
• Voltage：Csutomized
• Input Power：3.75kw
• Air Supply Pressure：0.5-0.8MPa
• Air Consumption：0.8m3,Min
• Glue Airpressure Ratio：60L,Min
• Extrusion Temperature：110-160ºC
• Glue Head Adjustable Range：6-25mm
• Glue Jar Capacity：2-8kg
• Speed of The Conveyer：18m,Min
• Gross Weight：880kg
• Certificate：Ce
• Transport Package：Film and Plywood Case
• Specification：3430*700*1250mm
• Trademark：Hiwoc
• Origin：China
• HS Code：84752990
• Production Capacity：1000,Year

Basic Info.

Model NO. JT04 CNC or Not not CNC Voltage Csutomized Input Power 3.75kw Air Supply Pressure 0.5-0.8MPa Air Consumption 0.8m3/Min Glue Airpressure Ratio 60L/Min Extrusion Temperature 110-160ºC Glue Head Adjustable Range 6-25mm Glue Jar Capacity 2-8kg Speed of The Conveyer 18m/Min Gross Weight 880kg Certificate Ce Transport Package Film and Plywood Case Specification 3430*700*1250mm Trademark Hiwoc Origin China HS Code 84752990 Production Capacity 1000/Year

Product Description

Features

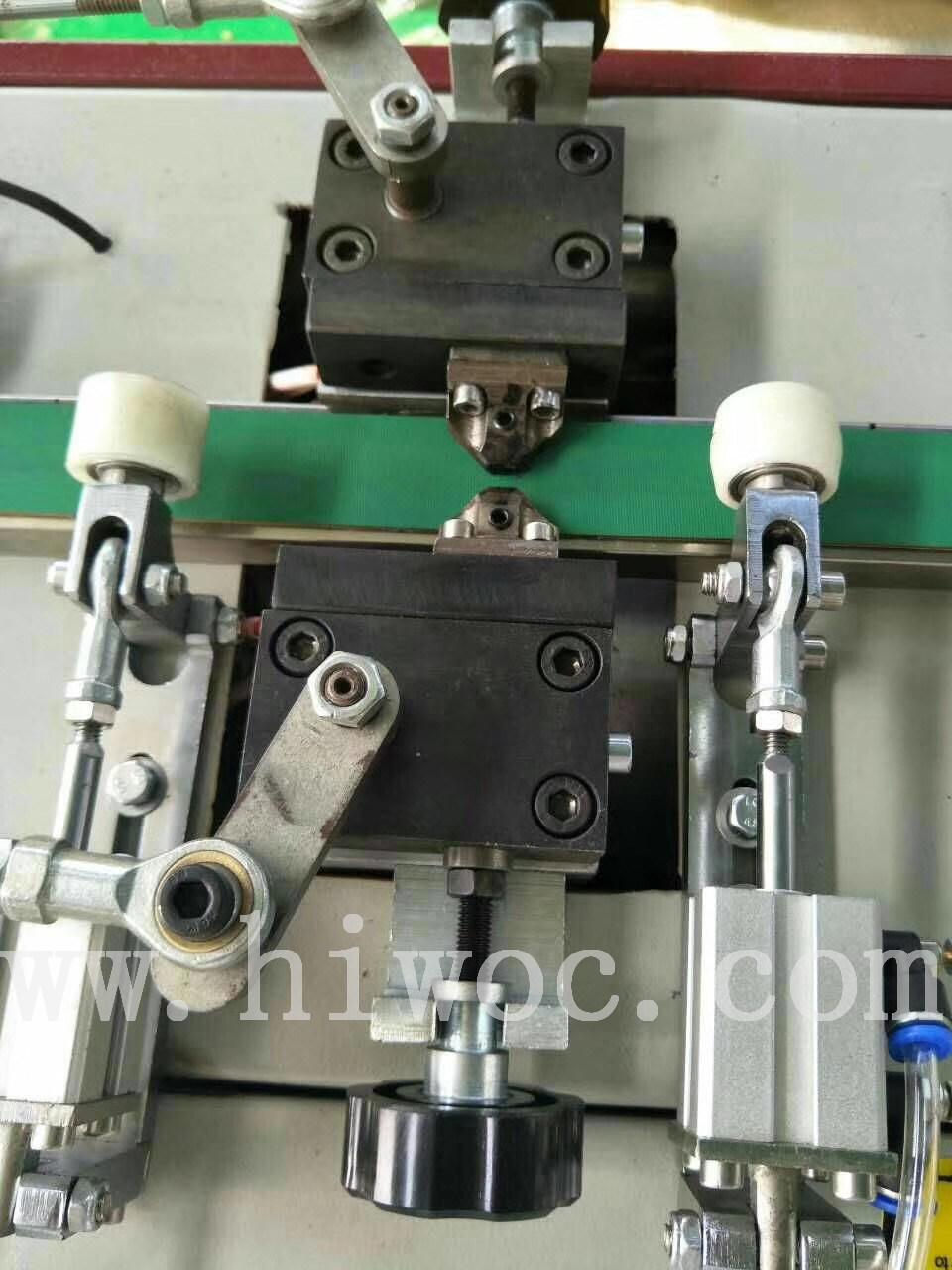

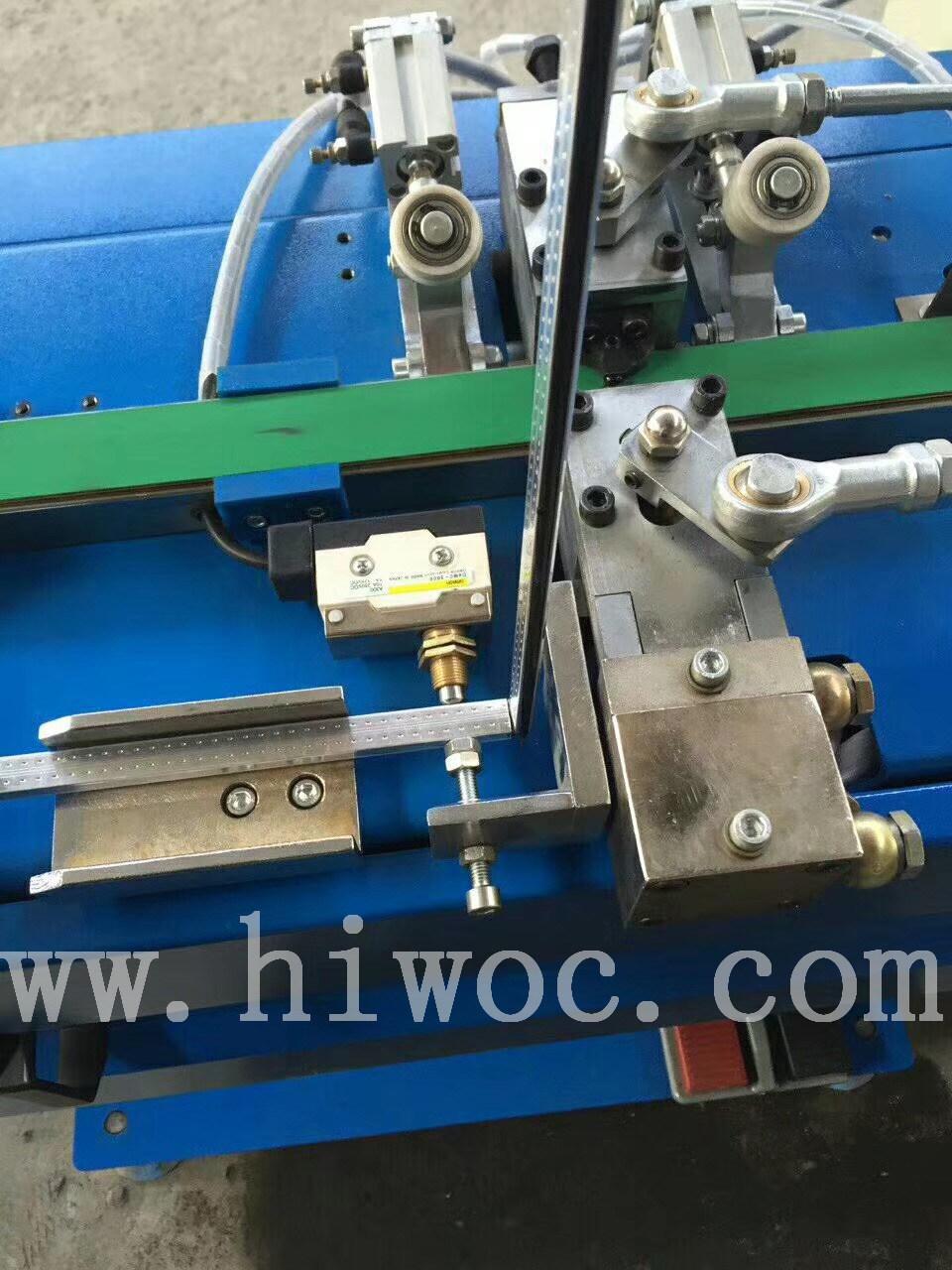

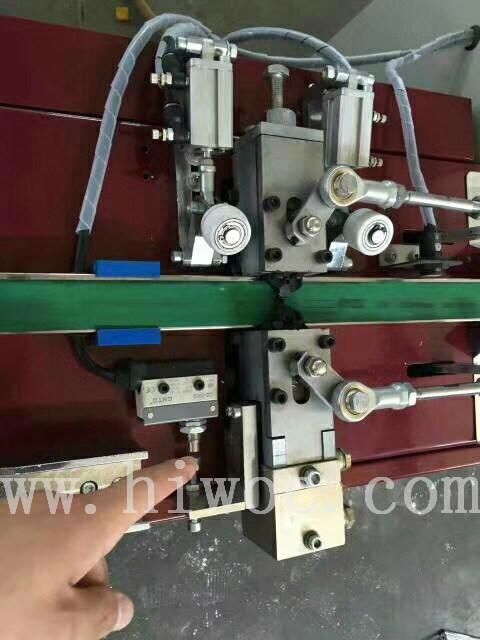

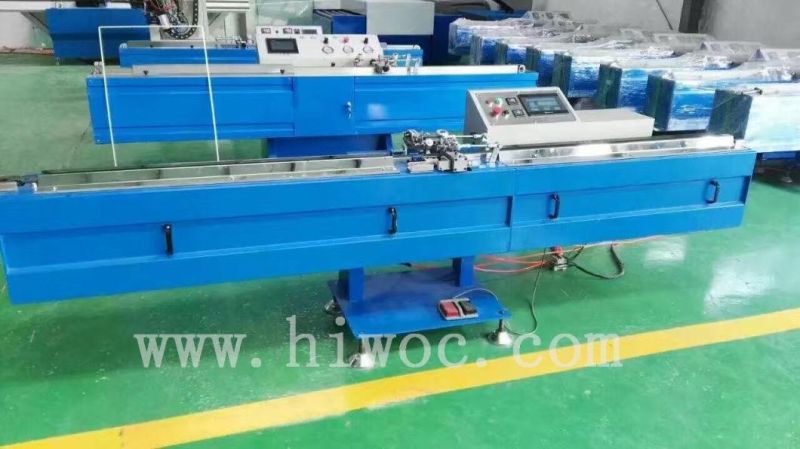

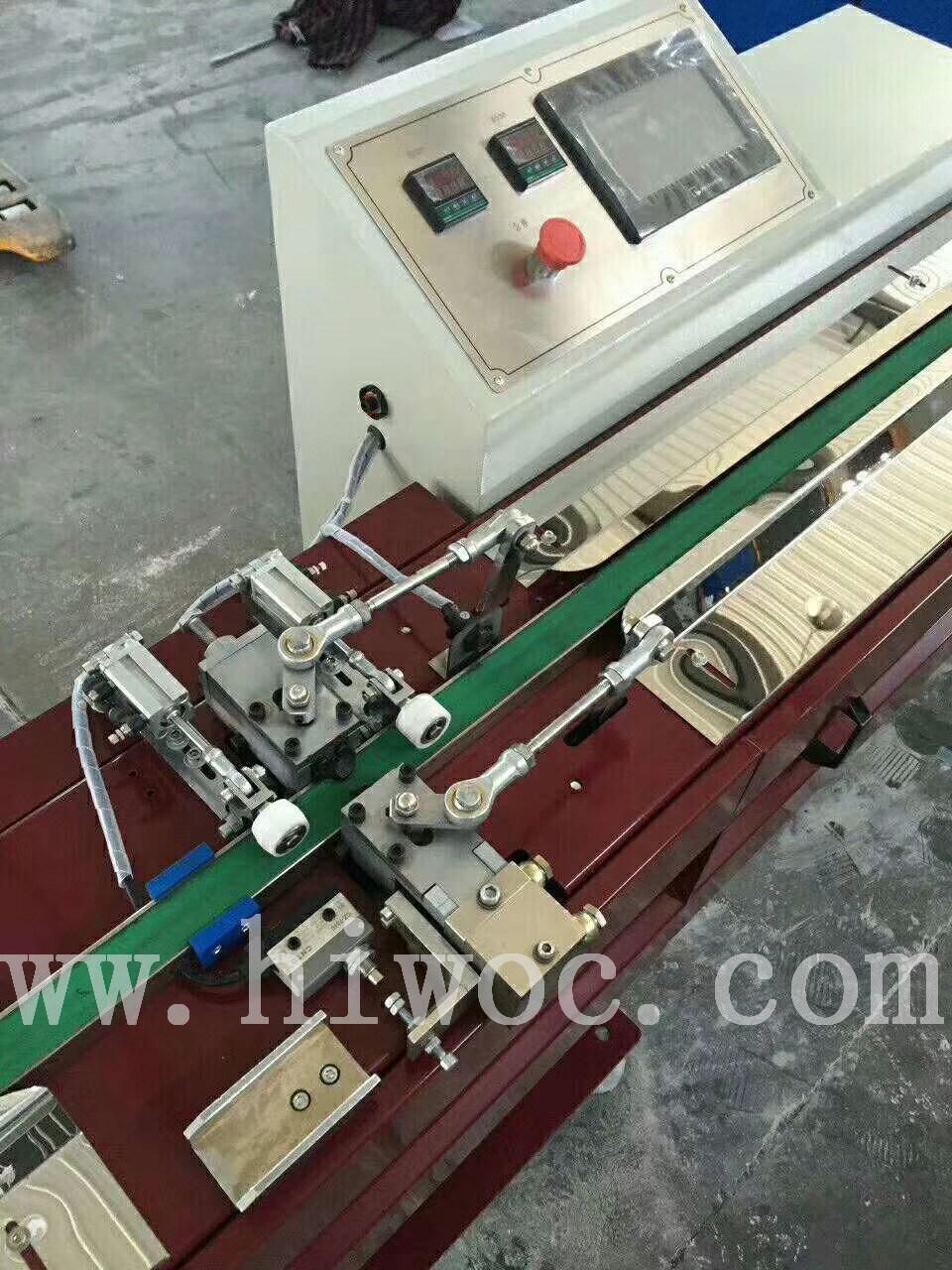

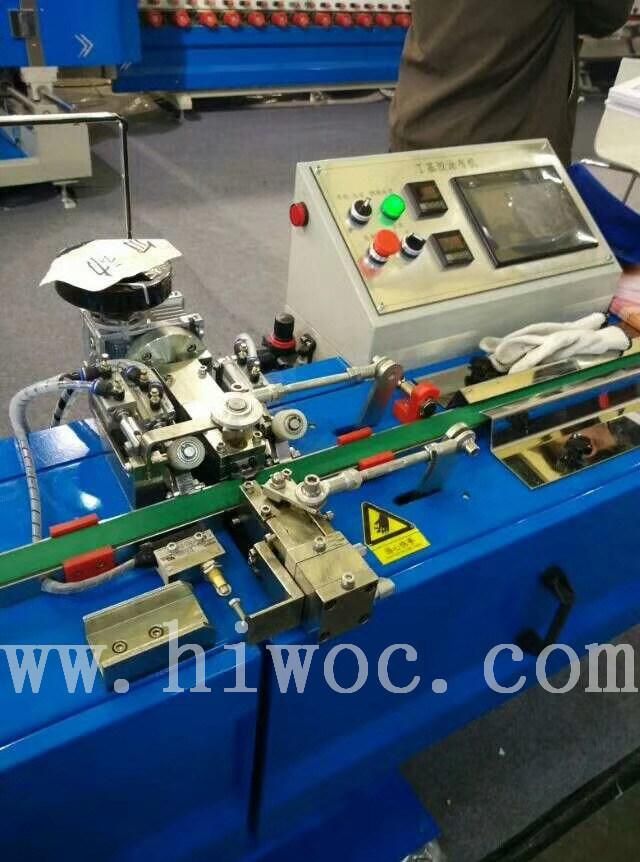

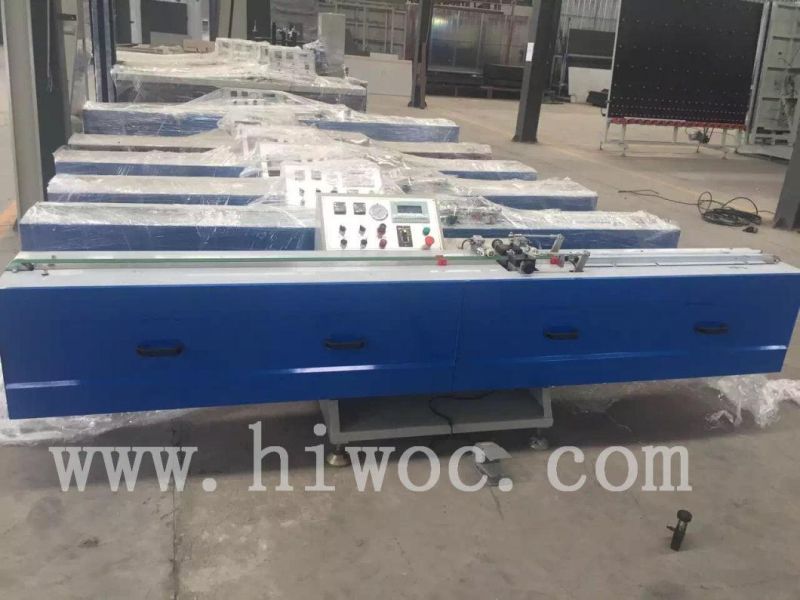

This mac hine is used for butyl sealant coating on two sides of Alu spacer frame for insulating glass production. Used for butyl sealant coating on two sides of Alu spacer frame. Coating for straight line and arc shape, auto-control of sealant temperature. PLC control.
1).Accomplish the automatic alu-frame locating, presing, and conveying, auto-rising and falling of the sealant.

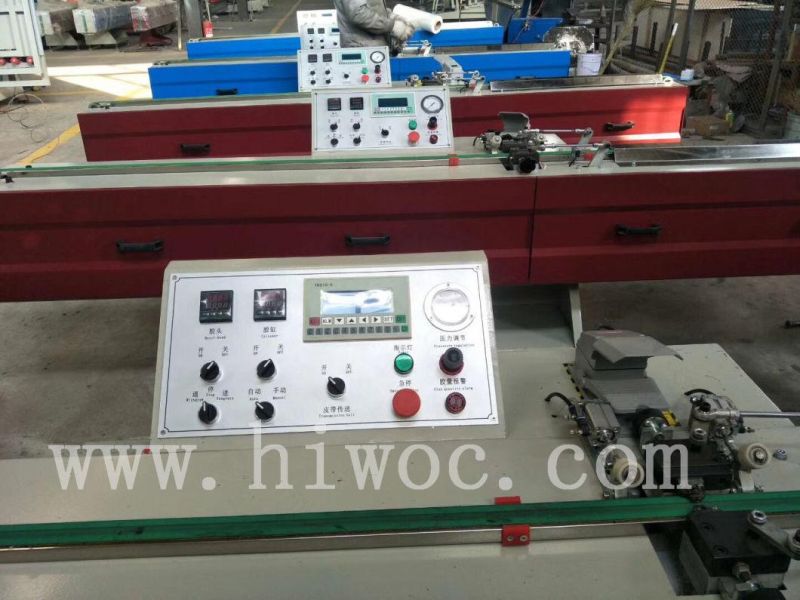

2).Heating by auto-timing and with the man-machine interface display screen
3).Auto-adjusting tempature and pressure, suitable for all grades butyl.
4).Imported gas-liquid pressurizing system makes pressure stable and even.
5).A week time switch machine, saving the pre-heating time.
6).Glue quantity auto alarm function.

Parameter
Input voltage	380V 50HZ 3 phases or customized according to need
Input power	3.75KW
Air supply pressure	0.5-0.8Mpa
Air consumption	0.8m3/min
Glue airpressure ratio	60L/min
Extrusion temperature	110-160ºC
Glue head adjustable range	6-25mm
Glue Jar capacity	2-8kg
Speed of the conveyer	18m/min
Oversize	3430*700*1250mm
Gross Weight	880KG
