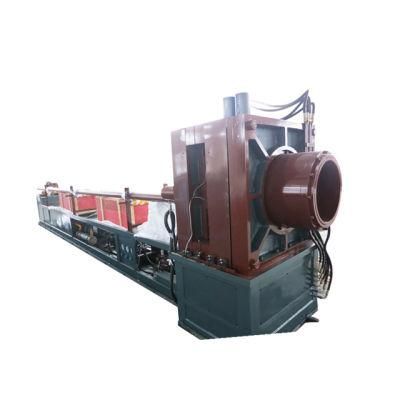

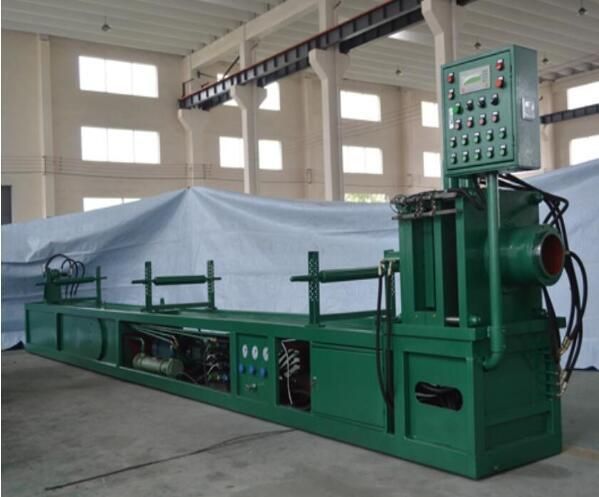

Hydraulic Corrugated Metal Hose Making Machine
Comflex Industrial Co., Ltd.- Pipe Material：Stainless Steel
- Condition：New
- Customized：Customized
- Theory：Pulse
- Application：Industry
- Type：Stainless Steel Pipe Mill Line
Base Info
- Model NO.：HLT-H
- Product Name：Hydraulic Corrugated Metal Hose Making Machine
- Size Range：DN32-630mm
- Wall Thickness：0.3~1.0mm
- Hose Type：Corrugated
- Production Speed：6-8 Seconds,Convolution
- Control Method：PLC
- Expanding Medium：Emulsified Liquid
- Warranty：1 Year
- Oveaseas Installation：Available
- Transport Package：Standard Seaworthy & Strong Package
- Specification：ISO9001
- Trademark：Comflex
- Origin：Wuxi, Jiangsu, China(Mainland)
- HS Code：830710000
- Production Capacity：as Requested
Description
Related machines
DN12-150 Tube mill machine DN50-300mm Tube mill machine
Size range:DN12-DN150mm Size range:DN50-DN300mm
Wall thickness:0.15-0.35mm Wall thickness:0.3-0.8mm
Control: Inverter control Control: Inverter control
Welding speed: 250m/hour Welding speed: 250m/hour
Tube length: No limited Tube length: No limited

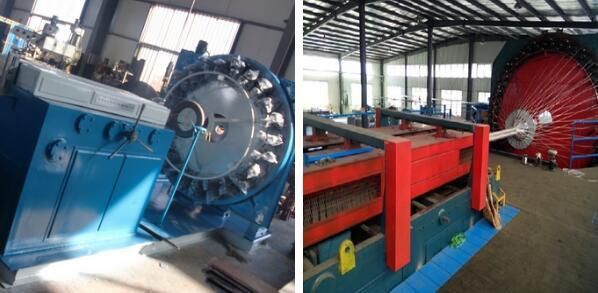

C. Wire braiding machine
Wire diameter:0.3mm to 0.8mm
No.of spindles:16 to 128 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire
Packing & Delivery
Package details: Standard seaworthy package for metal hose hydro forming machine
Delivery details: 30 days after your advance payment

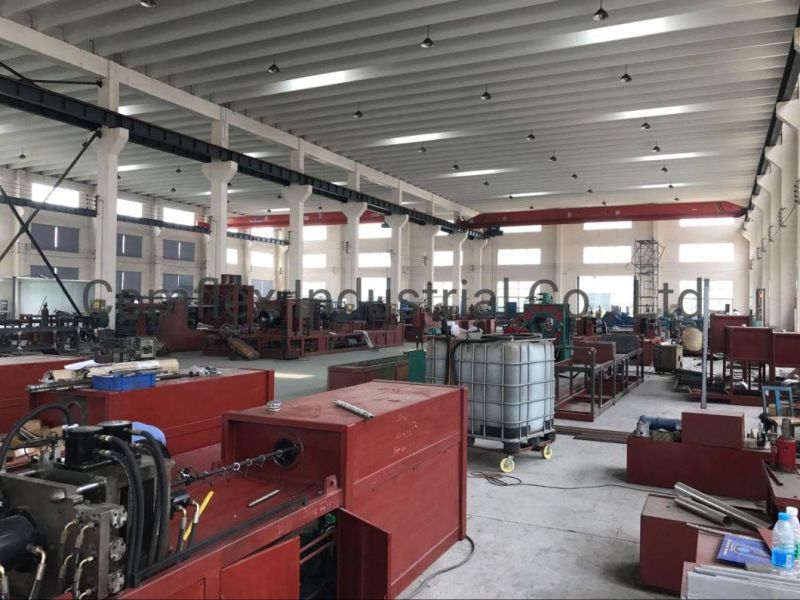

Our Company
We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines,such as elastomer hose forming machine, hydraulic forming machine,wire braiding machine, rewinding machine,bellow forming machine, etc..We are lead manufacturer of flex-related products in China.
We supply metal hose and braid with the widest selection of products ranging from braided hose for value oriented customers to super flexible hoses to ultra-high pressure and high temperature hoses that satisfy industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.
Our Customer
We are professional manufacturer of flexible hose forming machine, we have experience in this field over 25 years, our machines are widely exported to many countries, such as American, Russia, Ukraine and Canada, etc...We welcome you to visit our factory.
Our service
Warranty period of one year
Standard seaworthy package
Engineers available to service machinery oversea
FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience.
Q: What size can you make?
A: All the sizes from DN8 up to DN600mm can be made on different machines
Q: How many different types of machine can you make?

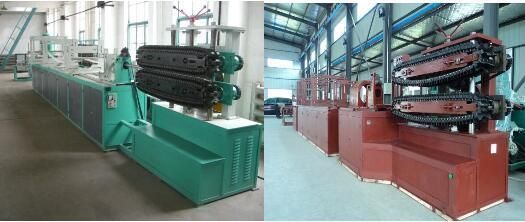

A: Hydro metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
