Different Sizes of Flexible Metal Hoses Hydraulic Forming Machine
Comflex Industrial Co., Ltd.- Pipe Material:Stainless Steel
- Condition:New
- Customized:Customized
- Theory:Inverter
- Application:Industry
- Type:Stainless Steel Pipe Mill Line
Base Info
- Model NO.:HLT
- Product Name:Hydraulic Corrugated Hose Making Machine
- Forming Type:Hydraulic Forming
- Hose Size:DN32-DN630mm
- Forming Medium:Emulsion Solution
- Hose Material:SUS304, 304L, 321, 316, 316L
- Lead Time:45 Days
- Transport Package:Standard Seaworthy Package
- Specification:as customer′s requirements
- Trademark:Comflex
- Origin:China
- HS Code:84748020
- Production Capacity:1000sets,Year
Description
ID
DN50
DN65
DN80
DN100
DN125
DN150
DN200
DN250
DN300
Single wall thickness
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.2
1.5
Double layer wall thickness
0.25*2
0.3*2
0.4*2
0.50X2
0.60X2
0.70X2
0.80X2
0.90X2
1.0X2
The parts will go with the machines: The molds for DN50,65,80,100,125, 150,200,250,300mm
5.DN200-630 Hydraulic Forming Machine
Diameter: DN200-630mm
No. of layers: single or double layers
Wall thickness: Single layer1.0-3.0mm
Double layers:0.8*2-1.6*2
Type of the bellows: annular bellows
Control: PLC control, manual or automatic control
Straight tube length: ≤1800mm
Expanding medium: emulsified liquid
Forming speed:8-28seconds per convolution
Molds and water injection head: DN200,250, 300,350,400,450,500,550,600mm
Size range: DN32 up to DN150
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
Material: sus304, 321 and 316L
Outer dimensions:15000*1100*1700

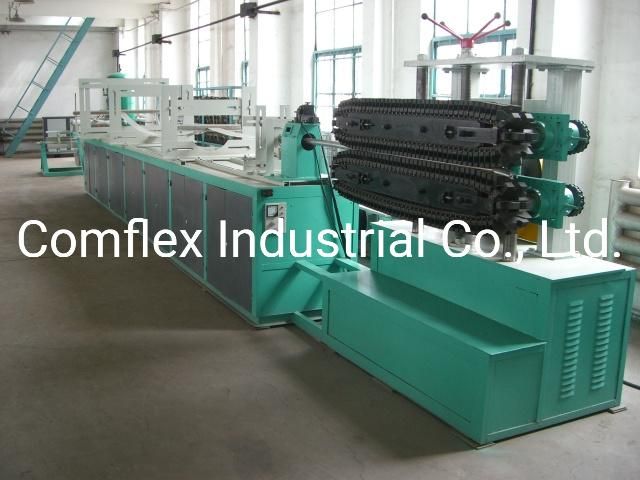

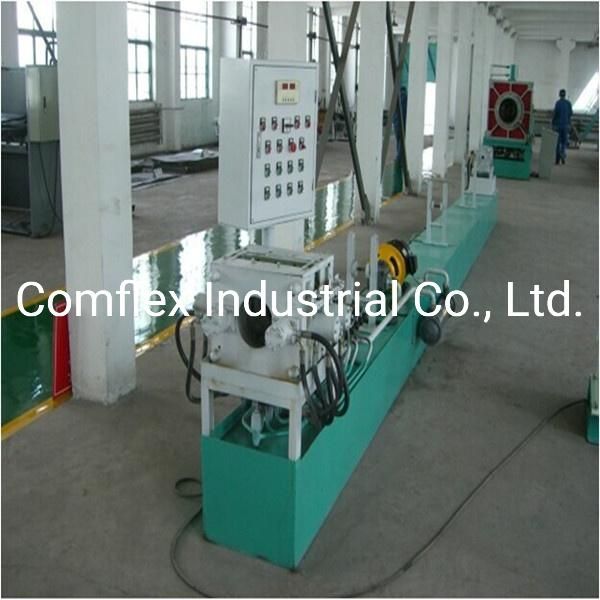

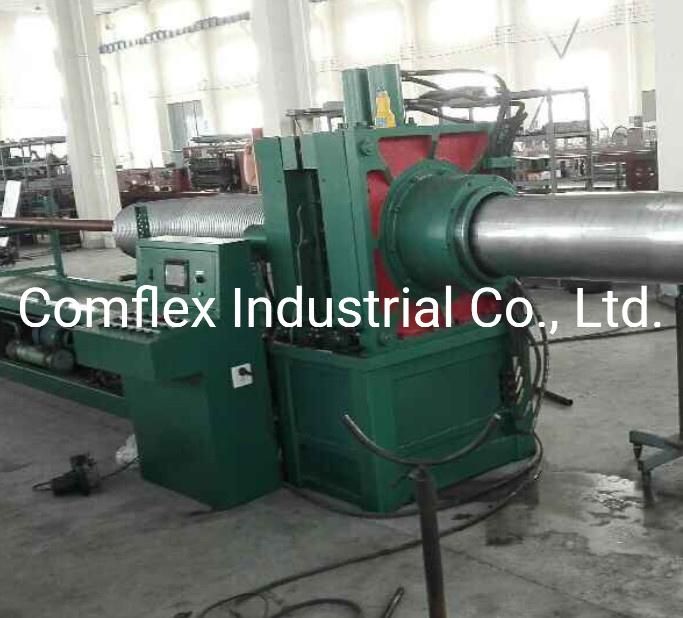

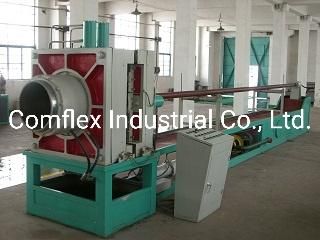

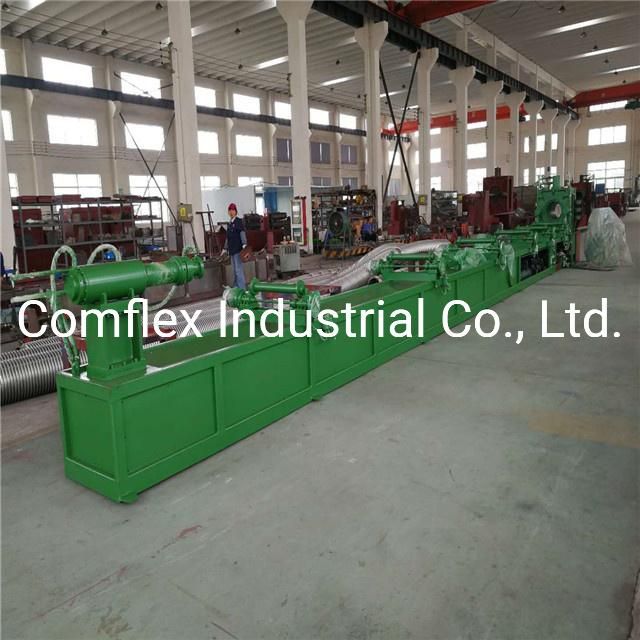

Picture of machine

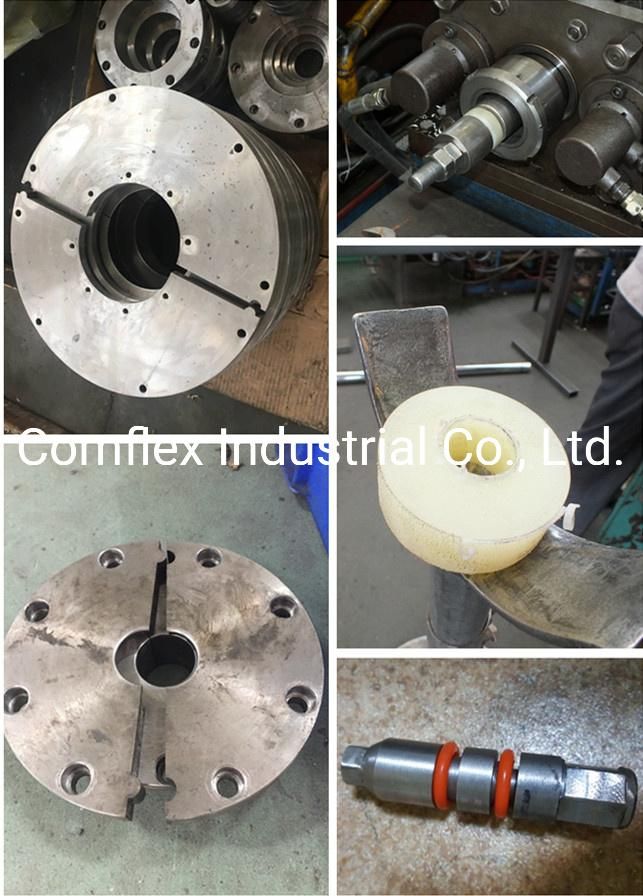

Spare Parts of Machine

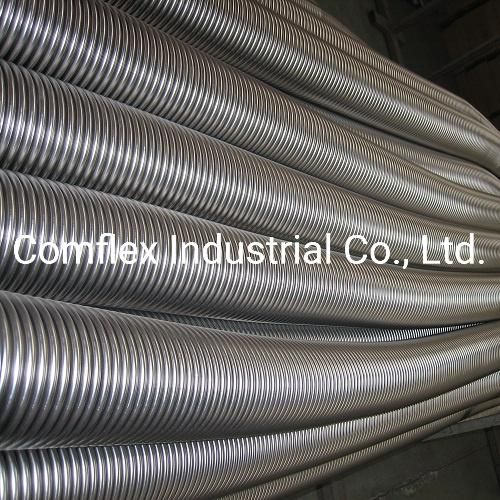

Products show

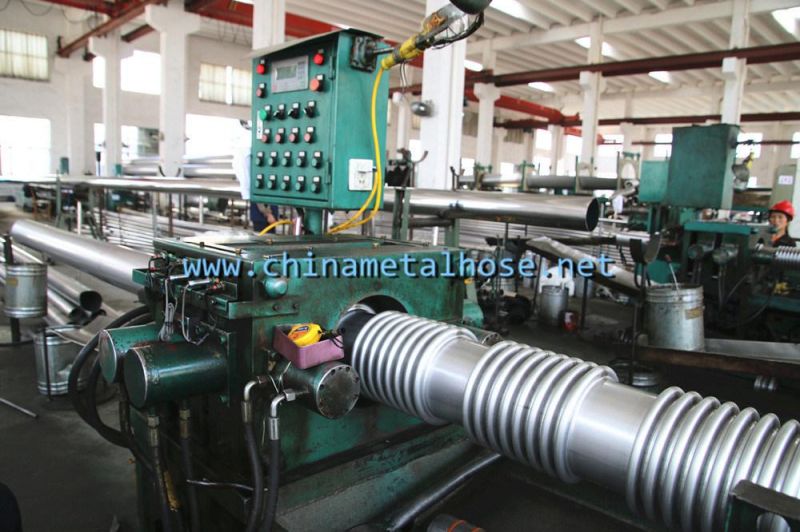

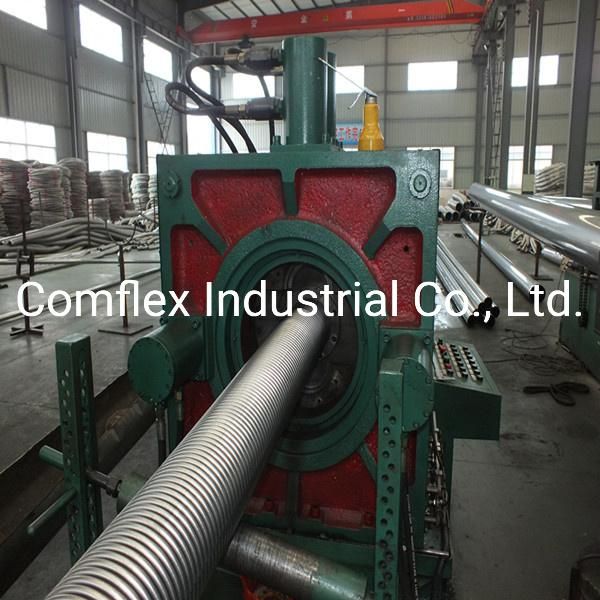

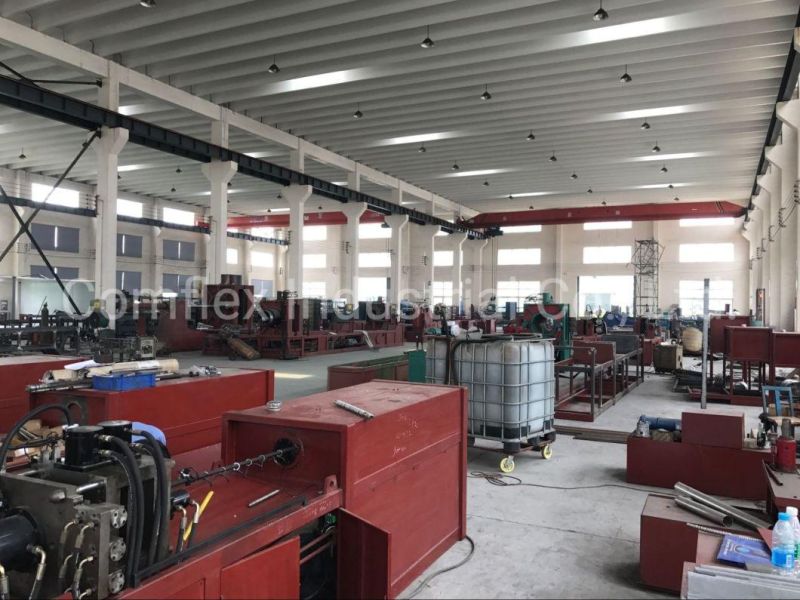

Workingshop
Related machines
DN10-150 Tube welding machine
Wall thickness d³0.18mm
Tube diameter Ф10―Ф65mm
Control Inverter control
Welding speed About 250mtrs/hr
Tube length No limit
DN15-100 Elastomer forming metal hose making machine
Omega shape
1). Diameter: DN12mm-DN100mm
2). Mill Length: 4m-8m
3). Hydraulic pressure: 3.5-4.5MPa
4). Operation mode: manual/automatic
Company information
We are a professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, square lock, and interlock hose/ conduit with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose, chemical hose, etc..Annular and corrugated metal hose: ID8 till ID600 on a different machine.
Our service
The warranty period of one year
standard seaworthy package
Engineers available to service machinery oversea
Q: Why choose us for a metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machines can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C: PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q: Can the hose forming machine be used for bellow making?
A: Yes, all above hose forming machine can be used for bellow making as well
We need to know the following information to quote your correct machinery:
1. Size range you want to make
2. The application of the hose you need, for instance, natural gas hose, water hose, air-conditional hose, etc..
3.Wall thickness
