• Model NO.：LM4S
• Motor Power：4.0kw
• Capability of Oil Box：60L
• Function：Aluminum Corner Crimping Machine
• Overall Dimension：1400 2200 2600mm
• Weight：2500kgs
• Function1：Aluminum Window Making Machine
• Brand：Mag
• Transport Package：Plywood Package
• Specification：1000 1100 1500mm
• Trademark：MAG
• Origin：China
• HS Code：84779000
• Production Capacity：1000

Feature

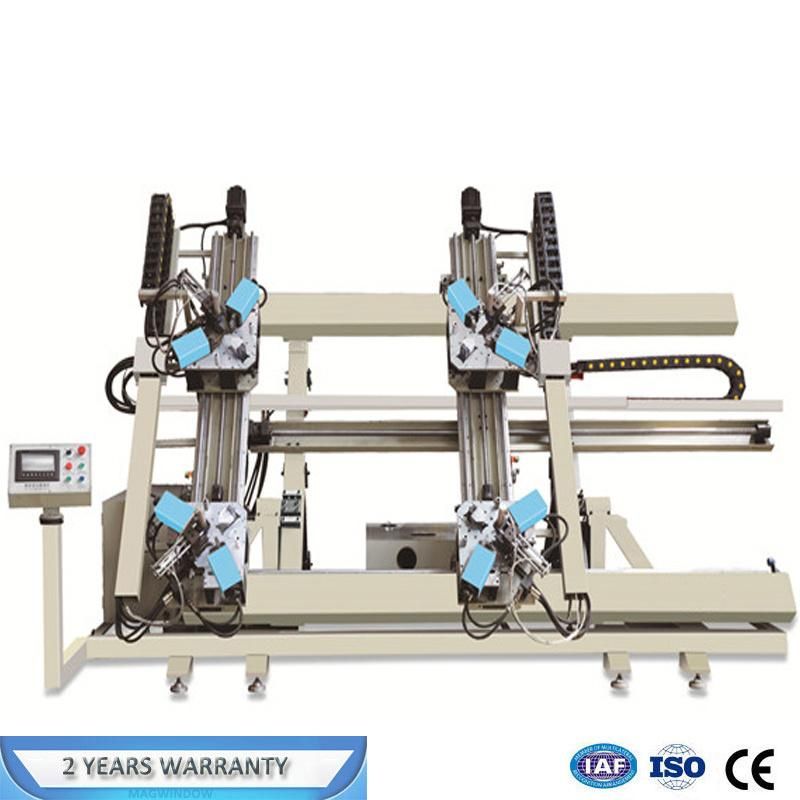

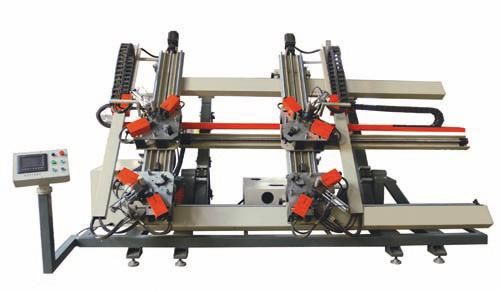

1. The machine is used for combining the aluminum windows and doors corner.

2. It can finished a whole rectangle frame(4 corners)combination at one time, high efficiency.

3. nt/back movable clamping device, easy operation

4. high quality hydraulic system, tyable and easy maintenance.

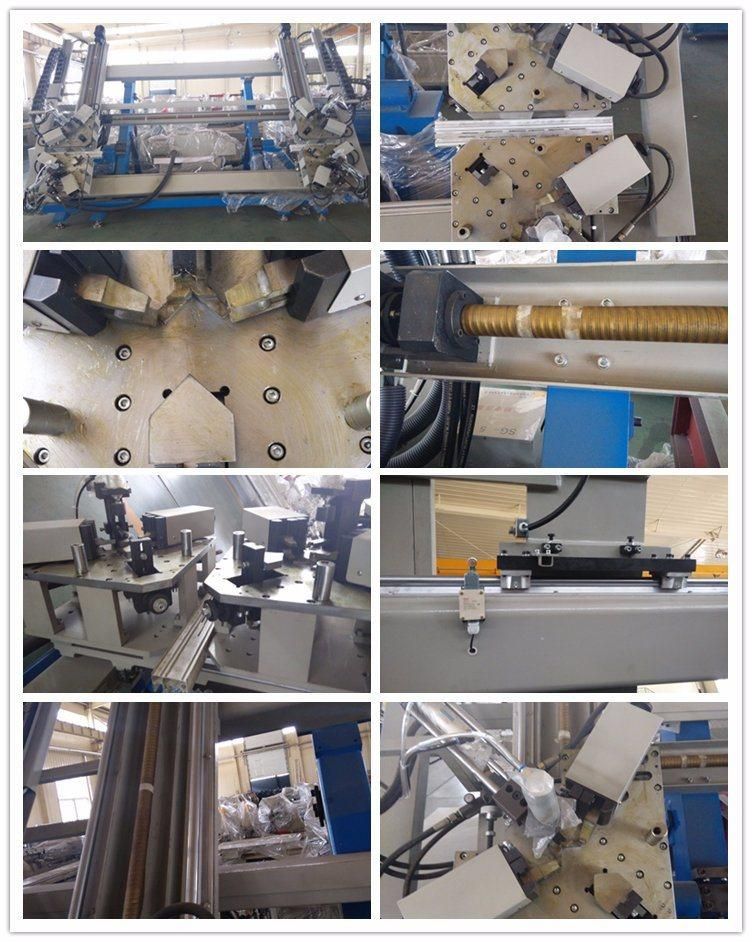

5. high precision ball screw for accurate positioning, stable running and high processing accuracy.

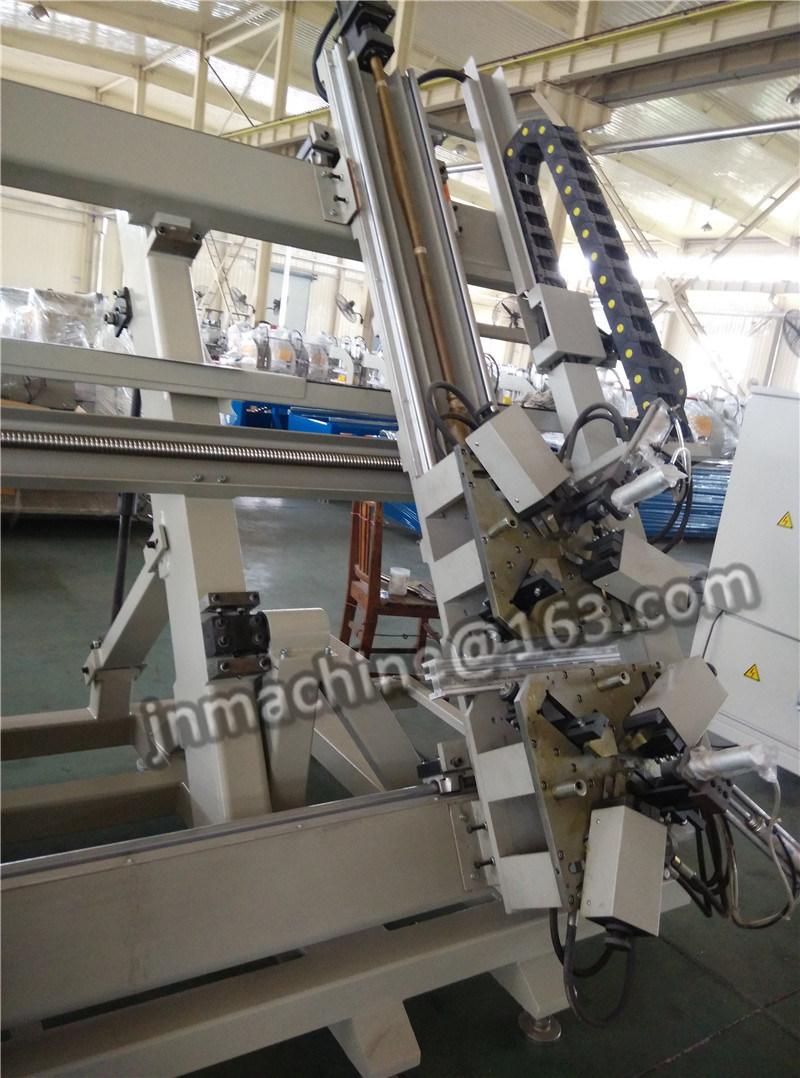

6. Adjustable head movement for different processing size request.

7. The 45 degree corner is jointed by steel corner connectors.

8.servo driver and motor with brake system

9. Using high and low pressure twice feed, improve tool synchronicity.

Specification

Power supply

380V 50Hz or Customers specification

Motor power

4KW

Rated pressure

15Mpa

Motor rotational speed

2840r/min

Profile processing width

90mm

Total combining pressure

0.6-0.8Mpa

Air consumption

60L/min

Min frame dimension

480*480mm

Max frame dimension

3000*1800mm

Overall dimension

14700×2200×2600mm

Weight

2500kg

Standard accessory

Standard Crimping Cutter

4set

Complete tooling

1set

Certificate

1pc

Operation Manual

1pc

1. All the electrical elements,Circuit breaker protection and AC contactors are schneider or other world famous brand.

2. International CE standard high flexibility, high shielding cables.

3. Warranty time: 1 year

4. Quotation Valid: 90 days

5. Payment terms: 30%T/T as deposit, 70% balance made before shipment by T/T

6. Delivery time: 30 days upon receipt of 30% deposit by T/T

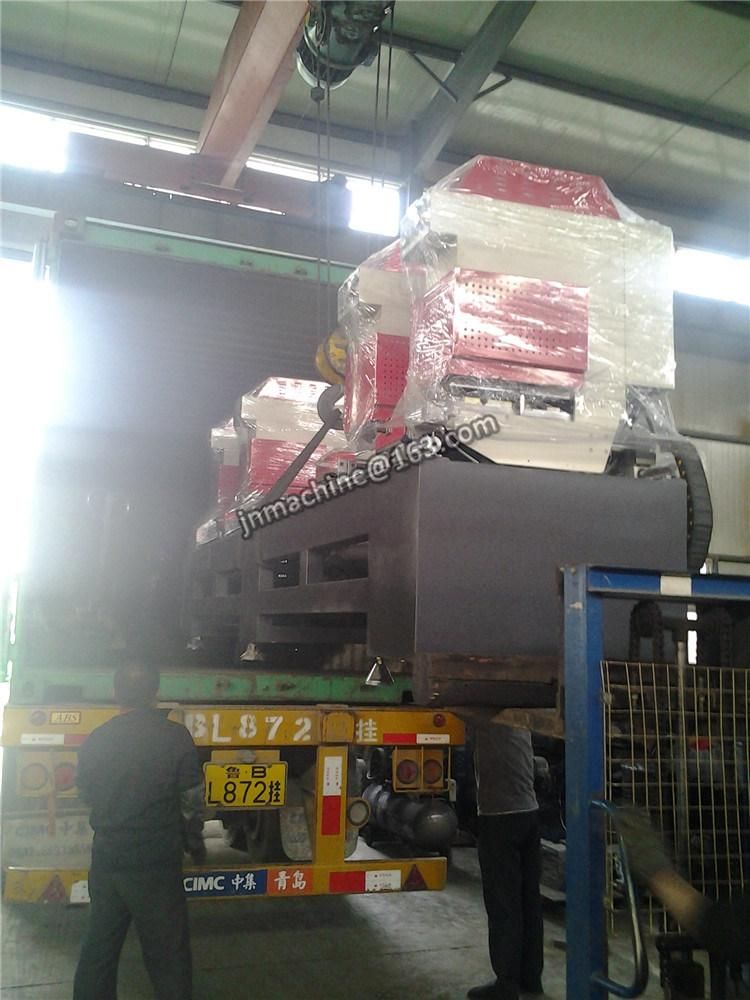

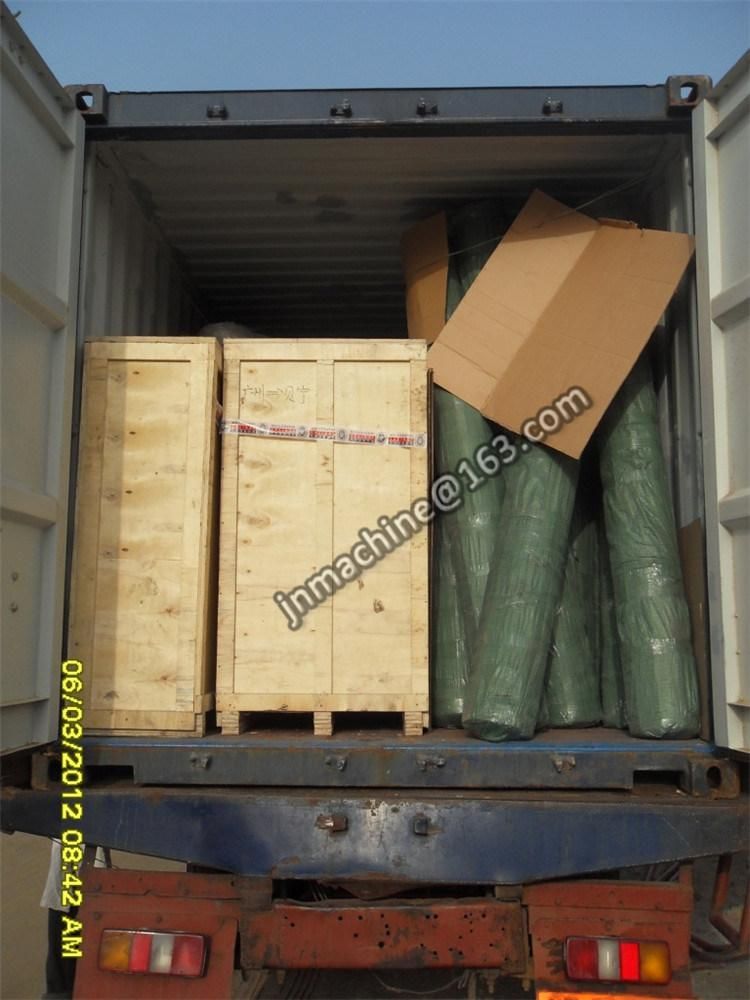

7. Packaging: Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box, just use the tray)

8. After sales service:

1)24 hours service on Internet and Telephone, free instructions and problem solving

2) Free training to make sure a master of the operating of cnc router for the person who come to our factory

3)User-friendly English manual or operating video for machine using and maintaining

4) on-the-spot training, installation and repairing can be met if required.(If so, need the buyer afford the visa and air ticket and 60USD/DAY Salary)
