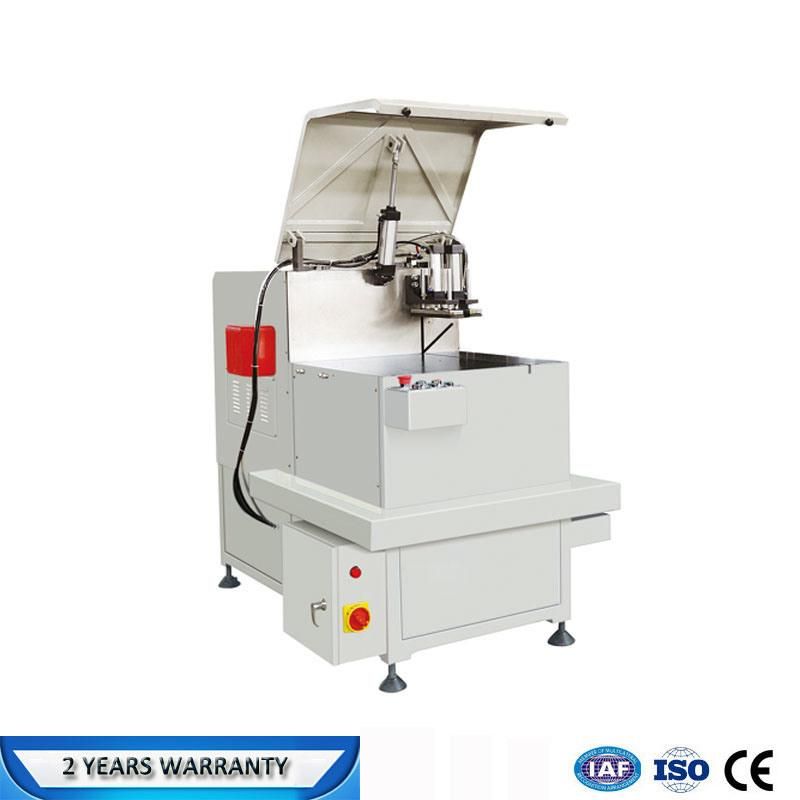

Single Head Cutting Saw Machine of Aluminum Cutting Machine

JINAN MAG GROUP CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Semi-Automatic
  • CNC or Not：not CNC
  • Voltage：380V
  • Function：Aluminum Cutting Machine

Base Info

  • Model NO.：LJGA-500
  • Certificate：CE
  • Weight：500kgs
  • Cutting Angle：90
  • Warranty：2 Year
  • Overall Dimension(L*W*H)：1700*1200*1600mm
  • Cutting Profile Surface Roughness：Ra12.5um
  • Transport Package：Plywood Package
  • Specification：1700 1200 1600mm
  • Trademark：MAG
  • Origin：China
  • HS Code：84779000
  • Production Capacity：1000

Description

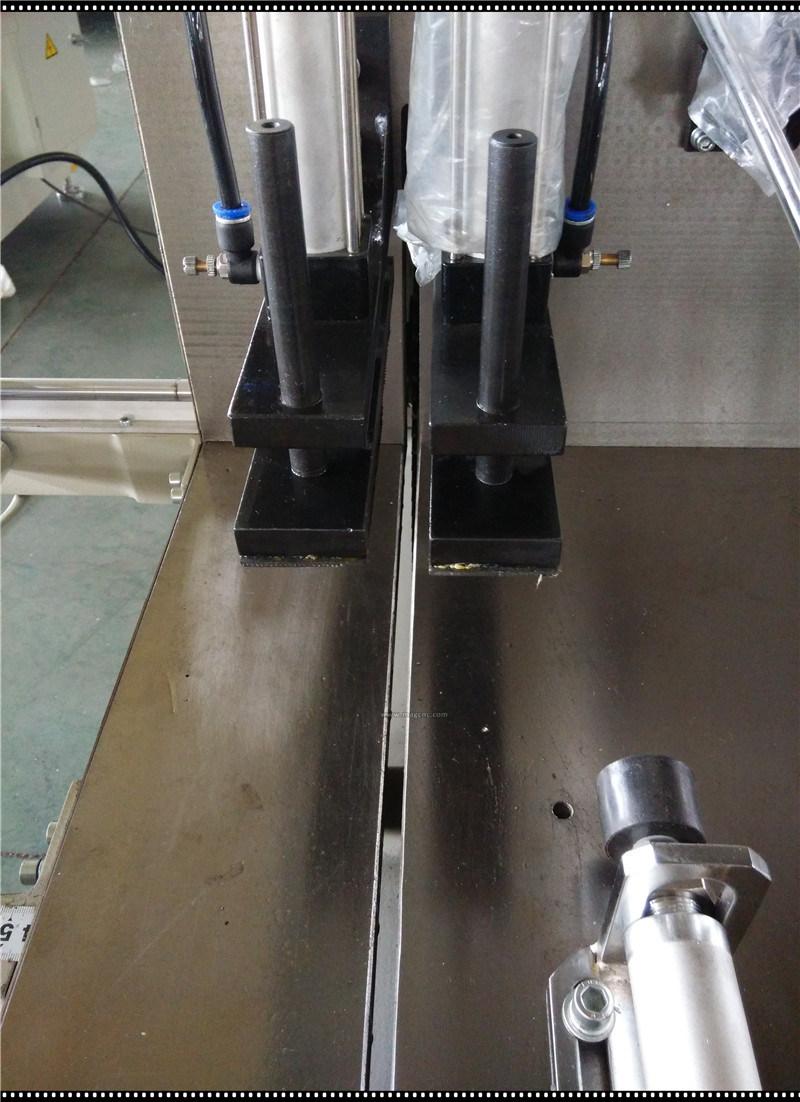

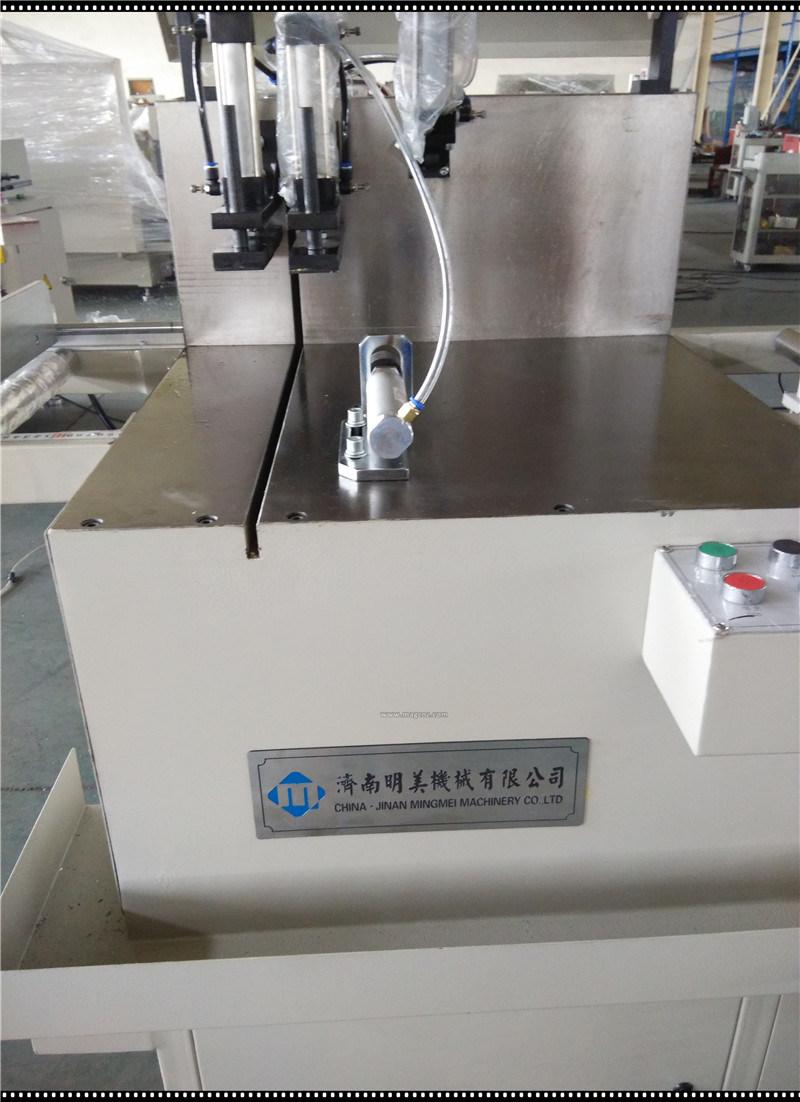

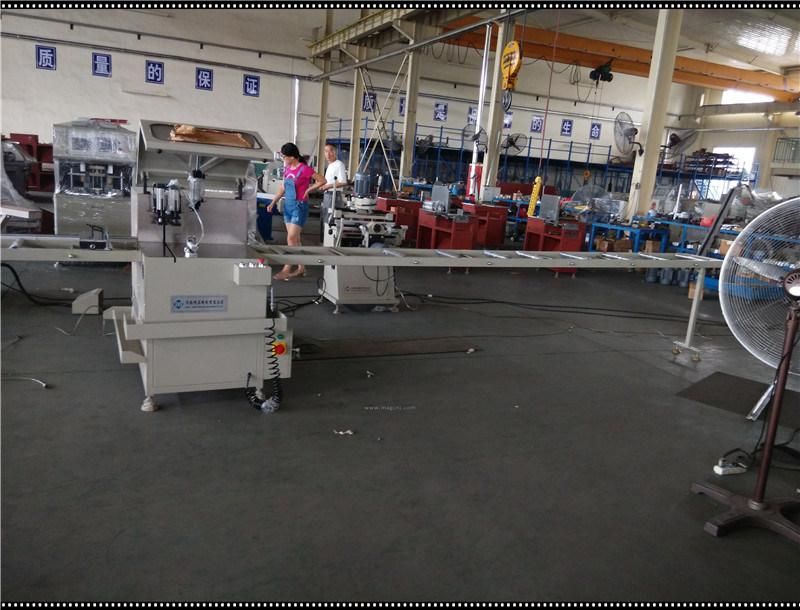

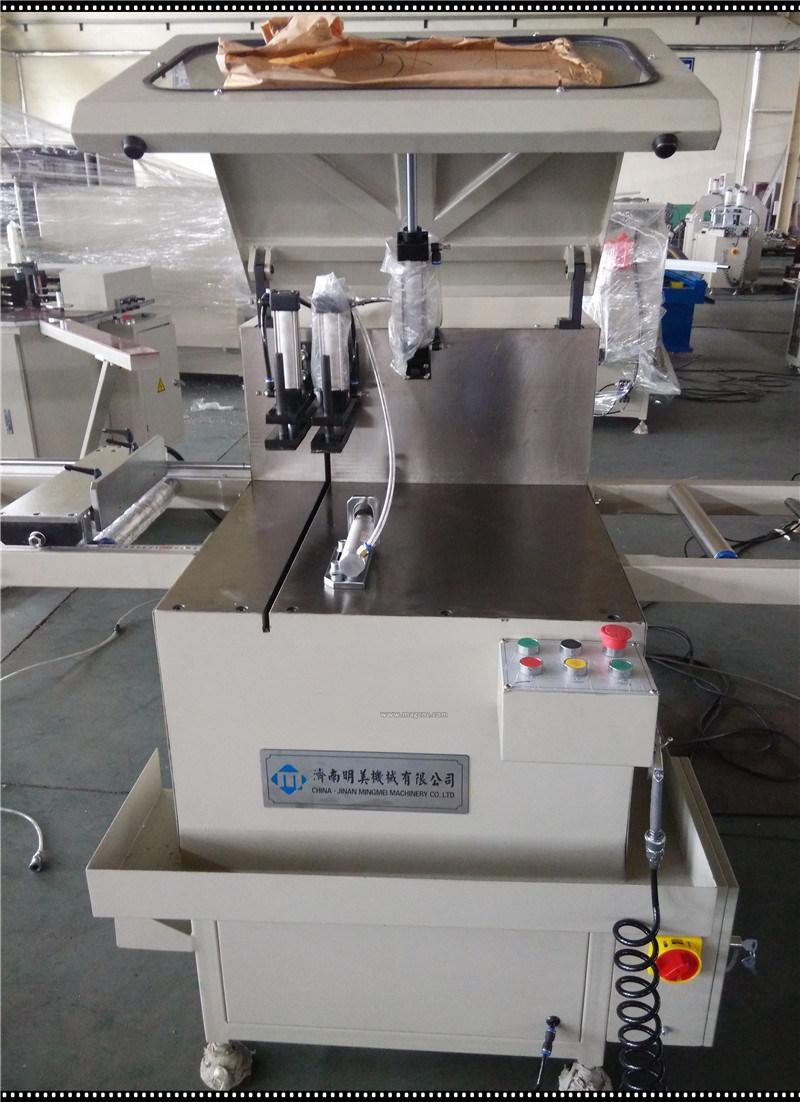

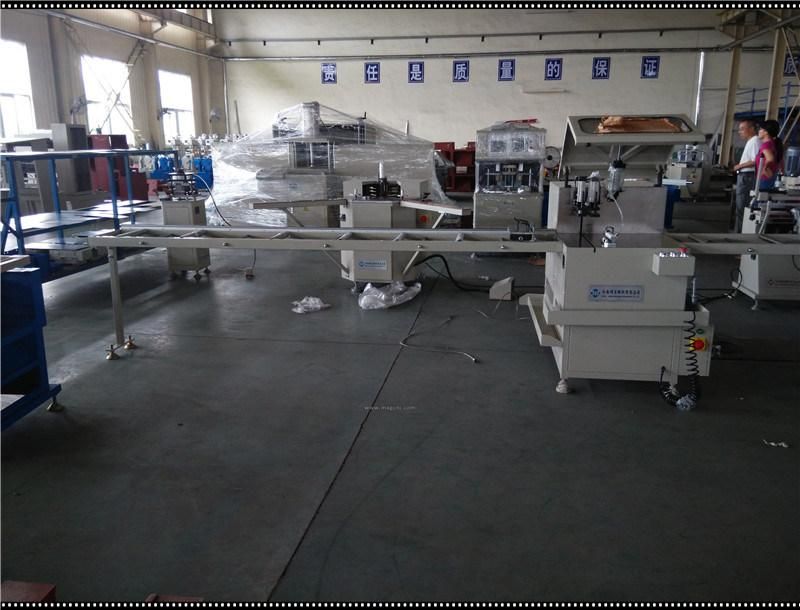

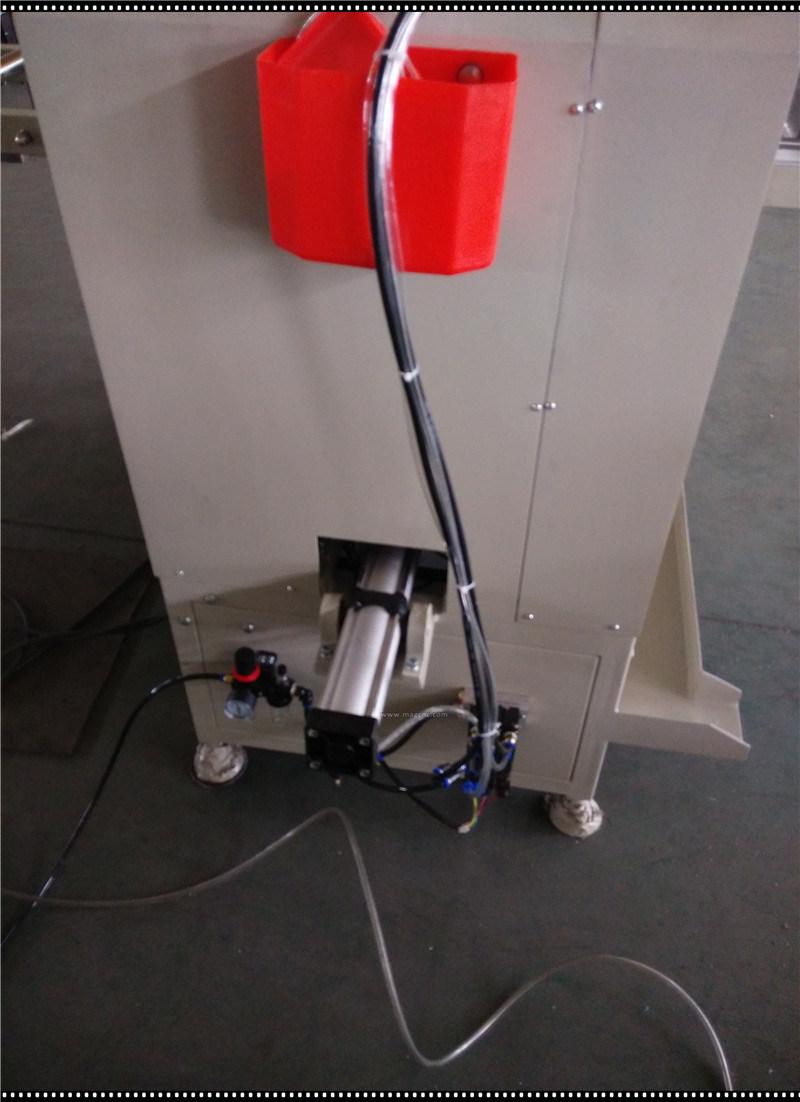

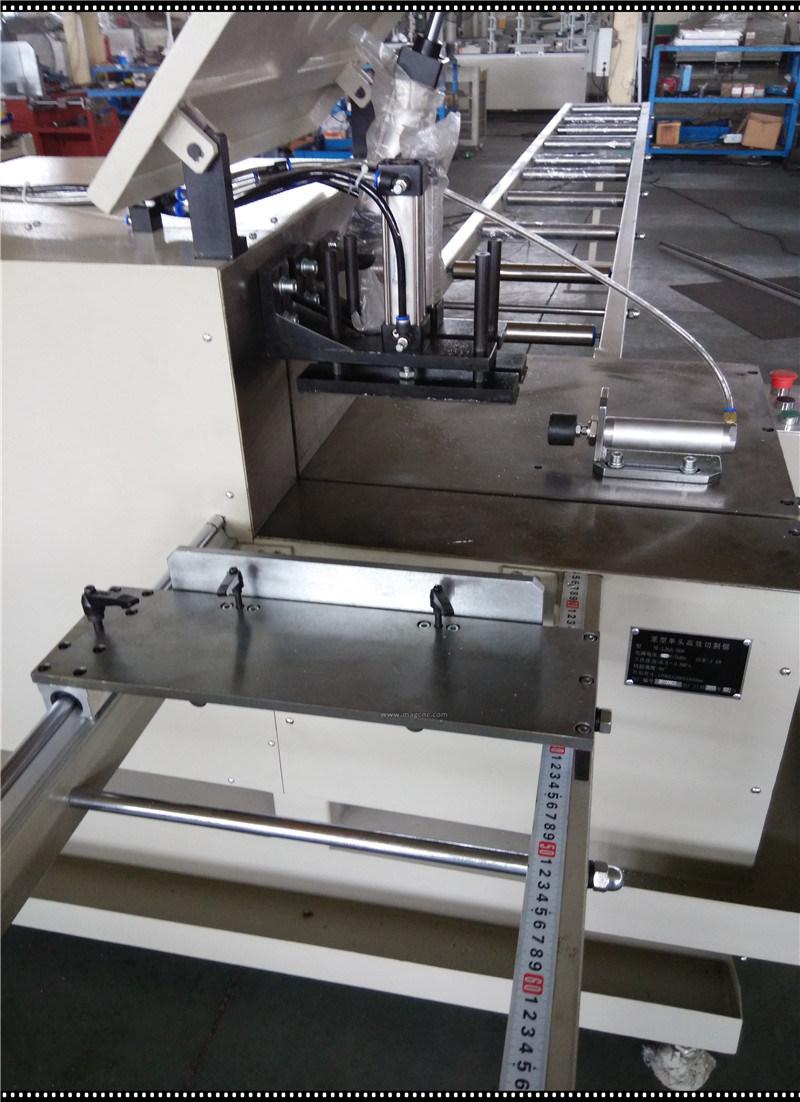

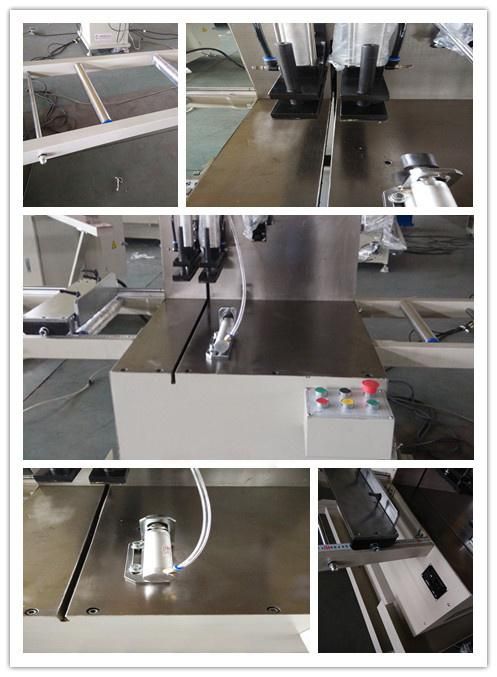

Overview Detailed PhotosProduct Description
Single Head Cutting Saw Machine of Aluminum Cutting MachineSingle Head Cutting Saw Machine of Aluminum Cutting MachineSingle Head Cutting Saw Machine of Aluminum Cutting MachineSingle Head Cutting Saw Machine of Aluminum Cutting MachineSingle Head Cutting Saw Machine of Aluminum Cutting MachineSingle Head Cutting Saw Machine of Aluminum Cutting MachineSingle Head Cutting Saw Machine of Aluminum Cutting MachineSingle Head Cutting Saw Machine of Aluminum Cutting MachineSingle Head Cutting Saw Machine of Aluminum Cutting Machine
Single Head Cutting Saw Machine of Aluminum Cutting Machine
Single Head Cutting Saw Machine of Aluminum Cutting MachineProduct ParametersFeatures

1.Used for aluminum windows and doors profile cutting and for curtain wall profile cutting also for plastic profile cutting.

2·Adopted carbide alloy blade
3·This machine with up-feed blade and digital display positioning system(depending on request)
4·Adopted the electrical motor protect device to improve the safety

Technical Parameters

Brand name

Mag

Model

LJGA-500

Working voltage

380V 50Hz or other

Air pressure

0.5-0.8MPa

Main motor rotary speed

2800r/min

Saw blade dimension

Ø550*Ø30

Cutting angle

90°-45 degree

Saw cutting (W*H)

300*135mm

Main motor power

3kw

Repeat locating length

≤0.1mm

Planeness of cutting surface

±5`

Cutting profile surface roughness

Ra12.5 um

Overall dimension(L*W*H)

1700*1200*1600mm

Weight

500KG

After Sales Service

After Sales Service

1). 24 months guarantee of the whole machine, 7*24 online free technical support;

2). Design drawing of the factory workshop;

3). English manual and video tutorial

4). Skilled engineer install the machine;

5). Training workers for you;

6). Local technical support or Spare parts support,We will provide the consumable parts at an agency price when you need replacement..
