• Model NO.：SHJ03
• Function1：Vinyl Window Welding Machine
• Input Power：3.5kw
• Welding Height：20-100,120mm
• Welding Width：100mm
• Operation Air Pressure：0.5-0.8MPa
• Air Consumption：200L,Min
• Welding Profile Width：0-100mm
• Welding Angle Range：30-180degree
• Overall Dimension：4400 1100 1700mm
• Weight：1500kgs
• Transport Package：Plywood Package
• Specification：5400x1100x1700mm
• Trademark：Mag
• Origin：China
• HS Code：84779000
• Production Capacity：1000sets

Product Parameters

Technical Parameters

PVC WINCOW MACHINE

PVC WELDING MACHINE

Model

SHJ3-100/120X3500

 Power voltage

220V  50HZ

Input power

3.5KW

Welding range

400mm-3500mm

Welding profile height

20~120mm

Welding profile width

0-100mm

Welding angle range

30°~180°

Overall dimension

4400×1100×1700

Weight

1500kg

1.Main Features for our Multi-head PVC Window Doors Welding Machine

SHJ4-100/120x4500

1.1  Welding  shape combined with each other, and may be welded to a range of arbitrary angle.

1.2 ·Four heads can work independently and can also be linked, flexible combination, high work efficiency·

1.3  Right head could be 30°~180° arbitrary angle welding.

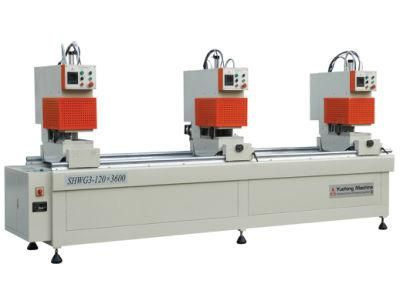

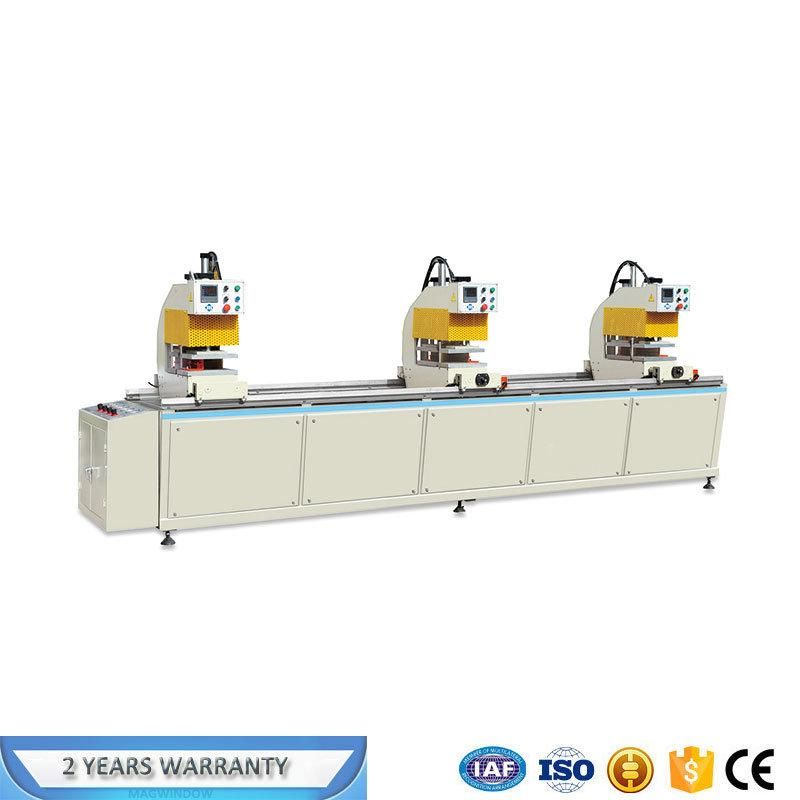

SHJ3-100/120x3500 SHJ2-100x3500

1.1   Welding  shape combined with each other, and may be welded to a range of arbitrary angle.

1.2 ·Three heads can work independently and can also be linked, flexible combination, high work efficiency·

1.3   Right head could be 30°~180° arbitrary angle welding

2.Specifications for Plastic Window Doors Corner Welding Machine

1

Model

SHJ3-180x3500

SHJ3-100/120x4500

SHJ2-100/120x4500

2

Air Presssure

0.5~0.8Mpa

0.5-0.8Mpa

0.5-0.8Mpa

3

Air Consumption

150L/min

150L/min

100L/min

Input Voltage

220V/50Hz

220V/50Hz

220V/50Hz

4

Input Power

7.5Kw

3.5Kw

2.5Kw

5

Welding Height

20~180mm

20~120mm

20~120mm

6

Welding Range

350~3500mm

400~3500mm

400~3500mm

8

Overall Dimension

4000x950x2000

4400x950x1700mm

4400x950x1700mm

9

Weight

about 1000kg

 about 950lg

about 740kg
