Window Welding Machine CNC Vertical Four-Point Welding Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Automatic
  • CNC or Not：CNC
  • Voltage：380V
  • Model：Shp4-CNC-3000b

Base Info

  • Model NO.：SHP4-CNC-3000B
  • Input Voltage：380 50Hz
  • Input Power：10kw
  • Air Pressure：0.6~0.8MPa
  • Air Consumption：200L,Min
  • Welding Width：140mm
  • Welding Height：25~150mm
  • Overall Dimension：4600*2000*2600mm
  • Welding Range：400*400~1800*3000mm
  • Transport Package：Wooden Box
  • Specification：4600*2000*2600mm
  • Trademark：YueFeng
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：40 Window Per Day

Description

Basic Info.

Model NO. SHP4-CNC-3000B Input Voltage 380 50Hz Input Power 10kw Air Pressure 0.6~0.8MPa Air Consumption 200L/Min Welding Width 140mm Welding Height 25~150mm Overall Dimension 4600*2000*2600mm Welding Range 400*400~1800*3000mm Transport Package Wooden Box Specification 4600*2000*2600mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

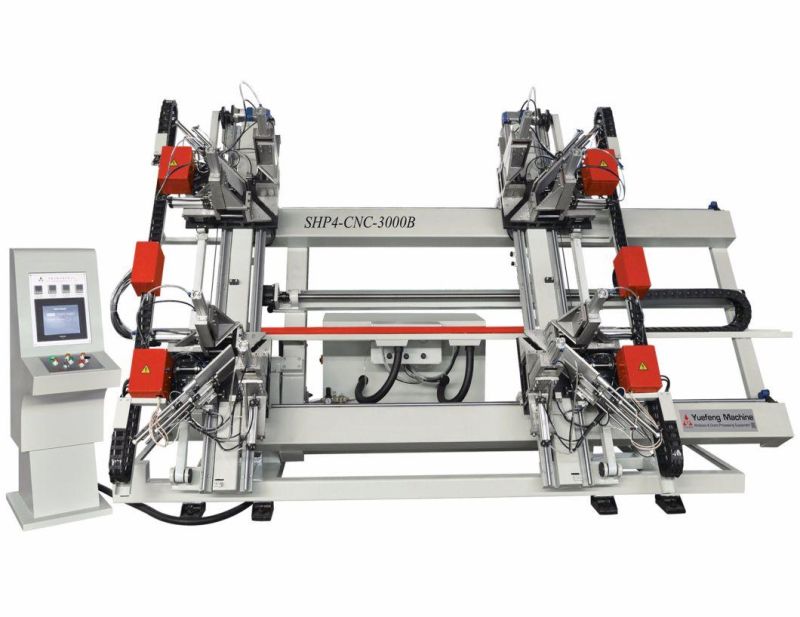

Window Welding Machine CNC Vertical Four-Point Welding MachineSHP4-CNC-3000B   CNC Vertical Four-point Welding Machine
Window Welding Machine CNC Vertical Four-Point Welding Machine
1.Automatic welding head positioning. The length located by ball screw makes high accuracy.2.The machine heads automatically back to the original position, easy operation.
3.Feeding system adopts imported linear guide pair, with high accuracy and smooth working.
4.Size tolerance compensation is available to increase welding precision.
5.Common profile fixture along with the machine can meet various height profiles' processing
requirement.
6.Back plates are convenient to change, when connecting joints, the two clamping boards
feed symmetrically results parallel welding, increasing the welding strength.7.Imported computer control system, easy operation and high stability.
Technical Parameter:
Model SHP4-CNC-3000B
Input voltage380V 50Hz
Input power    10Kw
Air pressure0.6~0.8MPa
Air consumption200L/min
Welding height 25~150mm
Welding width ≤140mm
Welding range  400×400~1800×3000mm
Overall dimension4600×2000×2600mm


Window Welding Machine CNC Vertical Four-Point Welding Machine
Window Welding Machine CNC Vertical Four-Point Welding Machine
Window Welding Machine CNC Vertical Four-Point Welding Machine
Window Welding Machine CNC Vertical Four-Point Welding MachineWindow Welding Machine CNC Vertical Four-Point Welding MachineFAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
