• Model NO.：LJZ2-450*3800
• Input Voltage：380V 50Hz
• Input Power：3.0kw
• Air Pressure：0.4~0.6MPa
• Air Consumption：210L,Min
• Cutting Length：360~3800mm
• Cutting Height：200mm
• Cutting Width：120mm
• Cutting Angle：90-45
• Saw Feeding Speed：0~3m,Min
• Saw Blade Standard：450*4-30*Z120
• Overall Dimension：4800*1300*1450mm
• Transport Package：Wooden Box
• Specification：4800*1300*1450mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：20 Window Per Day

Basic Info.

Model NO. LJZ2-450*3800 Input Voltage 380V 50Hz Input Power 3.0kw Air Pressure 0.4~0.6MPa Air Consumption 210L/Min Cutting Length 360~3800mm Cutting Height 200mm Cutting Width 120mm Cutting Angle 90-45 Saw Feeding Speed 0~3m/Min Saw Blade Standard 450*4-30*Z120 Overall Dimension 4800*1300*1450mm Transport Package Wooden Box Specification 4800*1300*1450mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 20 Window Per Day

Product Description

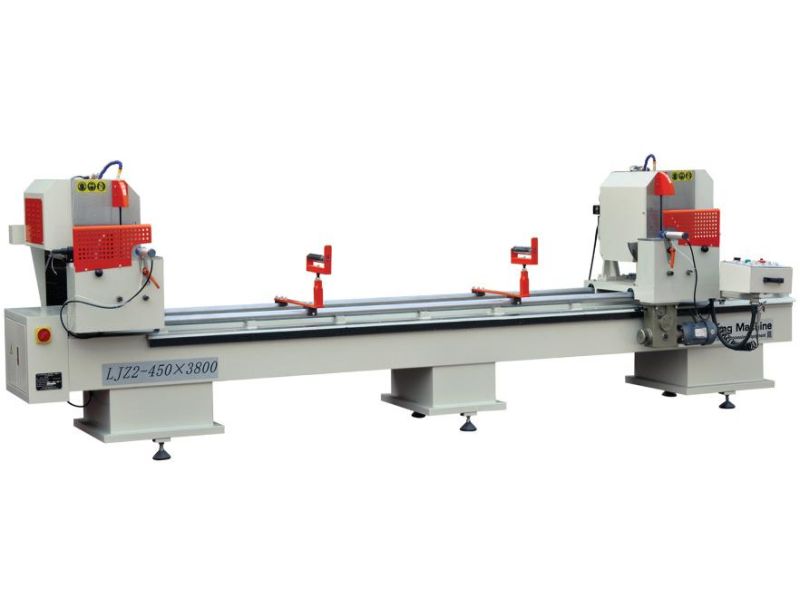

                              LJZ2-450×3800    Double Mitre Saw


1. Used for cutting aluminum and PVC at 45° 90°.
2.The right head can be adjusted horizontally by the motor.
3.Two heads work independently or together.
4.Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

Technical Parameter:

Model	LJZ2-450×3800
Input voltage	380V 50Hz
Input power	3.55Kw
Air pressure	0.4~0.6MPa
Air consumption	200L/min
Spindle speed	3200r/min
Cutting length	360~3800mm
Cutting width	≤120mm
Cutting height	≤200mm
Cutting angle	90° 45° -45°
Saw feeding speed	0~3m/min
Saw blade standard	φ450×4×φ30×Z120
Overall dimension	4800×1300×1450mm




FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
