• Model NO.：LJB2B-CNC-5000
• Input Voltage：380V 50Hz
• Input Power：6.8kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Cutting Length：380~5000mm
• Cutting Height：230mm
• Cutting Width：135mm
• Cutting Angle：45-157.5
• Saw Feeding Speed：0~3m,Min
• Saw Blade Standard：500*4.4-30*Z120
• Overall Dimension：7700*1800*1800mm
• Transport Package：Wooden Box
• Specification：7700*1800*1800mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：40 Window Per Day

Basic Info.

Model NO. LJB2B-CNC-5000 Input Voltage 380V 50Hz Input Power 6.8kw Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Cutting Length 380~5000mm Cutting Height 230mm Cutting Width 135mm Cutting Angle 45-157.5 Saw Feeding Speed 0~3m/Min Saw Blade Standard 500*4.4-30*Z120 Overall Dimension 7700*1800*1800mm Transport Package Wooden Box Specification 7700*1800*1800mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

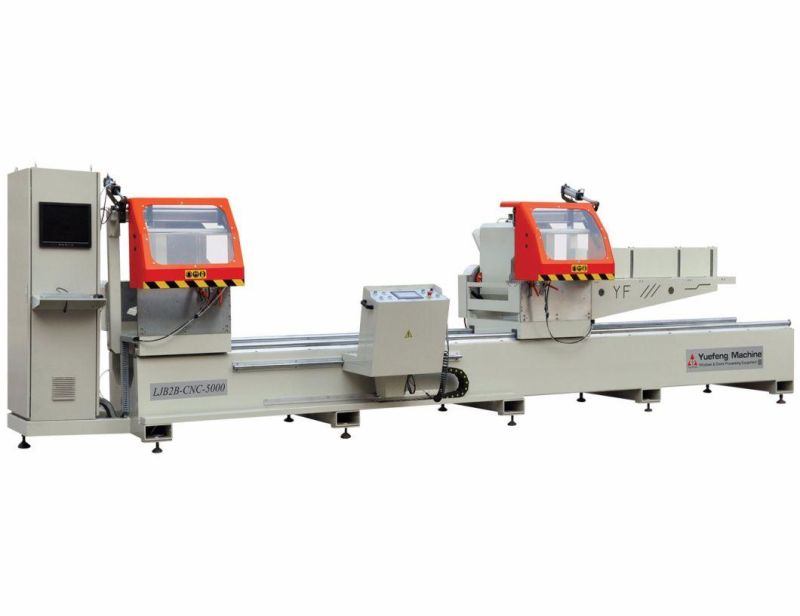

                         LJB2B-CNC-5000  CNC Arbitrary Angle Double Mitre Saw
Mainly used for profiles cutting, such as aluminum, PVC and curtain wall profiles.
Saw blades be installed on the motor directly, with the lever swing mode for cutting.
The high accuracy imported saw blades result high accuracy cutting.
The speed reducer be driven by Imported servo motor, results any angle could be cut between 45°~157.5°
The Imported control system could optimize the profile cutting.
Several profiles size could be input in once, so the cuttings could be finished continuous.
Input the cutting datas you need directly, do not need back to reference point first when changing the cutting length.
The ball screw be driven by imported servo motor drives the saw head, results high speed and high accuracy for repeat locating.
With bar code printer, result a digital production.


Model	LJB2B-CNC-5000
Input voltage	380V 50Hz
Input power	6.8Kw
Air pressure	0.5~0.8MPa
Air consumption	200L/min
Spindle speed	3200r/min
Cutting length	380~5000mm
Cutting width	10~135mm
Cutting height	10~230mm
Cutting angle	45°~ 57.5°
Saw feeding speed	0~3m/min
Saw blade standard	φ500×4.4×φ30×Z120
Overall dimension	7000×1800×1800mm




FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
