CNC Corner Cleaning Machine for Angle Seam Cleaning/Corner Clean

JINAN MAG GROUP CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Automatic
  • CNC or Not：CNC
  • Voltage：380V
  • Function：PVC Window Making Machine

Base Info

  • Model NO.：SQJB-CNC-120
  • Profile Height：20-150mm
  • Drawing Groove Width：3mm
  • Drawing Groove Depth：0.3mm
  • Profile Width：20-100mm
  • Air Pressure：0.4-0.7MPa
  • Air Consumption：50L,Min
  • Saw Cutting(W)：20-100mm
  • Transport Package：Plywood Package
  • Specification：1850X920X1650MM
  • Trademark：MAG
  • Origin：China
  • HS Code：84752990
  • Production Capacity：1000

Description

Overview Product Description

1.Introduction:

this machine is used to clean corner welding seam for plastic doors and windows,of which the upper and below end-milling cutter will respectively or at the same time clean plastic window's sealing strip groove and additional welding knob at inside or outside flat seam,in addition to,the upper and below pulling cutter will clean upper and below plane welding seam.

The machine has following features,such as easy adjustment,high automatization degree and etc.

Product Parameters

2.main technical parameters:

main motor power:1.5KW

main motor rotation speed:2800r/min

working voltage:AC380V 50HZ

over all dimension(L*W*H):1600*880*1650mm

weight:600kg

air pressure:0.4-0.7Mpa

air consumption:50L/min

saw cutting(W):20-100mm

saw cutting(H):20-150mm

drawing groove width:3mm

drawing groove depth:0.3mm

comprehensive angle cleaning time:25 degree angle

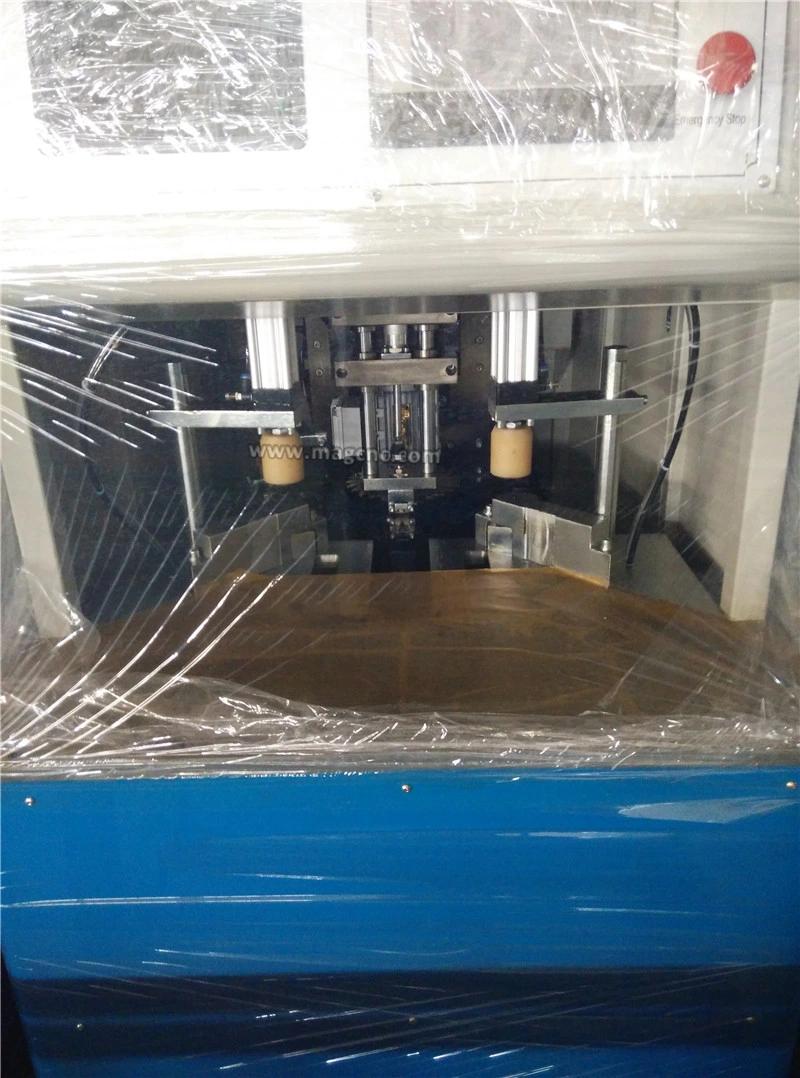

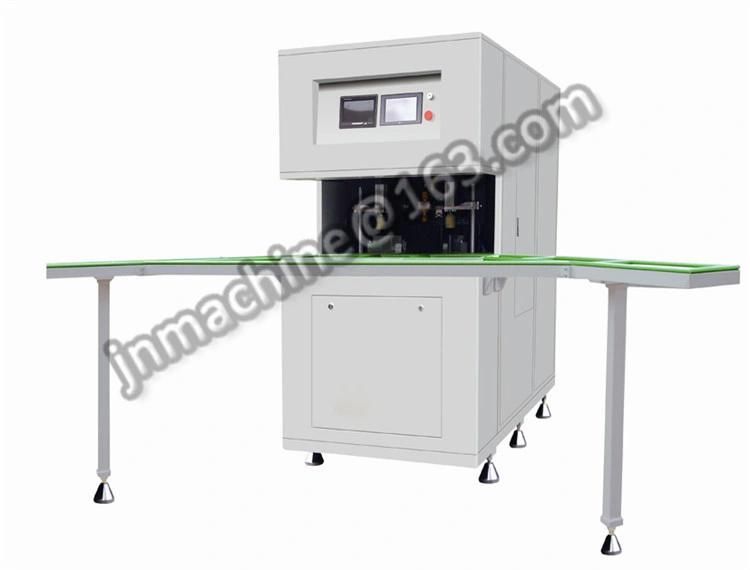

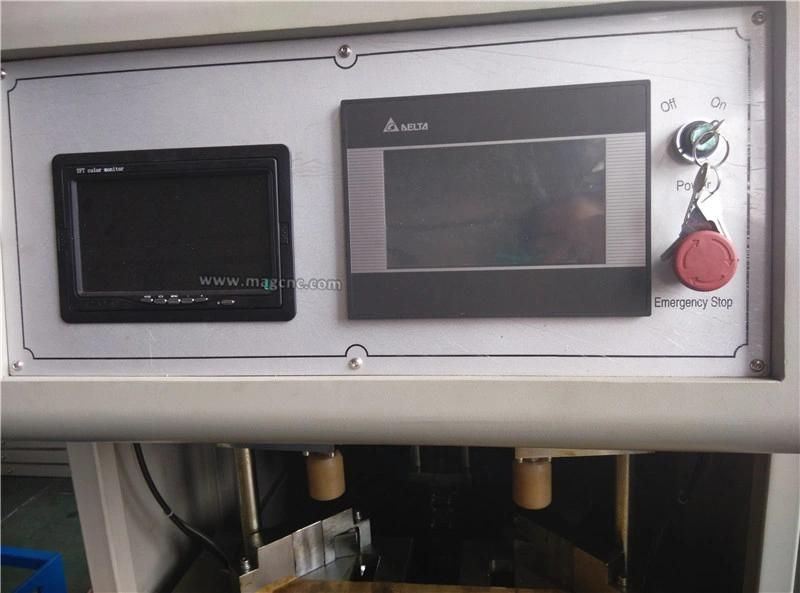

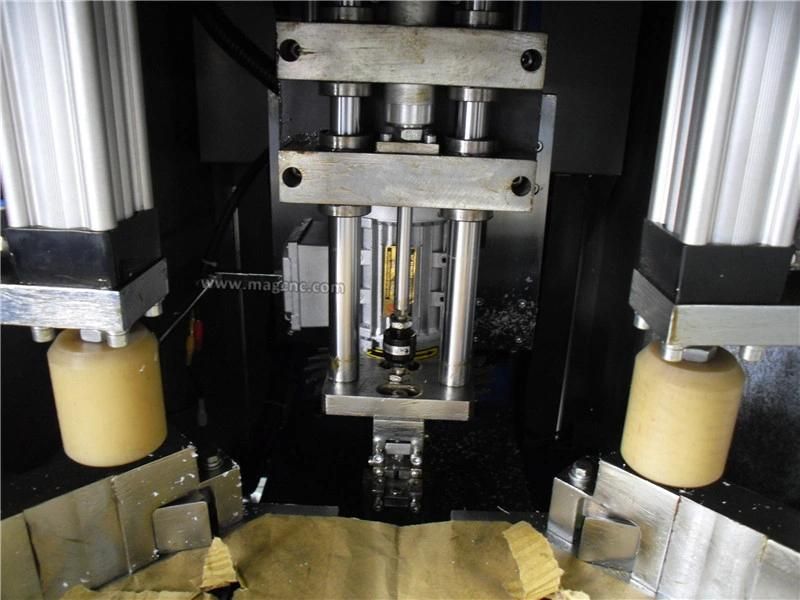

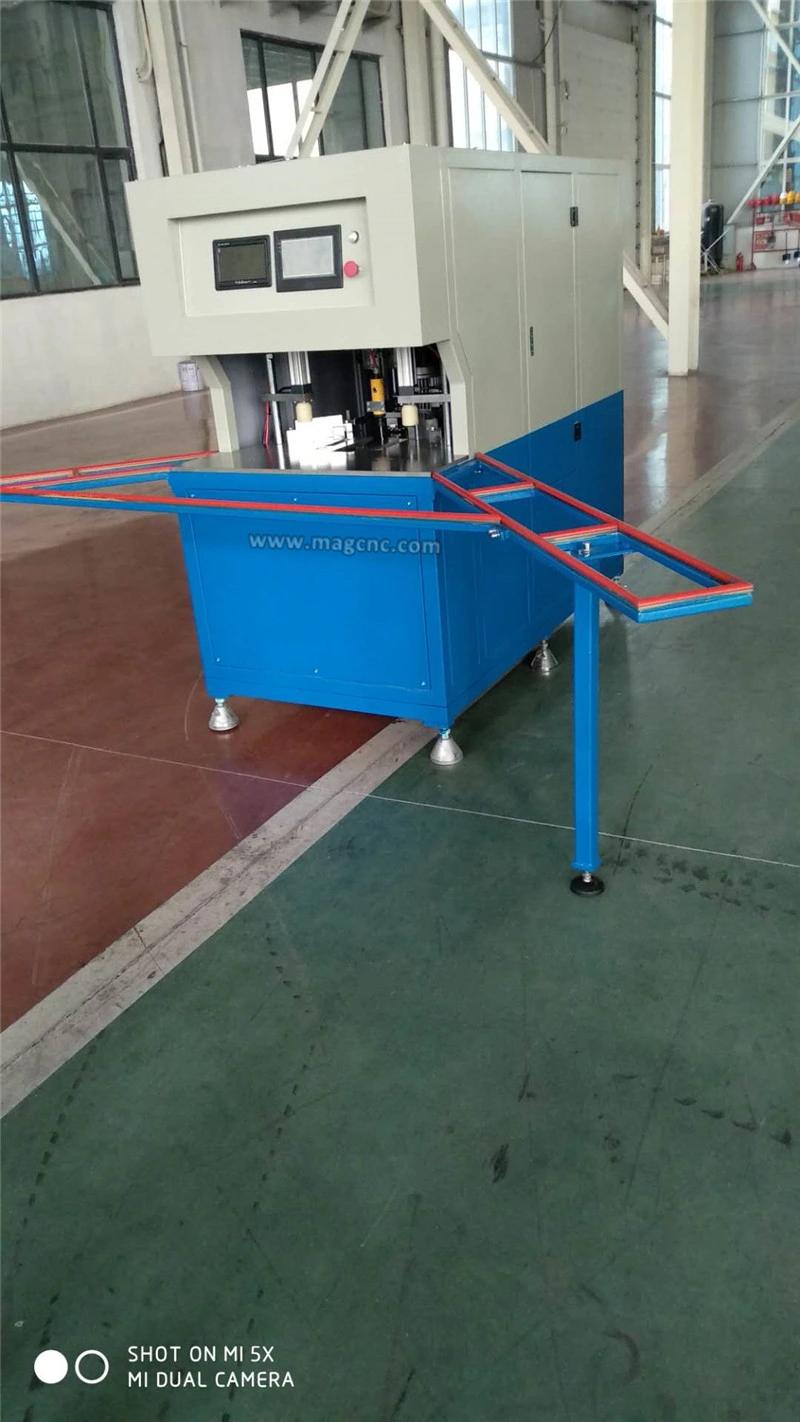

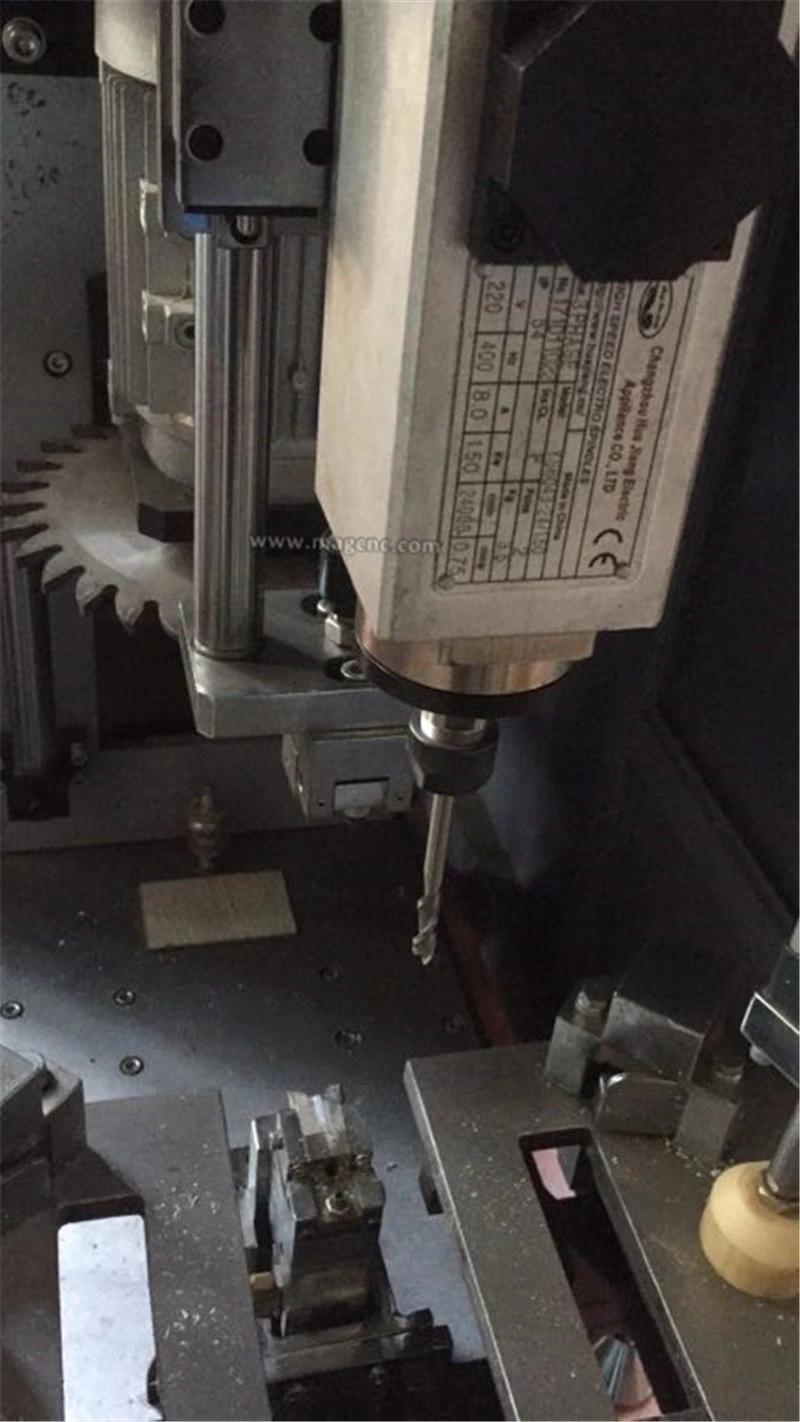

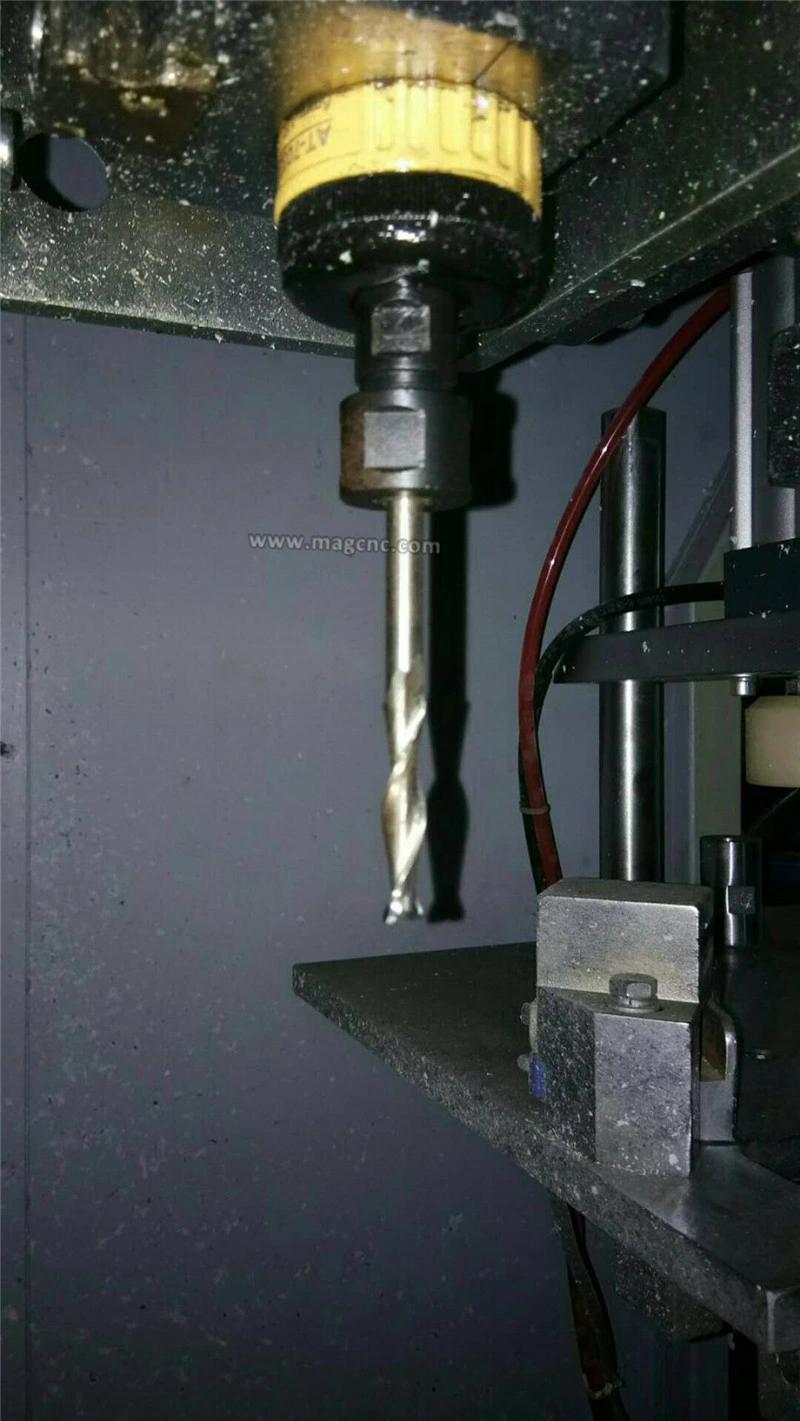

Detailed Photos


CNC Corner Cleaning Machine for Angle Seam Cleaning/Corner Clean
CNC Corner Cleaning Machine for Angle Seam Cleaning/Corner CleanCNC Corner Cleaning Machine for Angle Seam Cleaning/Corner CleanCNC Corner Cleaning Machine for Angle Seam Cleaning/Corner CleanCNC Corner Cleaning Machine for Angle Seam Cleaning/Corner CleanCNC Corner Cleaning Machine for Angle Seam Cleaning/Corner CleanCNC Corner Cleaning Machine for Angle Seam Cleaning/Corner CleanCNC Corner Cleaning Machine for Angle Seam Cleaning/Corner CleanCNC Corner Cleaning Machine for Angle Seam Cleaning/Corner CleanCNC Corner Cleaning Machine for Angle Seam Cleaning/Corner Clean


Company Profile



MAG group co., LTD. Is a window machine and related materials industry group in shandong province. Our products cover window making machine, window glass machine, curtain wall processing equipment, CNC machining center, insulating glass building materials, etc.
