• Model NO.：LJB2H-CNC-600x6000
• Sawing Motor Power：2X3kw
• Working Pressure：0.6~0.8MPa
• Saw Blade Specifications：Dia600xdia38X4.8X 4.2X144p
• Saw Blade Angle：45 - 90 Degree Arbitrary Angle
• Table Rotation Angle：45 - 135 Degree Arbitrary Angle
• Cutting Length：700mm -- 5000mm (90 Degree)
• Transport Package：Fixed on Pallet
• Specification：9200x1800x2000mm
• Trademark：TIANCHEN
• Origin：Jinan, Shandong, China
• HS Code：8461419000
• Production Capacity：2000 Units Per Year

Basic Info.

Model NO. LJB2H-CNC-600x6000 Sawing Motor Power 2X3kw Working Pressure 0.6~0.8MPa Saw Blade Specifications Dia600xdia38X4.8X 4.2X144p Saw Blade Angle 45 - 90 Degree Arbitrary Angle Table Rotation Angle 45 - 135 Degree Arbitrary Angle Cutting Length 700mm -- 5000mm (90 Degree) Transport Package Fixed on Pallet Specification 9200x1800x2000mm Trademark TIANCHEN Origin Jinan, Shandong, China HS Code 8461419000 Production Capacity 2000 Units Per Year

Product Description

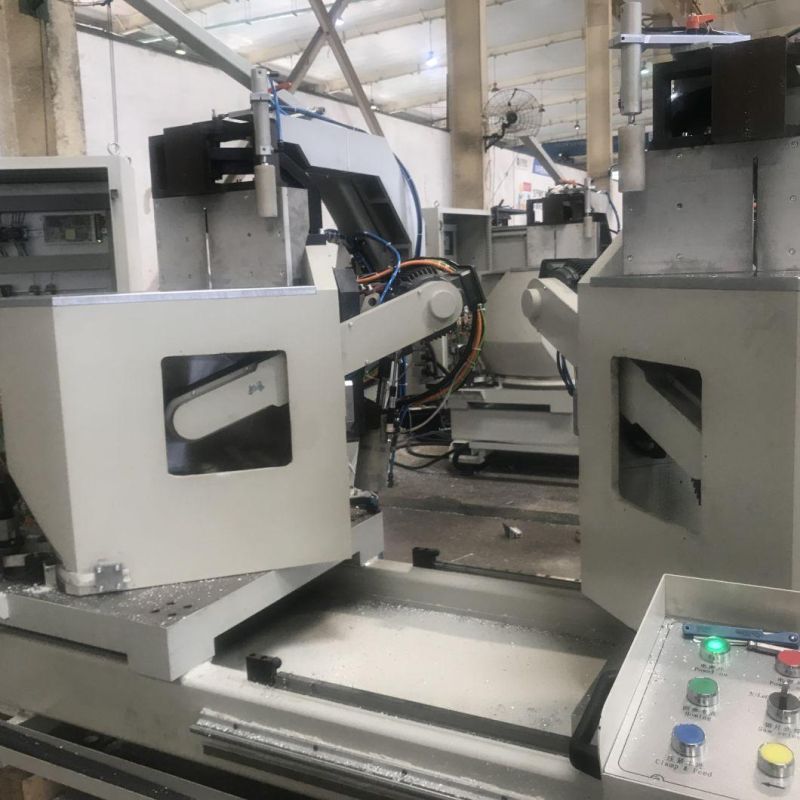

5 Axis CNC Double Head Cutting Saw for Aluminum Profile
Model: LJB2H-5CNC-600X6000


Features & Advantages

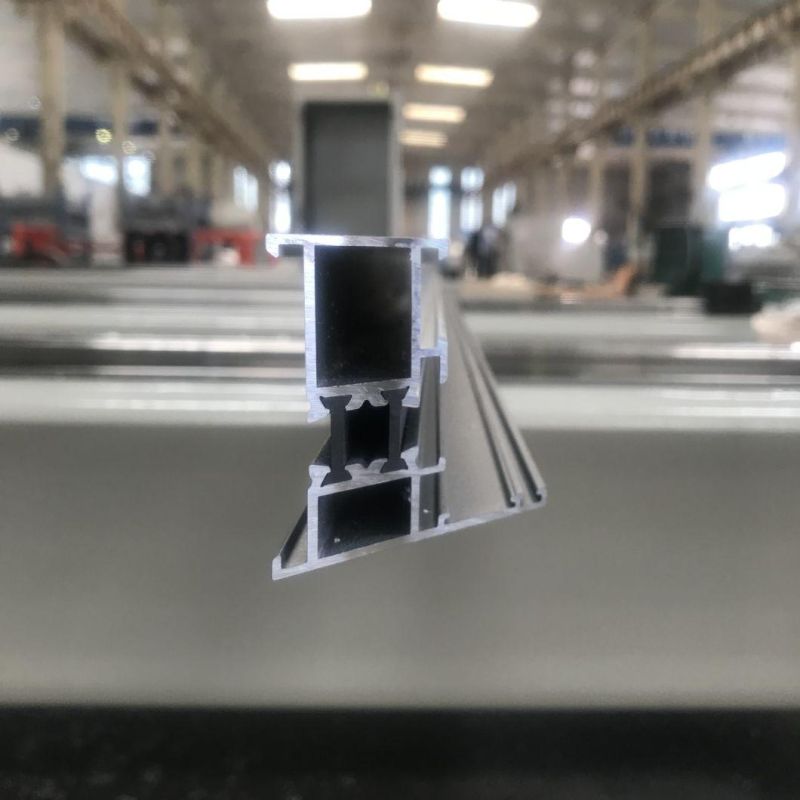

☆ Applicable to any two-dimensional composite angle cutting of large-section aluminum profiles;
☆ Five-axis full-closed CNC system is adopted to ensure the positioning accuracy of the rotation angle and length;
☆ The movable cutting saw head adopts linear guide pair and gear rack transmission to ensure the rigidity and positioning accuracy of the transmission;

☆ The machine head rotates with precision crossed cylindrical roller bearings, and the rotation is stable and reliable;
☆ The enhanced rocker arm structure makes the cutting more stable and the cutting effect is better;

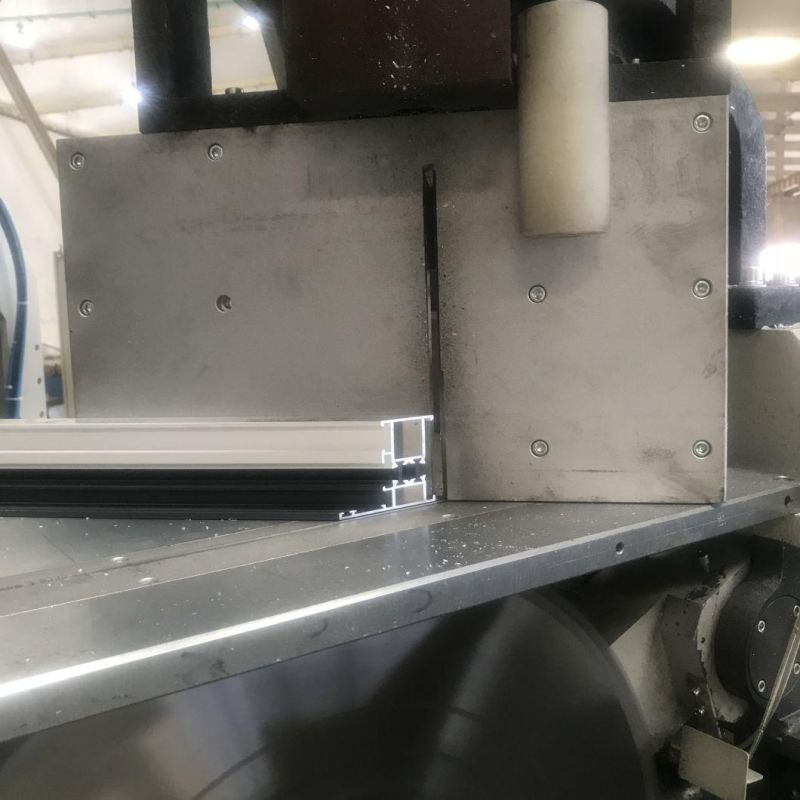

☆ The saw blade swings out under the work table, the cutting is smooth, and the cut surface of the profile is smooth;


☆ Lubrication and cooling device that moves with the saw blade, effectively improving the cutting quality and the service life of the saw blade;
☆ The pneumatic positioning brake and the compressing of the profile ensure the cutting stability;
☆ With automatic lifting intermediate carrier and follow-up carrier for long profile support.

Technical Parameters

Item	Specification
Power supply voltage:	380V±10% 50Hz±2% three-phase four-wire system
sawing motor power	3kW 2800rpm
Working pressure	0.6~0.8MPa
Saw blade specifications	Φ600 × Φ38 × 4.8 × 4.2 × 144P
Saw blade angle	45°~90° arbitrary angle
Table rotation angle	45 ° ~ 135 ° arbitrary angle
Cutting Section range	200mm × 200mm (cutting angle at 90°, width × height, see the cutting section range)
Cutting length	700mm~5000mm (90°)
Blade feed rate	0~3m/min
Cutting surface roughness	≤ Ra12.5μm
