• Model NO.：QTJ4-24
• Product：Brick
• Brick Raw Material：Concrete
• Automation：Automatic
• Tolerance：0.5mm
• Condition：New
• Transport Package：Nude Package
• Specification：CE&ISO
• Trademark：Shengya China
• Origin：Shandong China
• HS Code：8474809090
• Production Capacity：25000PCS Block ,8hours

Basic Info.

Model NO. QTJ4-24 Product Brick Brick Raw Material Concrete Automation Automatic Tolerance 0.5mm Condition New Transport Package Nude Package Specification CE&ISO Trademark Shengya China Origin Shandong China HS Code 8474809090 Production Capacity 25000PCS Block /8hours

Product Description

Description of manufacturer for QTJ4-26 semi automatic concrete cement solid hollow block brick making machine
QTJ4-26C is one kind of semi-automatic block machine, which is developed on the basis of small and medium model. The position-setting of the mould and the discharge head are more accrate. The down -mould adopts the vertical, directional vibrating device while the up-mould uses the pressure vibrating. So the blocks made by this machine are high in density and strength. Also the automatic material distributing system greatly increase the productivity.

Semi-automatic block making machine, with blet convyor, automatic feeding. Can produce sizes of blocks by changing the moulds

This machine uses mechanical drive and manual manipulation to put the mixed material into the mold box, and use concrete vibrating to shape the block. Products made by it have good looking, clear edges and corners, weight error is ± 3%, impact strength is as high as 10.5MP and the error is 10%, geometry size <± 1.5mm.

The machine has broad applications, it can not only produce concrete block, but also produce all kinds of loading bearing and nonbearing blocks with industrial residue like coal slack, fly ash, sintered aggregate, waste gypsum, etc.

Main Technical Specifications of manufacturer for QTJ4-26 semi automatic concrete cement solid hollow block brick making machine


power	11.75kw
overall size	3000X1600X2500mm
cycle	26 seconds
pallets size	850x550x25mm
vibration force	40KN
vibration frequency	4000-4800/Minute
rated pressure	12Mpa
total weight	3500kg
electricity source	380v/50HZ

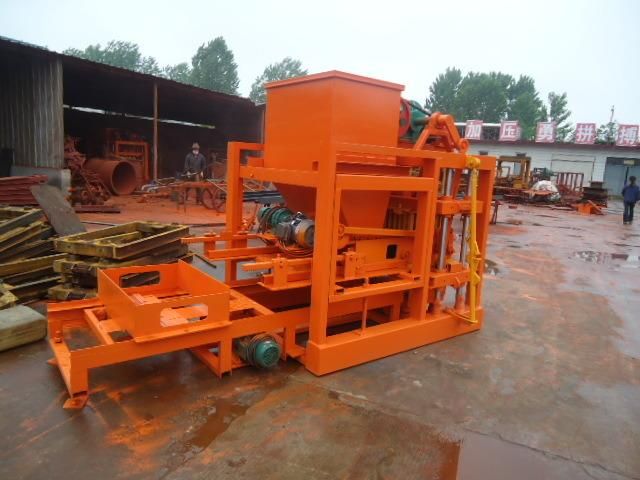

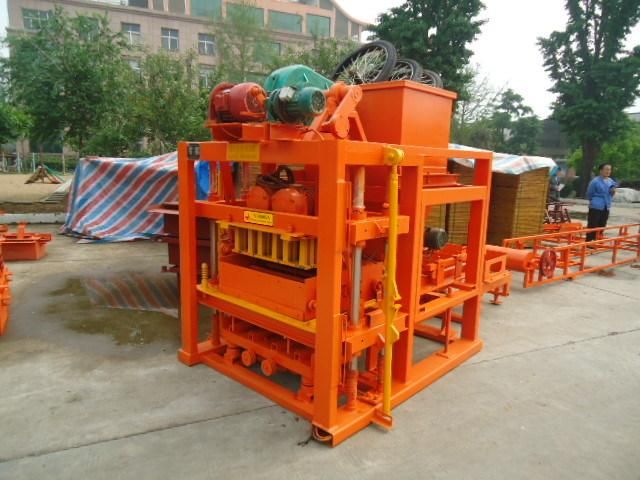

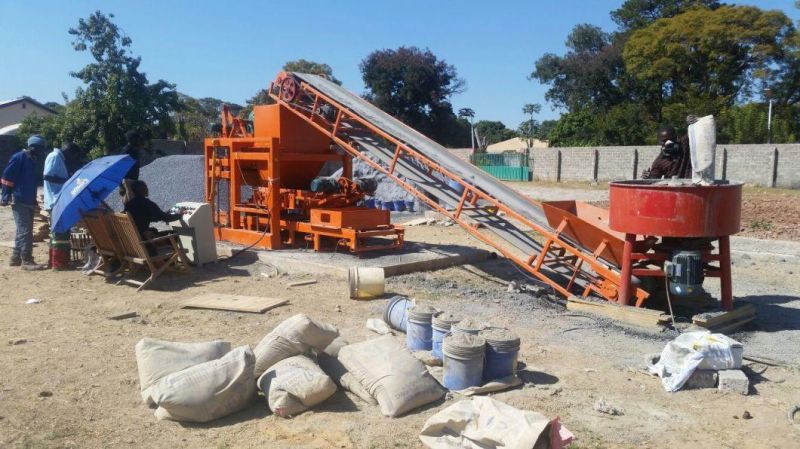

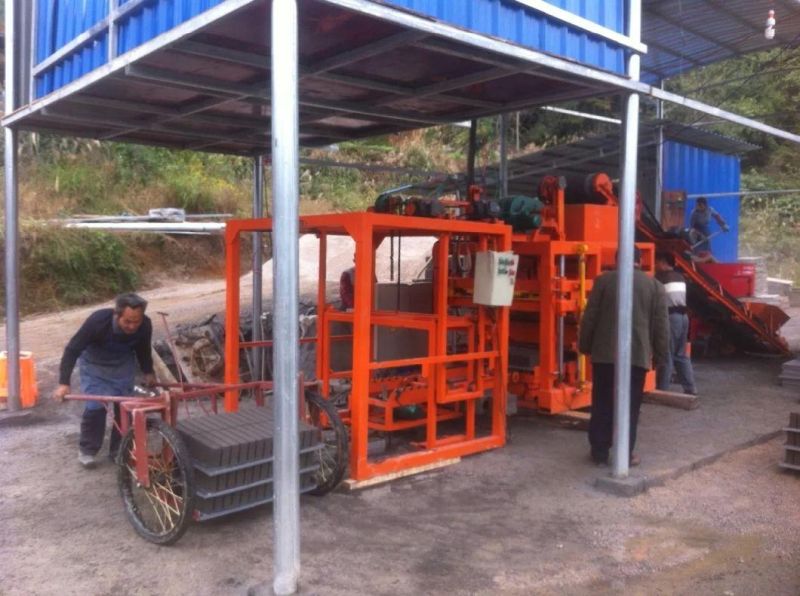

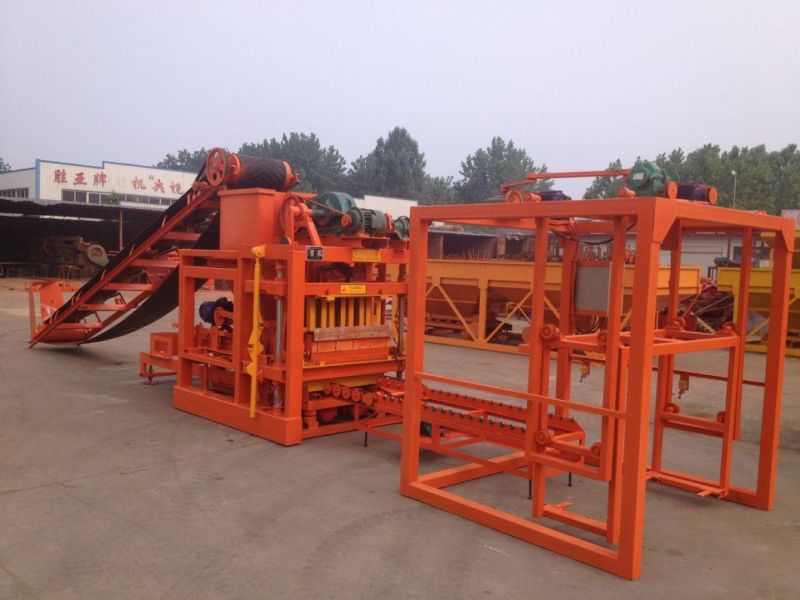

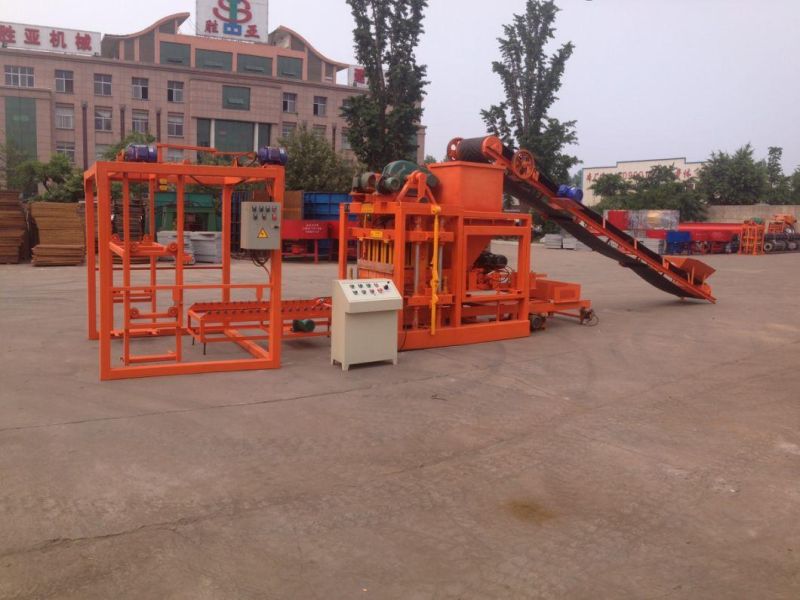

Photos of manufacturer for QTJ4-26 semi automatic concrete cement solid hollow block brick making machine
