Furring Channel Machine/ Hat Channel Rolling Machine

Cangzhou Nexus Machinery Co., Ltd.
  • After-sales Service：Provide Overseas Service
  • Warranty：1 Year
  • Certification：CE, ISO9001
  • Customized：Customized
  • Condition：New
  • Control Type：Electric

Base Info

  • Model NO.：75
  • Automatic Grade：Automatic
  • Product Name：Furring Channel Machine, Hat Channel Machine
  • Coil Material Thickness：0.3-0.8mm
  • Processing Material：Galvanized Steel
  • Roller Material：Cr12MOV
  • Rollers：10 Stands
  • Shaft Diameter：60mm
  • Cr-Plating Size：0.05mm
  • Cutter Standard：Cr12
  • Power：5.5+3kw
  • Width of The Plate：98,133,163mm
  • Transport Package：1.Control Box and Easy Damaged Parts:Protective PA
  • Specification：35-100
  • Trademark：Nexus Machinery
  • Origin：Cangzhou
  • HS Code：8455221000
  • Production Capacity：10

Description

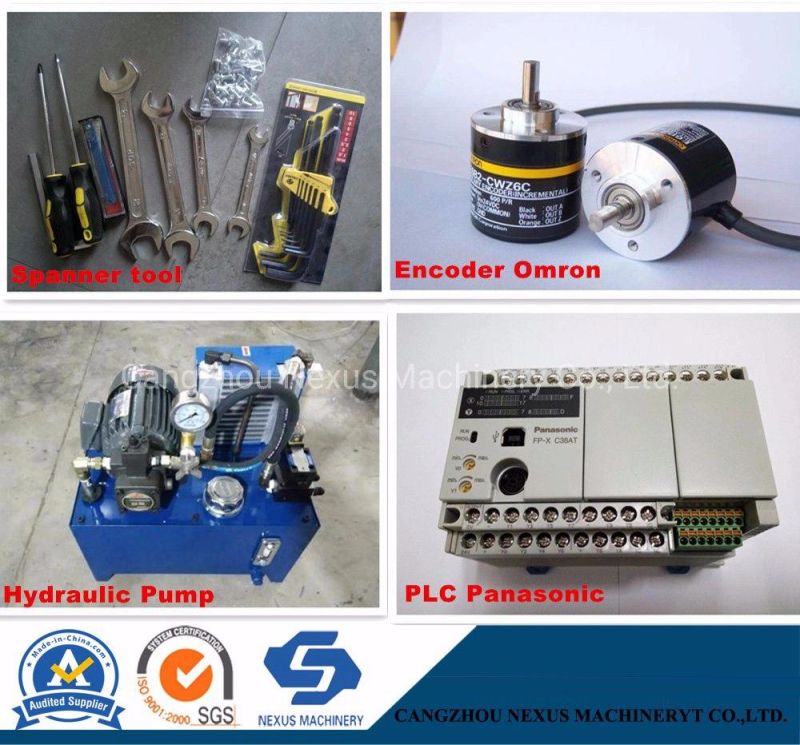

ConfigurationsManual Uncoiler ,Guiding Platform ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.Suitable to processColor steel plateWidth of the plate98/133/163mmControl SystemPLC Colored Touch ScreenRollers10 standsShaft Diameter60mmThickness of the plate0.3-0.8mmHydraulic Pressure10-12MPaRoller Standard45#steel with chrome coating heat treatmentCr-Plating Size0.05mmCutter StandardCr12Power5.5+3kwVoltage380V 50Hz 3phasesOverall Size2.3Tons
Furring Channel Machine/ Hat Channel Rolling Machine
Furring Channel Machine/ Hat Channel Rolling Machine
Furring Channel Machine/ Hat Channel Rolling Machine

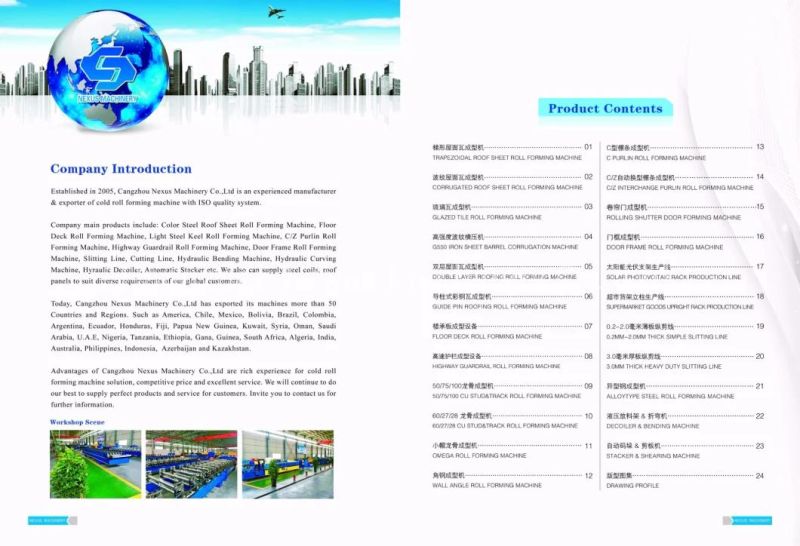

ABOUT US:

Furring Channel Machine/ Hat Channel Rolling Machine
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
