• Model NO.：QTC7-10
• Productivity：16800-20160 Pieces 35*15*10cm Interlocks ,8 Hours
• Labor Required：3-4 Persons
• Voltage：220-440V
• Mixer Model：Jq 750
• Processing Method：Hydraulic Pressure
• Rated Pressure：16-22MPa
• Total Machine Power：15kw
• Vibration Frequency：2800-4500r,Min
• Raw Materials：Clay,Cement,Soil
• Transport Package：Standard Export Packing
• Specification：Q235B Jigang steel
• Trademark：weda
• Origin：China
• HS Code：8474802000
• Production Capacity：120 Sets,Month

Basic Info.

Model NO. QTC7-10 Productivity 16800-20160 Pieces 35*15*10cm Interlocks /8 Hours Labor Required 3-4 Persons Voltage 220-440V Mixer Model Jq 750 Processing Method Hydraulic Pressure Rated Pressure 16-22MPa Total Machine Power 15kw Vibration Frequency 2800-4500r/Min Raw Materials Clay/Cement/Soil Transport Package Standard Export Packing Specification Q235B Jigang steel Trademark weda Origin China HS Code 8474802000 Production Capacity 120 Sets/Month

Product Description

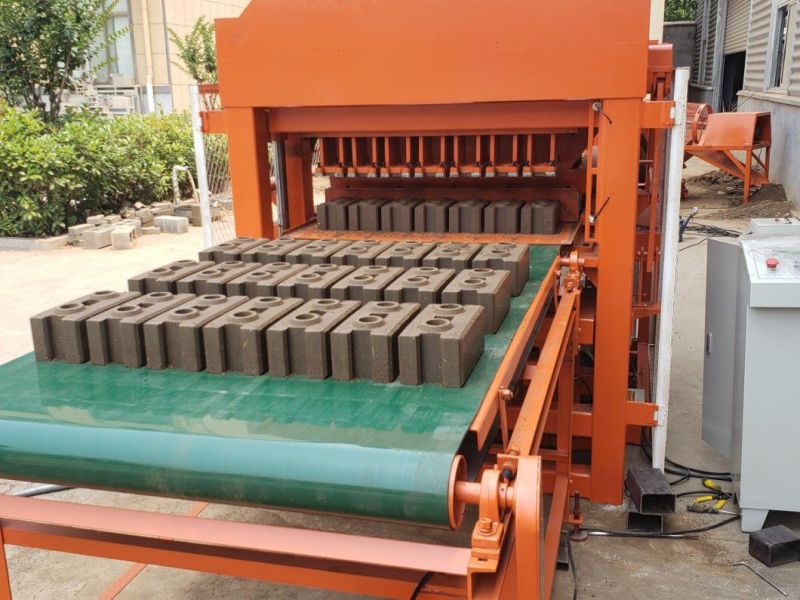

High Quality Full Automatic Clay Brick Production Line Qtc7-10 Interlocking Blocks Maker Machinery
1 using common clay /Soil / laterite (red soil) /mud /earth as raw materials, they are  cheap and easy to get .
2 brick with special interlocking(male and female) design,convenient for building and strong structure when in villa building.
3 the brick no need fire, so no pullute the air, eco bricks, good friendly for enviroments.
4 big cylinder Hydraulic pressing, making strong high density of clay interlocking bricks.
5 Original south africa machine design

 Main technical parameters

Product name	Clay Brick Making Machine
Model No.	QTC4-10
Motor brand	ce standard motor
PLC brand	Delta
Pump type	plunger pump
block size	300x150x100 mm or customerize on client requirement.
Shaping cycle	7-10s
Models of mixer	JQ 500
Oil diameter	70mmx2
rated pressure	16-22Mpa
weight	1600 kgs
mold replaced	Yes
OEM	Yes





Theoretical production capacity

No.	Block photo	Block size	Pcs/mold	Pcs/hour	Pcs/day	Weight
1		300x150x100mm	7	2100-2520	16800-20160	4.5 Kgs
2		250x125x65mm	7	2100-2520	16800-20160	7.4 Kgs

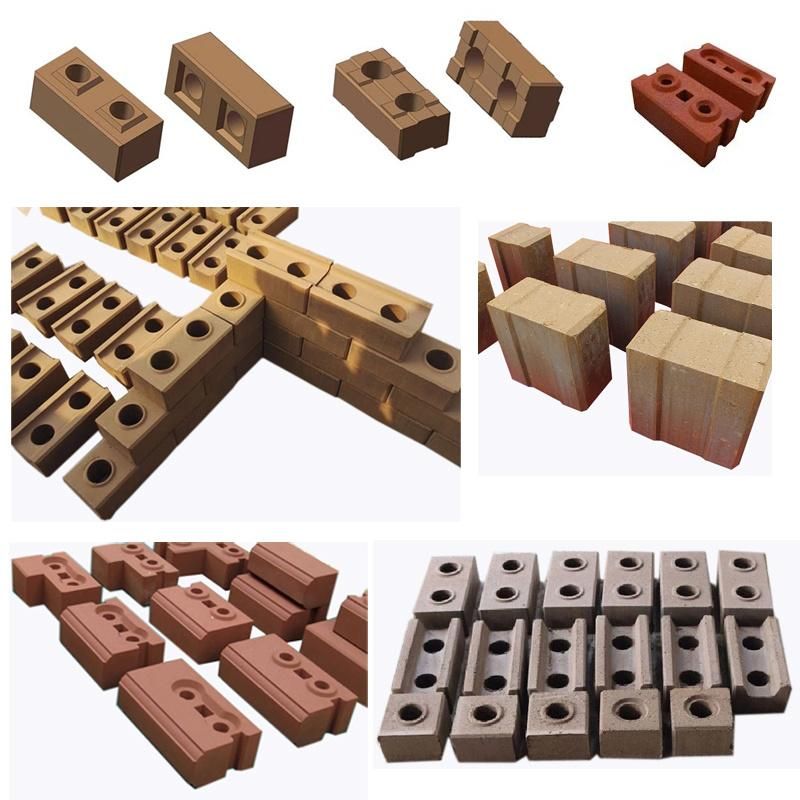

Blocks

material:clay /mud/erath soil/Laterite ,cement,water.


Ratio of raw material:cement 6%-8%,clay 80%-90% water:3%,about cement :clay : water is 2:30:1.

Packaging and shipping

certificate

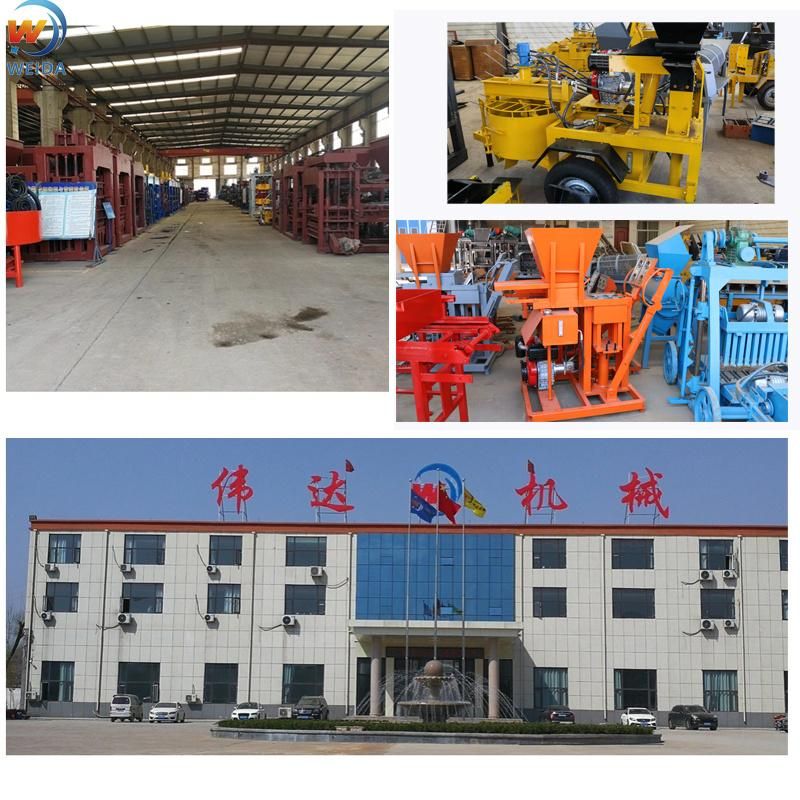

Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province, China.
