• Model NO.：CLJB2-350*3500
• Motor Rotary Speed：3200r,Min
• Air Pressure：0.4-0.6MPa
• Air Consumption：30L,Min
• Cutting Length：290-3500mm
• Cutting Width：Max. 200mm
• Cutting Height：Max. 100mm
• Cutting Angle：45&Deg-135&Deg
• Color：Gray or as Requirement
• Keywprd：Double Mitre Saw
• Transport Package：Simple Stretch Film or Plywood
• Trademark：TRUETEC
• Origin：Shandong China
• Production Capacity：15 Sets Per Month

Basic Info.

Model NO. CLJB2-350*3500 Motor Rotary Speed 3200r/Min Air Pressure 0.4-0.6MPa Air Consumption 30L/Min Cutting Length 290-3500mm Cutting Width Max. 200mm Cutting Height Max. 100mm Cutting Angle 45&Deg-135&Deg Color Gray or as Requirement Keywprd Double Mitre Saw Transport Package Simple Stretch Film or Plywood Trademark TRUETEC Origin Shandong China Production Capacity 15 Sets Per Month

Product Description

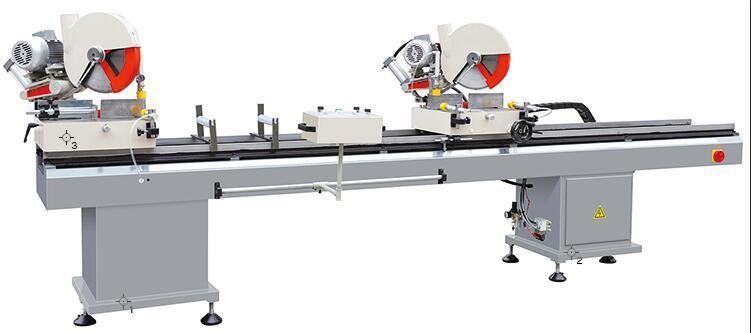

 PVC Profile Convenient Operation Adjustable High PrecisionDouble Mitre Saw

Equipment Advantages

1.Two heads work independently or together.
2.Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

3.Used for cutting aluminum and PVC profiles at 45°~90°.

4.The right machine head can be adjusted horizontally by the motor.

5.Two heads work independently or together.

6.Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

Technical Data

Model	CLJB2-350*3500
Input power	3.0Kw
Power supply	3800V/50Hz
Air pressure	0.5~0.8MPa
Air consumption	100L/min
Saw Blade Specification	Φ350*Φ30
Cutting angle	90°~45°
Cutting width*height	200*100mm
Cutting length	290~3500mm
Overall dimension	4000*1120*1450mm
Weight	About 600

Machine Accessory

PLC	SIEMENS,  OMRON,Taiwan Delta
Solenoid valve	Germany FESTO
Electrical Button and Switcher	Schneider
Temperature Controller	OMRON
Motor	DEDONG Zhejiang
AC Contactor and Circuit Breaker	Schneider

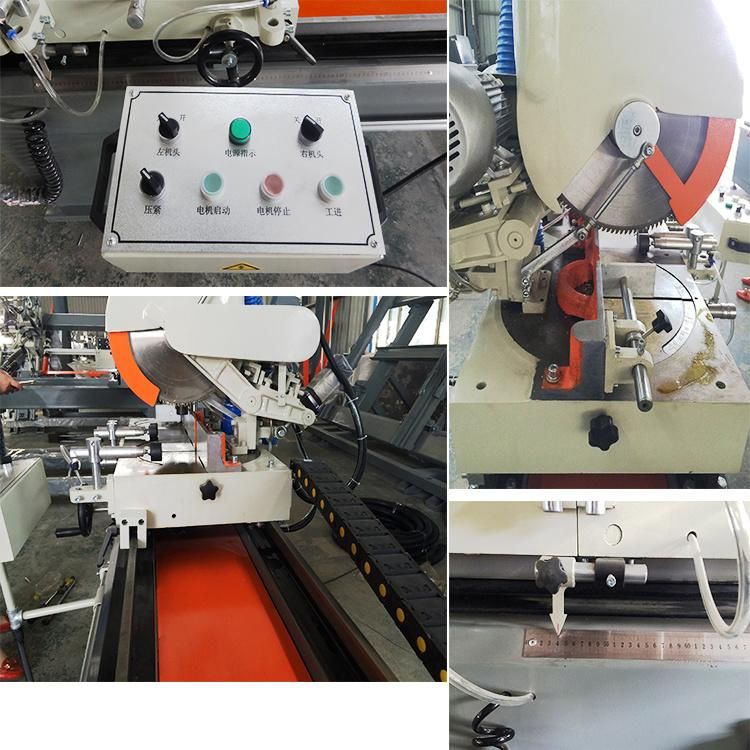

Machines Details




 Main Accessory

Electric Component	Schneider
Buttons	Schneider
Electric relay	Schneider
Motor	Chaoyang
AC Contactor and Circuit Breaker	Schneider

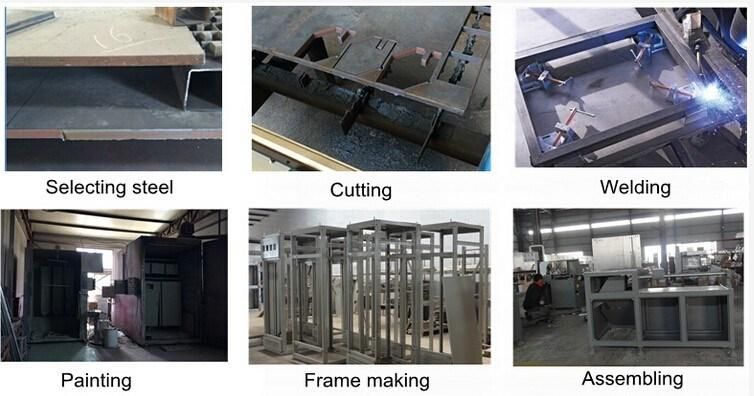

Machine processing

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.



Packaging&Shipping


Our Services

Before payment

Free contact for the most suitable machine

Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype (email or skype) .

1years warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment

♦ L/C, 30% deposit by T/T,70% spare payment L/C.

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal.

Our Company



Welcome To Visit

Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.



Our Exhibition

FAQ

1. When can we arrange shippment?
We usually arrange shippment within 25 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
