• Model NO.：LXF-235X100
• CNC or Not：not CNC
• Voltage：380V,220V or Customer Need
• Operation Air Pressure：0.6~0.8MPa
• Air Comsumption：10L,Min
• Input Voltage：380V,220V 50 Hz
• Main-Shaft Revolution：12000r,Min
• Inout Power：1.1kw
• Cutter Diameter：5,8mm
• Copy=Routing Range：235X100mm
• Machine Color：Customer Choose
• Is It New：Yes
• Overall Dimension：900X700X1500mm
• Transport Package：Wooden Package
• Specification：900x700x1500
• Trademark：Hiwoc
• Origin：Shandong, China
• HS Code：8461500090
• Production Capacity：20000PCS,Per Year

Basic Info.

Model NO. LXF-235X100 CNC or Not not CNC Voltage 380V/220V or Customer Need Operation Air Pressure 0.6~0.8MPa Air Comsumption 10L/Min Input Voltage 380V/220V 50 Hz Main-Shaft Revolution 12000r/Min Inout Power 1.1kw Cutter Diameter 5/8mm Copy=Routing Range 235X100mm Machine Color Customer Choose Is It New Yes Overall Dimension 900X700X1500mm Transport Package Wooden Package Specification 900x700x1500 Trademark Hiwoc Origin Shandong, China HS Code 8461500090 Production Capacity 20000PCS/Per Year

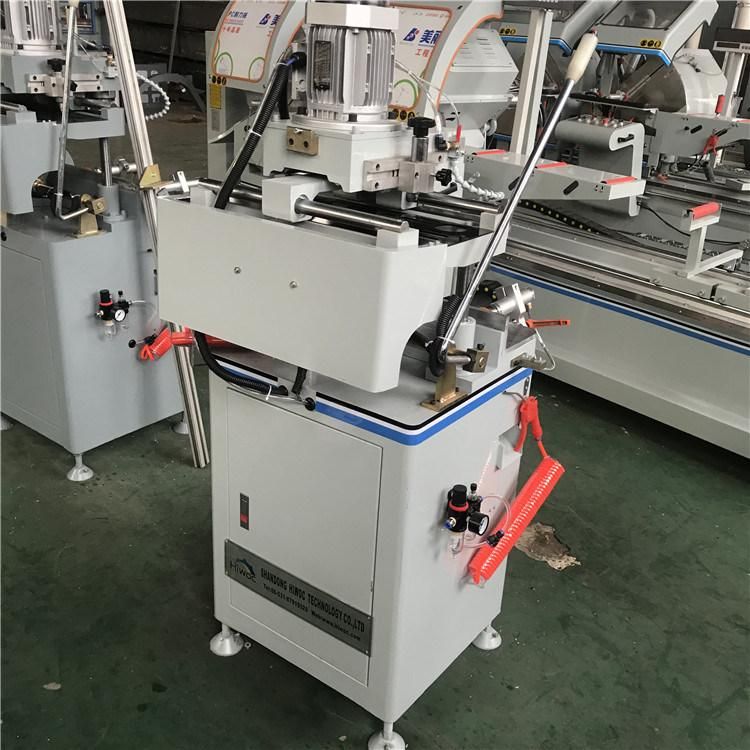

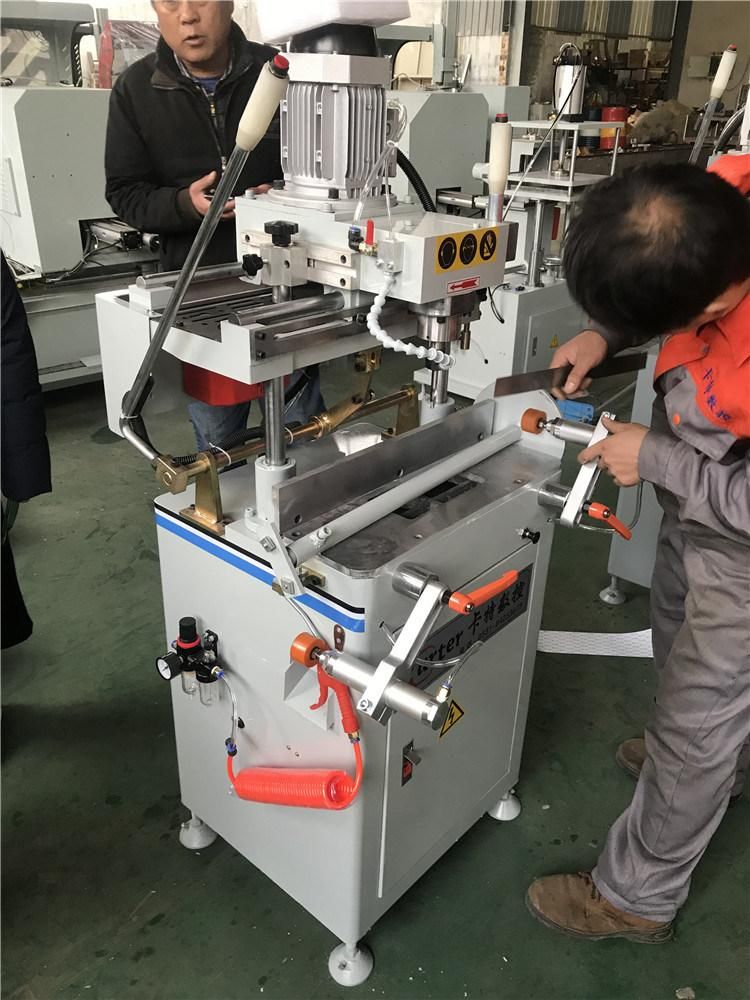

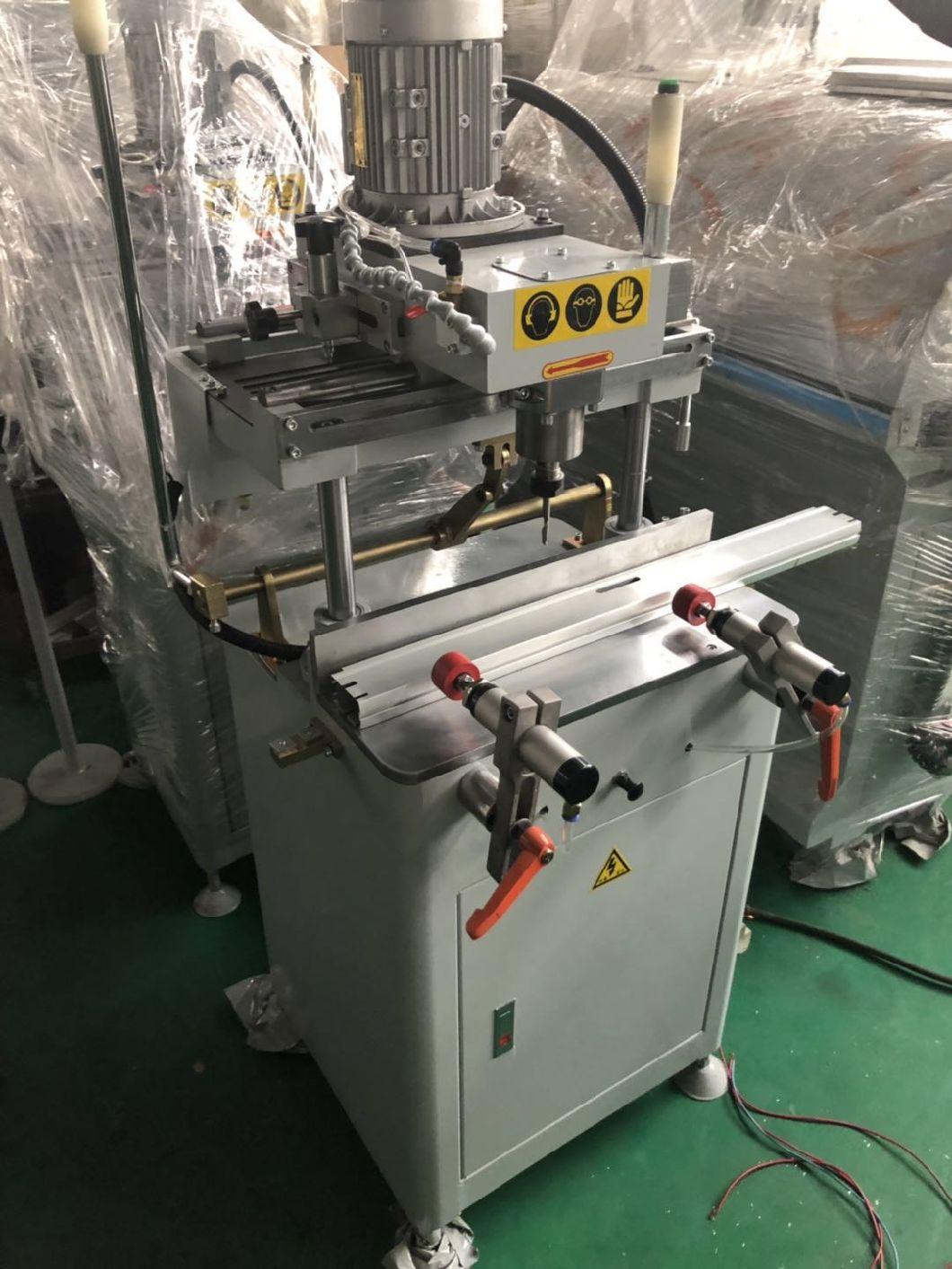

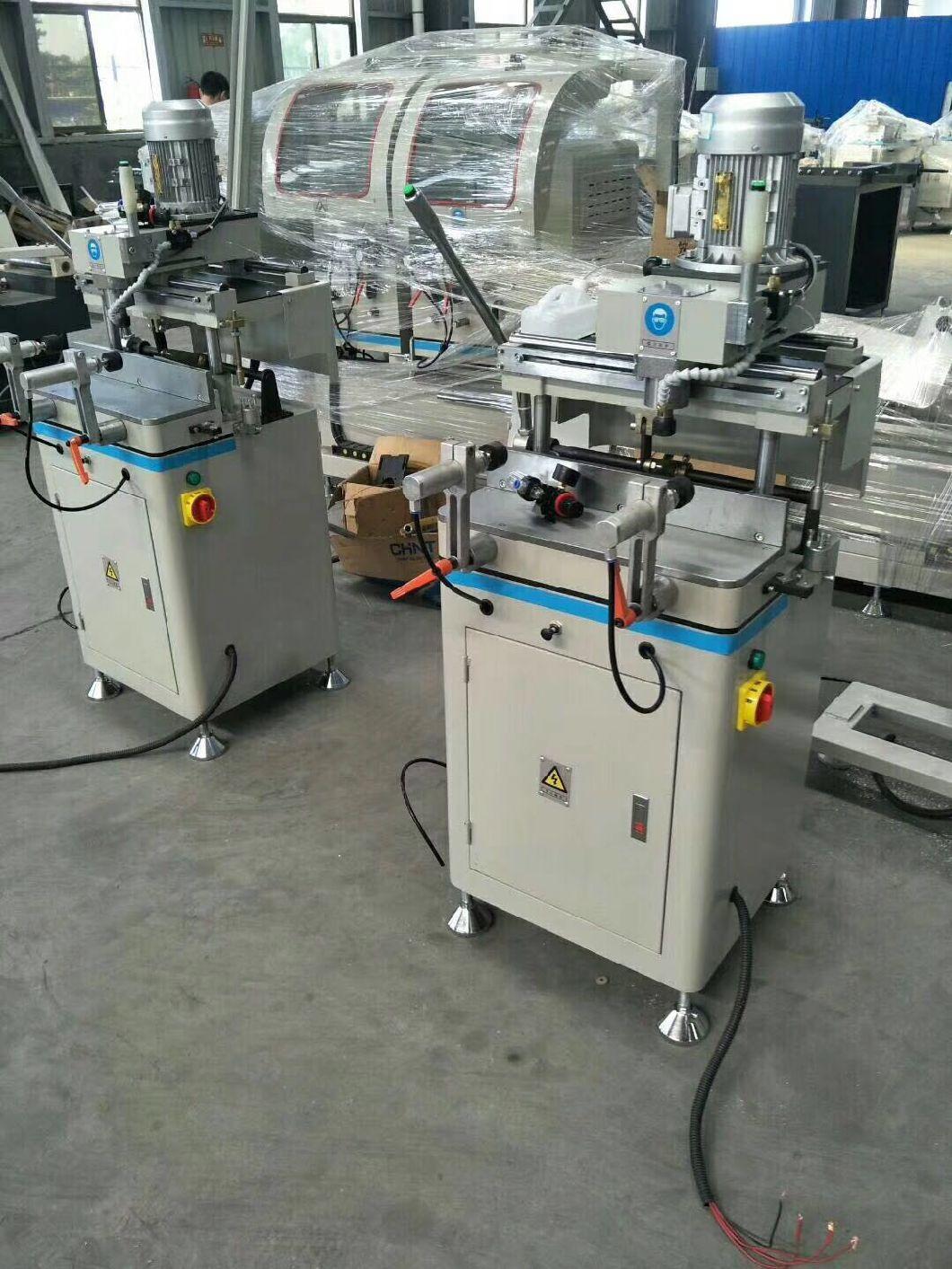

Product Description

Main features

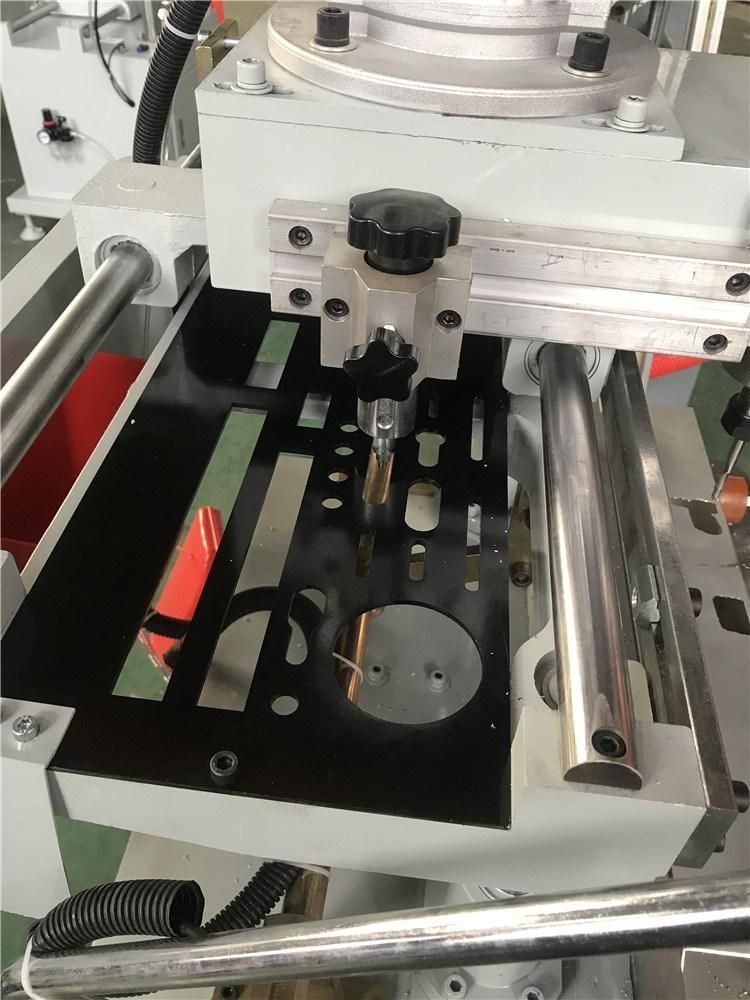

1)-Used for copy-routing processing various kinds of holes, grooves and water slots on aluminum and PVC
windows and door.
2)-The latest improvement of bearing seat structure, the belt can be easily replaced, become a more
complete product structure.
3)-Precision linear bearing guide rail, make the cutter movement smooth and flexible, easy to operate.

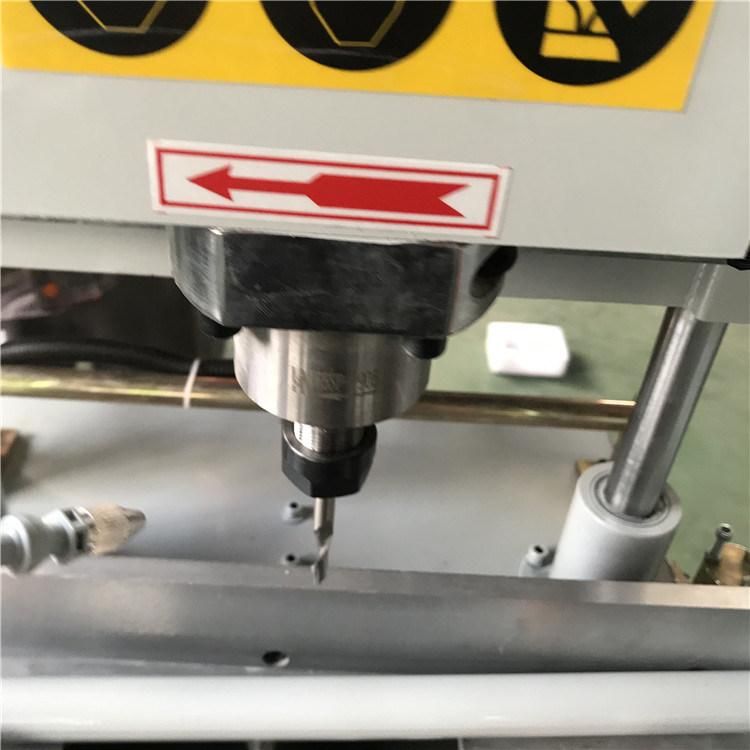

4)-It makes the milling cutter easy to clamp for its high standard milling cutter and main axis taper from
precision work
5)-Excellent gas oil atomization cooling system makes the milling effect better, cutting tool durable
Main specifications and parameters

Model	HXF-235*100
Input power	1.1kw
Power supply	380v/50Hz or customer specification
Air pressure	0.6-0.8MPa
Milling cutter diameter	Φ5, Φ8
Copy-routing range	235*100mm
Overall dimension	870*700*1500mm
Weight	230KGS
