• Model NO.：SHJ2-120*3500
• CNC or Not：not CNC
• Voltage：380V
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Input Voltage：220V 50~60Hz or as Customer Need
• Input Power：4.5kw
• Welding Profile Height：20-100mm
• Welding Width：Max 100mm Could Be Customized
• Welding Range：400-4500mm
• Overall Size：5300×950×1700mm
• Weight：18200kg
• Warranty Time：2 Years
• Transport Package：File and Plywood Case
• Specification：4400x950x1700mm
• Trademark：Hiwoc
• Origin：China
• HS Code：84659200
• Production Capacity：1000,Year

Basic Info.

Model NO. SHJ2-120*3500 CNC or Not not CNC Voltage 380V Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Input Voltage 220V 50~60Hz or as Customer Need Input Power 4.5kw Welding Profile Height 20-100mm Welding Width Max 100mm Could Be Customized Welding Range 400-4500mm Overall Size 5300×950×1700mm Weight 18200kg Warranty Time 2 Years Transport Package File and Plywood Case Specification 4400x950x1700mm Trademark Hiwoc Origin China HS Code 84659200 Production Capacity 1000/Year

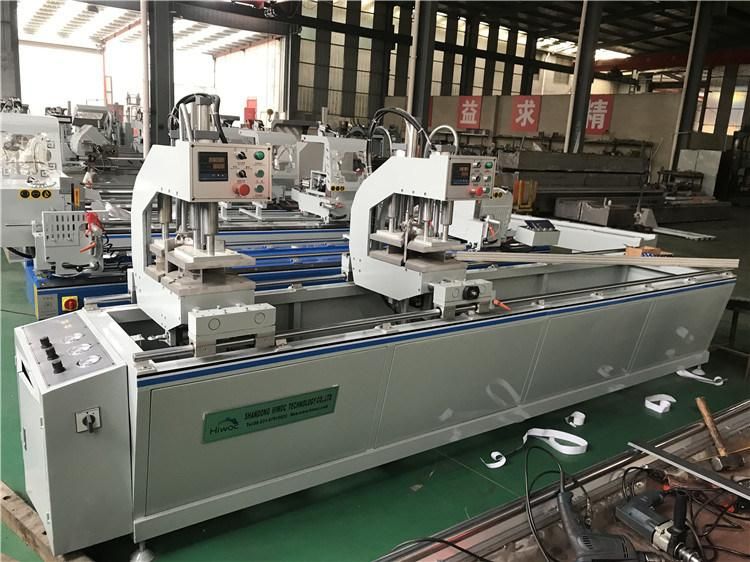

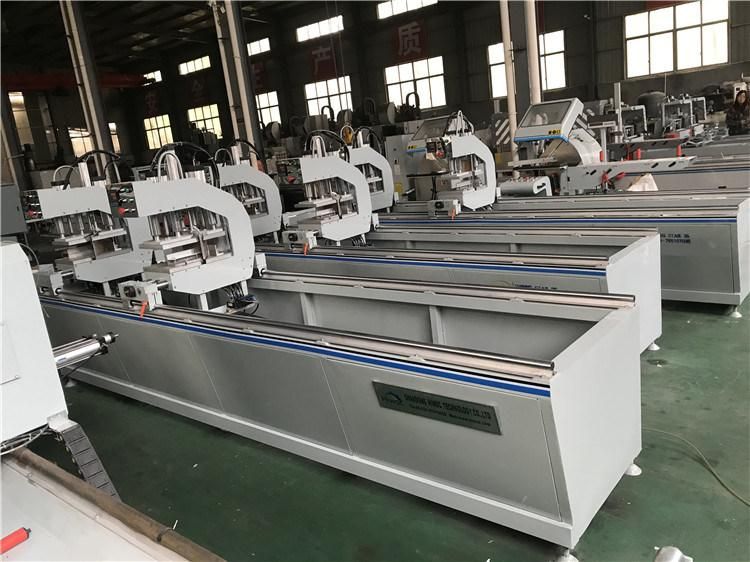

Product Description

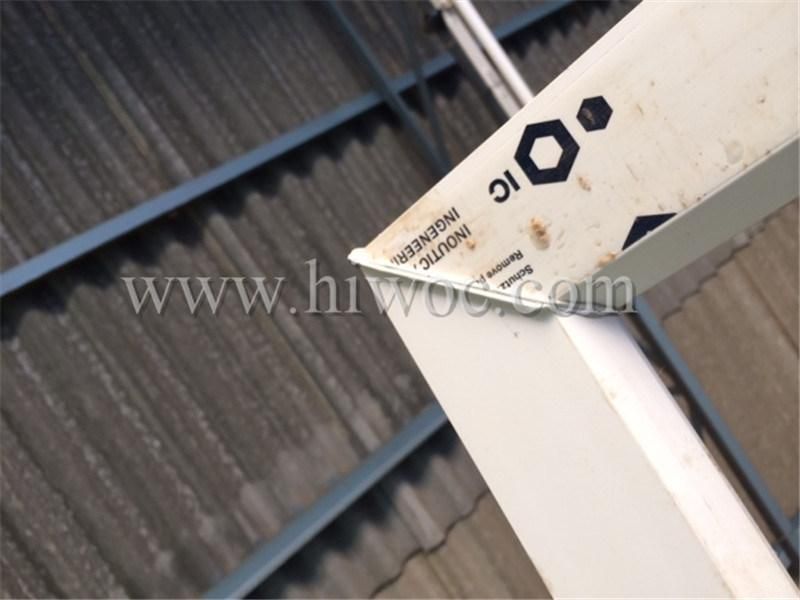

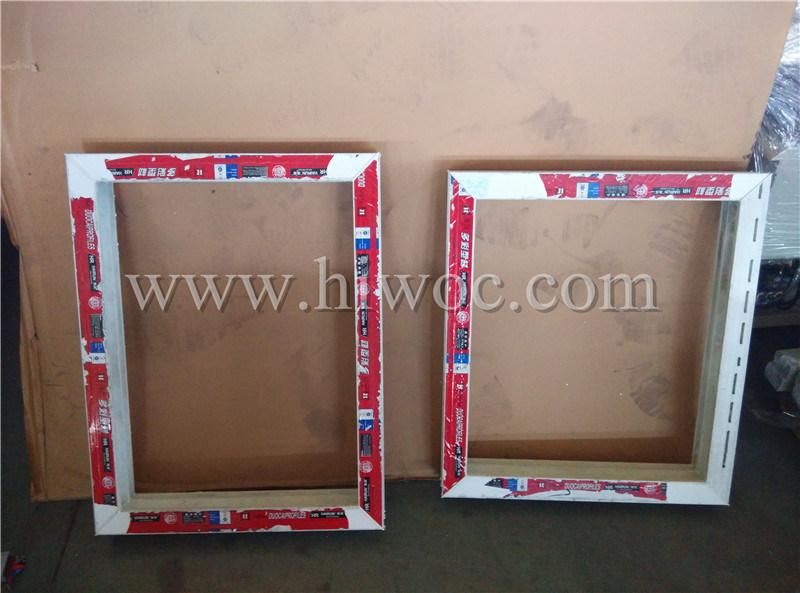

Feature1. Welding  ⊥∟+∠ many kinds shapes combined with each other, and maybe welded to range of arbitrary angle2. Three heads can work independently and can also be linked, flexible combination, high work efficiency.3. Right head could be 30° ~ 180° arbitrary angle welding

Parameter
Air Pressure	0.5~0.8MPa
Air consumption	200L/min
Input Voltage	380V 50~60Hz 3 phases or As Customer need
Input Power	4.5Kw
Welding profile height	20-120mm
Welding Width	Max 120mm
Welding range	400-4500mm
Overall size	5300×950×1700mm
Weight	1800kg



Main accessory
PLC	Taiwan Delta
Solenoid valve	Stnc
Cylinder	Huatong
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	AIRTEC
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider



Standard accessory
Heat plate	4pcs
Teflon cloth	several
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc
