• Model NO.：1000
• Usage：Roof, Wall, Floor
• Transmission Method：Hydraulic Pressure

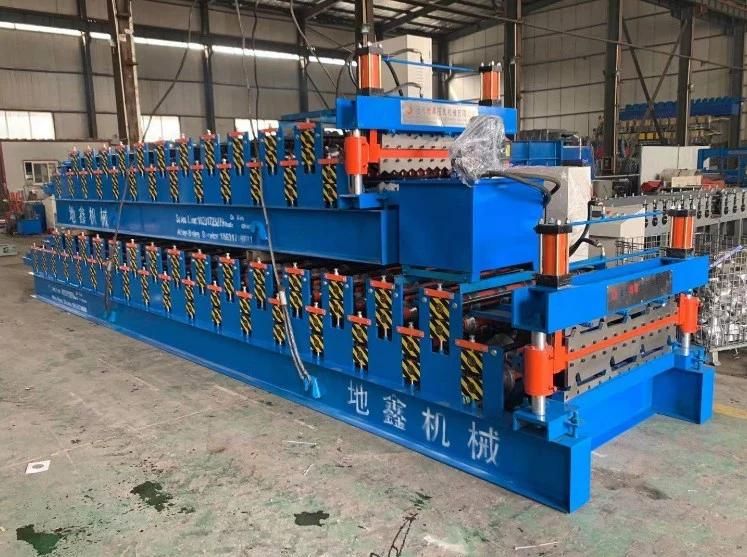

• Name：Tile Making Machinery
• Size(mm)：6800mm*1400mm*1300mm
• Total Weight(Kg)：About 4000kg
• Material of Roller：45#Steel, Quenched HRC58-62 with Polishing
• Main Motor Power：5.5kw
• Hydraulic Power：4kw
• Oil Pressure：10MPa
• Thickness of The Panel：0.3-0.8mm
• Working Speed (M/Min)：10-15m,Min
• Steps of The Roller：9-15 Steps
• Transport Package：1. One 20FT Container for Loading One Set Machine
• Specification：1000
• Trademark：dixin
• Origin：Hebei China
• HS Code：84552210
• Production Capacity：10000,Year

Technical Parameters (some depend on the final design)

1

Style

2

Machine dimension

7500*1600*1650mm

3

Total wight

5800kgs

4

Forming steps

5

Forming speed

Glazed design :1.5-3.0m/min  Wave design:10-15m/min

6

Hydraulic station power(Kw)

4kw

7

Diameter of shaft

70mm

8

Hydraulic pressure

18-20 MPa

9

Electric condition(Voltage )

380V/3Phase/ 50HZ (or based on customer's need ,for example :220V 440V 415V or 2Phase 60HZ )

10

Suitable to process

Color steel plate(G330 or G350 ) galvanized steel coil

11

Manual uncoiler max capacity

5000kgs

12

Control system

PLC

13

Raw material thickness

0.3-0.8mm

14

Effective width

15

Material width

1000mm

16

Main motor

17

Material of the cutting blade

Main Shaft Material

 Product packaging

A. Need one 20 or 40 ft container, according to your final drawing.
B. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is covered with anti-rust oil.
C. Spare parts in carton box.
