• Model NO.：DX1000
• Usage：Roof
• Transmission Method：Machinery
• Type：Tile Making Machinery
• Power Source：Hydraulic Pressure
• Feature：High Efficiency
• Advantage：Easy to Maintenance
• Forging Forming Method：Mold Forging
• Name：Metal Roof Glazed Tile Roll Forming Machine
• Material：Gi,Gl,PPGI
• Width：1000,1200,1250mm
• Thickness：0.30_0.80mm
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：CE ISO
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Year

1.Processing material

aluzinc/galvanized steel/colored steel coil

2.Material thickness

0.3-0.8mm

3.Feeding width:

1220mm As drawing

4.Effective width

As drawing

5.Main motor power

4kw

6.hydraulic pump power

4kw

7. Shaft diameter

75mm

8.Forming steps

15steps

9.Main frame

350H Steel frame

10. Side plate thickness

16mm

11.Roller material

45# forged steel, with hard chrome plating

12.Control systerm

Delta Brand PLC control with touch screen

13.Cutting blade material

Cr12.

14.Working speed

About 2-4m/min

15. Transmission way

1 inch chain drive

16. Machine size (mm)

About 7600*1600*1400

17. Machine weight

About 3 ton

18.Power supply

220v,3phase,50hz or accodring to customer request

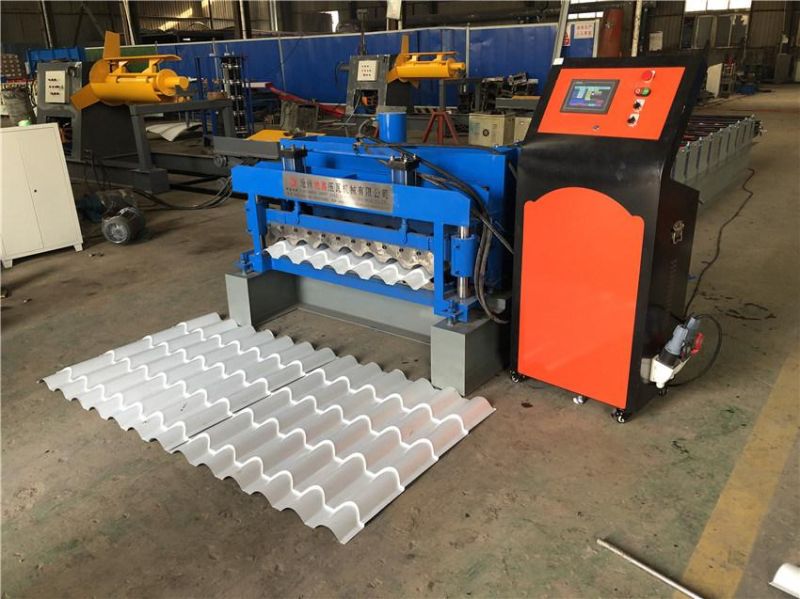

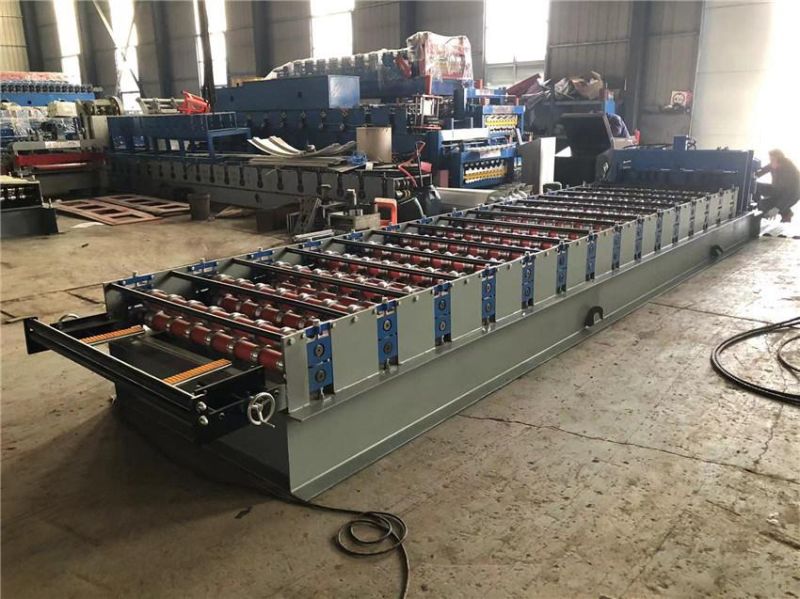

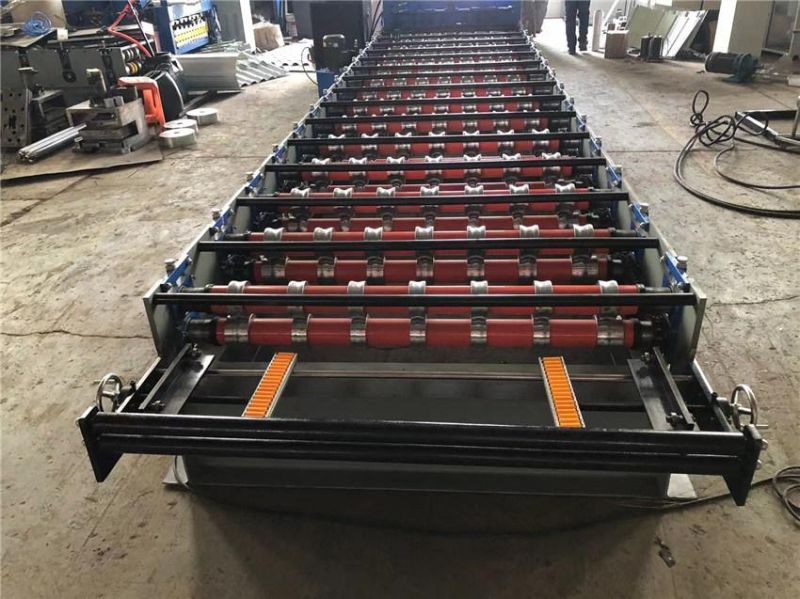

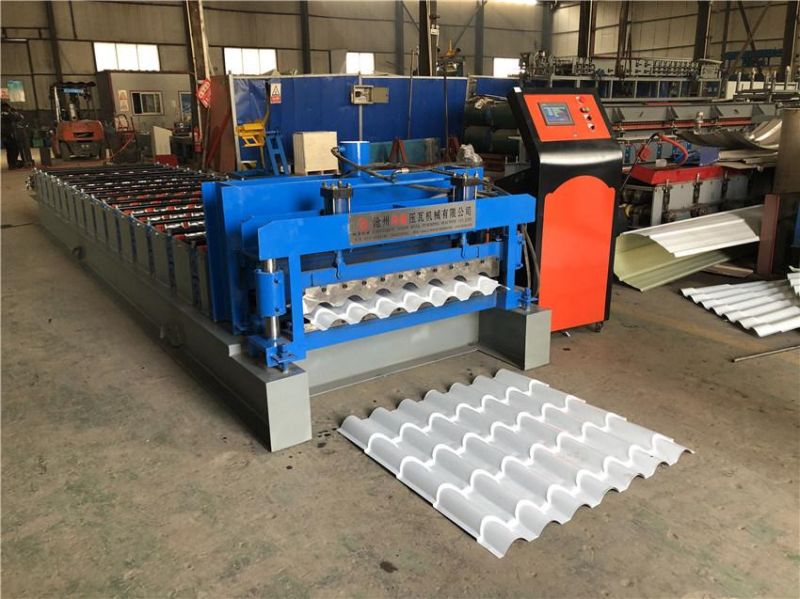

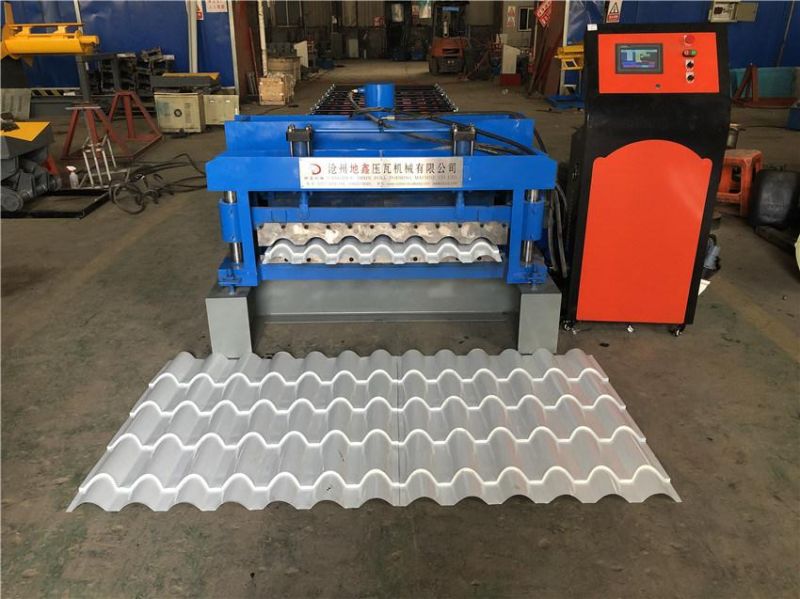

3.Some machine photos for your request

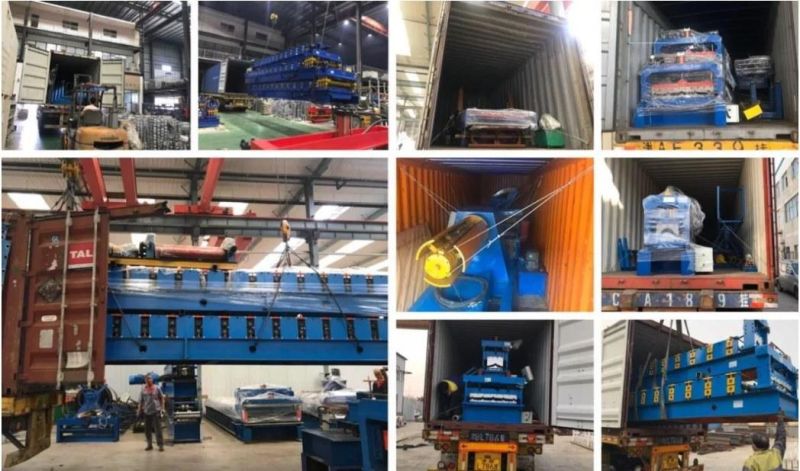

 Product packaging

A. Need one 20 or 40 ft container, according to your final drawing.
B. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is covered with anti-rust oil.
C. Spare parts in carton box.

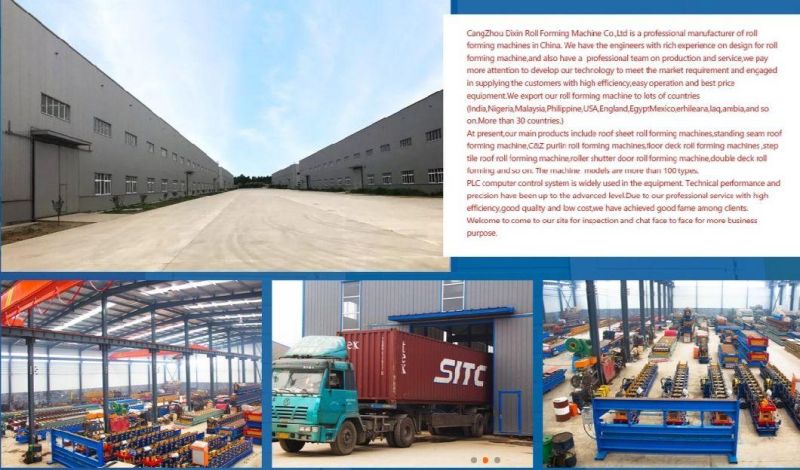

 Cangzhou Dixin Roll Forming Machine Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.

 1. Installation and training:
a.If buyers visit our factory and check Doble ondulado y trappezoidal maquina para fabricar calaminas , we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2. After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.
